Arc 136 Cutter: 36-Inch Automated Contour Cutting for DTF & UV DTF
Taylor LandesmanArc 136 Cutter: 36-Inch Automated Contour Cutting for DTF & UV DTF
The DTF Station Arc 136 Cutter automates large-format DTF and UV DTF finishing with camera-based registration tracking, vacuum hold-down, automatic roll feeding, and waste collection—helping shops reduce manual trimming and improve cut consistency.
What Is the Arc 136 Cutter?

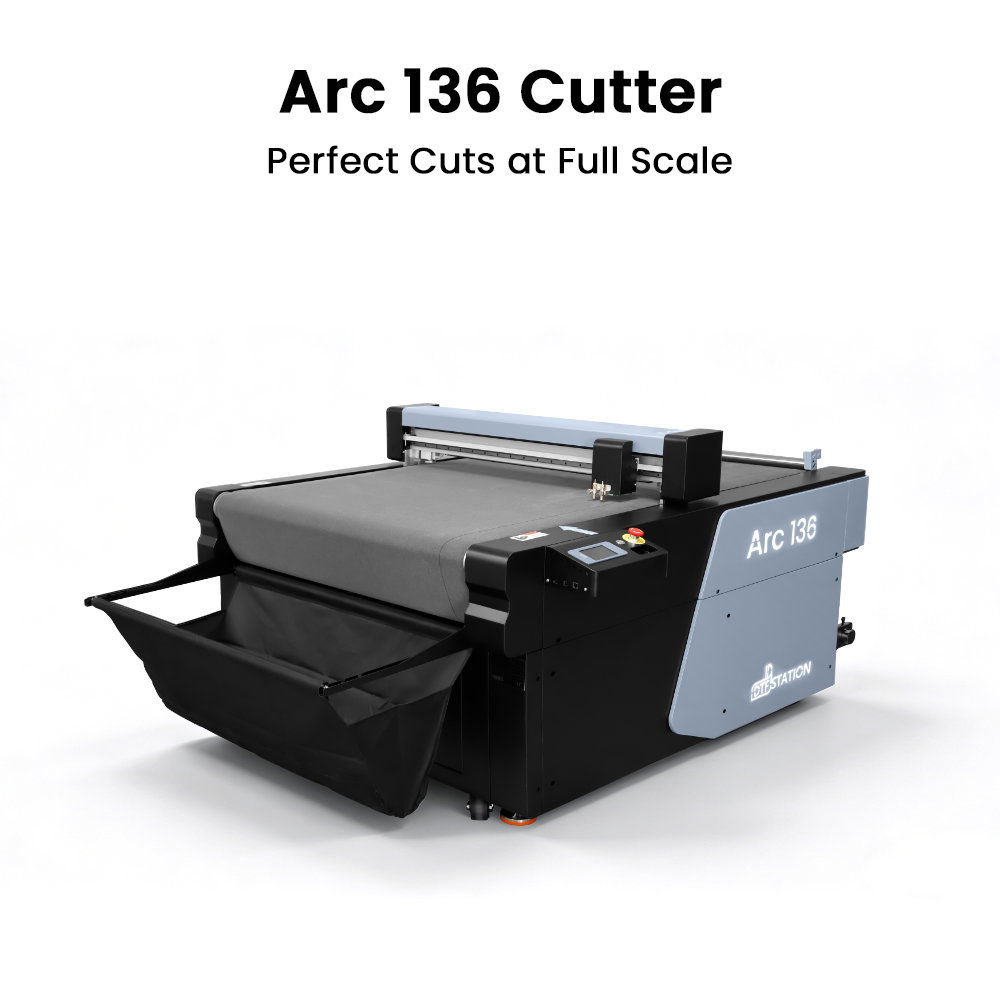

The DTF Station Arc 136 Cutter is a 91.4 cm (36-inch) industrial flatbed cutter built for high-volume DTF and UV DTF finishing. It is designed to automate contour cutting, reduce manual trimming, and improve consistency across wide-format transfer production workflows.
Using camera-based registration tracking and a vacuum bed, the Arc 136 detects registration marks and holds material flat during cutting. This makes it especially useful for high-density DTF gang sheets, UV DTF transfers, decals, stickers, vinyl, and other printed media that require accurate contour cuts.
Workflow at a Glance
- Print DTF or UV DTF transfers on a compatible 91.4 cm (36-inch) wide-format printer
- Complete powder application and curing downstream
- Load printed media into the Arc 136’s automatic roll-feed system
- Camera-based registration tracking aligns the cut path to printed registration marks
- Vacuum hold-down keeps material stable during high-speed cutting
- Auto waste collection separates offcuts for a cleaner workspace
Key Specifications
The Arc 136 is designed for 91.4 cm (36-inch) roll workflows, including output from 36-inch DTF printers. It supports both sheet and roll cutting workflows and combines cutting speed, camera-based registration, and vacuum hold-down for repeatable large-format finishing.
What Makes the Arc 136 Different
Camera-Based Registration Tracking
The optical camera system detects printed registration marks and helps correct for skew, stretched media, or alignment drift. Combined with 0.05 mm (0.002-inch) mechanical resolution, it is designed to keep contour cut paths aligned with the artwork—even across dense gang sheets.
Vacuum Hold-Down Platform
The integrated vacuum platform helps keep flexible PET films, powdered DTF transfers, vinyl, and other media flat during cutting. This reduces the risk of material shifting, bubbling, or catching under high-speed tool movement.
Automatic Roll Feeding
The automatic rolling-feed system is designed for continuous production with 91.4 cm (36-inch) roll media. It helps move printed media through the cutter efficiently, supporting both roll-based and sheet-based finishing workflows.
Auto Waste Collection
As jobs are cut, the auto-waste collection system separates offcuts from finished output. This helps maintain a cleaner workspace and reduces the chance of media jams during continuous production.
Multi-Material Cutting
With adjustable cutting force up to 9.8 N and compatibility with materials up to 1 mm (0.04 inch) thick, the Arc 136 can cut DTF and UV DTF films, PET, vinyl, TPU, PVC, reflective film, photo paper, cardboard, and stickers.
Connected Production Features
The Arc 136 supports LAN connectivity and wireless job transfer, allowing cut files to move into the production workflow without manual file handling. It can also synchronize multiple cutters from one file, making it easier to scale cutting capacity as volume grows.
Manual Cutting vs. Arc 136 Cutter
Manual trimming can work for low-volume production or simple rectangular cuts, but it becomes a bottleneck when shops need consistent contour cuts across high volumes of DTF, UV DTF, vinyl, or decal media.
| Factor | Manual Cutting | Arc 136 Cutter |
|---|---|---|
| Cut type | Mostly straight trims; contour cuts are slow and labor-intensive | Automated contour cutting with camera-based registration |
| Alignment | Operator-dependent | Camera-based registration tracking detects registration marks and helps correct alignment |
| Media handling | Manual feeding and positioning | Automatic roll feeding with vacuum hold-down |
| Waste handling | Manual cleanup | Auto waste collection helps keep the workspace clear |
| Consistency | Varies by operator, material, and job complexity | Designed for repeatable, production-focused cutting |
| Best fit | Low-volume or simple trim work | High-volume 91.4 cm (36-inch) DTF, UV DTF, vinyl, and decal production |
System Compatibility
The Arc 136 is designed to integrate into 91.4 cm (36-inch) industrial print production workflows. It is commonly paired with wide-format DTF printing, powder application, curing, and heat-press equipment.
Printing
Pairs with 91.4 cm (36-inch) wide-format DTF printers, including the Prestige X6 DTF Printer, Epson G6070, Prestige XL4, Prestige XL3, and Prestige XL2.
Powder & Curing
Works downstream of all powder-shaking and curing machines for powder application and curing.
Heat Application
Delivers cut gang sheets ready for press application with all types of heat presses, including automatic DTF transfer presses like the LWG Turbo-Stamp.
Power, Space & Warranty
Who Should Buy the Arc 136 Cutter?
Choose the Arc 136 if you need:
- Automated contour cutting for 91.4 cm (36-inch) DTF and UV DTF production
- Consistent registration across high-density gang sheets
- Reduced manual trimming and hand-cutting labor
- Automatic roll feeding and waste collection
- A cutter for DTF, UV DTF, vinyl, decals, stickers, and signage
- A scalable finishing workflow for growing transfer volume
Arc 136 Cutter FAQ
What roll width does the Arc 136 support?
The Arc 136 is designed for 91.4 cm (36-inch) roll workflows, including rolls produced by 36-inch DTF printers such as the Epson G6070 and Prestige X6. Its published maximum media width is 90 cm (35.4 inches), and its maximum sheet-cutting size is 90 cm × 120 cm (35.4″ × 47.2″).
Does the Arc 136 require special electrical connections?
Yes. The cutter requires 220 V / 16 A power with a 3.5 kW rating. Confirm that your shop’s electrical panel can support a dedicated 220 V circuit before installation.
What materials can it cut?
The Arc 136 can cut DTF and UV DTF films, PET, vinyl, TPU, PVC, reflective films, stickers, photo paper, cardboard, and other compatible media up to 1 mm (0.04 inch) thick.
How fast is the Arc 136?
Maximum cutting speed is up to 100 cm/s (39.4 inches per second). Actual output depends on cut-path complexity, gang-sheet layout, material type, and registration requirements.
Does it cut DTF gang sheets automatically?
Yes. The Arc 136 is designed for automated contour cutting of printed transfer media. Camera-based registration tracking and vacuum hold-down help maintain accurate alignment during production.
What is the Arc 136 warranty?
The manufacturer warranty is 16 months from the date shown on the CE label. Confirm final coverage and service terms with Lawson at the time of purchase.
Ready to Automate DTF Finishing?
The Arc 136 is a strong fit for shops that need accurate, high-volume contour cutting for DTF, UV DTF, vinyl, and decal production. Review complete specifications or speak with Lawson about configuration, installation, training, and service.
