DTF Station Miro 36 Pro Powder Shaker, Dryer & Bundles

DTF Station Miro 36 Pro Powder Shaker, Dryer & Bundles

DTF Station

SKU:

$7,999.00 USD
$7,999.00 USD
Sale Sold out

Payment & Security

Payment Methods Accepted

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Financing Options

Need to finance the DTF Station Miro 36 Pro Powder Shaker, Dryer & Bundles? No problem! Visit our Financing Page for more details.

Got a question about this product?

Questions & Answers

What does the DTF Station Miro 36 Pro do?

The DTF Station Miro 36 Pro is an automated powder shaker and curing dryer for roll-to-roll direct-to-film production. It applies adhesive powder to printed DTF film and heats the powdered film to prepare transfers for the heat-press application stage.

What film width and production capacity does the Miro 36 Pro support?

The Miro 36 Pro supports a manufacturer-listed maximum film width of 36 inches and a rated curing capacity of up to 22 m² per hour, approximately 237 square feet per hour. Actual production depends on the printer, film, powder, and operating settings. This rating describes finishing capacity, not finished garments per hour.

Which DTF printers are compatible with the Miro 36 Pro?

Manufacturer-listed compatible printers include the Epson SureColor G6070, Mimaki TxF300-75, Mimaki TxF150-75, and Prestige X6 operating at 720 × 1200 DPI Normal Strong A or higher. Other printer pairings require confirmation of film width, output speed, and installation compatibility.

What electrical setup does the Miro 36 Pro require?

The manufacturer lists 3.1 kW rated power, with 110V and 220V configurations. Listed current is 28A at 110V or 14A at 220V. Confirm the voltage, plug, and circuit requirements of the supplied machine before installation. Do not assume it can use a standard household outlet.

Does the Miro 36 Pro include fume extraction?

The Miro 36 Pro includes built-in fume extraction and an external extraction connection. Confirm ventilation and extraction requirements for your installation before operation; built-in extraction should not be treated as an unconditional “no ventilation required” claim.

What Miro 36 Pro packages does Lawson Workhorse Group offer?

Lawson Workhorse Group lists the Miro 36 Pro as a standalone machine, a package with supplies, and a package with supplies and on-site training. The supplies package lists 1 kg of Color Prime DTF Powder and one roll of Color Prime Quick Glide DTF Film measuring 35.43 inches × 109 yards. The training package lists on-site training with domestic travel for an Epson G6070 and Miro 36 workflow. Review the selected package and confirm training scope before ordering.

View full details

Description

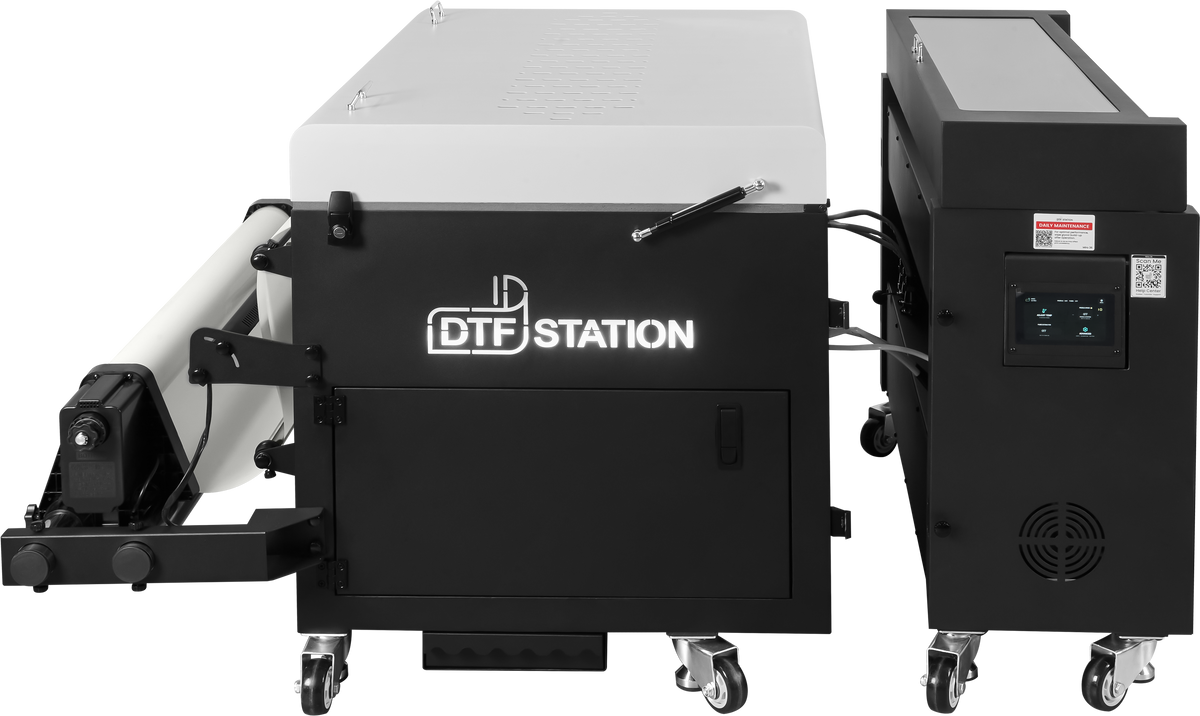

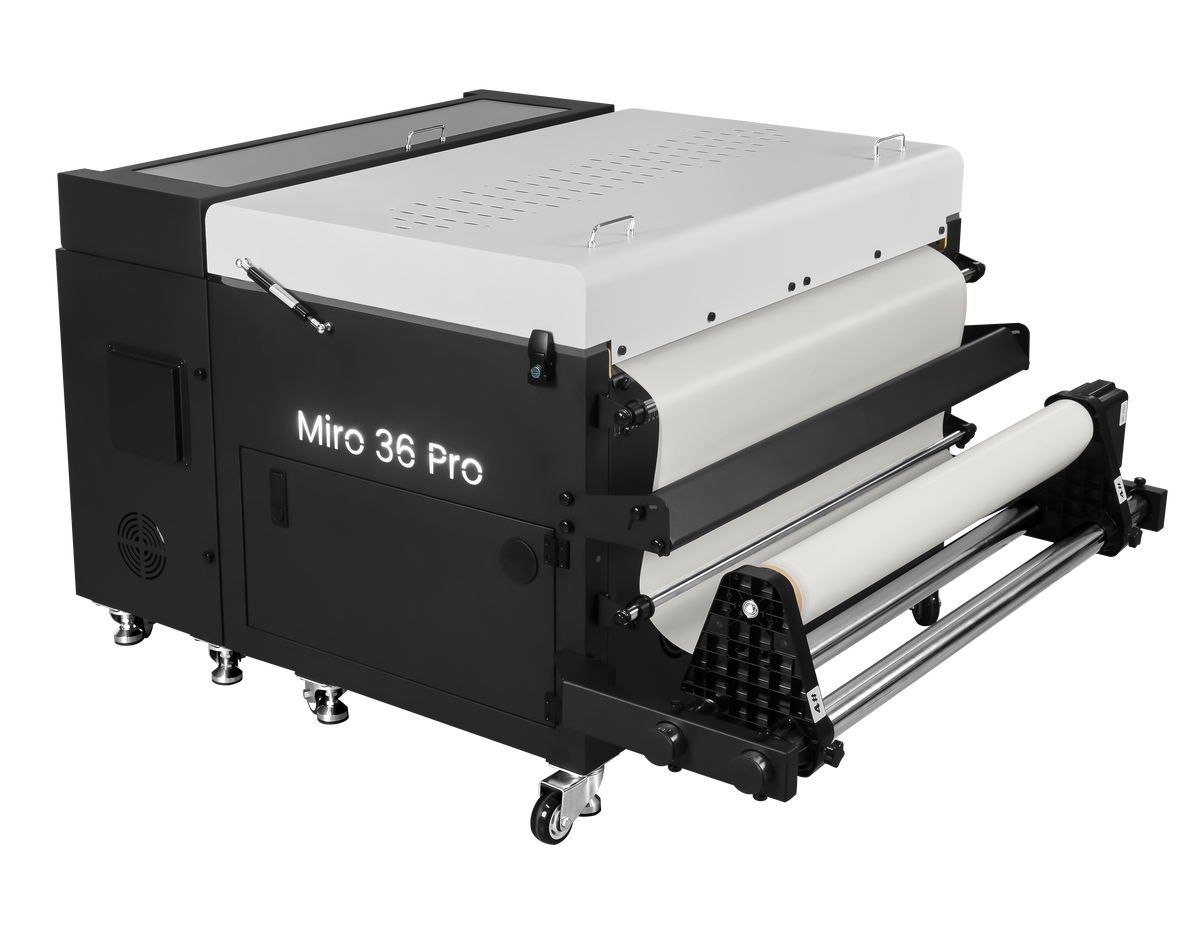

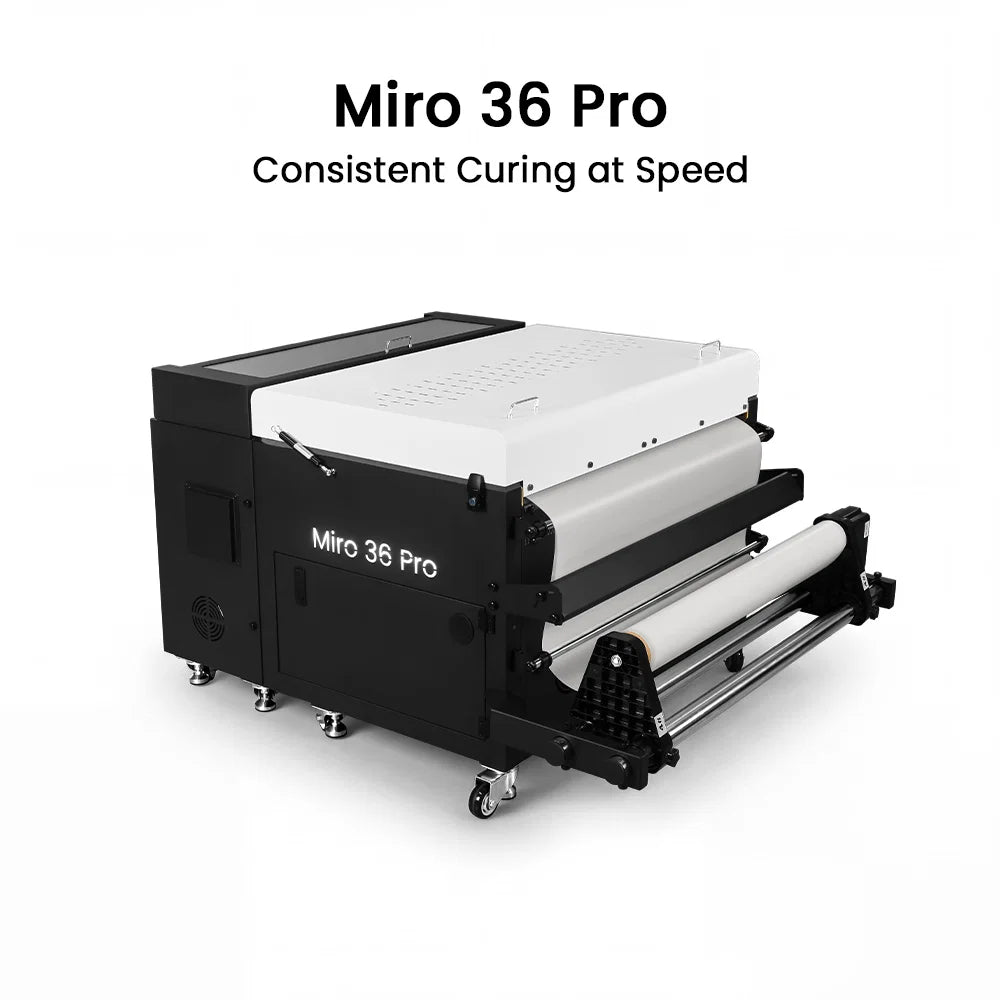

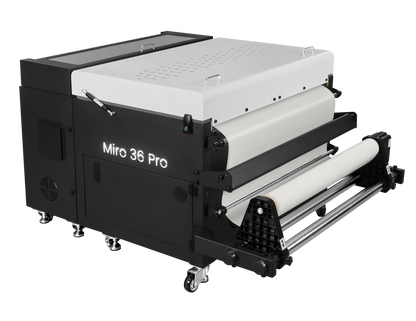

The DTF Station Miro 36 Pro is an automated DTF powder shaker and curing dryer for roll-to-roll direct-to-film printers using media up to 36 inches wide. Designed for growing garment decorators and transfer-production shops, it combines adhesive powder application and heat curing in one finishing system, with a manufacturer-rated curing capacity of up to 22 m² per hour—approximately 237 square feet per hour.

Four independent temperature sensing and control points work with front preheating, bottom heating, and upper heating to give operators greater control over the curing process. A touchscreen interface with PLC control supports daily adjustments, while built-in fume extraction and an external extraction connection provide options for managing the production environment.

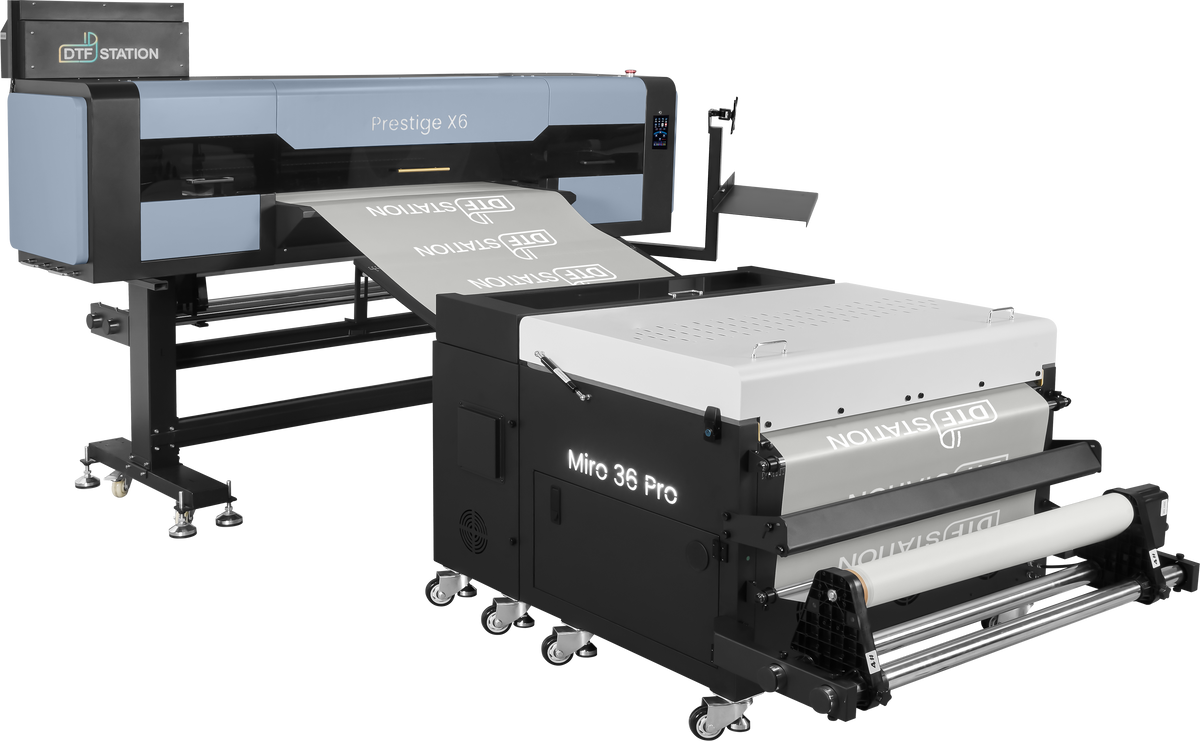

The Miro 36 Pro supports compatible 36-inch DTF workflows, including the Epson SureColor G6070 and selected Prestige and Mimaki printers. Compatibility depends on film width, printer output speed, and installation configuration. Lawson Workhorse Group offers standalone, supplies, and supplies-with-on-site-training packages so you can select the configuration that fits your shop.

The DTF Station Miro 36 Pro is an automated DTF powder shaker and curing dryer for roll-to-roll direct-to-film printers using media up to 36 inches wide. Designed for growing garment decorators and transfer-production shops, it combines adhesive powder application and heat curing in one finishing system, with a manufacturer-rated curing capacity of up to 22 m² per hour—approximately 237 square feet per hour.

Four independent temperature sensing and control points work with front preheating, bottom heating, and upper heating to give operators greater control over the curing process. A touchscreen interface with PLC control supports daily adjustments, while built-in fume extraction and an external extraction connection provide options for managing the production environment.

The Miro 36 Pro supports compatible 36-inch DTF workflows, including the Epson SureColor G6070 and selected Prestige and Mimaki printers. Compatibility depends on film width, printer output speed, and installation configuration. Lawson Workhorse Group offers standalone, supplies, and supplies-with-on-site-training packages so you can select the configuration that fits your shop.

The LWG Difference

Choose Your Equipment Package

Lawson Workhorse Group offers the Miro 36 Pro as a standalone machine, a package with supplies, or a package with supplies and on-site training. Choose the standalone option when you already have compatible consumables, or select a package to add the listed film, powder, and training services.

Supplies Selected for Your Setup

The listed supplies package includes 1 kg of Color Prime DTF Powder and a roll of Color Prime Quick Glide DTF Film measuring 35.43 inches × 109 yards. Review the selected package’s inclusion list before ordering, because supplies are not listed as included with every configuration.

On-Site Training Option

The supplies-and-training package lists on-site training with domestic travel for an Epson G6070 and Miro 36 workflow. Confirm the training scope and your equipment configuration with LWG before purchase so the selected service matches your installation.

Access to LWG Service Resources

LWG provides installation, training, and service through its St. Louis headquarters and Atlanta-area office, with additional satellite support locations. Contact LWG to confirm the services available for your Miro 36 Pro package and location.

Choose Your Equipment Package

Lawson Workhorse Group offers the Miro 36 Pro as a standalone machine, a package with supplies, or a package with supplies and on-site training. Choose the standalone option when you already have compatible consumables, or select a package to add the listed film, powder, and training services.

Supplies Selected for Your Setup

The listed supplies package includes 1 kg of Color Prime DTF Powder and a roll of Color Prime Quick Glide DTF Film measuring 35.43 inches × 109 yards. Review the selected package’s inclusion list before ordering, because supplies are not listed as included with every configuration.

On-Site Training Option

The supplies-and-training package lists on-site training with domestic travel for an Epson G6070 and Miro 36 workflow. Confirm the training scope and your equipment configuration with LWG before purchase so the selected service matches your installation.

Access to LWG Service Resources

LWG provides installation, training, and service through its St. Louis headquarters and Atlanta-area office, with additional satellite support locations. Contact LWG to confirm the services available for your Miro 36 Pro package and location.

Features

Automated DTF Powder Application

The Miro 36 Pro automates adhesive powder application as part of a roll-to-roll DTF finishing workflow, bringing powdering and curing together in one machine.

Up to 36-Inch Film Width

Process DTF film up to the manufacturer’s nominal 36-inch maximum width. The machine supports compatible wide-format printers without requiring a move to a 64-inch finishing platform.

Up to 237 Square Feet per Hour of Curing Capacity

Manufacturer-rated curing capacity reaches up to 22 m² per hour, approximately 237 square feet per hour. Match printer output and operating settings to the finishing system’s rated capacity; the maximum rating is not a guaranteed production rate for every workflow.

Four Independent Temperature-Control Points

Four independent temperature sensing and control points provide separate control across the heating system, helping operators manage the curing process as production requirements change.

Front, Bottom, and Upper Heating

Front preheating, bottom heating, and added upper heating expand heating coverage along the film path. This arrangement provides more control over the curing process than relying on a single heating location.

Built-In Fume Management

Integrated fume extraction and an external extraction connection support production-area fume management. The machine includes an external extraction option rather than relying solely on internal filtration.

Touchscreen and PLC Control

A touchscreen interface and programmable logic controller provide centralized access to machine operation and process adjustments.

Powder Collection Drawer

A powder collection drawer provides a dedicated collection point for powder handling during operation and routine maintenance.

Modular Installation Design

The manufacturer describes a detached design intended to support standard-door access and easier installation. Confirm the delivery route, doorway clearance, and assembled operating space before scheduling delivery.

Automated DTF Powder Application

The Miro 36 Pro automates adhesive powder application as part of a roll-to-roll DTF finishing workflow, bringing powdering and curing together in one machine.

Up to 36-Inch Film Width

Process DTF film up to the manufacturer’s nominal 36-inch maximum width. The machine supports compatible wide-format printers without requiring a move to a 64-inch finishing platform.

Up to 237 Square Feet per Hour of Curing Capacity

Manufacturer-rated curing capacity reaches up to 22 m² per hour, approximately 237 square feet per hour. Match printer output and operating settings to the finishing system’s rated capacity; the maximum rating is not a guaranteed production rate for every workflow.

Four Independent Temperature-Control Points

Four independent temperature sensing and control points provide separate control across the heating system, helping operators manage the curing process as production requirements change.

Front, Bottom, and Upper Heating

Front preheating, bottom heating, and added upper heating expand heating coverage along the film path. This arrangement provides more control over the curing process than relying on a single heating location.

Built-In Fume Management

Integrated fume extraction and an external extraction connection support production-area fume management. The machine includes an external extraction option rather than relying solely on internal filtration.

Touchscreen and PLC Control

A touchscreen interface and programmable logic controller provide centralized access to machine operation and process adjustments.

Powder Collection Drawer

A powder collection drawer provides a dedicated collection point for powder handling during operation and routine maintenance.

Modular Installation Design

The manufacturer describes a detached design intended to support standard-door access and easier installation. Confirm the delivery route, doorway clearance, and assembled operating space before scheduling delivery.

Specifications Table

MACHINE TYPE Automated DTF powder shaker and curing dryer
Production Workflow Roll-to-roll direct-to-film finishing
Maximum Film Width Manufacturer-listed 36 inches / 90 cm
Maximum Rated Curing Capacity Up to 22 m² per hour, approximately 237 square feet per hour
Temperature Control Four independent temperature sensing and control points
Heating System Front preheating, bottom heating, and upper heating
Maximum Powder Capacity 1.76 lb / 0.8 kg
Powder Collection Powder collection drawer
Fume Management Built-in fume extraction with an external extraction connection
Controls Touchscreen interface with programmable logic controller (PLC)
Rated Power 3.1 kW
Listed Voltage Configurations 110V / 220V; confirm the supplied configuration before installation
Listed Rated Current 28A at 110V / 14A at 220V
Machine Dimensions, D × W × H 76.37 × 43.31 × 32.40 inches / 194 × 110 × 82.3 cm
Net Machine Weight 499.4 lb / 226.5 kg
Packaged Dimensions, D × W × H 49.61 × 49.61 × 39.37 inches / 126 × 126 × 100 cm
Gross Packaged Weight 742 lb / 337 kg
Installation Design Detached, modular design intended to support standard-door access; confirm delivery-route clearance before installation
Manufacturer-Listed Printer Compatibility Epson SureColor G6070, Mimaki TxF300-75, Mimaki TxF150-75, and Prestige X6 at 720 × 1200 DPI Normal Strong A or higher
Other Printer Compatibility Subject to film width, printer output speed, workflow, and installation requirements
Electrical Requirements Confirm the supplied voltage configuration and required circuit before installation. The listed 110V configuration draws 28A and should not be described as compatible with a standard household outlet.
Production Rating Maximum curing capacity is a finishing-system rating, not a guaranteed printer speed or finished-garment production rate.

Comparison Table

COMPARISON DTF STATION MIRO 36 PRO DTF STATION MIRO 64
Primary Category 36-Inch Wide-Format DTF Powder Shaker & Dryer 64-Inch Industrial Grand-Format DTF Powder Shaker & Dryer
Max Media Width 36 Inches (90 cm) 64 Inches (160 cm)
Media Capacity & Setup Single media roll up to 36 inches Single 64-inch roll OR Dual 24-inch rolls simultaneously
Rated Production Speed Up to 22 m²/hr Up to 35 m²/hr (377 sq. ft./hr)
Thermal & Heating Setup 4-Zone PID system with curved bed to prevent film sagging 5-Zone upper heating bed + contact bottom-heating platen
Electrical Integration 110V AC, 2.25 kW (20.45A) 220V AC, 5.5 kW, Single Phase
Fume & Air Management Built-in patented internal air purification system (no ducting needed) Built-in internal fume extraction system
Doorway & Entry Access 2 modular pieces designed to pass through standard commercial doors 2 modular sections designed to pass through standard 36-inch doors
Best Fit Best for mid-to-high volume production paired with 30" to 36" DTF printers Best for grand-format, high-capacity print environments running 36" to 64" printers
