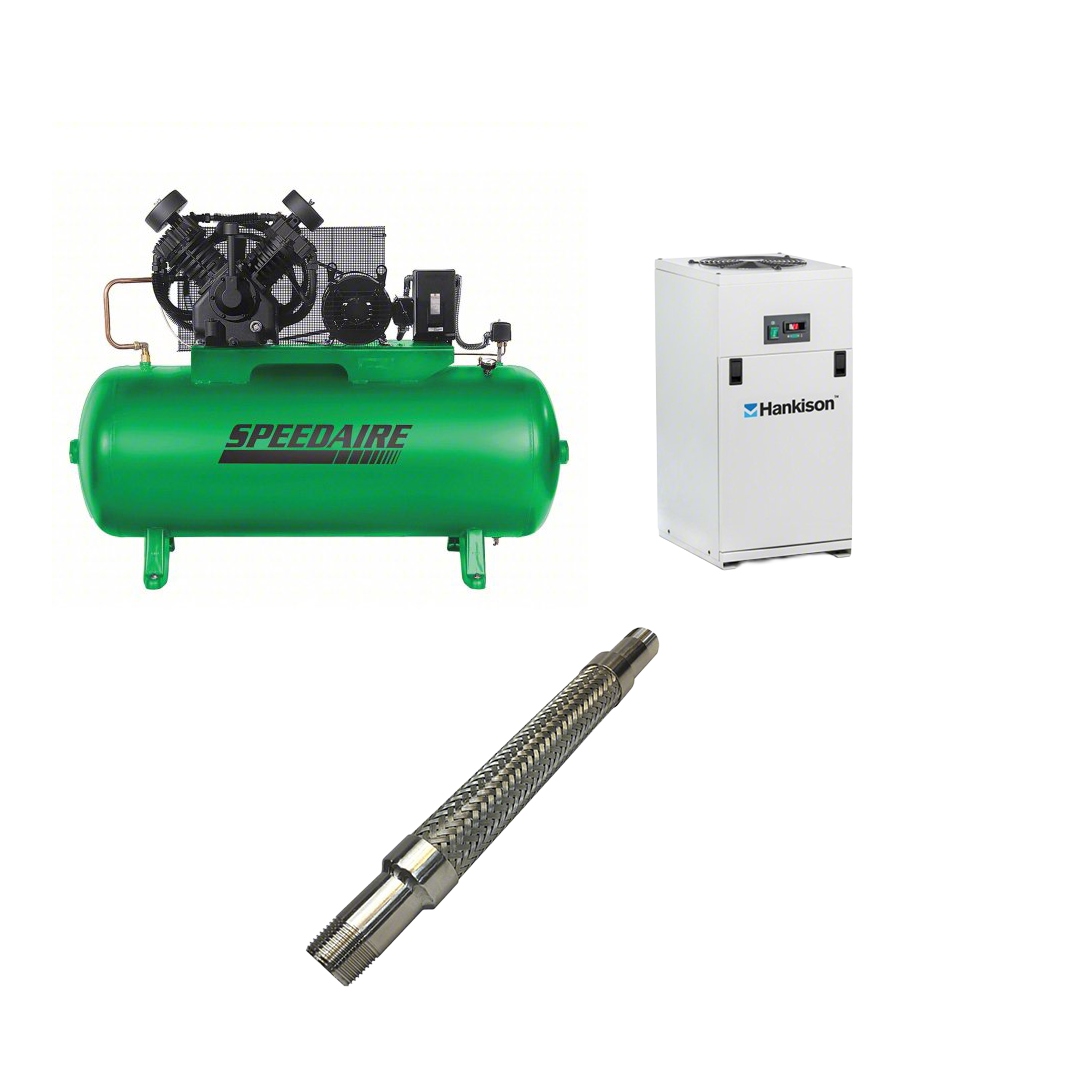

10 HP 3PH HORIZONTAL COOLER+DRYER

10 HP 3PH HORIZONTAL COOLER+DRYER

LWG - Lawson Workhorse Group

SKU:

Get a Quote / Contact Sales
×

Got a question about 10 HP 3PH HORIZONTAL COOLER+DRYER?

Payment & Security

Payment Methods Accepted

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Financing Options

Need to finance the 10 HP 3PH HORIZONTAL COOLER+DRYER? No problem! Visit our Financing Page for more details.

Got a question about this product?

Questions & Answers

Q: What power supply is needed for the SPEEDAIRE 10 hp Horizontal Air Compressor (35WC53)?
A: This compressor features a tri-voltage three-phase motor operating on either 208-230V AC (27-24.2 Amps) or 460V AC (12.2 Amps) at 60 Hz.

Q: What is the benefit of the 120-gallon horizontal tank on the SPEEDAIRE 35WC53?
A: The 120-gallon horizontal tank provides a large air reserve that prevents pressure fluctuations during continuous automated printing, while maintaining a low-profile 54" height for open shop placement.

Q: What is the air output and operating pressure for this model?
A: It delivers 34.1 CFM of free air flow at a maximum operating pressure of 175 PSI.

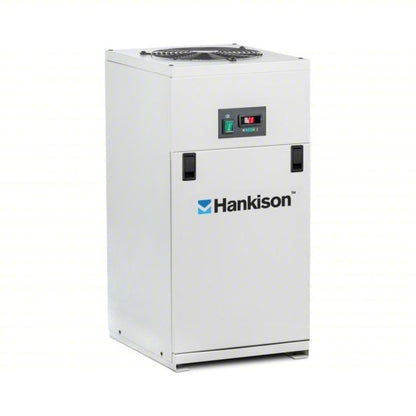

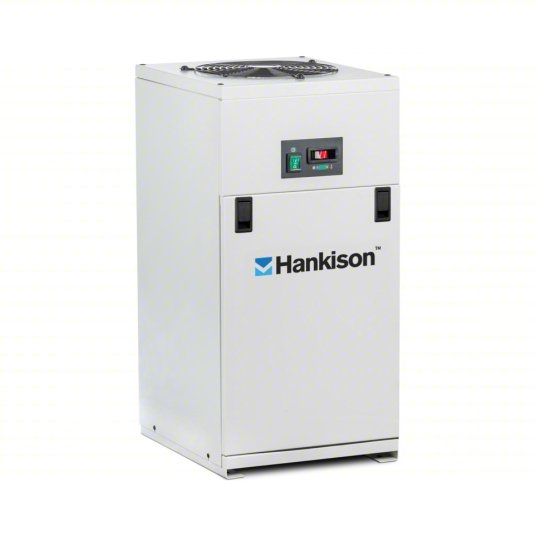

Q: Where can I get companion refrigerated air dryers, setup advice, and replacement parts for this compressor?
A: System consultations, compatible air dryers, replacement parts, and technical support are available directly through LWG.

View full details
Jump to: Description The LWG Difference Features Specifications Table Comparison Table

Description

The SPEEDAIRE 10 hp, 2 Stage Electric Air Compressor (35WC53) is a heavy-duty, splash-lubricated horizontal compressor engineered to deliver clean, continuous-duty pneumatic power for high-volume commercial screen printing operations. Featuring a 120-gallon horizontal ASME-certified storage tank and a tri-voltage three-phase motor, this unit delivers 34.1 CFM at a maximum operating pressure of 175 PSI to support large multi-head automatic presses and shop-wide air lines. Built with a low-speed 700 RPM cast-iron reciprocating pump, it ensures cool, quiet, and reliable operation across demanding production environments.

The SPEEDAIRE 10 hp, 2 Stage Electric Air Compressor (35WC53) is a heavy-duty, splash-lubricated horizontal compressor engineered to deliver clean, continuous-duty pneumatic power for high-volume commercial screen printing operations. Featuring a 120-gallon horizontal ASME-certified storage tank and a tri-voltage three-phase motor, this unit delivers 34.1 CFM at a maximum operating pressure of 175 PSI to support large multi-head automatic presses and shop-wide air lines. Built with a low-speed 700 RPM cast-iron reciprocating pump, it ensures cool, quiet, and reliable operation across demanding production environments.

The LWG Difference

  • Industrial 120-Gallon Horizontal Storage: Provides high-capacity air storage in a stable horizontal footprint (69" L x 25" W x 54" H) to prevent pressure drops during peak production.
  • Extended 15,000-Hour Service Life: Constructed with a splash-lubricated 2-stage cast-iron pump running at a low 700 RPM for reduced mechanical wear and thermal stress.
  • Tri-Voltage Industrial Compatibility: Equipped with a tri-voltage motor that operates on 208-230V AC or 460V AC three-phase electrical systems for commercial shop setups.
  • Direct Factory Backup & Support: Backed by LWG with technical advice, darkroom and automatic press air-demand sizing, companion air dryers, replacement parts, and customer service.

  • Industrial 120-Gallon Horizontal Storage: Provides high-capacity air storage in a stable horizontal footprint (69" L x 25" W x 54" H) to prevent pressure drops during peak production.
  • Extended 15,000-Hour Service Life: Constructed with a splash-lubricated 2-stage cast-iron pump running at a low 700 RPM for reduced mechanical wear and thermal stress.
  • Tri-Voltage Industrial Compatibility: Equipped with a tri-voltage motor that operates on 208-230V AC or 460V AC three-phase electrical systems for commercial shop setups.
  • Direct Factory Backup & Support: Backed by LWG with technical advice, darkroom and automatic press air-demand sizing, companion air dryers, replacement parts, and customer service.

Features

  • 2-Stage Reciprocating Pump: Delivers high-efficiency output up to 175 PSI maximum operating pressure for heavy-duty pneumatic equipment.
  • Low-RPM Operation: Operates at 700 RPM to minimize pump wear, lower operational heat, and keep sound levels at 86 dBA.
  • ASME-Certified Tank: Heavy-duty 120-gallon horizontal steel tank complete with a manual drain valve for routine maintenance.
  • Built-In Control Package: Includes a pressure switch (135 PSI on / 175 PSI off), motor starter, oil sight glass, pressure gauge, and pressure safety valve.
  • Continuous Duty Rating: Engineered for non-stop multi-shift operation in demanding commercial screen print shops.

  • 2-Stage Reciprocating Pump: Delivers high-efficiency output up to 175 PSI maximum operating pressure for heavy-duty pneumatic equipment.
  • Low-RPM Operation: Operates at 700 RPM to minimize pump wear, lower operational heat, and keep sound levels at 86 dBA.
  • ASME-Certified Tank: Heavy-duty 120-gallon horizontal steel tank complete with a manual drain valve for routine maintenance.
  • Built-In Control Package: Includes a pressure switch (135 PSI on / 175 PSI off), motor starter, oil sight glass, pressure gauge, and pressure safety valve.
  • Continuous Duty Rating: Engineered for non-stop multi-shift operation in demanding commercial screen print shops.

Specifications Table

Specifications Description
Brand SPEEDAIRE
Manufacturer Part Number 35WC53
Item 35WC53
Mfr. Model 35WC53
Compressor Package Type Base Model
Lubrication Type Splash Lubricated
Tank Style Horizontal
Number of Stages 2
Output Power 10 hp
Free Air Flow Rate @ Maximum Pressure 34.1 cfm
Maximum Operating Pressure 175 psi
Tank Size 120 gal
Input Voltage 208-230V AC
Phase Three
Frequency 60 Hz
Pump Style Simplex
Pump Type Reciprocating
Pump Location Top Mount
Pump Oil Capacity 4 qt
Current Rating 12.2 A; 27-24.2 A
Maximum Speed 700 RPM
Duty Cycle Continuous
Sound Level 86 dBA
Includes Manual Drain Valve; Motor Starter; Oil Sight Glass; Pressure Gauge; Pressure Safety Valve; Tri-voltage Motor
Cylinder Material Cast Iron
Enclosure Type Open Dripproof
Finish Powder Coated
ASME Tank Yes
Control Type Pressure Switch
On Pressure Switch Setting 135 psi
Off Pressure Switch Setting 175 psi
Inlet Size 3/4 in
Outlet Size 3/4 in
Outlet Type NPT
Outlet Gender Female
Overall Length 69 in
Overall Width 25 in
Overall Height 54 in
Life Expectancy 15,000 hr
Standards ASME Approved; CSA

Comparison Table

Feature / Metric SPEEDAIRE 10 hp 2 Stage Horizontal Compressor (35WC53) 10hp air compressor package 7 5hp air compressor package
Motor Power 10.0 HP 10.0 HP 7.5 HP
Tank Size & Style 120-Gal Horizontal ASME Tank 90-Gal Vertical ASME Tank 80-Gal Vertical ASME Tank
Air Output (CFM) 34.1 CFM @ 175 PSI 36.0 CFM @ 175 PSI 24.5 CFM @ 175 PSI
Electrical Specs 208-230V / 460V, 3-Phase (27-24.2 A / 12.2 A) 208-230V / 460V, 3-Phase (27-24.2 A / 12.2 A) 208-230V AC, 1-Phase (31 A)
Pump RPM & Sound 700 RPM (86 dBA) 700 RPM (89 dBA) 1,020 RPM (87 dBA)
Primary Target Use High-volume production shops needing large horizontal reserve Multi-head automatic press shops with compact floor space Commercial mid-to-large single-phase print facilities
