  • DESCRIPTION
  • REVIEWS

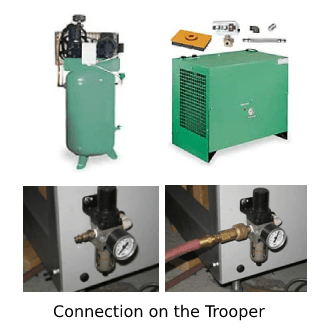

Stationary Air Compressor

  • Stage: Two
  • Motor Running HP: 5
  • Free Air CFM @ Max Pressure: 16.5
  • Max PSI: 175
  • Voltage @ 60 Hz: 208–230V, single-phase
  • Amps: 23.0–21.0
  • Tank Capacity: 80 gallons, vertical
  • FNPT Outlet: 1/2 inch
  • Pump Type: Cast iron, splash lubrication
  • Pump Oil Capacity: 64 oz
  • Duty Cycle: 80/20
  • RPM: 760
  • Features: Includes ASME tank with manual drain and discharge isolation valve, motor starter, and initial fill of compressor oil
  • Dimensions: 33" L x 26.625" W x 76" H
  • Weight: 600 pounds

Dry Air System

  • Air Flow @ 35°F Dew Point, 125 PSIG: 21.2 CFM
  • Air Flow @ 35°F Dew Point, 175 PSIG: 24.0 CFM
  • Power Rating: 0.25 HP
  • Female NPT Inlet/Outlet: 1 inch
  • Maximum Air Compressor Power: 5 HP
  • Voltage @ 60 Hz: 115V
  • Dimensions: 16" H x 14" D x 22.25" W
  • Weight: 125 pounds
