Ajax In-Line Screen Reclaimer

One-Touch Automatic Screen Reclaiming

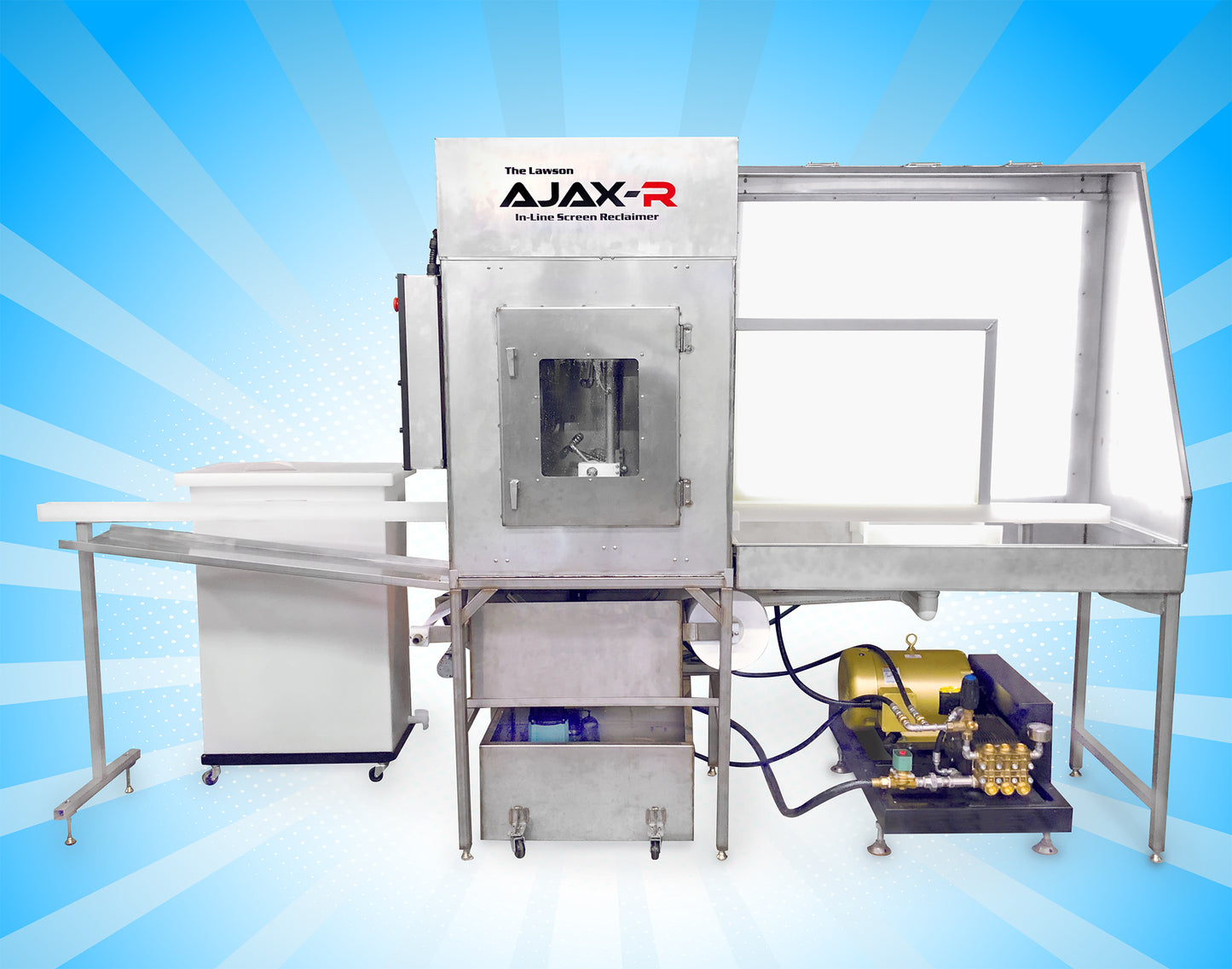

The Lawson Ajax In-Line Reclaimer is ideal for garment, t-shirt, and graphic printing screen frames of all sizes. The Ajax-R is perfect for those seeking simple screen automation. It accommodates screens from small ASI/pen frames up to 25" x 36" O.D. Every shop’s workflow and time are valuable resources that the Ajax-R helps optimize and protect. It cleans, degreases, and dehazes screens in a single process.

The Ajax-R’s compact footprint enhances your shop’s efficiency. It eliminates the time-consuming, dirty, and dreaded task of manual screen reclaiming. The system removes all ink and emulsion, degreases, and dehazes screens quickly and easily, with an approximate cycle time of 60 seconds per screen.

The Lawson Ajax In-Line Reclaimer uses fewer chemicals, costing approximately 5–10 cents per screen.

Automated reclaiming ensures consistency by eliminating variables such as operator fatigue, inadequate training, or inconsistent application of standard operating procedures (SOPs).

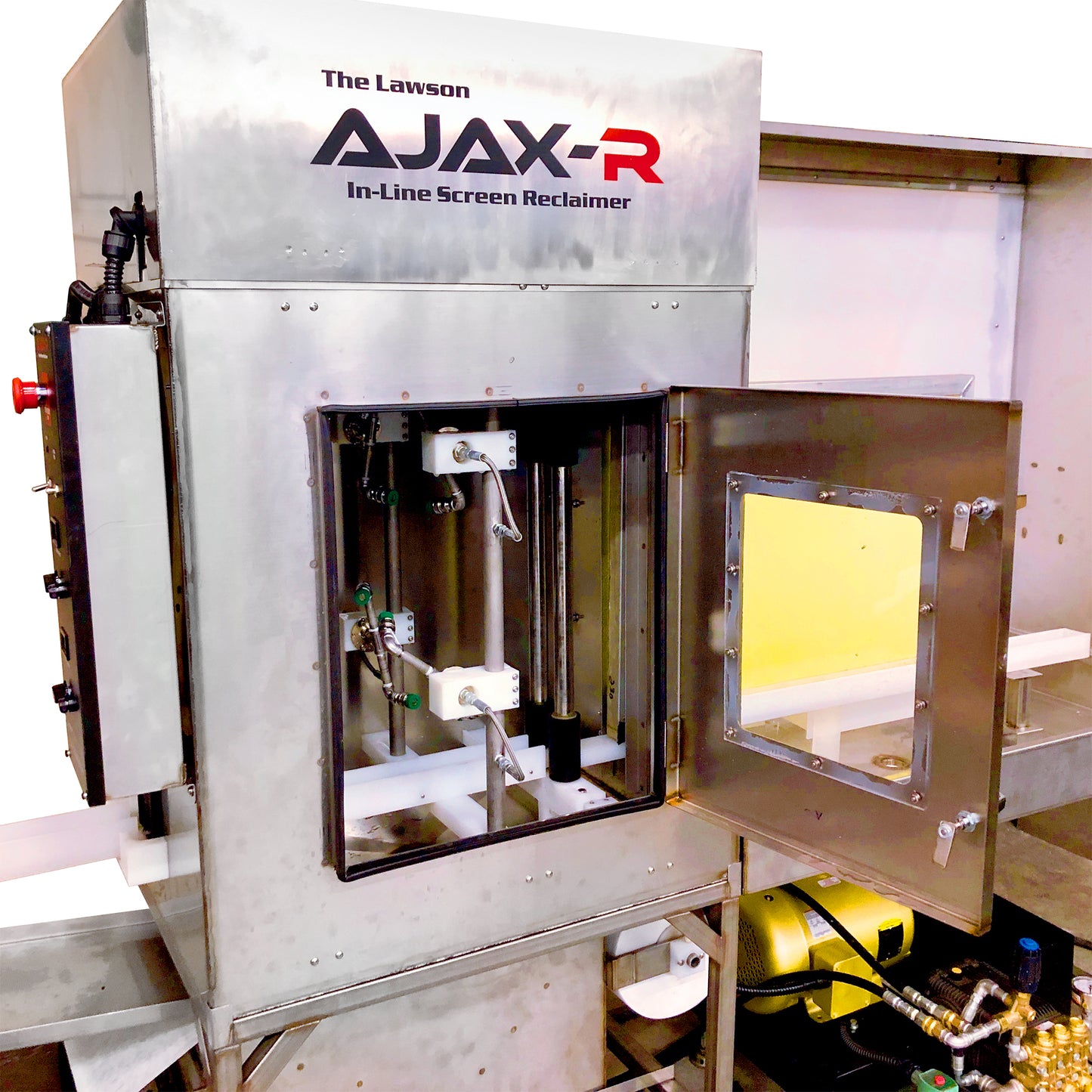

Lawson’s exclusive pinch roller, single-motor drive system is simple and reliable, with no belts or chains to maintain. The spring-loaded pinch roller drive system automatically adjusts to various frame profiles and sizes. The Ajax-R is virtually maintenance-free, and its clear front viewing panel allows easy monitoring as screens are cleaned.

Advantages of the Lawson Ajax-R

• Size: The Ajax-R is only 10 feet long, making it compact.
• Drive System: Uses pinch rollers instead of chains or plastic belts, requiring no maintenance and eliminating the need for special screen chases or cassettes.
• Simple Design: Features a single cleaning chamber, preventing chemical cross-contamination and simplifying maintenance.
• Chemical Usage: Requires approximately 10 gallons of chemicals, compared to about 100 gallons for other screen cleaning machines, costing 5–10 cents per screen.
• Cost: Significantly more affordable than competitors, which often require costly installation trips for standard warranty coverage.
• Power Requirements: Operates on single-phase power, saving approximately 80 amps and requiring no air, unlike other reclaim units.
