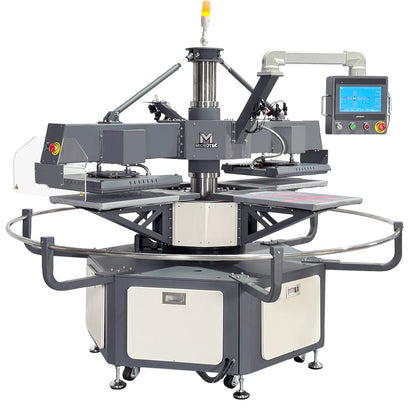

APEX X4 - 4 Station 16” x 20” Fully Automatic Rotary Heat Press

APEX X4 - 4 Station 16” x 20” Fully Automatic Rotary Heat Press

MicroTec USA

SKU:

$26,091.00 USD
$28,990.00 USD $26,091.00 USD
Sale Sold out

Payment & Security

Payment Methods Accepted

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Financing Options

Need to finance the APEX X4 - 4 Station 16” x 20” Fully Automatic Rotary Heat Press? No problem! Visit our Financing Page for more details.

Got a question about this product?

View full details

Description

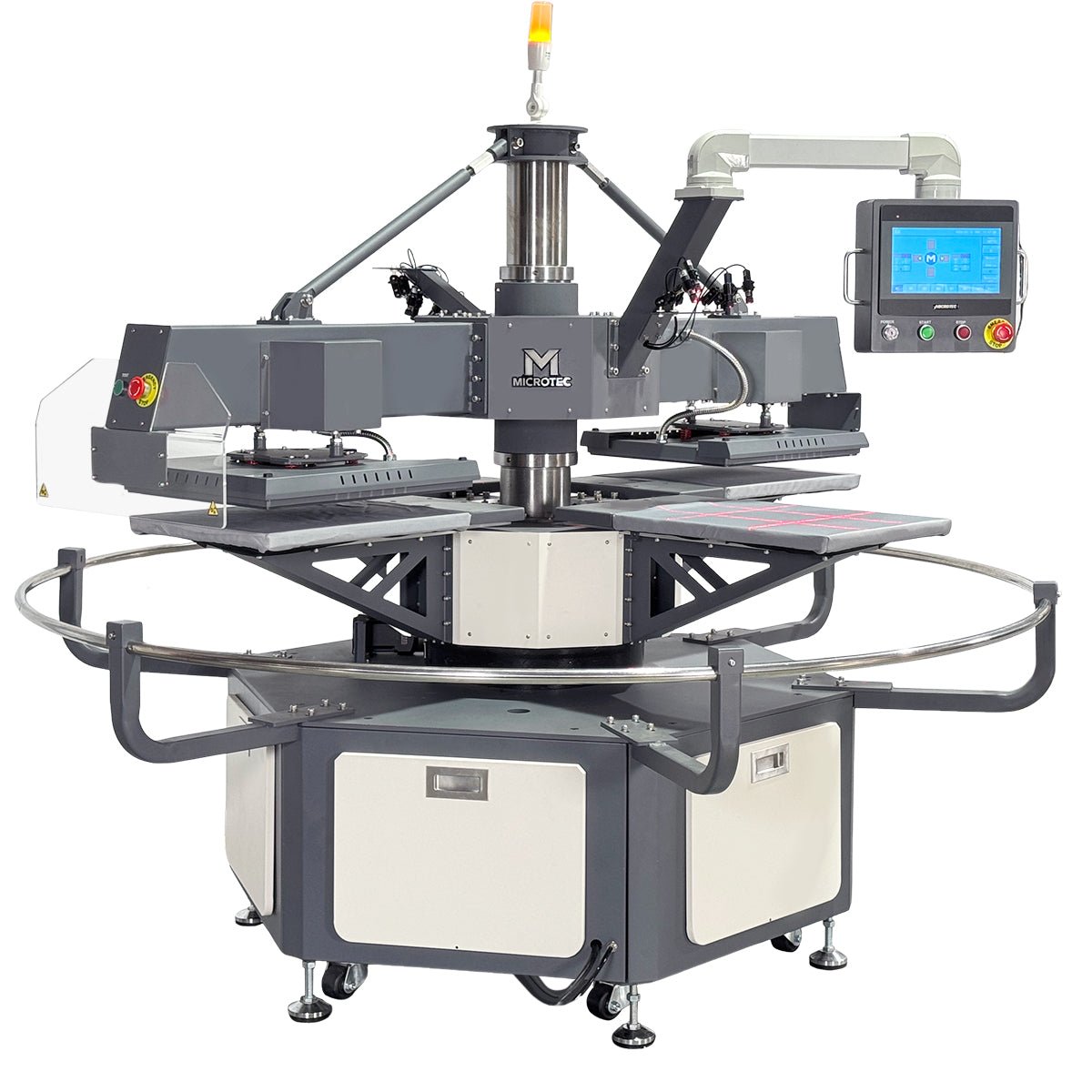

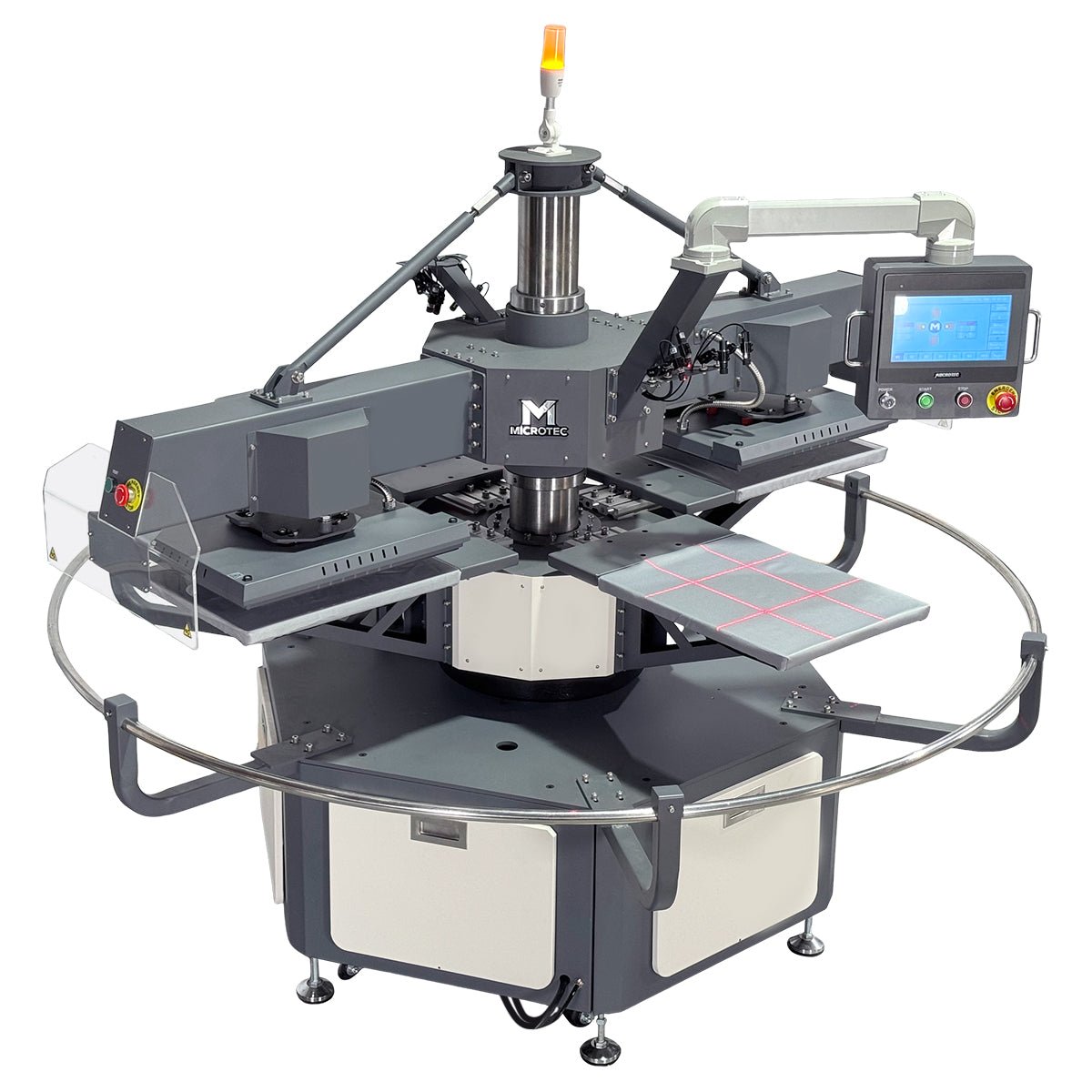

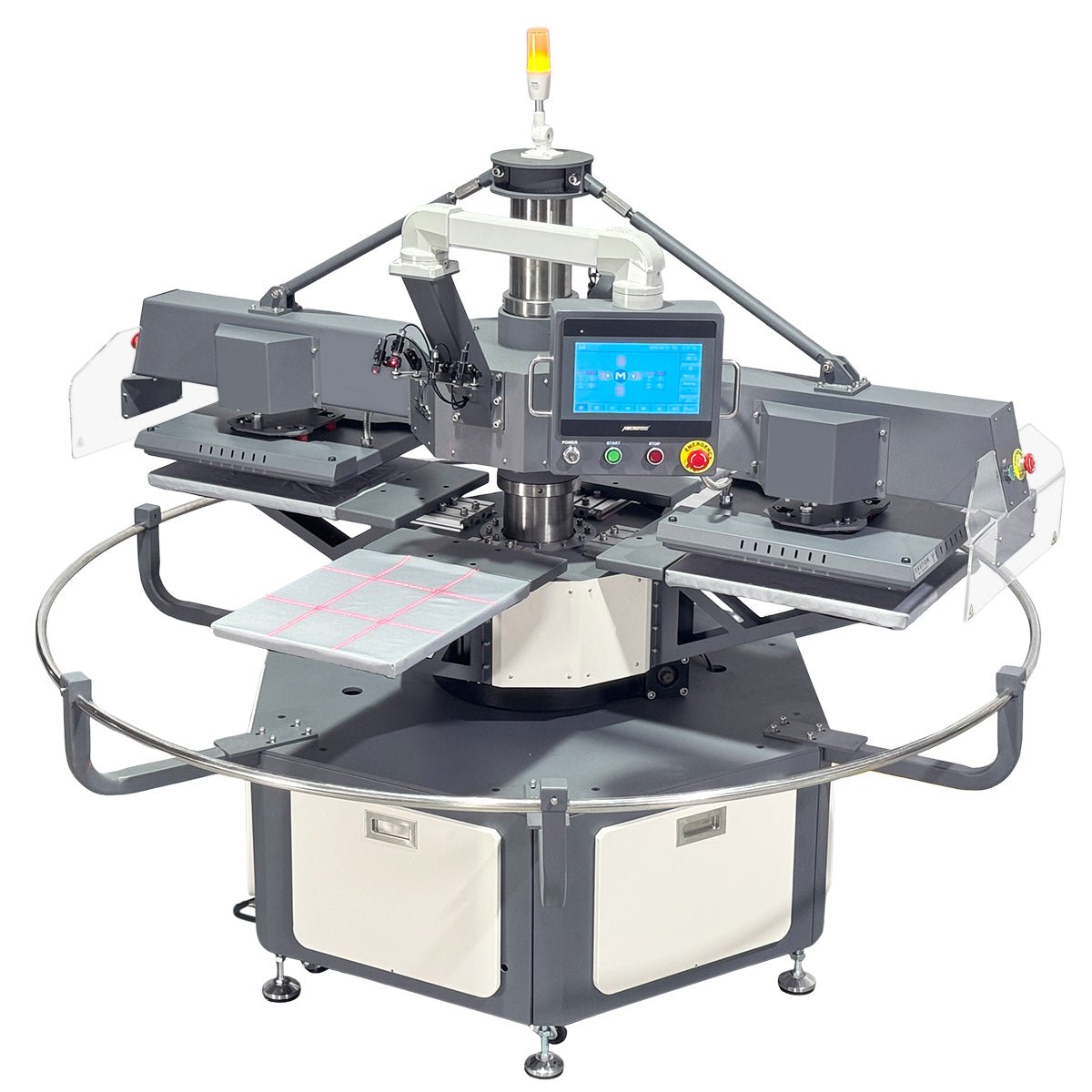

Streamline high-volume garment decoration, reduce labor dependency, and achieve unmatched press consistency with the APEX X4 4-Station Fully Automatic Rotary Heat Press by Microtec USA, exclusively distributed and supported across North America by Lawson Workhorse Group (LWG). Engineered specifically for commercial print facilities, contract apparel decorators, and high-production DTF (Direct-to-Film) print hubs, this 4-station rotary carousel system brings true industrial automation to modern heat transfer workflows.

Capable of processing up to 420 garments per hour, the APEX X4 features four generous 16" x 20" pressing stations mounted on a precision rotary platform. The automated pneumatic indexing system standardizes dwell times, application pressure, and temperature across every cycle—eliminating human error, operator fatigue, and variance between garments. Equipped with an intuitive 10.4" machine-mounted digital touchscreen interface, operators can easily configure precise rotation speeds, individual head temperature parameters, and dwell times.

Beyond applying heat transfers, the digitally controlled heat platens help flatten garment fabric fibers and introduce pre-heating, drastically improving downstream processes such as DTG pretreat application and white ink flash efficiency. Whether your shop operates in Chicago, St. Louis, Atlanta, or anywhere nationwide, the APEX X4 provides industrial-grade automation designed to scale your business profitability.

The LWG Difference

When you invest in commercial heat press automation from Lawson Workhorse Group (LWG), you get far more than a machine—you partner with over 75 years of trusted American screen printing and digital decorating leadership:

  • Fast Regional Shipping & Local Support: Orders ship quickly from our California distribution hub, backed by regional technical support and supply centers in St. Louis, MO (HQ), Marietta / Atlanta, GA, Phoenix, Orlando, and Des Moines.
  • Turnkey Equipment Integration: Our technical specialists assist with setting optimal dwell times, pneumatic pressure levels, and temperature parameters for your exact DTF powder and garment combinations.
  • Factory-Trained Service & Parts: Gain direct access to US-based technical support and fast-dispatch replacement parts without communication delays or high overseas freight costs.
  • Flexible Commercial Financing: Keep your operating capital fluid with tailored equipment financing and lease-to-own programs designed for rapid return on investment (ROI).

Features

  • High-Volume Production Output: Capable of pressing up to 420 garments per hour, dramatically increasing output while reducing overall shop labor costs.

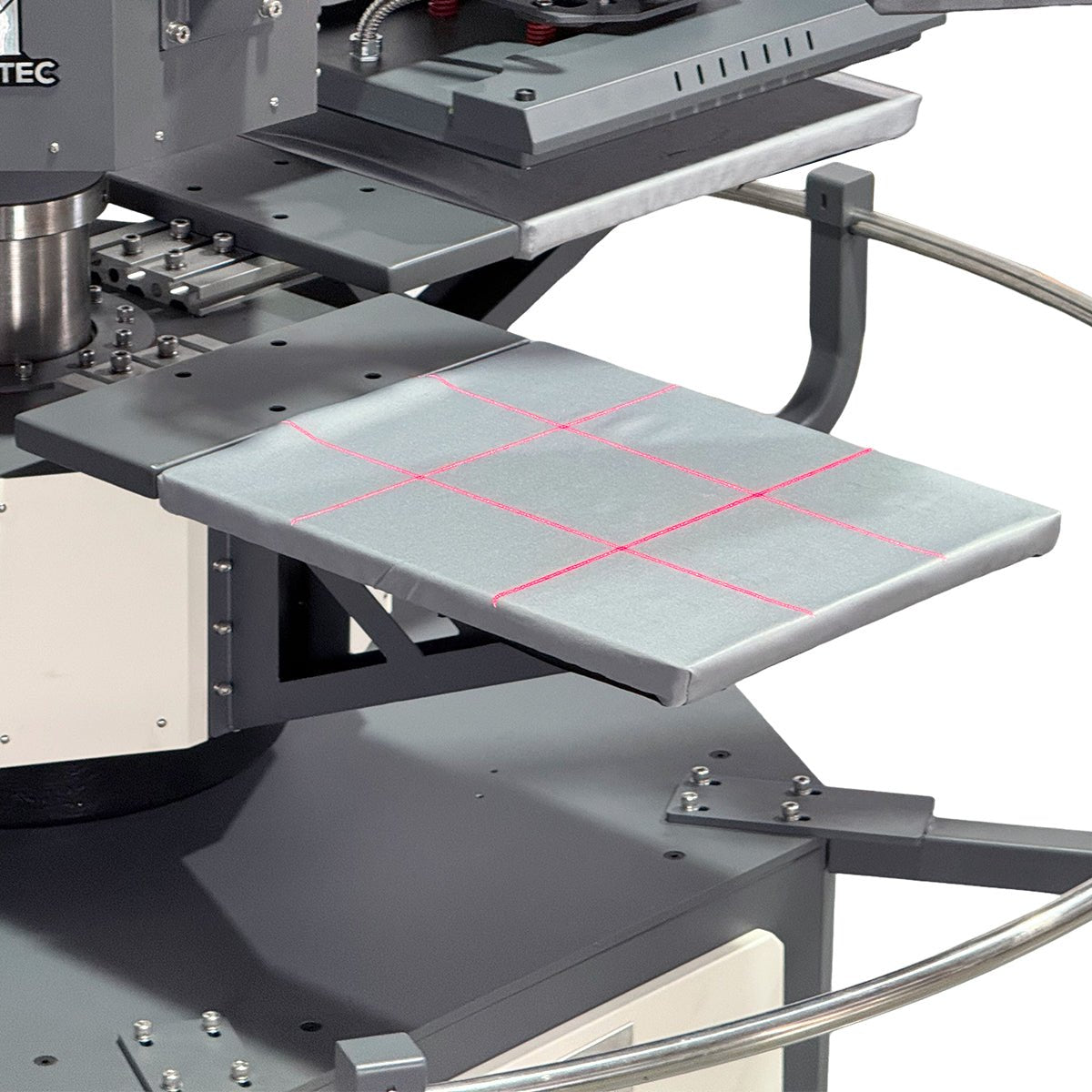

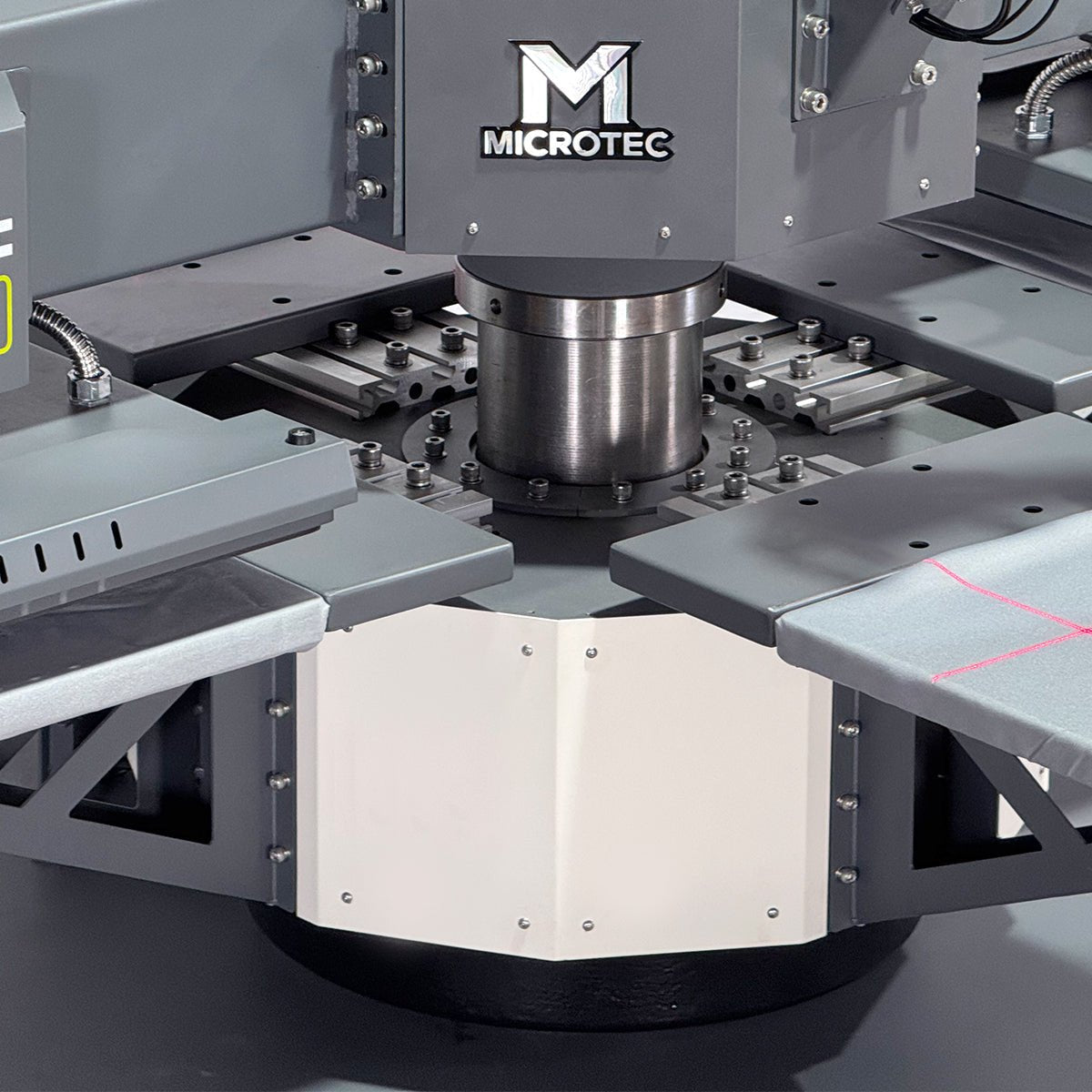

  • 4-Station Rotary Carousel Platform: Features four heavy-duty 16" x 20" workstations for continuous, simultaneous garment loading, preheating, pressing, and unloading.

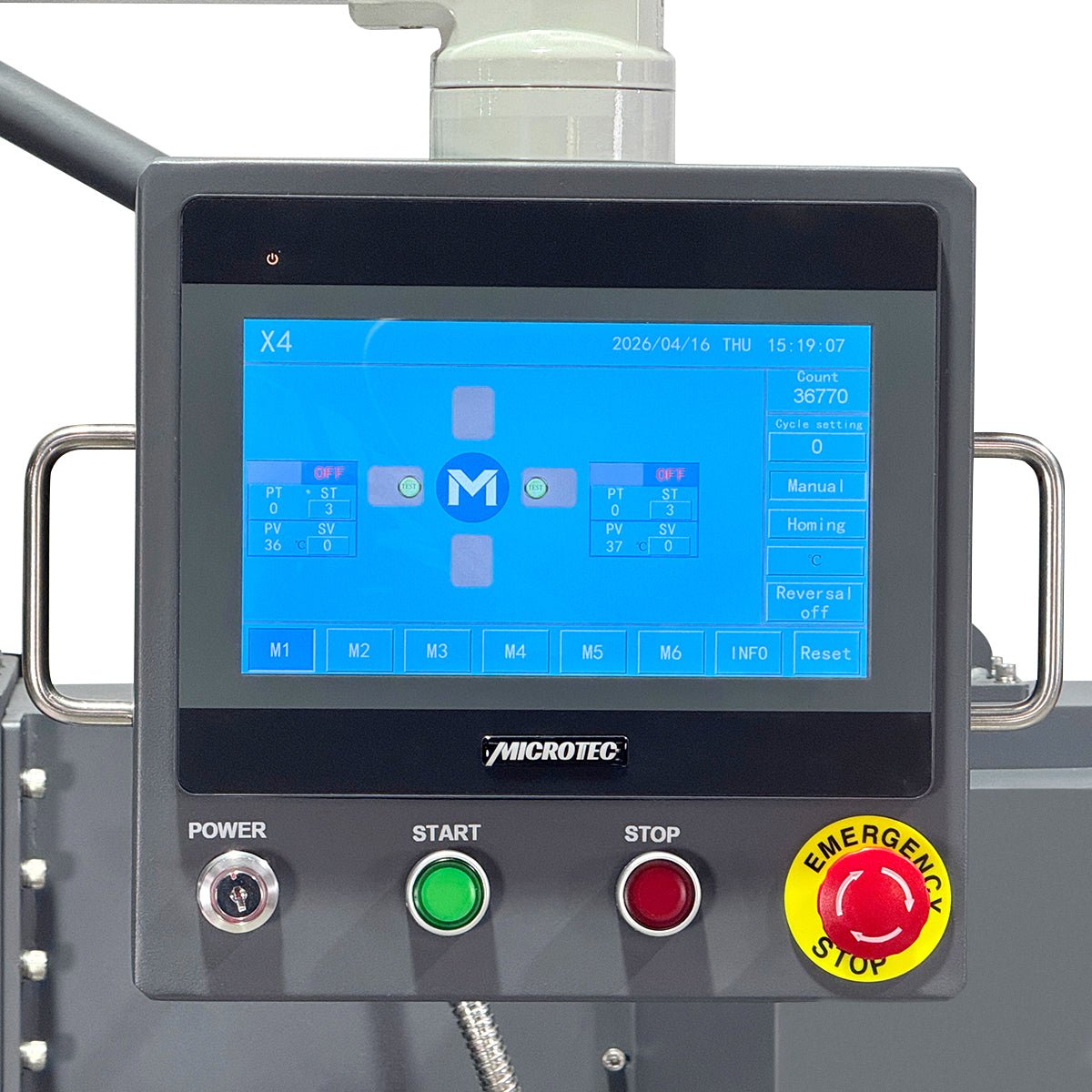

  • Intuitive 10.4" Digital Touchscreen: Machine-mounted color touchscreen interface allows quick adjustments for temperature, pressure, dwell time, and indexing speed.
  • Uniform Temperature & Edge-to-Edge Heating: Heavy-duty heating elements distribute heat evenly across the entire 16" x 20" platen surface to prevent cold spots and misprints.

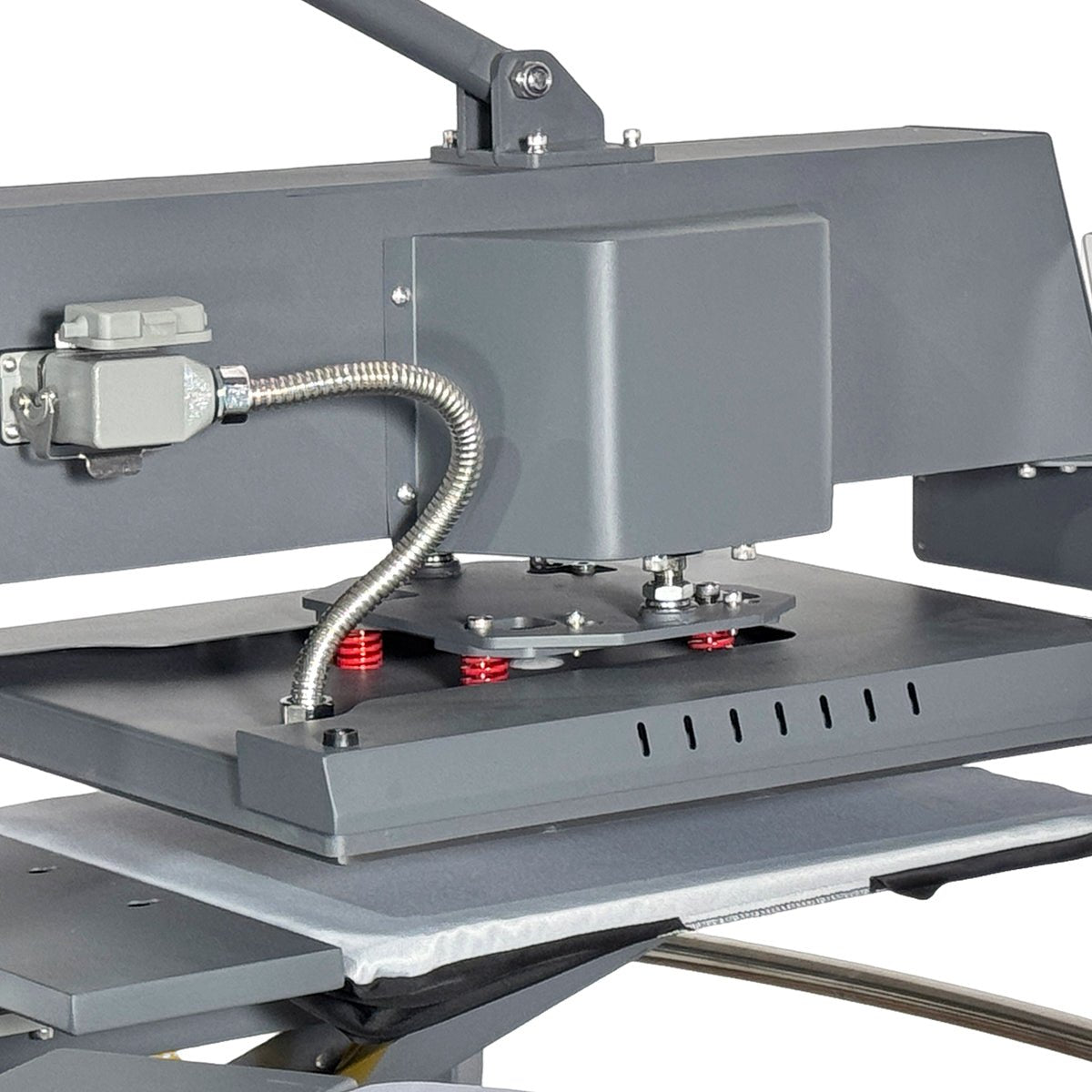

  • Pneumatic Pressure Standardization: Delivers consistent, repeatable downward clamping pressure on every press cycle to eliminate transfer lifting or peeling.
  • Industrial Heavy-Duty Frame: Built with thick-gauge steel chassis and stable pallet arms to withstand demanding, multi-shift production environments.

Specifications Table

Product Name : APEX X4 - 4 Station 16” x 20” Fully Automatic Rotary Heat Press
Workstation Count | 4
Platen Size | 15.7" x 19.7"
Production Capacity | Up To 280 Units/hour*
Temperature Range | 0-450°F
Time Range | 0-999 Seconds
Shipping Size | 84.6" x 90.55" x 78.7"
Air Requirements (CFM) | 40.0 CFM
Power Consumption | 5500W
Voltage | 220V
Amps | 25A
Machine Dimensions | 84.6" x 84.6" x 70.9"
Method of Operation | Pneumatic
Machine Line | Apex
Shipping Weight | 2222 lb
Net Weight | 1650 lb
Color | Gray and White

Comparison Table

FEATURES : APEX X4 ROTARY HEAT PRESS : apex-x6-rotary-heat-press : apex-x8-8-station-16-x-20-fully-automatic-rotary-heat-press
Station Capacity : 4 Heavy-Duty Rotary Stations : 6 Heavy-Duty Rotary Stations : 8 Heavy-Duty Rotary Stations
Head Configuration : 1 or 2 Active Heating Heads : 2 Active Heating Heads (Optional Preheat Station) : 4 Heads (3 Active Heating Heads + 1 Water-Cooling Head)
Cooling Integration : Ambient Air Cooling : Ambient Air Cooling : Built-in Active Water-Cooling Station (Instant temp drop to 104°F)
Production Throughput : Up to 420 garments per hour : Up to 420 garments per hour : 385 – 420 garments per hour (Continuous multi-head processing)
Footprint & Shop Size : Compact 4-station carousel footprint for mid-sized print shops : Mid-size carousel layout for growing DTF hubs : Large-format carousel layout for enterprise facilities
Best Suitable For : Print shops stepping up into automated carousel heat pressing : High-volume commercial DTF & screen print transfer production : Enterprise fulfillment centers requiring active cooling & multi-pass heat cycles

Questions & Answers

What makes the APEX X4 different from traditional dual-station heat presses?

The APEX X4 Rotary Heat Press automates the entire carousel rotation and pressing process. Instead of an operator manually swinging heads or sliding platens, the 4-station carousel indexes automatically, allowing one operator to continuously load and unload garments at speeds up to 420 items per hour.

How many active heating heads does the APEX X4 have?

The standard APEX X4 comes configured with 1 or 2 active dual-heating press heads over the 4-station carousel, giving you the flexibility to handle single-stage pressing or dual-stage transfer cycles.

What types of transfers can I press with the APEX X4?

The APEX X4 is engineered for maximum versatility and works seamlessly with:

  • Direct-to-Film (DTF) transfers
  • Direct-to-Garment (DTG) hybrid post-curing & pressing
  • Screen print plastisol transfers
  • Sublimation & vinyl (HTV) applications
  • Leather, patch, and specialty heat-applied embellishments

Does the APEX X4 require an air compressor?

Yes. The APEX X4 utilizes precise pneumatic pressure for automatic carousel movement and consistent downward clamping force. An industrial air compressor (sold separately or available through LWG) is required for operation.

What size are the pressing platens on the APEX X4?

All four station platens measure 16" x 20" (40 cm x 50 cm), providing ample space for full-chest prints, oversize back graphics, hoodies, and athletic wear.
