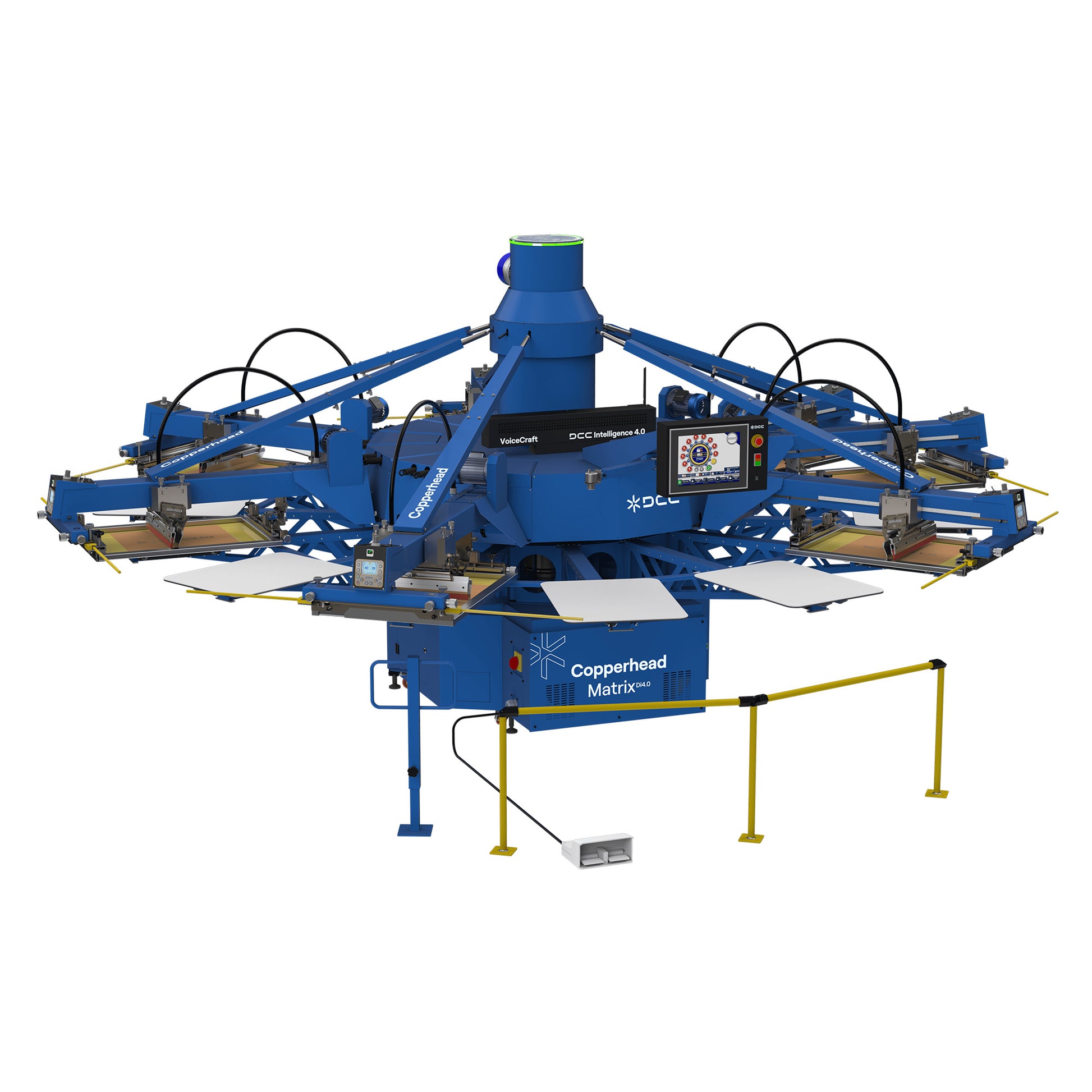

Name: Copperhead Matrix Di4.0 Automatic Screen Press
Brand: DCC
Price: 50.0 USD
Availability: InStock

The Copperhead Matrix Di4.0 redefines screen printing innovation. Driven by DCC Intelligence 4.0, it blends cutting-edge technology, pinpoint precision, and intuitive design to deliver superior performance and efficiency.

Instant voice alerts for all activities, with voice narration to identify issues, ensuring smooth operations and high safety standards. Increased efficiency and minimized downtime with an intuitive 15" HMI and integrated audio-visual guidance tools.

Technology to help monitor production KPIs sitting anywhere in the world. *SmartCloud hardware comes in-built; subscription unlocks full access to real-time insights and remote features.

Allows flexible setup for multiple printing styles, with up to 38 stations to support diverse printing and flashing needs.

Built in video tutorials
LED lights for printhead
Free spin indexer
Multi print mode

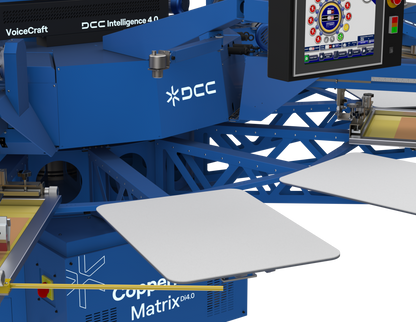

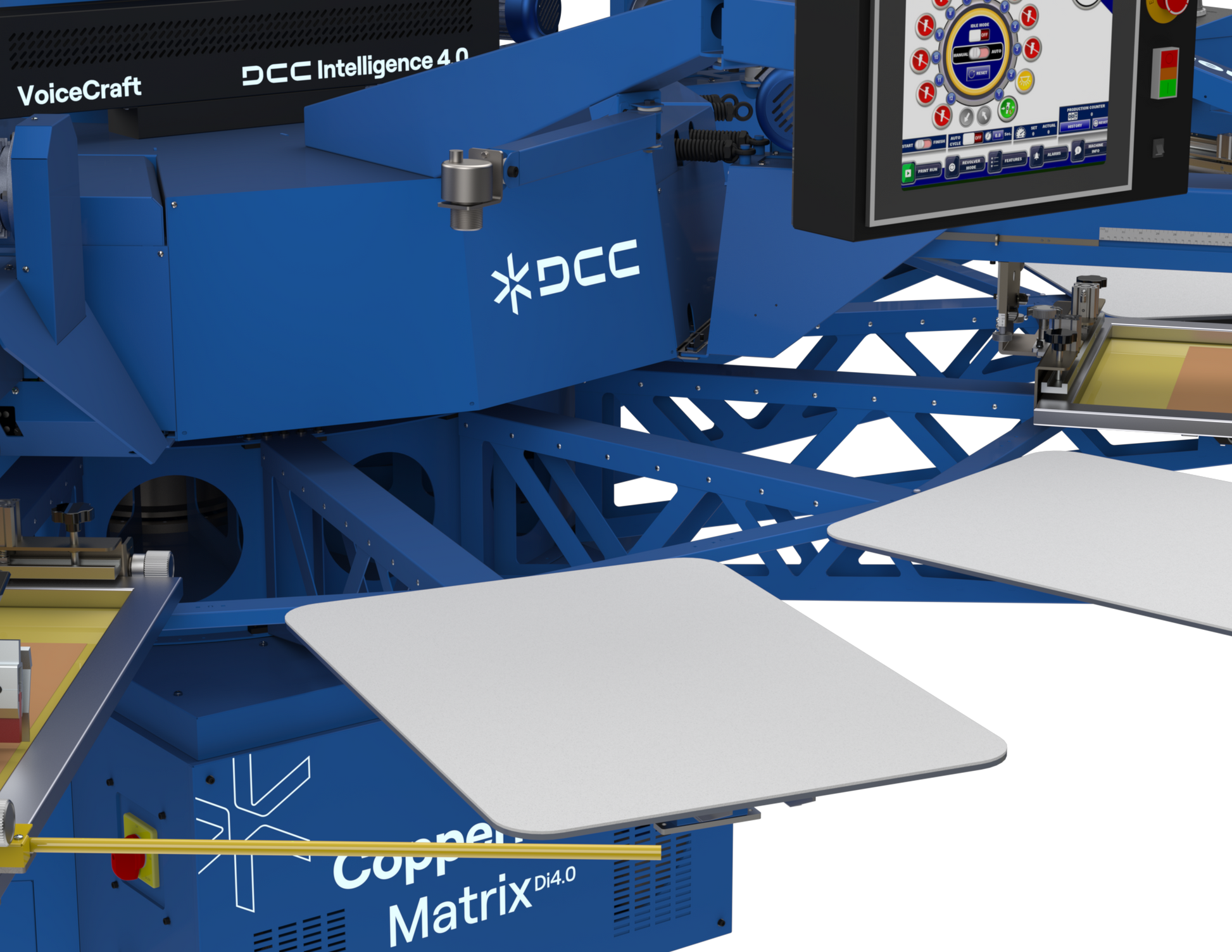

15" HMI
Front and rear micro registration
Laser registration guide
Pneumatic frame locks
SmartCloud 4.0
Revolver mode
Index & skip foot pedal
Squeegee pressure regulator
Audio assisted technology
Remote monitoring
Maintenance reminder program
Print stack mode

Squeegee Equalizer system
Servo Driven Indexer

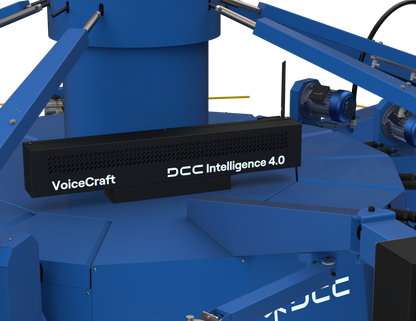

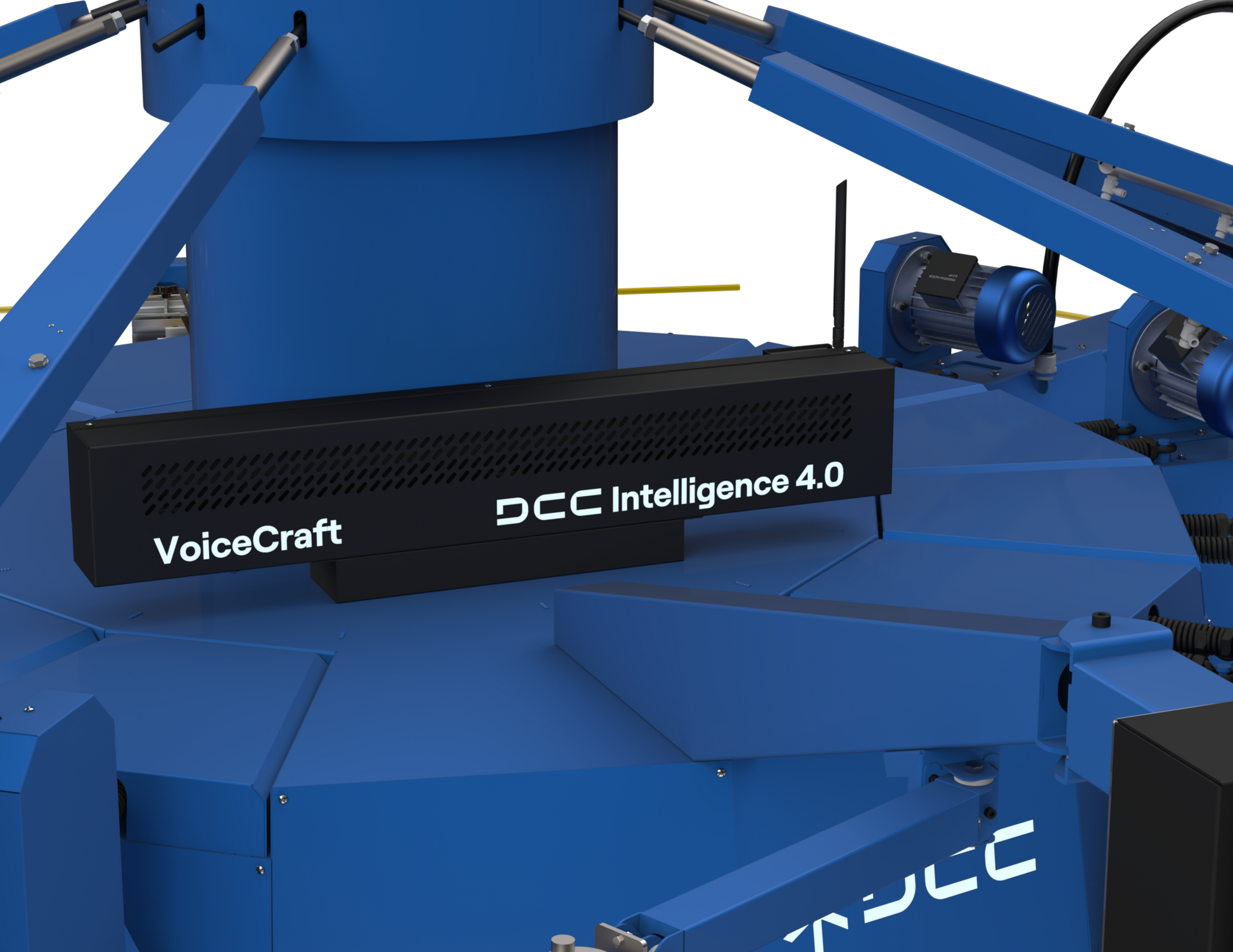

Voicecraft Technology for instant audio alerts
Smartcloud 4.0 for remote monitoring and real-time
Analysis of production data and KPIs
Smart Lube Technology

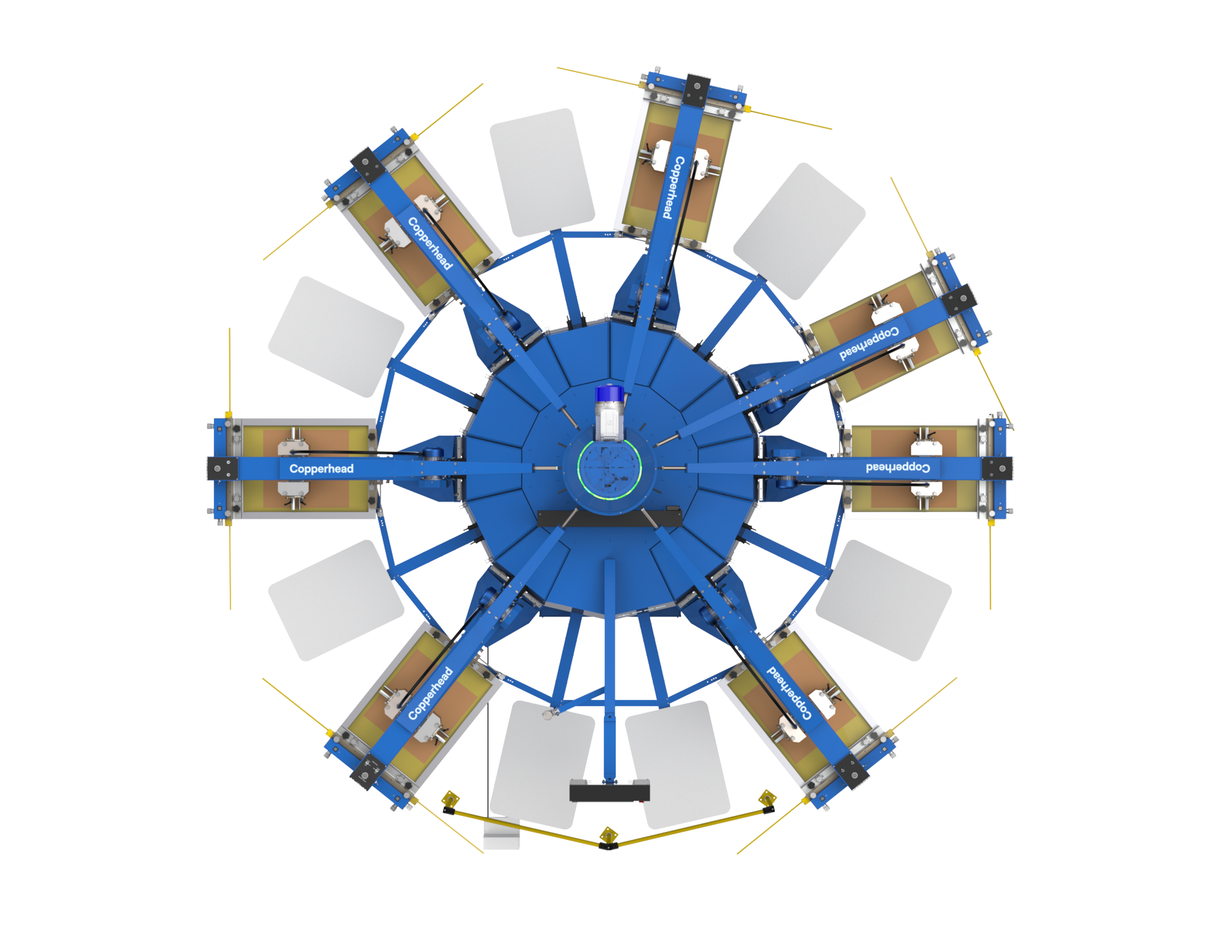

Carrousel Rotation-Both Clockwise & Anti-clockwise
4 Point Registration System
Individual Off Contact

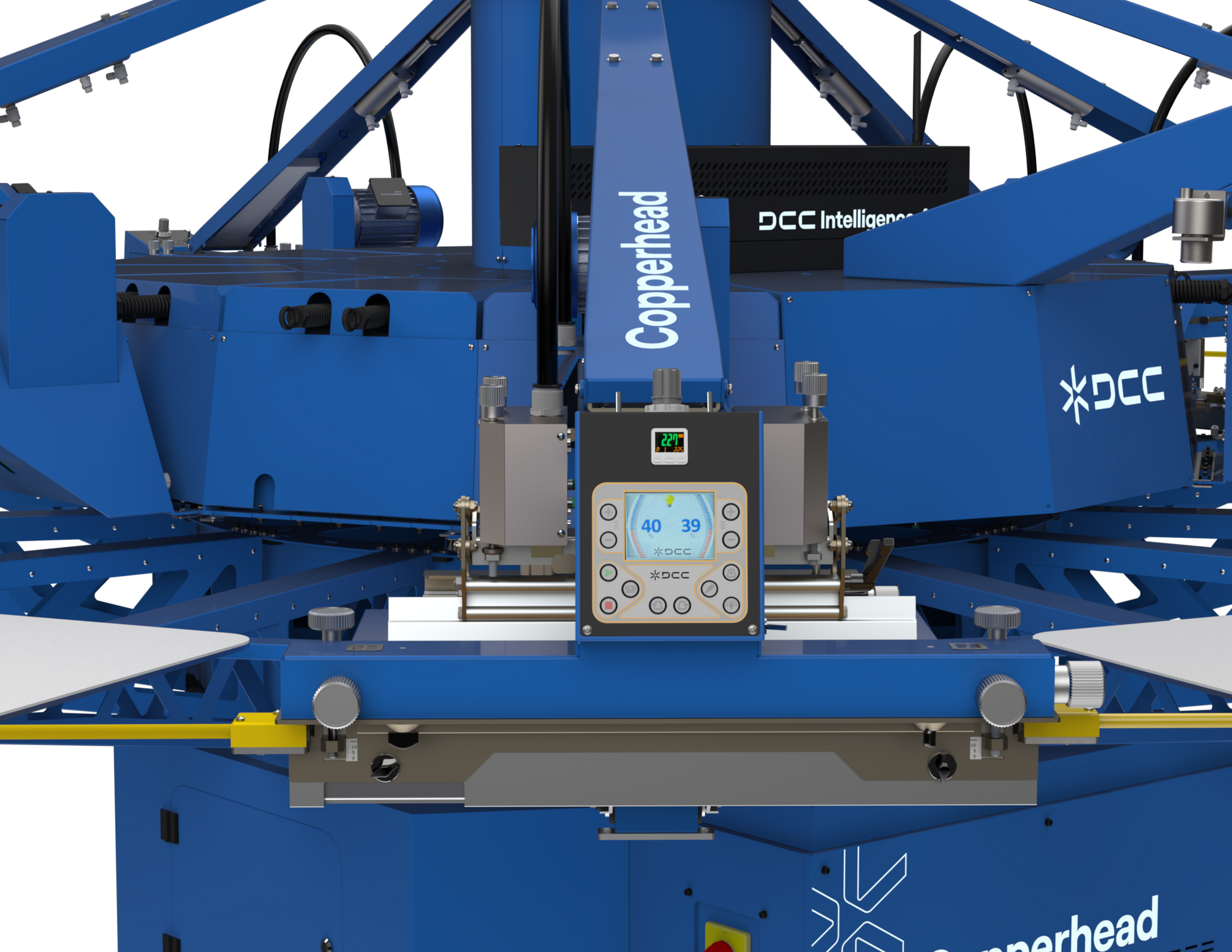

Independent Print Buttons on Each Printhead
Pneumatic Head Lifting for easy screen cleaning
Digital touchscreen control panel
Tool-free quick release pallet locks
Independent print/flood speed controls
Tool-free Squeegee/Floodbar angle adjustments
Pneumatic Screen Frame Lock
On-board Self Diagnostics

1 Set 43.9mm Solid Aluminium Pallet w/Rubber 16" x 22"
1 Set of Squeegee Holder with Squeegee Rubber (16"/41cm)
1 Set of Floodbar (16"/41 cm)
Index & Skip Foot Pedal
Pneumatic Frame Locks
Squeegee Pressure Regulator
Front and Rear Micro Registration
Industry 4.0
Flash Communication Ports
15" HMI
Multi Print Mode Program
Print Stack Mode
Print-Start / Print-Finish mode
Front to Back/Back to Front- Squeegee Mode
Laser Registration Guide
Maintenance Minder Program

▶Revolver Mode

▶Pallet Pre Heat Mode

▶Free Spin Indexer

▶Audio Assist Technology

▶Built In Video Tutorials

▶LED Lights for Printhead

▶Tool Kit

Specifications	MATRIX DI 4.0 12/10	MATRIX DI 4.0 14/12	MATRIX DI 4.0 16/14	MATRIX DI 4.0 18/16	MATRIX DI 4.0 20/18
Air @ 8.5 Bar ( 123 psi)*	450 l/min (15.9 cfm)	530 l/min (18.7 cfm)	610 l/min (21.5 cfm)	690 l/min (24.4 cfm)	770 l/min (27.2 cfm)
Electrical Requirements**	208-230 V, 3 ph, 23.5 A, 60 Hz, 7.5 kW 380-415 V, 3 ph, 13.5 A, 50 Hz, 7.5 kW	208–230 V, 3 ph, 26 A, 60 Hz, 8.2 kW 380–415 V, 3 ph, 15 A, 50 Hz, 7.5 kW	208–230 V, 3 ph, 29 A, 60 Hz, 9.0 kW 380–415 V, 3 ph, 17 A, 50 Hz, 9.0 kW	208-230 V, 3 ph, 32 A, 60 Hz, 9.7 kW 380-415 V, 3 ph, 19.5 A, 50 Hz, 9.7 kW	208-230 V, 3 ph, 34 A, 60 Hz, 10.5 kW 380-415 V, 3 ph, 21 A, 50 Hz, 10.5 kW
Diameter	188" (478 cm)	207" (526 cm)	225" (225 cm)	242" (614 cm)	261" (663 cm)
Maximum Frame Size	26" x 36" (66 x 91 cm)	26" x 36" (66 x 91 cm)	26" x 36" (66 x 91 cm)	26" x 36" (66 x 91 cm)	26" x 36" (66 x 91 cm)
Maximum Frame Size (Double Index-Skip Frame and Skip Pallet)	-	-	-	42" x 36" (107 x 91 cm)	42" x 36" (107 x 91 cm)
Maximum Image Area	20" x 22" (51 cm x 56 cm)	20" x 22" (51 cm x 56 cm)	20" x 22" (51 cm x 56 cm)	20" x 22" (51 cm x 56 cm)	20" x 22" (51 cm x 56 cm)
Maximum Image Area (Double Index - Skip Frame and Skip Pallet)	-	-	-	20" x 22" (51 cm x 56 cm)	20" x 22" (51 cm x 56 cm)
Machine Weight	5295 lb (2402 kg)	6184 lb (2805 kg)	6184 lb (3315 kg)	8576 lb (3890 kg)	9881 lb (4482 kg)
Standard Pallet Size	16" x 22" (41 cm x 56 cm)	16" x 22" (41 cm x 56 cm)	16" x 22" (41 cm x 56 cm)	16" x 22" (41 cm x 56 cm)	16" x 22" (41 cm x 56 cm)
Maximum Pallet Size	22" x 30" (56 cm x 72 cm)	22" x 30" (56 cm x 72 cm)	22" x 30" (56 cm x 72 cm)	22" x 30" (56 cm x 72 cm)	22" x 30" (56 cm x 72 cm)
Stations/Colors	12/10	14/12	16/14	18/16	20/18
Consumption @ 17 pieces/min & max image area *General usage may vary, but will be significantly less than stated values. Use Servo Stabilizers to safeguard the machine from Voltage Fluctuation out of the main supply.
