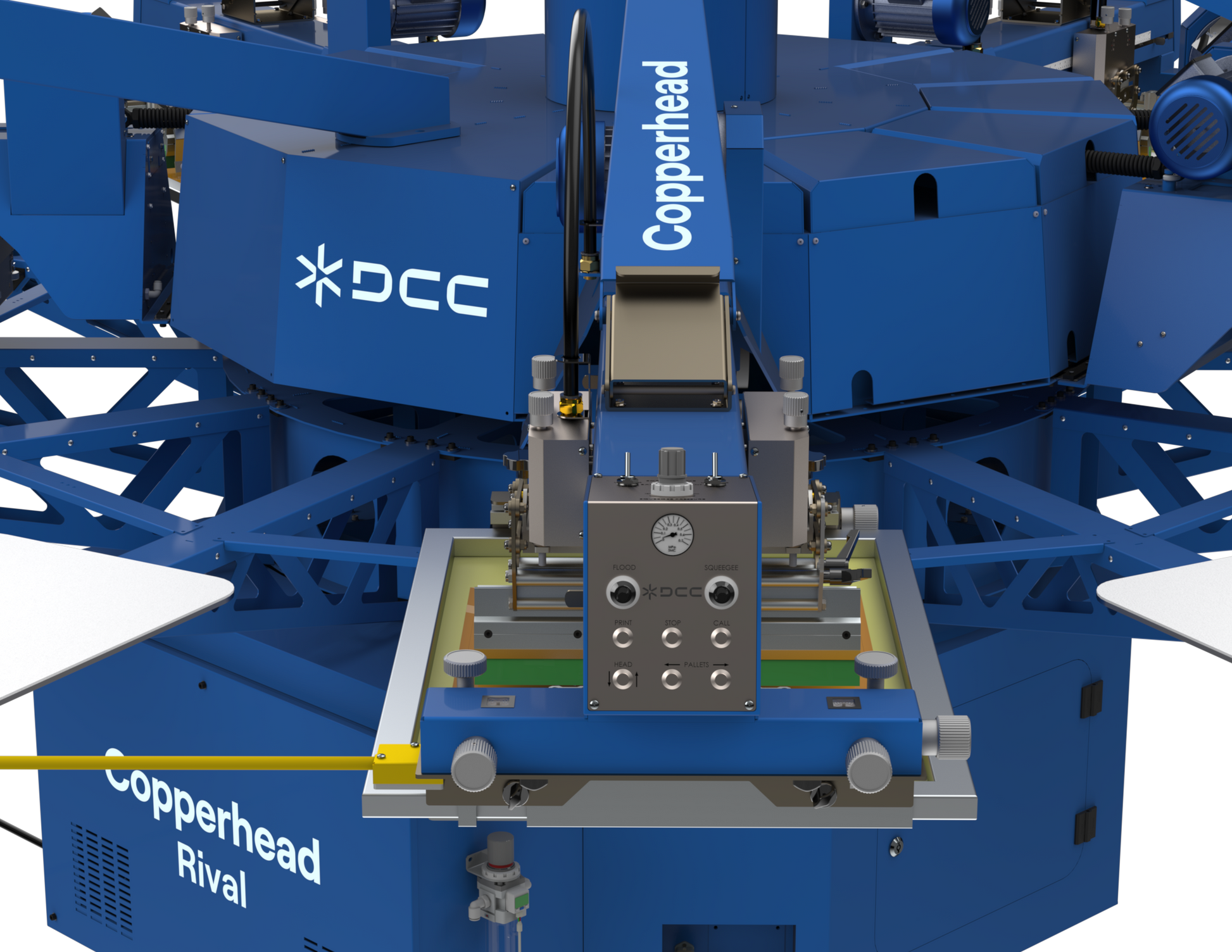

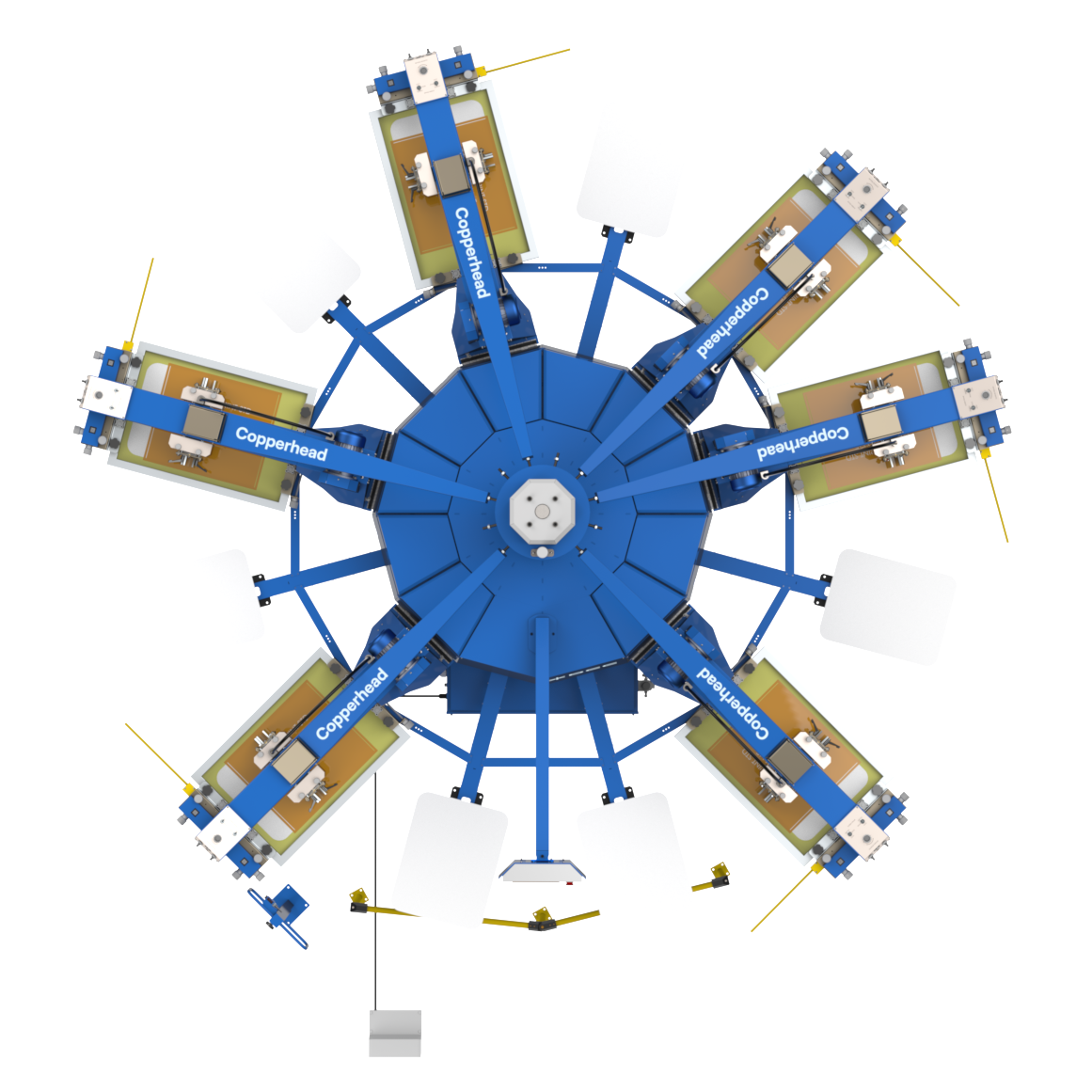

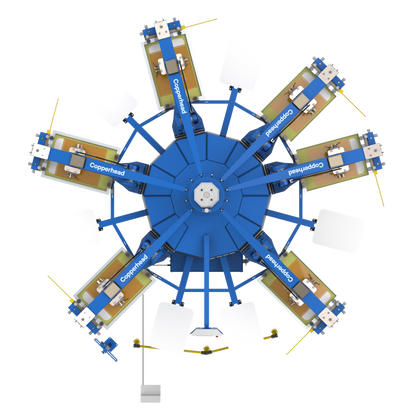

Name: Copperhead Rival Automatic Press
Brand: DCC
Availability: InStock

Designed for nonstop production, the CopperheadRival ensures speed, consistency, and stability in every run, making it the go-to choice for mid- to large-scale operations balancing performance and value. Featuring a servo-driven index, independent head control, and tool-free adjustments, the Rival blends industrial-grade reliability with seamless operation and ergonomic design, maximizing productivity while minimizing maintenance.

Servo-driven index for quiet, precise motion
Tool-free squeegee and flood adjustments
Independent head control for maximum flexibility
Quick setup modes for fast job changeovers
Energy-efficient pneumatic systems for long-term performance
Print size: 16" x 20" (41 cm x 51 cm)
Pallet size: 16" x 25" (41 cm x 64 cm)
Screen size: 23" x 33" (58 cm x 84 cm)
Printing speed: 1160 pieces per hour

Squeegee Equalizer system
Servo Driven Indexer
Carrousel Rotation-Both Clockwise & Anti-clockwise
4 Point Registration System
Individual Off Contact
Independent Print Buttons on Each Printhead
Mechanical Head Lifting for easy screen cleaning
Digital touchscreen control panel
Tool-free quick release pallet locks
Independent print/flood speed controls
Tool-free Squeegee/Floodbar angle adjustments
Pneumatic Screen Frame Lock
On-board Self Diagnostics

1 Set of 43.9 Solid Aluminium Pallet w/Rubber up to (19 x 28" / 48 x 71 cm)
1 Set of Squeegee holder with squeegee rubber up to (19" / 48 cm)
1 Set of Floodbar up to (19" / 48 cm)
Index & Skip Foot Pedal
Optical No Shirt Sensor with stand
Pneumatic Frame Locks
Squeegee Pressure Regulator
Front and Rear Micro Registration
Multi Print Mode Program
Print Stack Mode
Print-Start / Print-Finish mode
Front to Back/Back to Front- Squeegee Mode
Laser Registration Guide
Caster Wheels
Toolkit
Maintenance/Hardware Kit

Specifications	Rival 8/6	Rival 10/8	Rival 12/10	Rival 14/12
Air @ 7 Bar ( 102 psi)*	305 L/min (10.8 cfm)	345 L/min (12.2 cfm)	485 L/min (17.1 cfm)	396 L/min (14.0 cfm)
Electrical Requirements**	208-230 V, 1 ph, 18A, 50/60 Hz, 3.25 kW 208-230 V, 3 ph, 10.5 A, 50/60 Hz, 3.25 kW 380-415 V, 3 ph, 7 A, 50 Hz, 3.25 kW	208-230 V, 1 ph, 22A, 50/60 Hz, 4 kW 208-230 V, 3 ph, 15 A, 50/60 Hz, 4 kW 380-415 V, 3 ph, 10 A, 50 Hz, 4 kW	208-230 V, 1 ph, 26A, 50/60 Hz, 4.75 kW 208-230 V, 3 ph,15 A, 50/60 Hz, 4.75 kW 380-415 V, 3 ph, 10 A, 50 Hz, 4.75 kW	208-230 V, 1 ph, 30A, 50/60 Hz, 5.5 kW 208-230 V, 3 ph,17.5 A, 50/60 Hz, 5.5 kW 380-415 V, 3 ph, 14 A, 50 Hz, 5.5 kW
Diameter	154" (391 cm)	164" (416 cm)	176.3" (448 cm)	186" (472 cm)
Maximum Frame Size	23" x 33" (58 x 84 cm)	23" x 33" (58 x 84 cm)	23" x 33" (58 x 84 cm)	23" x 33" (58 x 84 cm)
Maximum Image Area	16" x 20" (41 cm x 51 cm)	16" x 20" (41 cm x 51 cm)	16" x 20" (41 cm x 51 cm)	16" x 20" (41 cm x 51 cm)
Machine Weight	2771 lb (1257 kg)	3510 lb (1592 kg)	4017 lb (1822 kg)	5181 lb (2350 kg)
Standard Pallet Size	16" x 25" (41 x 64 cm)	16" x 25" (41 x 64 cm)	16" x 25" (41 x 64 cm)	16" x 25" (41 x 64 cm)
Stations/Colors	8/6	10/8	12/10	14/12
Consumption @ 15 pieces/min; 7 bar input pressure & max image area *General usage may vary, but will be significantly less than stated values. Use servo stabilizers to safeguard the machine from voltage fluctuations out of the main supply.
