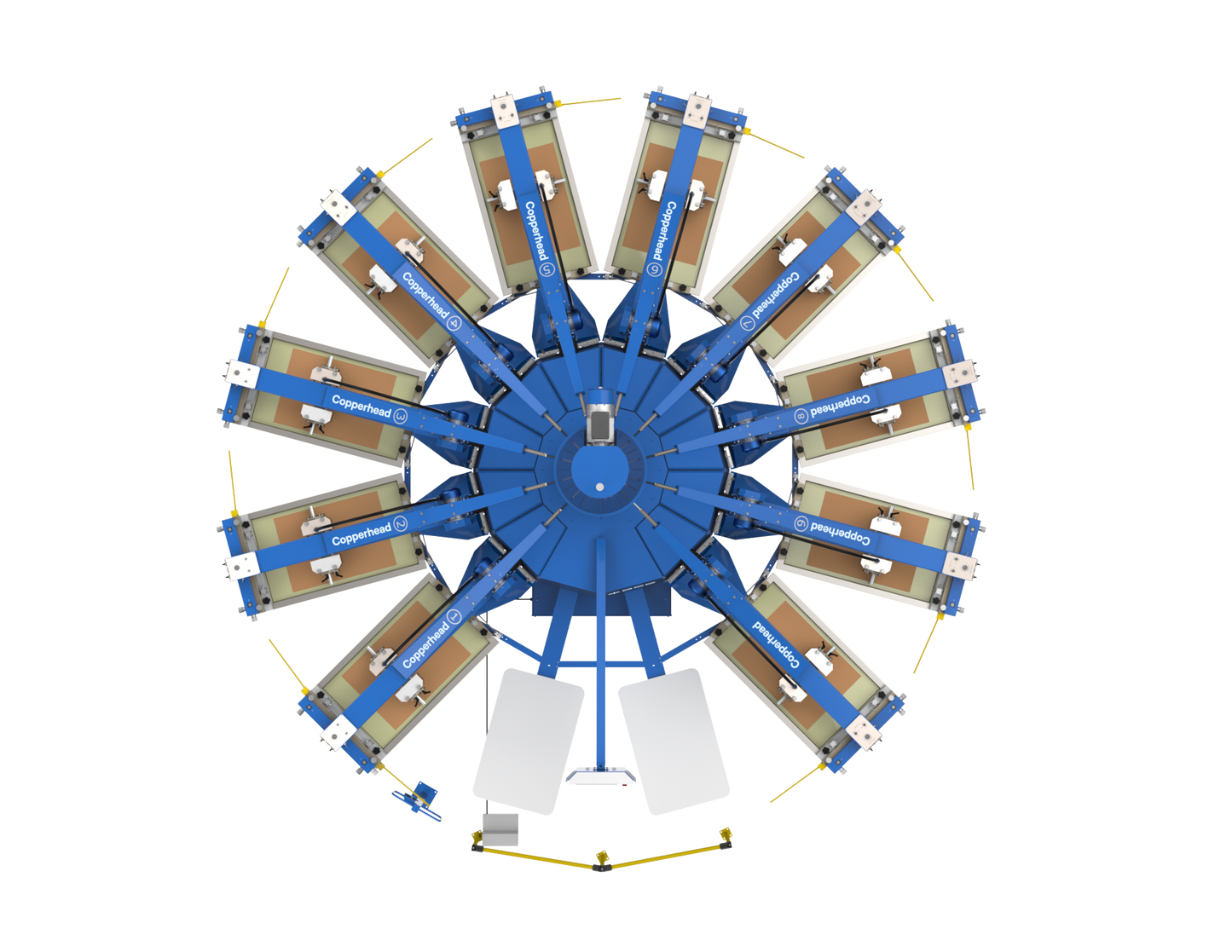

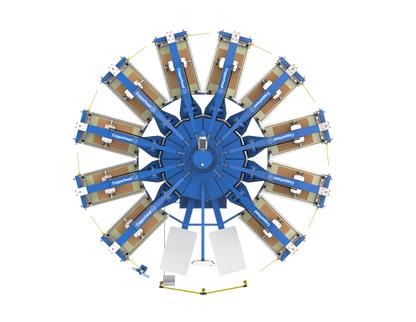

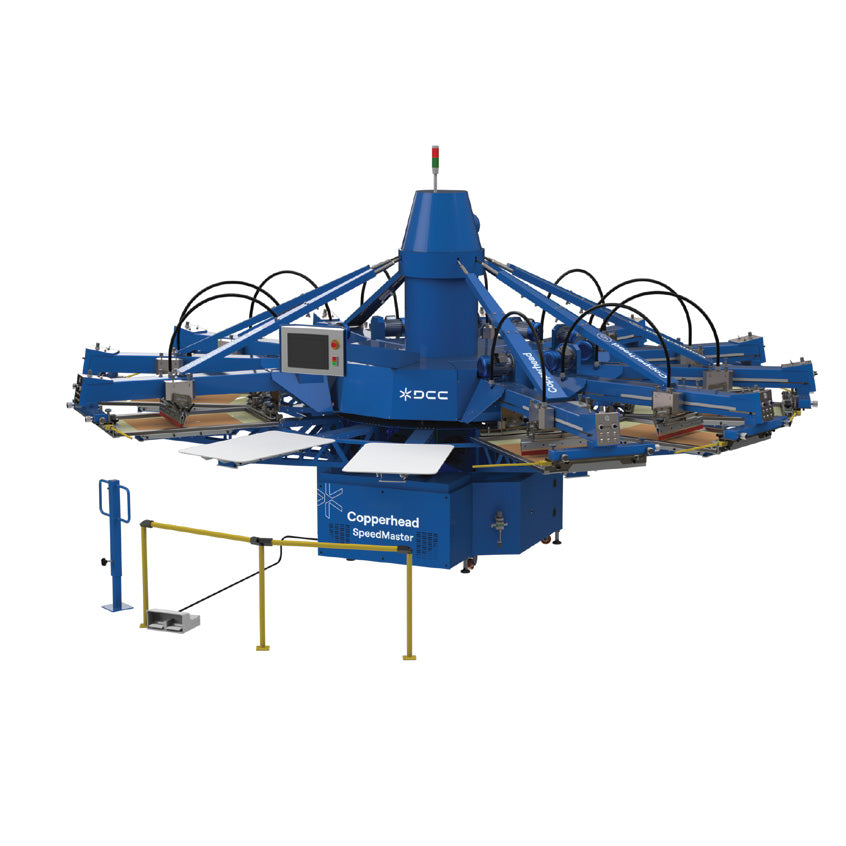

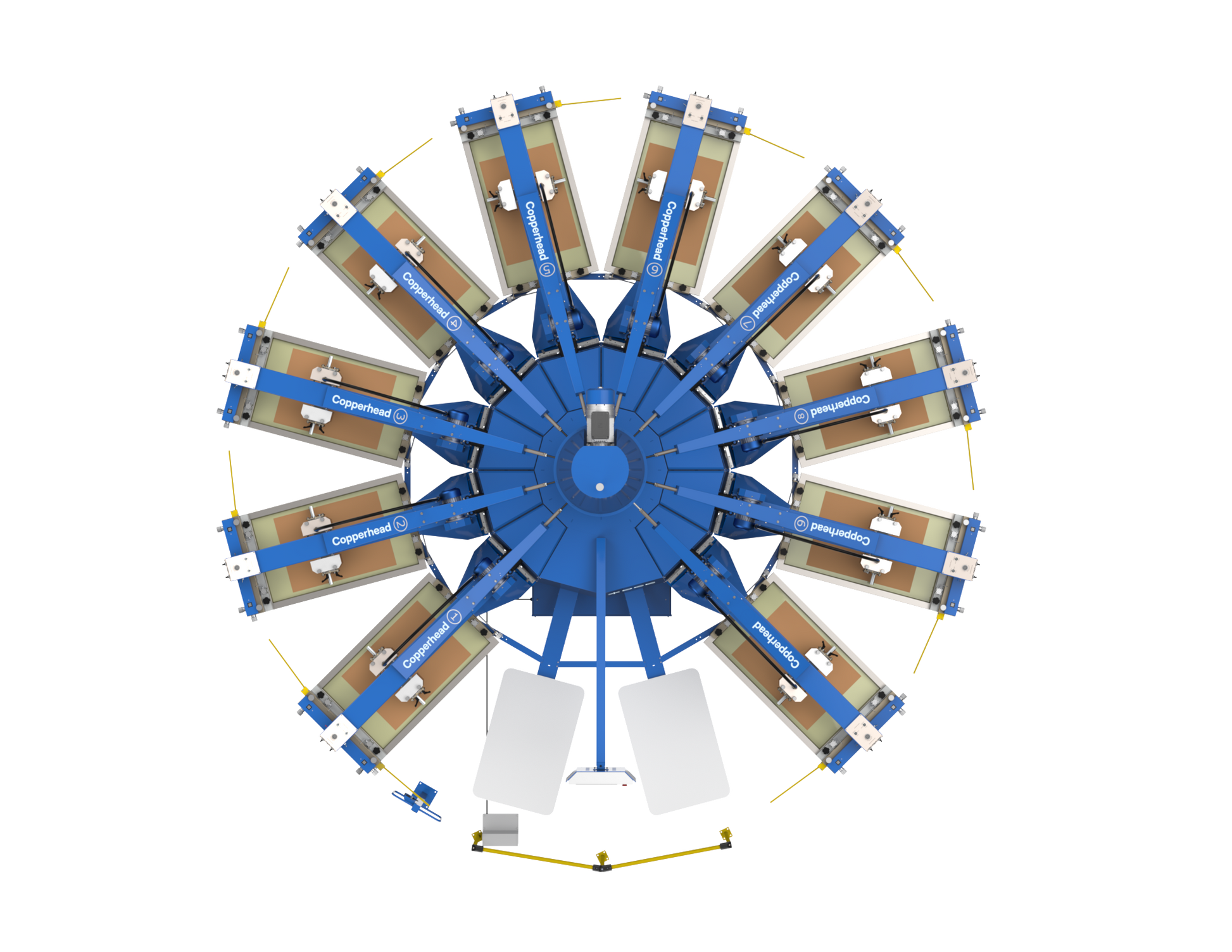

Name: Copperhead Speedmaster Automatic Press
Brand: DCC
Price: 0.5 USD
Availability: InStock

The Speedmaster is engineered for peak speed, precision, and dependability. Its servo-driven motion and user-friendly digital controls integrate seamlessly to ensure accurate registration and top-tier print quality at industrial volumes. Equipped with intelligent features to reduce setup time and boost efficiency, the Speedmaster maintains smooth, reliable performance across continuous shifts.

Smart Lube Technology: Automatically lubricates components for longer service life
Lightweight aluminum pallets with soft-top pads reduce heat buildup
Station-level pressure and flood control for exact adjustments
Squeegee Pressure Equalizer System for uniform ink deposit
Integrated HMI: Monitors oil levels and streamlines maintenance
High-speed servo index ensures short cycles with precise registration
Programmable flash dwell for consistent curing of heavy whites and effects
PinPoint registration for faster setup and dependable accuracy
Print size: 10" x 28" (51cm x 71cm)
Pallet size: 22" x 35" (56 cm x 89 cm)
Screen size: 26" x 43" (66 cm x 109cm)
Printing speed: 100 pieces per hour

Servo Driven Indexer
Squeegee Equalizer system
Carrousel Rotation-Both Clockwise & Anti-clockwise
4 Point Registration System
Individual Off Contact
Pneumatic Screen Frame Lock
Independent Print Buttons on Each Printhead
Automatic Head Lifting for easy screen cleaning
Digital touchscreen control panel
Tool-free quick release pallet locks
Independent print/flood speed controls
Tool-free Squeegee/Floodbar angle adjustments
On-board Self Diagnostics

1 Set of Solid Aluminium Pallet w/Rubber up to 56 x 89 cm (22” x 35”)
1 Set of Squeegee holder with squeegee rubber up to (21" / 53 cm)
1 Set of Floodbar up to (21" / 53 cm)
Index & Skip Foot Pedal
Optical No Shirt Sensor with stand
Pneumatic Frame Locks
Squeegee Pressure Regulator
Smart Lube Technology
Front and Rear Micro Registration
Multi Print Mode Program
Print Stack Mode
Print-Start / Print-Finish mode
Front to Back/Back to Front- Squeegee Mode
Laser Registration Guide
Castor Wheels
Toolkit
Maintenance/Hardware Kit

Specifications	Speedmaster 12/10	Speedmaster 14/12	Speedmaster 18/16	Speedmaster 20/18
Air @ 8.5 Bar ( 123 psi)*	375 l/min (13.2 cfm)	455 l/min (16.0 cfm)	602 l/min (21.3 cfm)	676 l/min (23.9 cfm)
Electrical Requirements**	380-415 V, 3 ph, 14.5 A, 50 Hz, 6.75 kW 208-230 V, 3 ph, 21A, 50/60 Hz, 6.75 kW	380-415 V, 3 ph, 16.5 A, 50 Hz, 7.5 kW 208-230 V, 3 ph, 24A, 50/60 Hz, 7.5 kW	380-415 V, 3 ph, 21.5 A, 50 Hz, 9.5 kW 208-230 V, 3 ph, 30A, 50/60 Hz, 9.5 kW	380-415 V, 3 ph, 23.5 A, 50 Hz, 10.25 kW 208-230 V, 3 ph, 34A, 50/60 Hz, 10.25 kW
Diameter	206" (523 cm)	226" (574 cm)	254.5" (646 cm)	273" (693 cm)
Maximum Frame Size	26" x 43" (66 x 109 cm)	26" x 43" (66 x 109 cm)	26" x 43" (66 x 109 cm)	26" x 43" (66 x 109 cm)
Maximum Image Area	20" x 28" (51 cm x 71 cm)	20" x 28" (51 cm x 71 cm)	20" x 28" (51 cm x 71 cm)	20" x 28" (51 cm x 71 cm)
Maximum Image Area (Double Index - Skip Frame and Skip Pallet)	32" x 30" (81 cm x 76 cm)	32" x 30" (81 cm x 76 cm)	28" x 40" (71 cm x 102 cm)	28" x 40" (71 cm x 102 cm)
Machine Weight	5225 lb (2370 kg)	6078 lb (2757 kg)	8406 lb (3813 kg)	9260 lb (4200 kg)
Standard Pallet Size	22" x 35" (56 cm x 89 cm)	22" x 35" (56 cm x 89 cm)	22" x 35" (56 cm x 89 cm)	22" x 35" (56 cm x 89 cm)
Stations/Colors	12/10	14/12	18/16	20/18
Consumption @ 15 pieces/min & max image area **General usage may vary, but will be significantly less than stated values. Use Servo Stabilizers to safeguard the machine from Voltage Fluctuation out of the main supply.
