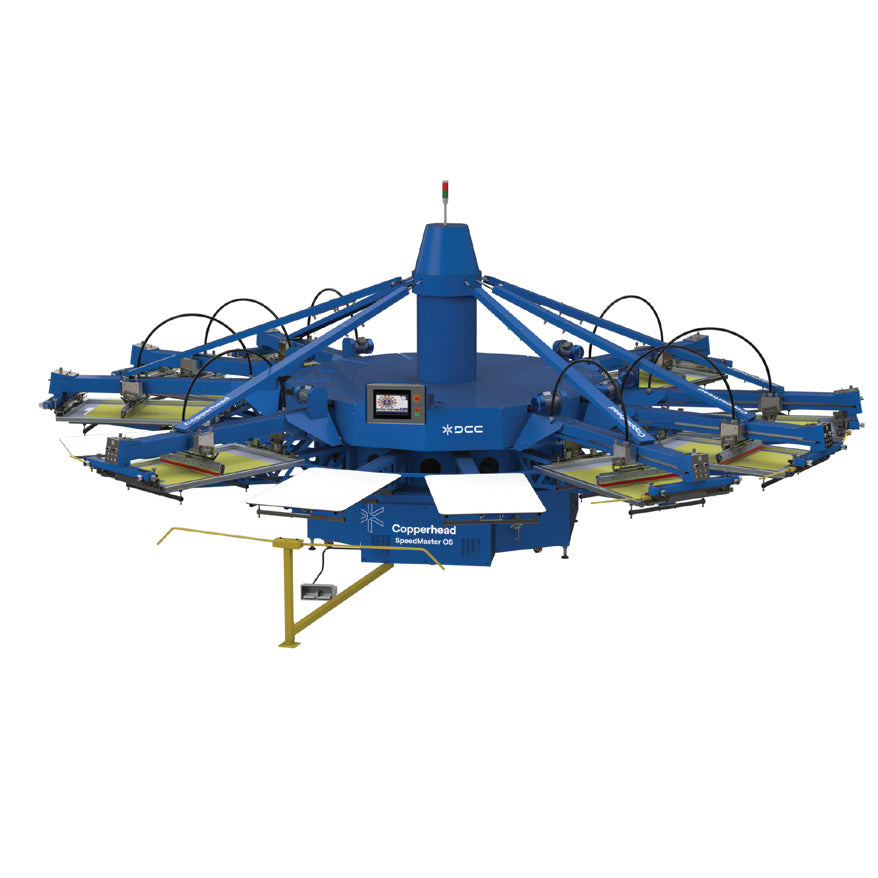

Name: Copperhead Speedmaster OS Automatic Screenprinting Press
Brand: DCC
Availability: InStock

SpeedmasterOS extends the Speedmaster platform for oversized and all-over print applications. Built for continuous, high-volume production, it maintains registration accuracy and speed through the longest shifts.

Designed to manage large pallets and complex layouts, the SpeedmasterOS delivers the same power and precision on a larger scale.

Ideal for oversize and all-over prints
Smart Pallet Load Calculator optimizes speed and protects the index motor
Servo-driven chain indexing with pneumatic tensioning for consistent motion
Wider pallet arms support even ink distribution
Centralized Pallet Locating System ensures accurate registration
Print size: 28" x 40" (71 cm x 102 cm)
Pallet size: 43" x 48" (76 cm x 122 cm)
Screen size: 34" x 53" (86 cm x 135 cm)
Printing speed: 960 pieces per hour

Servo Driven Indexer
Squeegee Equalizer system
Carrousel Rotation-Both Clockwise & Anti-clockwise
4 Point Registration System
Individual Off Contact
Pneumatic Screen Frame Lock
Independent Print Buttons on Each Printhead
Automatic Head Lifting for easy screen cleaning
Digital touchscreen control panel
Tool-free quick release pallet locks
Independent print/flood speed controls
Tool-free Squeegee/Floodbar angle adjustments
On-board Self Diagnostics

1 Set of Solid Aluminium Pallet w/Rubber up to 76 x 122 cm (30" x 48")
1 Set of Squeegee holder with squeegee rubber up to (29" / 74 cm)
1 Set of Floodbar up to (29" / 74 cm)
Index & Skip Foot Pedal
Pneumatic Frame Locks
Smart Lube Technology
Squeegee Pressure Regulator
Front and Rear Micro Registration
Multi Print Mode Program
Print Stack Mode
Print-Start / Print-Finish mode
Front to Back/Back to Front- Squeegee Mode
Laser Registration Guide
Castor Wheels
Toolkit
Maintenance/Hardware Kit

Specifications	Speedmaster OS 12/10	Speedmaster OS 14/12
Air @ 8.5 Bar ( 123 psi)*	310 l/min (10.9 cfm)	370 l/min (13.0 cfm)
Electrical Requirements**	380-415 V, 3 ph, 18 A, 50 Hz, 7.75 kW	380-415 V, 3 ph, 20 A, 50 Hz, 8.5 kW
Diameter	252.5" (641.5 cm)	275.5" (699 cm)
Maximum Frame Size	34" x 53" (86 x 135 cm)	34" x 53" (86 x 135 cm)
Maximum Frame Size (Double Index-Skip Frame and Skip Pallet)	38" x 56" (96 cm x 142 cm	38" x 56" (96 cm x 142 cm
Maximum Image Area	28" x 40" (71 cm x 102 cm)	28" x 40" (71 cm x 102 cm)
Maximum Image Area (Double Index - Skip Frame and Skip Pallet)	31.5" x 43.5" (80 cm x 110 cm)	31.5" x 43.5" (80 cm x 110 cm)
Machine Weight	7619 lb (3630 kg)	8898 lb (4240 kg)
Standard Pallet Size	30" x 48" (76 cm x 122 cm)	30" x 48" (76 cm x 122 cm)
Stations/Colors	12/10	14/12
Consumption @ 12 pieces/min & max image area *General usage may vary, but will be significantly less than stated values. Use Servo Stabilizers to safeguard the machine from Voltage Fluctuation out of the main supply.
