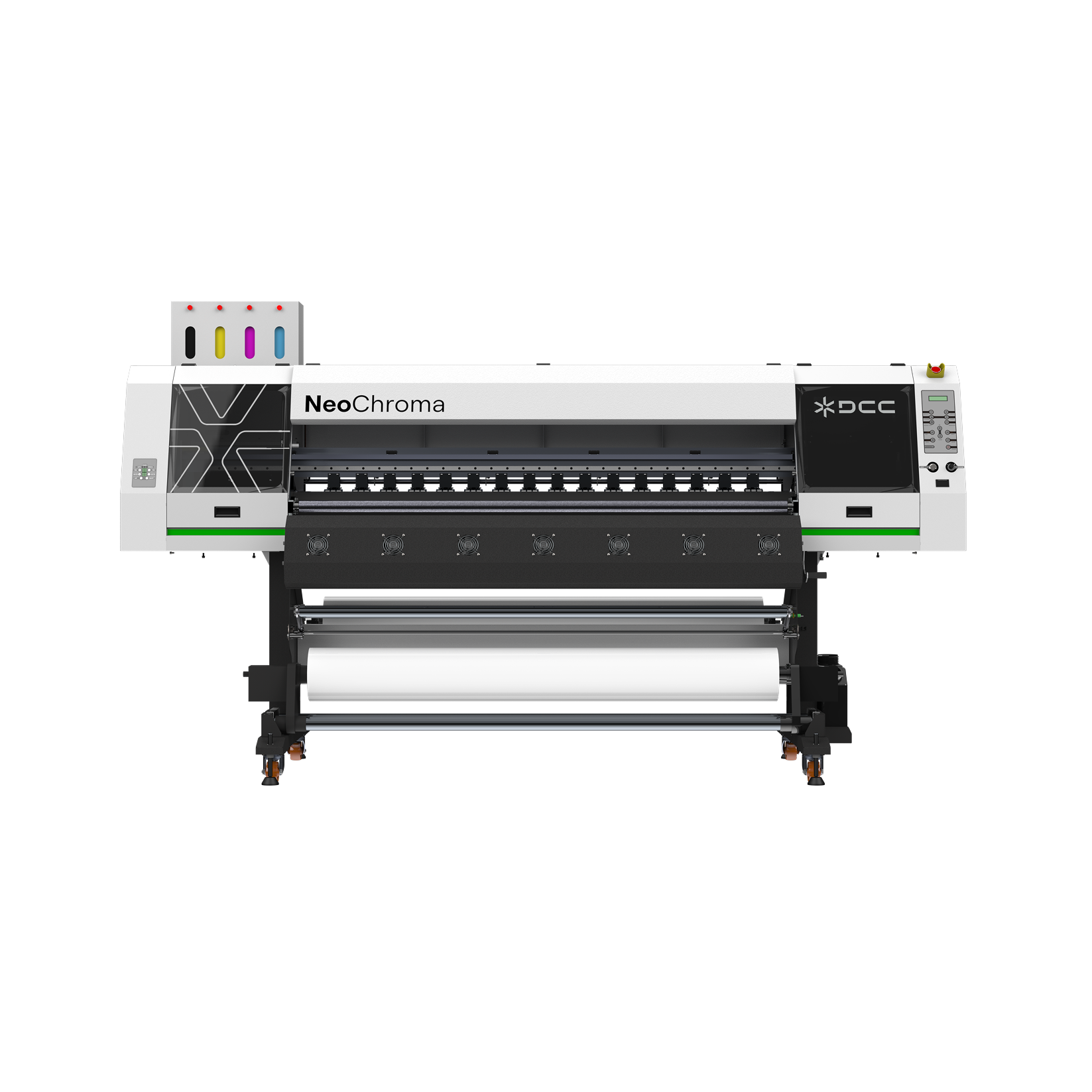

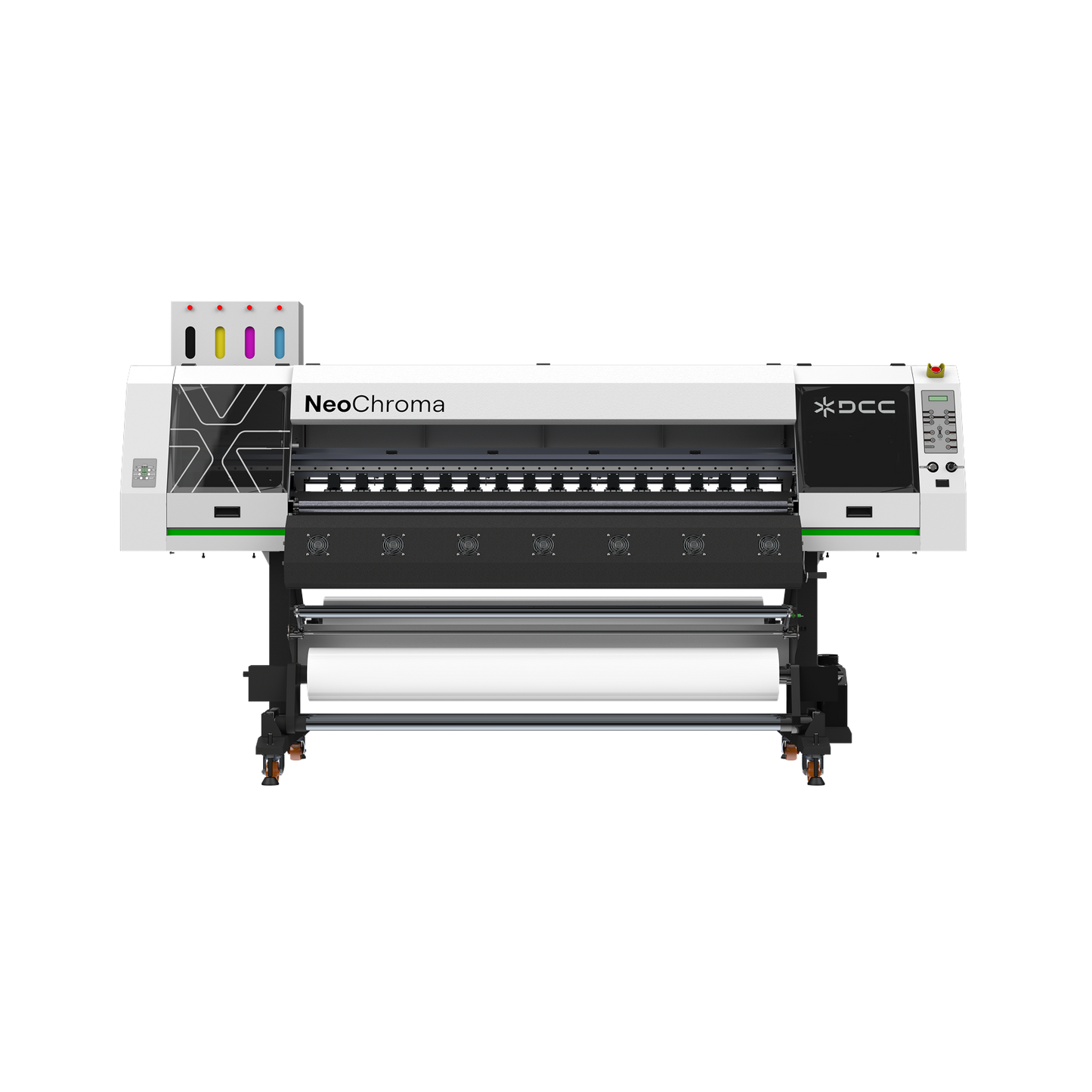

DCC NeoChroma S-44100+ Dye-Sublimation Printer

Name: DCC NeoChroma S-44100+ Dye-Sublimation Printer
Brand: DCC
Availability: InStock

DCC

SKU:

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Financing Options

Need to finance the DCC NeoChroma S-44100+ Dye-Sublimation Printer? No problem! Visit our Financing Page for more details.

Got a question about this product?

View full details

DESCRIPTION
Specifications
REVIEWS

Engineered for uncompromising speed and precision. Seamless printing is guaranteed with 5L ink tanks, low-ink alerts, and smart quartz curing. Flawless tension control and simplified maintenance empower you to print more and grow faster.

Achieve superior quality with high-speed Epson I3200-A1 printheads, delivering up to 720x1200 dpi.
The intellegent curing system uses four quartz heaters with auto and manual controls.
The 7" touchscreen HMI offers and intuitive interface for easy setup, quick adjustments, and smooth monitoring.
With 5L CMYK tanks and 220ml secondary tanks, printing stays uninterrupted even during refills.
The auto take-up and media loading system ensures quick roll changes and perfect tension control.
Easily switch between paper thicknesses with vacuum-controlled adjustments and a manual pincher lift.

Request a Price Quote for the DCC NeoChroma S-44100+ Dye-Sublimation Printer

Receive a prompt price quote by filling out the form below.
Call or Email our Sales Team for Price Quote

We are here to answer any questions you might have about the DCC NeoChroma S-44100+ Dye-Sublimation Printer.

Call Us
314.382.9300

Email Us
info@golawson.com

Specifications	DS NeoChroma S-44100+ Pro	DS NeoChroma S-44200+ Pro	DS NeoChroma S-44300+ Pro	DS NeoChroma S-44350 Pro
Printhead	Epson I3200 A1 Print Heads (1)	Epson I3200 A1 Print Heads (2)	Epson I3200 A1 Print Heads (3)	Epson I3200 A1 Print Heads (4)
Print Resolution	360 x 600 dpi (1.9 Pass) : 48.6 m²/hr360 x 1200 dpi (2 Pass) : 46.3 m²/hr360 x 1800 dpi (3 Pas) : 32.6 m²/hr720 x 1200 dpi (4 Pass) : 24.6 m²/hr	360 x 600 dpi (1.9 Pass) : 84.7 m²/hr360 x 1200 dpi (2 Pass) : 80 m²/hr360 x 1800 dpi (3 Pas) : 60.4 m²/hr720 x 1200 dpi (4 Pass) : 45.3 m²/hr	360 x 600 dpi (1.9 Pass) : 113 m²/hr360 x 1200 dpi (2 Pass) : 108.1 m²/hr360 x 1800 dpi (3 Pas) : 85.6 m²/hr720 x 1200 dpi (4 Pass) : 63.9 m²/hr	360 x 1200 dpi (2 Pass) : 133.7 m²/hr360 x 1800 dpi (3 Pas) : 107.5 m²/hr720 x 1200 dpi (4 Pass) : 84.5 m²/hr
Acceptable Media	Width: 64" (1625mm) Thickness: Min. 44 gsm Weight: 60 kgs
Ink System	Color: CMYK Ink Cartridges: 5L Main Ink Tanks + 220mL Secondary Ink Tanks
Ink Curing	Intelligent Ink Curing System
Interface	Gigabit Ethernet (GbE - Cat6)
Power	Machine Power: 1 kW; 208~230 VAC; 6A; 50/60 Hz Heater Power: 3.5 kW; 208~230 VAC; 20A; 50/60 Hz
Dimensions (Width X Depth X Height)	120" (3042 mm) x 39.3" (1000 mm) x 69.5" (1765 mm)
Weight	1133 lbs (515 kgs)		1170 lbs (530 kgs)
Environment	Power On: Temp : 15° to 25°C (59° to 77° F)
*General usage may vary, but will be significantly less than stated values. Use Servo Stabilizers to safeguard the machine from Voltage Fluctuation out of the main supply.
