DCC Red Pepper Flash Unit

Name: DCC Red Pepper Flash Unit
Brand: DCC
Price: 4890.0 USD
Availability: InStock

DCC

SKU:

$4,890.00 USD

Sale Sold out

Quantity

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Financing Options

Need to finance the DCC Red Pepper Flash Unit? No problem! Visit our Financing Page for more details.

Got a question about this product?

View full details

DESCRIPTION
Specifications
REVIEWS

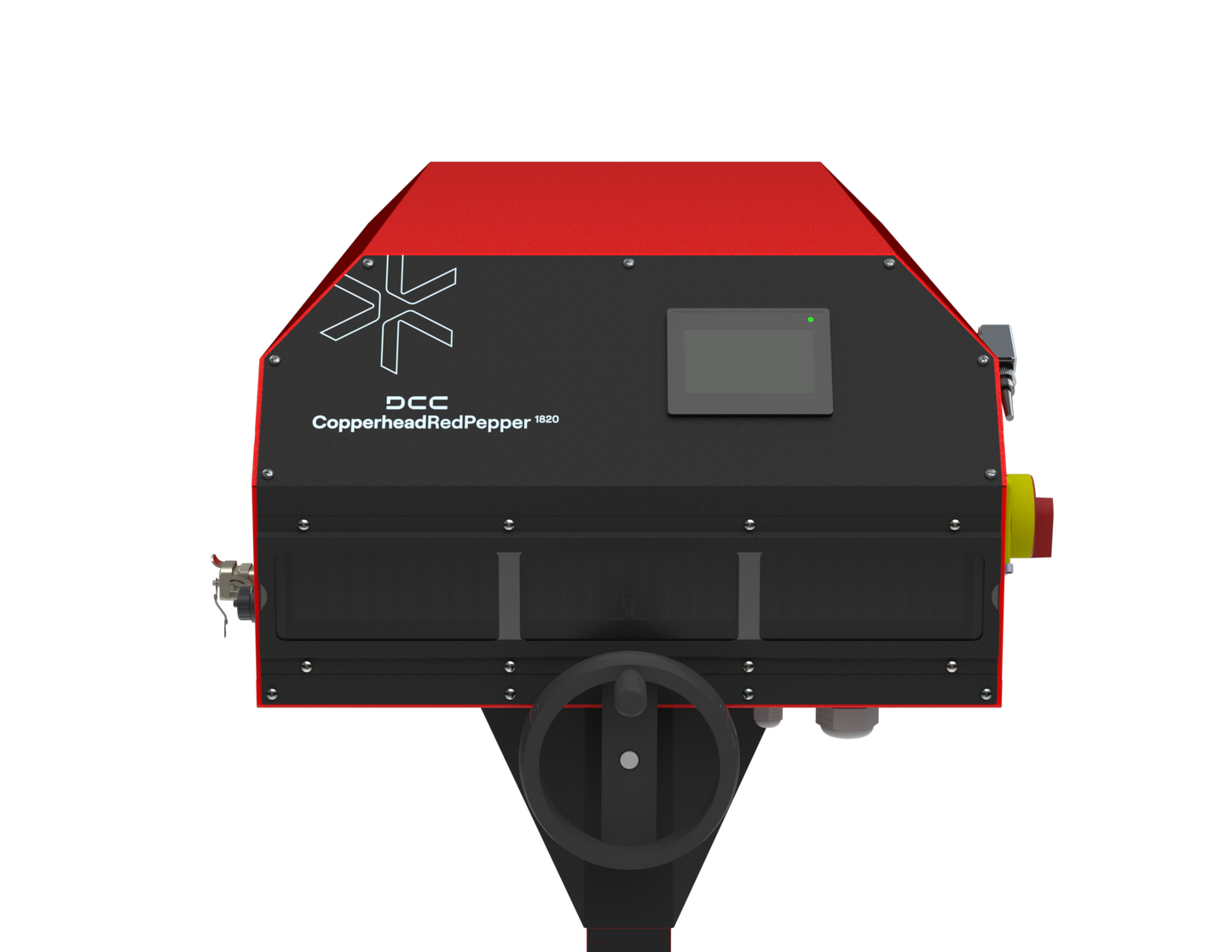

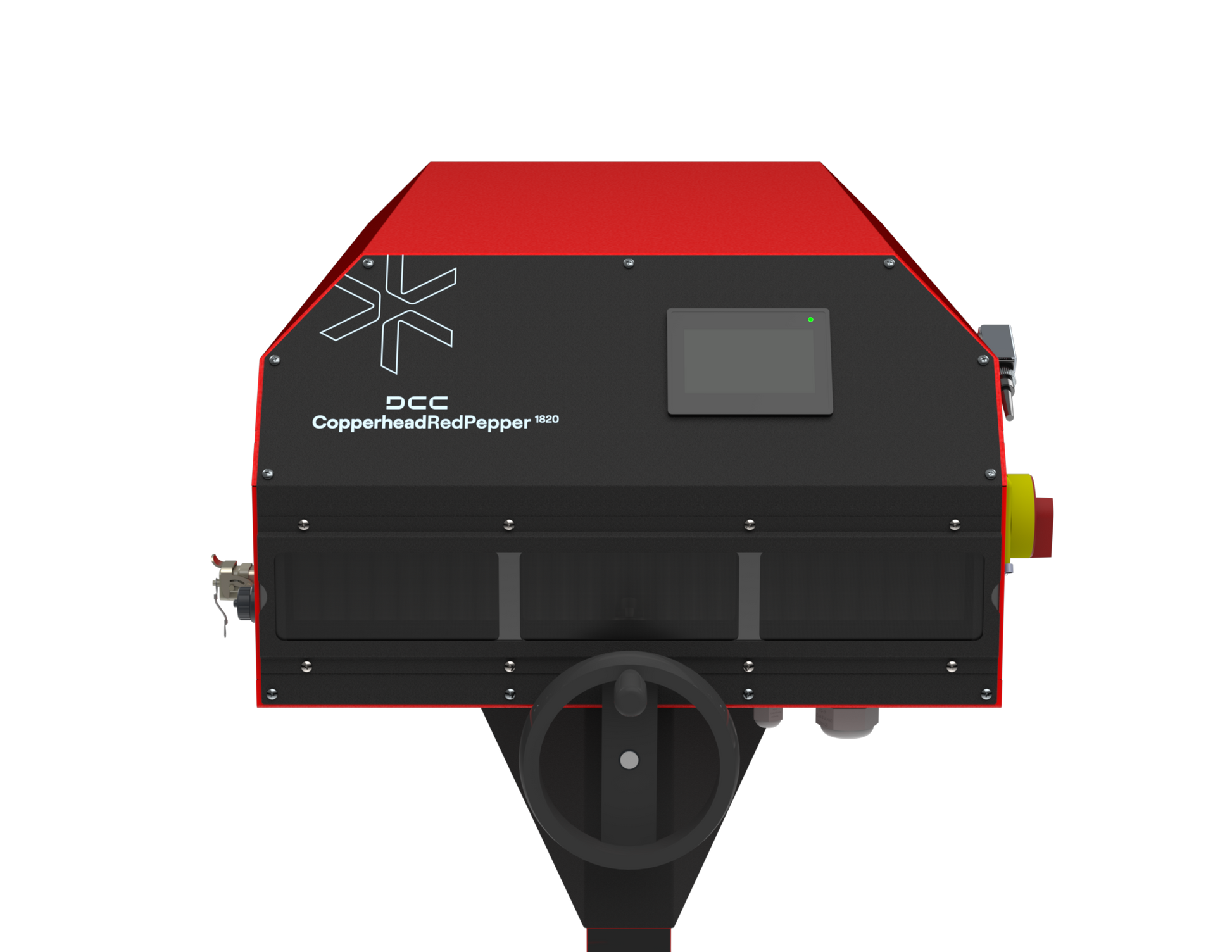

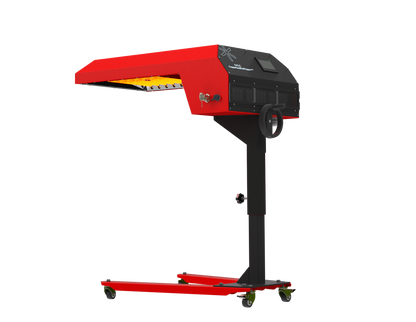

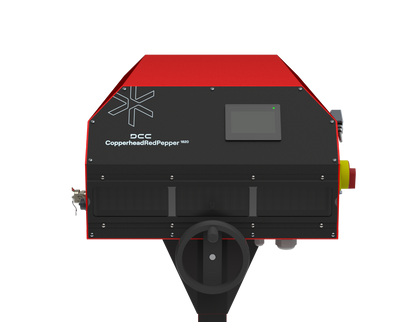

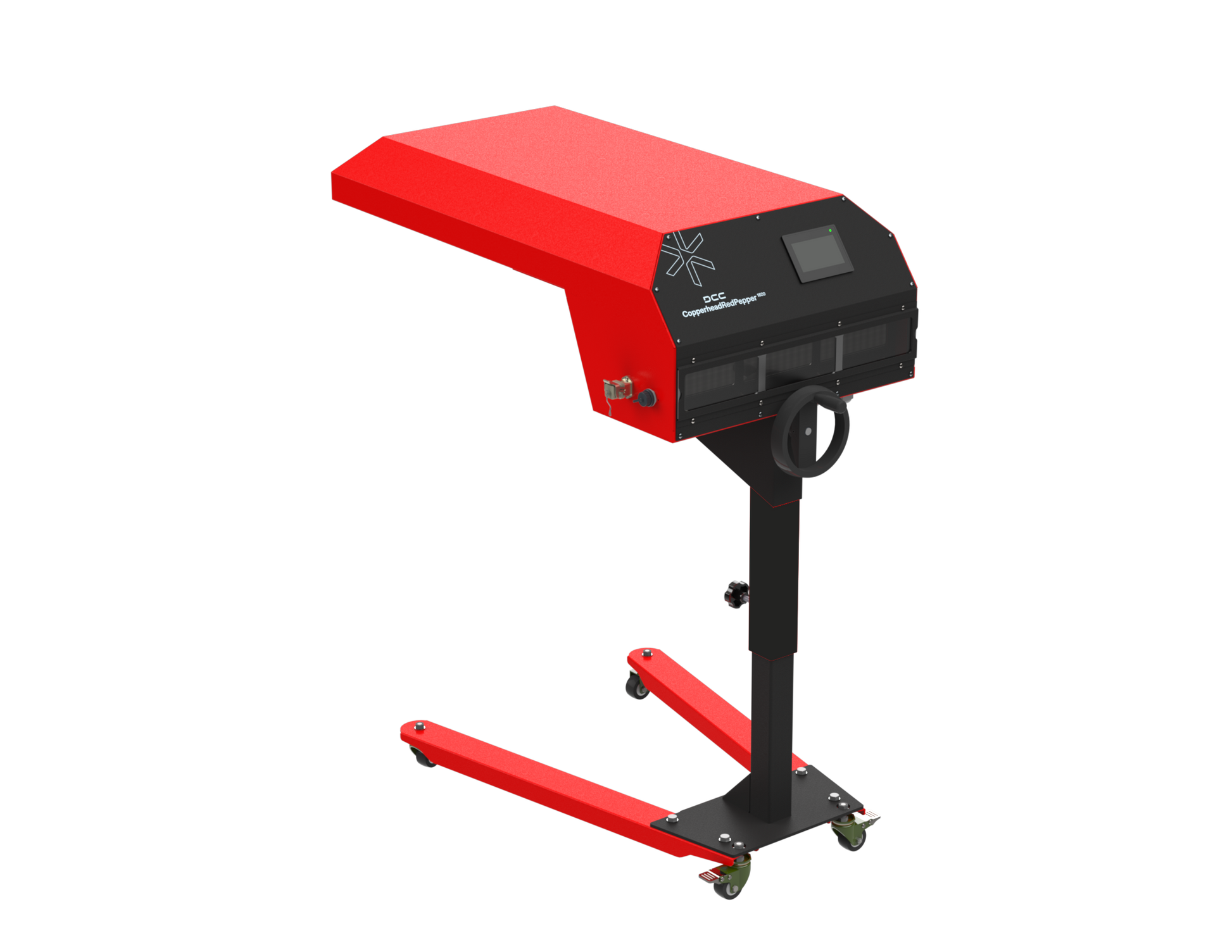

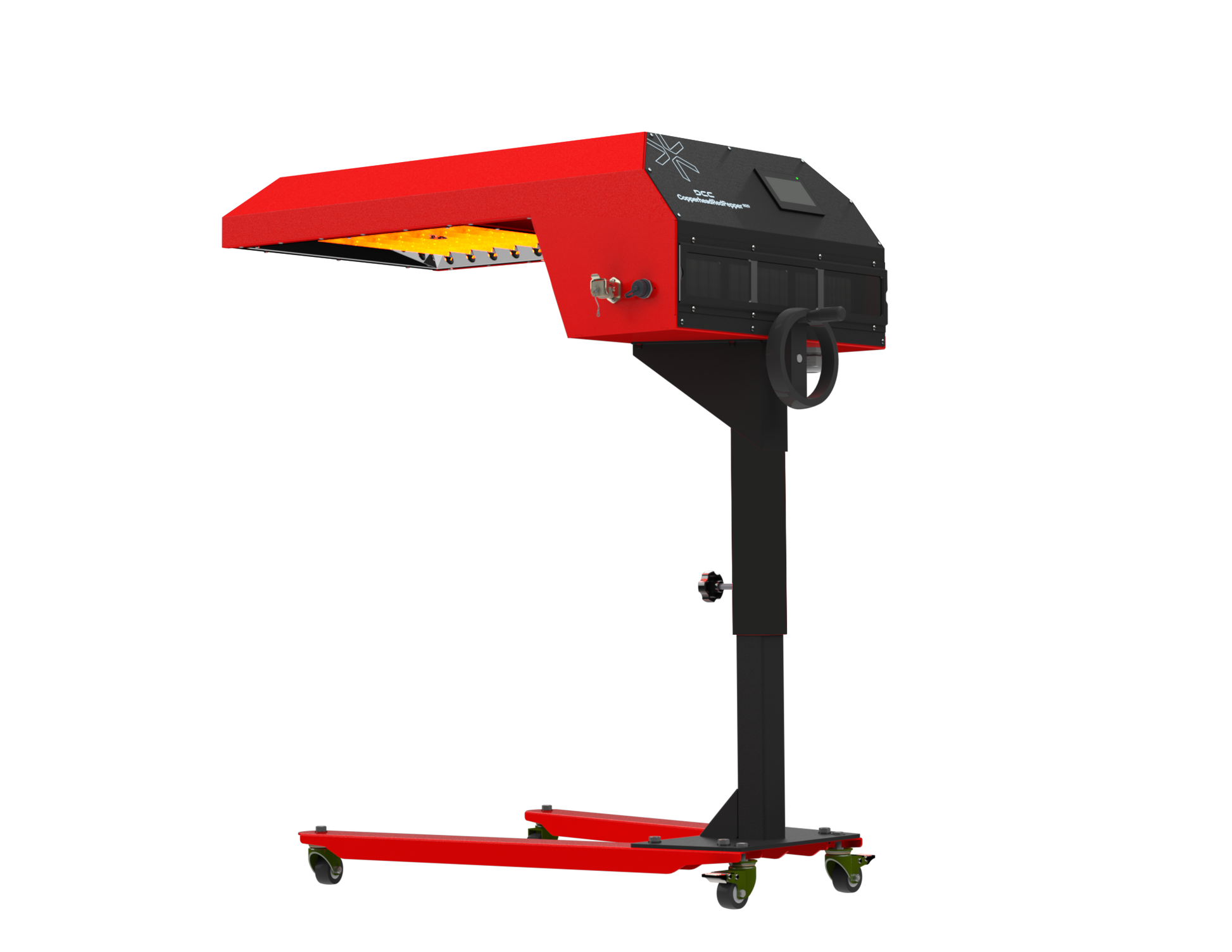

The Spicy Cure for New Flashing Options

The RedPepper is DCC’s most advanced freestanding quartz flash cure system, designed to fit most press brands with its universal build. An adjustable sensor activates the flash as the pallet approaches, while medium-wave quartz lamps deliver powerful, even heating. The system features three independently controlled flashing zones, a digital timer, and automatic temperature-based shutdown to prevent over-flashing and fabric shrinkage. A reflector array with forced-air heat exchange ensures consistent curing, and smooth-locking casters provide easy mobility.

Universal flash design to fit most brands' presses/Manual presses
High power Medium-wave sealed tungsten filament quartz lamps with adjustable intensity
An adjustable sensor switch can be positioned on either side of the flash cure unit, activating the flash when the printing pallet approaches
Three flash curing zones can be operated independently or in any combination
InkSenseTM automatically shuts off the flash cure unit when the substrate reaches operator-set temperature
Flash cure duration can be controlled by a digital display
Up to 10 receipes can be stored
Caster wheels to easily move across different heads

Specifications	RED PEPPER 1820	RED PEPPER 2030	RED PEPPER 2040	RED PEPPER 3248
Curing Area	18" x 20" (46 x 51 cm)	20" x 30" (51 x 76 cm)	28" x 40" (71 x 102 cm)	32" x 48" (80 x 120 cm)
Electrical Requirements	208–230 V, 1 ph, 73 A, 50 Hz, 13.5 kW (UL/CE) 208–230 V, 3 ph, 43 A, 50/60 Hz, 13.5 kW (UL) 380–415 V, 3 ph, 24 A, 50 Hz, 13.5 kW (CE)	208–230 V, 3 ph, 48 A, 50/60 Hz, 21.7 kW 380–415 V, 3 ph, 48 A, 50/60 Hz, 21.7 kW (CE)	380–415 V, 3 ph, 52 A, 50 Hz, 32.5 kW (CE)	80–415 V, 3 ph, 58 A, 50 Hz, 48 kW (CE)
Machine Dimension (L x W)	42.2" x 25.3" (107 x 64 cm)	52.2" x 25.3" (133 x 64 cm)	64" x 38" (162.5 x 96.5 cm)	72" x 42" (183 x 107 cm)
Machine Height	40" - 47.5" (101 cm – 121 cm) (Adjustable)	40" - 47.5" (101 cm – 121 cm) (Adjustable)	40" - 47.5" (101 cm – 121 cm) (Adjustable)	40" - 47.5" (101 cm – 121 cm) (Adjustable)
Weight	143.3 lbs (65 kg)	159 lbs (72 kg)	212 lbs (96 kg)	264.5 lbs (120 kg)
*Use uninterruptible power supply (UPS) to safeguard machine from voltage fluctuation out of main supply. If incoming voltage differs from the voltage(s) listed in the brochure, calculate amperage accordingly.
