• Digi-Dry Box - A DTG Ink Curing Dryer
  • Digi-Dry Box - A DTG Ink Curing Dryer

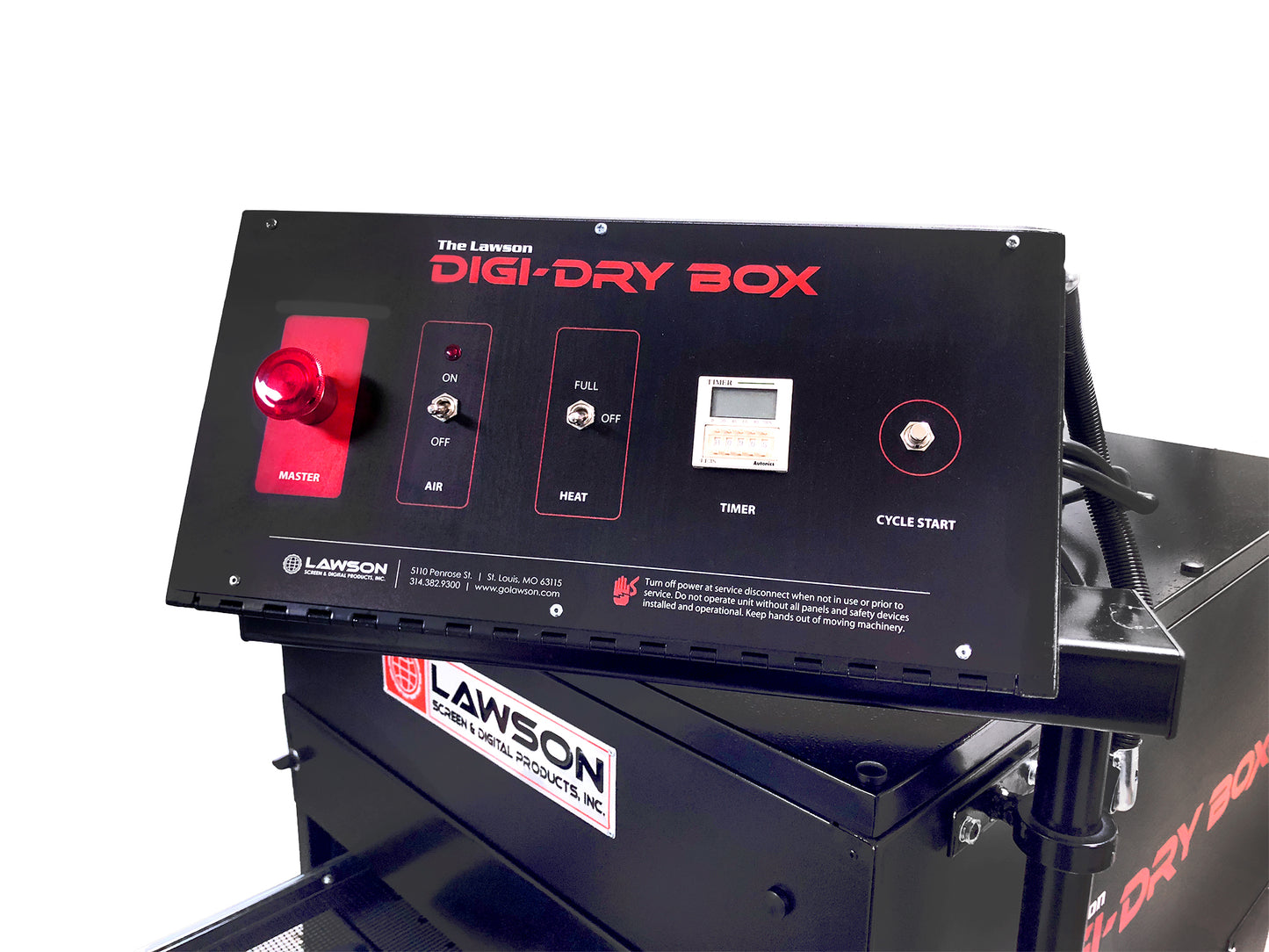

  • Digi-Dry Box - A DTG Ink Curing Dryer control panel
1 3

Digi-Dry Box - A DTG Ink Curing Dryer

Digi-Dry Box - A DTG Ink Curing Dryer

Lawson Workhorse Group (LWG)

SKU:

Get a Quote / Contact Sales
×

Got a question about Digi-Dry Box - A DTG Ink Curing Dryer?

Payment & Security

Payment Methods Accepted

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Download: Digi-Dry Box - A DTG Ink Curing Dryer

Download: Digi-Dry Box - A DTG Ink Curing Dryer

Download: Digi-Dry Box - A DTG Ink Curing Dryer

Financing Options

Need to finance the Digi-Dry Box - A DTG Ink Curing Dryer? No problem! Visit our Financing Page for more details.

Got a question about this product?

Questions & Answers

Q: Why is the Digi-Dry Box better for DTG curing than a heat press?
A: Heat presses trap steam under the platen and flatten garment fibers, creating a stiff print. The Digi-Dry Box uses quartz heat and air evacuation to draw moisture out of the fabric, leaving behind a soft, durable finish that feels like traditional screen printing.

Q: Can I use the Digi-Dry Box for curing plastisol inks?
A: Yes. The Digi-Dry Box cures plastisol inks faster than standard flash units or drawer dryers while reducing the risk of scorching or burning white shirts.

Q: How long does it take to cure a DTG shirt?
A: Typical cure times range from 30 to 90 seconds depending on the garment weight, ink deposit depth, and whether pretreatment is present.

Q: Where can I see or pick up the Digi-Dry Box?
A: You can schedule a demonstration or pick up equipment at Lawson Workhorse Group facilities in St. Louis, MO or Marietta, GA.

View full details

Description

The Lawson Digi-Dry Box is a specialized direct-to-garment (DTG) ink curing dryer engineered to properly cure water-based digital inks, pretreatment, and traditional screen printing inks. Designed for print shops in St. Louis, Atlanta, and across North America, the Digi-Dry Box combines high-intensity quartz infrared heat with a powerful air-evacuation exhaust system. This dual-action system pulls moisture down through the garment while simultaneously curing the ink deposit, producing soft-hand DTG prints that feel more like a traditional screen print than items cured with a standard heat press. Equipped with an automatic energy-saving timing cycle and adjustable temperature controls, it rapidly cures garments in 30 to 90 seconds while minimizing fabric scorching.

The Lawson Digi-Dry Box is a specialized direct-to-garment (DTG) ink curing dryer engineered to properly cure water-based digital inks, pretreatment, and traditional screen printing inks. Designed for print shops in St. Louis, Atlanta, and across North America, the Digi-Dry Box combines high-intensity quartz infrared heat with a powerful air-evacuation exhaust system. This dual-action system pulls moisture down through the garment while simultaneously curing the ink deposit, producing soft-hand DTG prints that feel more like a traditional screen print than items cured with a standard heat press. Equipped with an automatic energy-saving timing cycle and adjustable temperature controls, it rapidly cures garments in 30 to 90 seconds while minimizing fabric scorching.

The LWG Difference

  • Local Fast Pickup & Demo Centers: Collect equipment in as little as 1 hour from corporate hubs in St. Louis, MO or Atlanta / Marietta, GA.
  • Dual Quartz IR & Moisture Evacuation: Combines quartz infrared heating elements with forced air evacuation to pull steam through shirt fibers for a complete cure.
  • Energy-Efficient Auto Cycle: Automatically powers down heating elements when not in use, reducing electric consumption and room heat buildup between garment loads.
  • Full-Service USA Support: Made in the USA with direct access to factory technicians, domestic replacement parts, and flexible equipment financing solutions.
  • Local Fast Pickup & Demo Centers: Collect equipment in as little as 1 hour from corporate hubs in St. Louis, MO or Atlanta / Marietta, GA.
  • Dual Quartz IR & Moisture Evacuation: Combines quartz infrared heating elements with forced air evacuation to pull steam through shirt fibers for a complete cure.
  • Energy-Efficient Auto Cycle: Automatically powers down heating elements when not in use, reducing electric consumption and room heat buildup between garment loads.
  • Full-Service USA Support: Made in the USA with direct access to factory technicians, domestic replacement parts, and flexible equipment financing solutions.

Features

  • Quartz Infrared Heating: Delivers instant, high-intensity heat to rapidly set water-based DTG inks and plastisol inks.
  • Air-Evacuation System: Pulls steam and moisture out of heavy cotton garments to prevent trapped water from ruining the ink cure.
  • Automatic Digital Timer: Controls every step of the curing cycle with precision settings from 30 to 90 seconds.
  • Anti-Scorch Protection: Even heat distribution and timed cycles minimize scorching on delicate tri-blends, polyesters, and light fabrics.
  • Compact Footprint: Fits easily into tight shop spaces while offering a spacious single-drawer garment chamber.
  • Quartz Infrared Heating: Delivers instant, high-intensity heat to rapidly set water-based DTG inks and plastisol inks.
  • Air-Evacuation System: Pulls steam and moisture out of heavy cotton garments to prevent trapped water from ruining the ink cure.
  • Automatic Digital Timer: Controls every step of the curing cycle with precision settings from 30 to 90 seconds.
  • Anti-Scorch Protection: Even heat distribution and timed cycles minimize scorching on delicate tri-blends, polyesters, and light fabrics.
  • Compact Footprint: Fits easily into tight shop spaces while offering a spacious single-drawer garment chamber.

Specifications Table

SPECIFICATIONS Digi-Dry Box
Estimated Overall Depth 40" (70" with Slide Drawer Fully Extended)
Estimated Overall Width 28" (32" with Boom Control Pole)
Estimated Overall Height 50" (62" with Control Box)
Estimated Curing Area 18" x 24"
Tray Area 23" x 31"
Heat Quartz Bulbs
Air Zones 1 Continuous
Flue Size 8" Round (Powered Exhaust)
Wattage 7,820 W
AMPS (120/230 Volts): 1-Phase, 34 Amps (7,820 Watts) 120/230 Volts (3 pole; 4 wire)
Estimated Crated Weight 376 lbs
Estimated Crated Size 36"W x 47"L x 71"H

Comparison Table

FEATURE Lawson Digi-Dry Box Standard Heat Press Curing
Hand Feel Soft, retail-ready finish that feels like traditional screen printing Firm, plasticized feel caused by flattened garment fibers
Moisture Evacuation Air evacuation pulls steam through and out of the garment during cure Traps steam under the heat press platen, leading to incomplete ink curing
Fabric Safety Auto-timer and quartz IR minimize scorching on delicate garments High risk of scorch marks and press lines on polyester and tri-blends
Operator Efficiency Load garment, press start, and walk away to print the next shirt Requires manual clamping pressure and constant operator attention
