• DK20SP Geo. Knight Heat Transfer Air Operated Swinger Press 16" x 20"
1 1

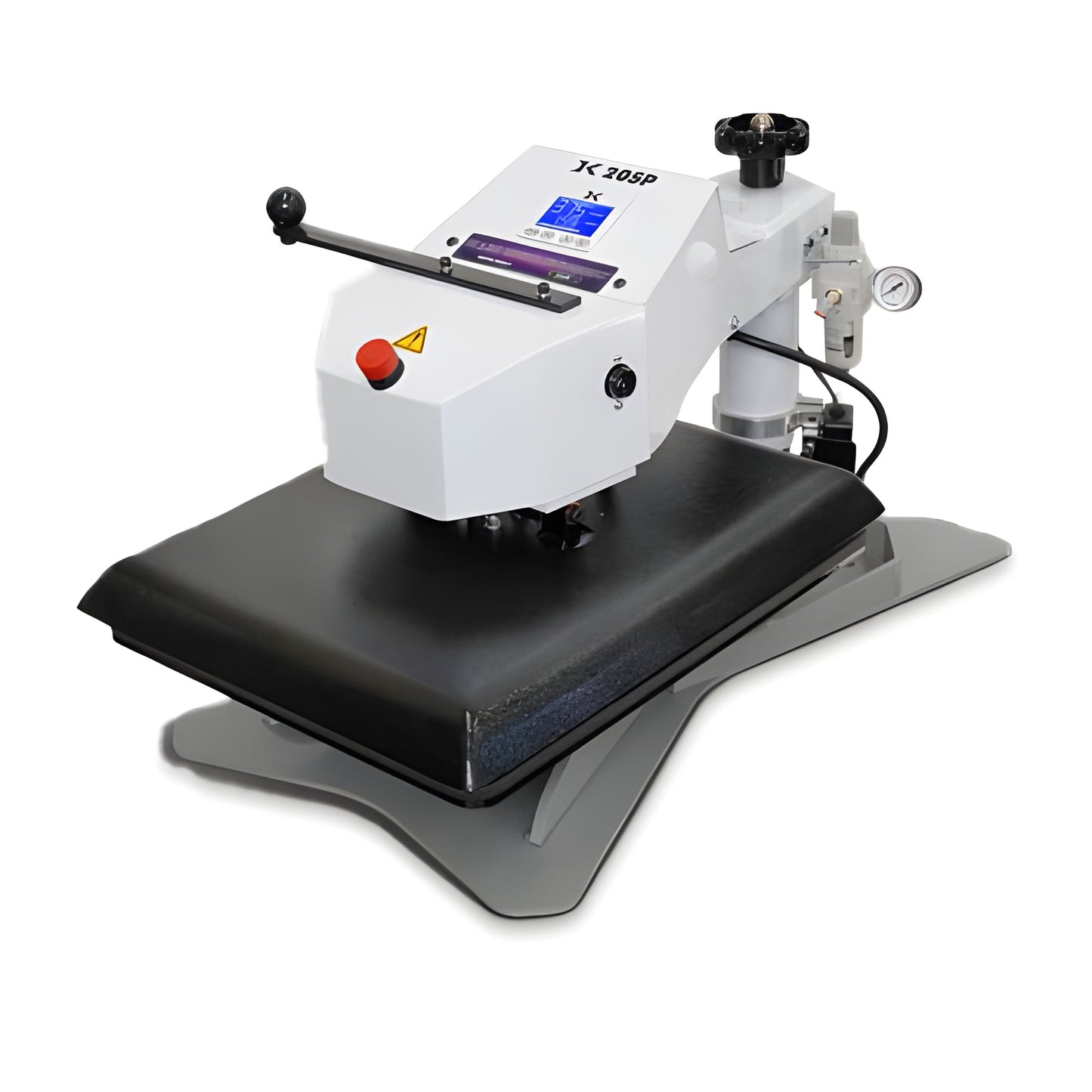

DK20SP Geo. Knight Heat Transfer Air Operated Swinger Press 16" x 20"

DK20SP Geo. Knight Heat Transfer Air Operated Swinger Press 16" x 20"

Geo. Knight

SKU:

$2,950.00 USD
$0.00 USD $2,950.00 USD
Sale Sold out

Shipping Fees Not Included in Price

Shipping and Crating fees (if applicable) are not included in price shown and will not be reflected in your order total. Lawson will contact you after order completion with a shipping cost.

Payment & Security

Payment Methods Accepted

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Financing Options

Need to finance the DK20SP Geo. Knight Heat Transfer Air Operated Swinger Press 16" x 20"? No problem! Visit our Financing Page for more details.

Got a question about this product?

Questions & Answers

Where can I buy or pick up the Geo. Knight DK20SP Automatic Press locally?

You can securely order online and choose convenient local pickup at either the Lawson Screen & Digital Products corporate headquarters in St. Louis, MO (Penrose Street) or our Atlanta area branch in Marietta, GA (Cobb Industrial Drive). Local pickup can also be coordinated through our satellite offices in Phoenix, Orlando, and Des Moines.

Does the Digital Knight DK20SP require an external air compressor?

Yes. Because it is a fully automated pneumatic press designed to eliminate manual clamping, it requires a separate air compressor to operate. To ensure the smooth, repetitive piston movement required for high-volume shop lines, your compressor should meet or exceed standard pneumatic commercial requirements (typically a minimum of a 5 to 7-gallon tank capacity delivering 1 cfm at 100 psi via a 1/4" air line).

What is the advantage of a pneumatic swing-away press over an auto-open clamshell?

An auto-open clamshell releases automatically but still requires manual physical muscle to pull down and lock. The pneumatic DK20SP features completely hands-free automatic pressing via dual push-button activation. Furthermore, because it is a swing-away layout, the heat platen lowers in a perfectly flat vertical line rather than an angle, delivering up to 3,000 lbs of completely uniform pressure while keeping the hot upper platen entirely clear of your hands during layout.

How does the rotatable lower platen structure assist with garment loading?

The DK20SP is built with an elevated base that features drop-on, pull-pin attached lower tables. This design allows you to completely rotate the lower bed, meaning you can thread or "dress" garments from either the front or the back of the press. By pulling a shirt completely over the platen, you drop thick collars, tags, and side-seams completely out of the pressing zone, ensuring a flat, seamless print area.

What are the electrical specifications and size options for the machine?

The standard configuration runs on 120V / 15A / 1800W, allowing it to safely draw power from standard utility breakers. An optional 220V international line configuration is available upon request. The machine itself weighs 235 lbs and features physical box dimensions of 40"D x 26"W x 18"H.

What type of manufacturer warranty covers the DK20SP?

Built to withstand decades of relentless, high-pressure industrial manufacturing, this system is backed by Geo. Knight’s top-tier warranty package:

  • Lifetime Warranty on the Teflon-coated SuperCoil-Microwinding™ heat platen.
  • 5-Year Warranty on the welded solid steel frame structure.
  • 3-Year Warranty on the digital control circuitry.
  • 1-Year Warranty on parts, alongside FREE Lifetime Technical Support through Lawson and the manufacturer.

Can I finance the Geo. Knight DK20SP Automatic Heat Press?

Yes! If you are upgrading your finishing department, bundling this unit with an industrial direct-to-film printing system, or expanding a multi-press facility, commercial equipment financing options are available to protect your working capital. You can apply quickly and securely via our Lawson financing page.

View full details
  • DESCRIPTION
  • REVIEWS

Ready to entirely eliminate physical operator fatigue while scaling up to true commercial-grade transfer volume? The Geo. Knight DK20SP Heat Transfer Air Operated Swinger Press 16" x 20" is a production-oriented, heavy-duty pneumatic masterpiece engineered by Geo. Knight & Co. It takes the industry-leading framework of the manual DK20S series and couples it with a smooth, automatic air-operated drive system. Instead of straining with manual levers, users can execute highly demanding press runs with simple, seamless push-button activation.

The key manufacturing advantage of the Digital Knight DK20SP is its flawless consistency under extreme conditions. Operating as a tabletop swing-away system, this machine features a built-in precision air regulator and gauge that can adjust from 20 to 100 PSI, generating up to an unshakeable 3,000 lbs of total applied clamping force. Backed by a lifetime warranty, the 3/4" thick Teflon-coated platen utilizes patented SuperCoil-Microwinding™ heater technology to eliminate cold spots entirely. Highly optimized for mass production of DTF transfers, screen printed transfers, heat transfer vinyl (HTV), sublimation blanks, and laser toner transfers, it features drop-on, pull-pin lower tables that are fully rotatable. This gives your shop maximum Threadability™, allowing operators to smoothly slide and thread garments from either the front or the back to drop seams out of the path of pressure.

Equipped with a solid steel welded framework, an advanced digital controller with 70 programmable presets, dual pre-press timing, and an adjustable height capacity that handles items up to 1" thick, this 235 lb industrial workhorse brings uncompromising, retail-ready precision to your automated workflow.

📍 Local Pickup Available: Skip the heavy freight fees! In-store local pickup is available at our St. Louis, MO (HQ) and Atlanta / Marietta, GA hubs. If the item is in stock, your order can be ready for pickup quickly—simply check local availability or contact us to coordinate before heading over. Note: Because this commercial pneumatic press weighs 235 lbs, specialized vehicle transport or freight handling is highly recommended.
