Description

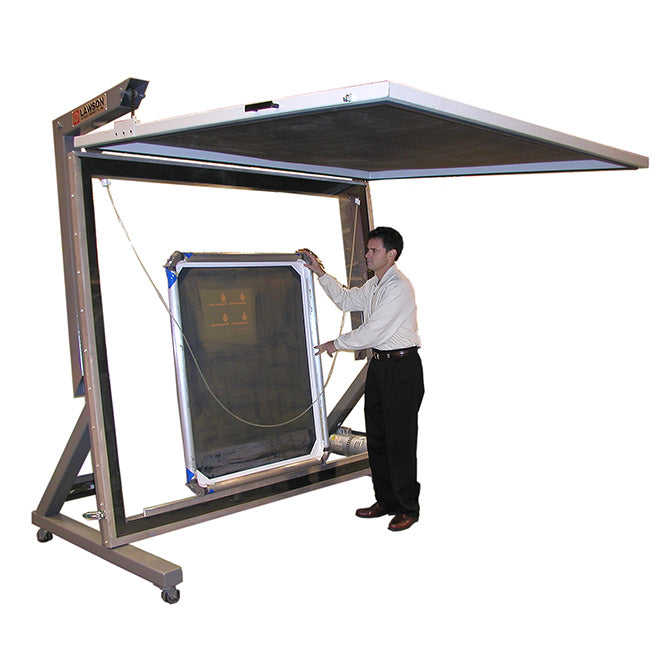

The Lawson Dyno-Vac Vacuum Frame is a commercial-grade, floor-standing exposure vacuum frame built for large-format screen printing shops, graphic printmakers, and high-volume textile operations. Designed for commercial screen rooms in St. Louis, MO, Atlanta, GA, and across North America, the Dyno-Vac makes exposing oversized screens fast and effortless. Driven by a powerful 1-horsepower instant-vac motor and a tear-resistant black rubber-flex blanket, it pulls an immediate, firm draw-down to guarantee complete film-to-emulsion contact without air pockets or light undercutting. Available in both Pivoting and Stationary Slant configurations across sizes up to 86" x 180", the Dyno-Vac easily disassembles to fit through narrow doorways and includes heavy-duty casters for smooth shop mobility.

The Lawson Dyno-Vac Vacuum Frame is a commercial-grade, floor-standing exposure vacuum frame built for large-format screen printing shops, graphic printmakers, and high-volume textile operations. Designed for commercial screen rooms in St. Louis, MO, Atlanta, GA, and across North America, the Dyno-Vac makes exposing oversized screens fast and effortless. Driven by a powerful 1-horsepower instant-vac motor and a tear-resistant black rubber-flex blanket, it pulls an immediate, firm draw-down to guarantee complete film-to-emulsion contact without air pockets or light undercutting. Available in both Pivoting and Stationary Slant configurations across sizes up to 86" x 180", the Dyno-Vac easily disassembles to fit through narrow doorways and includes heavy-duty casters for smooth shop mobility.

The LWG Difference

  • Local Fast Pickup & Demo Hubs: Inspect machinery in person or schedule rapid equipment pickup at regional distribution facilities in St. Louis, MO or Atlanta / Marietta, GA.
  • 1-HP Instant-Vac Draw-Down: High-capacity vacuum motor pulls instant suction across large-format glass, ensuring razor-sharp stencil contact and zero trapped air pockets.
  • Ergonomic Pivoting & Slant Designs: Tilts horizontally for easy, ergonomic screen loading and swings vertically or at a fixed slant for seamless exposure positioning.
  • Direct USA Factory Support: Handcrafted in the USA with heavy-gauge American steel, factory-trained technical support, quick-ship domestic replacement parts, and flexible commercial financing options.

  • Local Fast Pickup & Demo Hubs: Inspect machinery in person or schedule rapid equipment pickup at regional distribution facilities in St. Louis, MO or Atlanta / Marietta, GA.
  • 1-HP Instant-Vac Draw-Down: High-capacity vacuum motor pulls instant suction across large-format glass, ensuring razor-sharp stencil contact and zero trapped air pockets.
  • Ergonomic Pivoting & Slant Designs: Tilts horizontally for easy, ergonomic screen loading and swings vertically or at a fixed slant for seamless exposure positioning.
  • Direct USA Factory Support: Handcrafted in the USA with heavy-gauge American steel, factory-trained technical support, quick-ship domestic replacement parts, and flexible commercial financing options.

Features

  • Instant-Vac 1-HP Vacuum Engine: Rapidly evacuates air to hold film positives tight against large screen frames during point-light exposure.
  • Tear-Resistant Rubber-Flex Blanket: Heavy-duty black rubber blanket provides uniform suction and withstands continuous daily production use.
  • Narrow Doorway Disassembly: Modular frame design easily disassembles to navigate standard shop doorways, narrow hallways, and darkroom entryways.
  • Heavy-Duty Lockable Casters: Industrial-grade rolling casters provide smooth 360-degree mobility and firm locking stability during loading.
  • Versatile Model Configurations: Choose between the Pivoting Model #5070 (tilts horizontally and vertically) or the Stationary Slant Model #8096.

  • Instant-Vac 1-HP Vacuum Engine: Rapidly evacuates air to hold film positives tight against large screen frames during point-light exposure.
  • Tear-Resistant Rubber-Flex Blanket: Heavy-duty black rubber blanket provides uniform suction and withstands continuous daily production use.
  • Narrow Doorway Disassembly: Modular frame design easily disassembles to navigate standard shop doorways, narrow hallways, and darkroom entryways.
  • Heavy-Duty Lockable Casters: Industrial-grade rolling casters provide smooth 360-degree mobility and firm locking stability during loading.
  • Versatile Model Configurations: Choose between the Pivoting Model #5070 (tilts horizontally and vertically) or the Stationary Slant Model #8096.

Specifications Table

Feature Specification
Equipment Type Heavy-Duty Large-Format Screen Printing Vacuum Frame
Vacuum Pump System 1-Horsepower (1-HP) Instant-Vac Motor Assembly
Blanket Material Heavy-Duty Tear-Resistant Black Rubber-Flex Blanket
Frame Styles Pivoting Frame (Horizontal to Vertical) & Stationary Slant Frame
Pivoting Frame Sizes (#5070) 50" x 70", 60" x 80", 60" x 110", 72" x 96", and 84" x 120"
Slant Frame Sizes (#8096) 60" x 72", 72" x 96", 84" x 110", 86" x 120", and 86" x 180"
Mobility & Frame Industrial Rolling Casters; Modular Frame Disassembles for Narrow Doors
Origin Made in USA (St. Louis, MO & Atlanta, GA distribution)

Comparison Table

Feature Lawson Dyno Vac Vacuum Frame Standard Tabletop or Small Format Vacuum Frames
Screen Capacity Accommodates massive screen printing frames up to 86" x 180" for large graphics Restricted to small manual or automatic press screens (typically under 25" x 36")
Suction Speed & Contact 1-HP high-draw motor pulls instant vacuum across large surfaces with zero edge delay Weak pumps create slow draw-down delays and leave air pockets on large glass areas
Loading Ergonomics Tilts horizontally for comfortable waist-height loading before swiveling to expose Vertical fixed frames or flat tables force awkward lifting and manual screen positioning
Doorway Transport Disassembles easily into modular pieces to pass through standard doorways Rigid welded frames are difficult to move into basement shops or tight darkrooms
