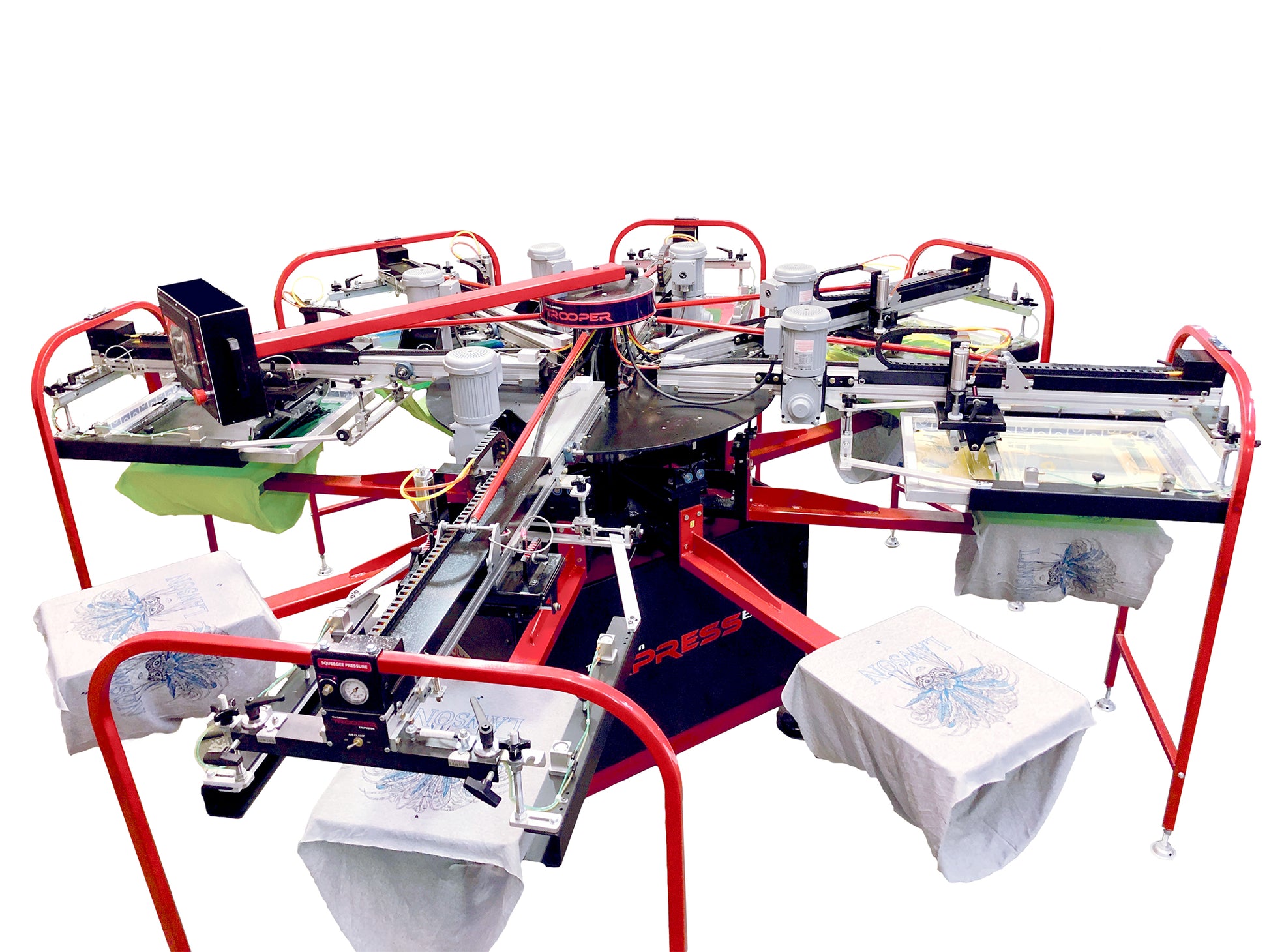

• Lawson Express EX hybrid automatic screen printing machine with AC motor-driven print heads and a pneumatic carousel, designed for high-speed garment production.

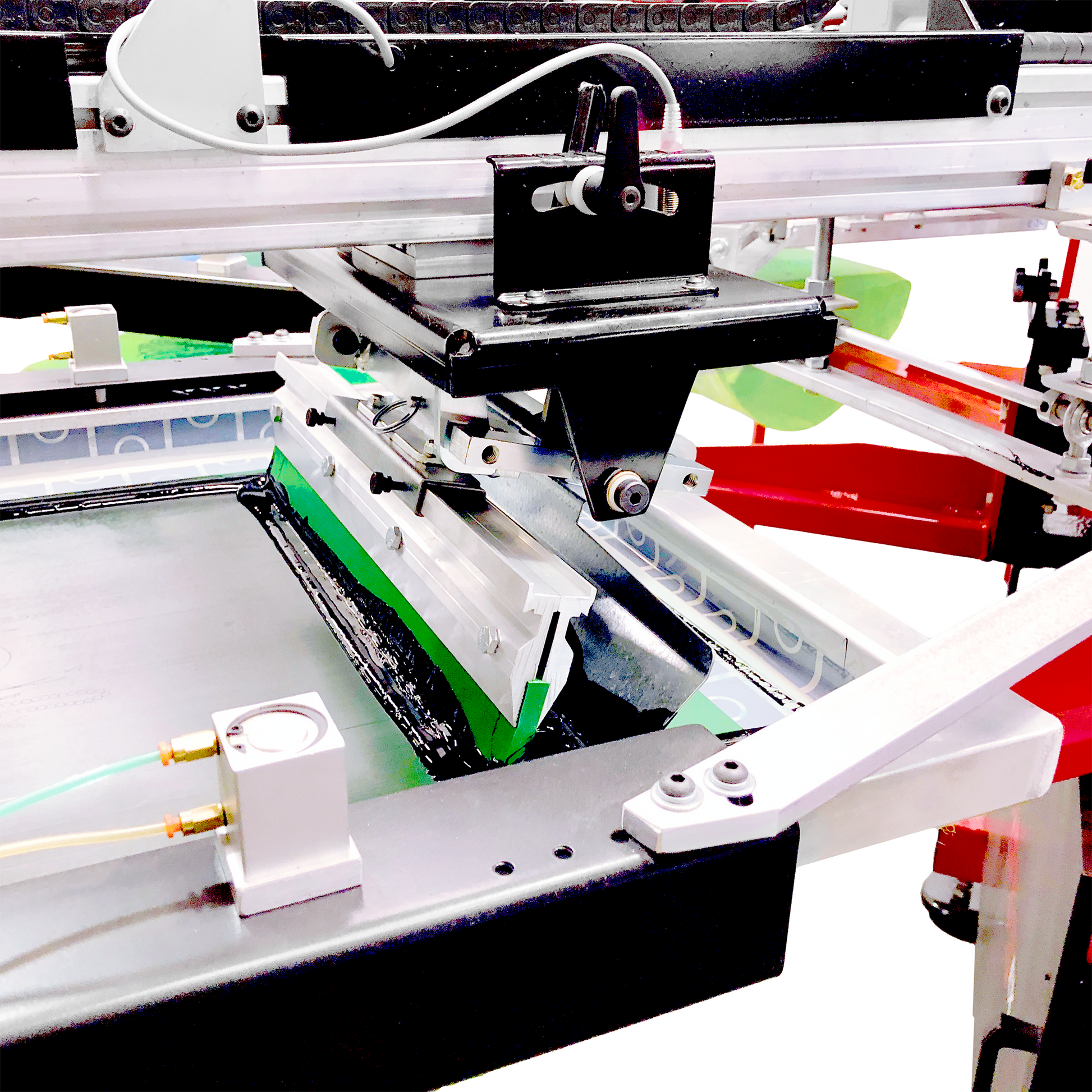

  • Close-up of the Lawson Express EX automatic print head featuring an AC electric drive motor, adjustable squeegee angle controls, and a green squeegee blade for precision screen printing.

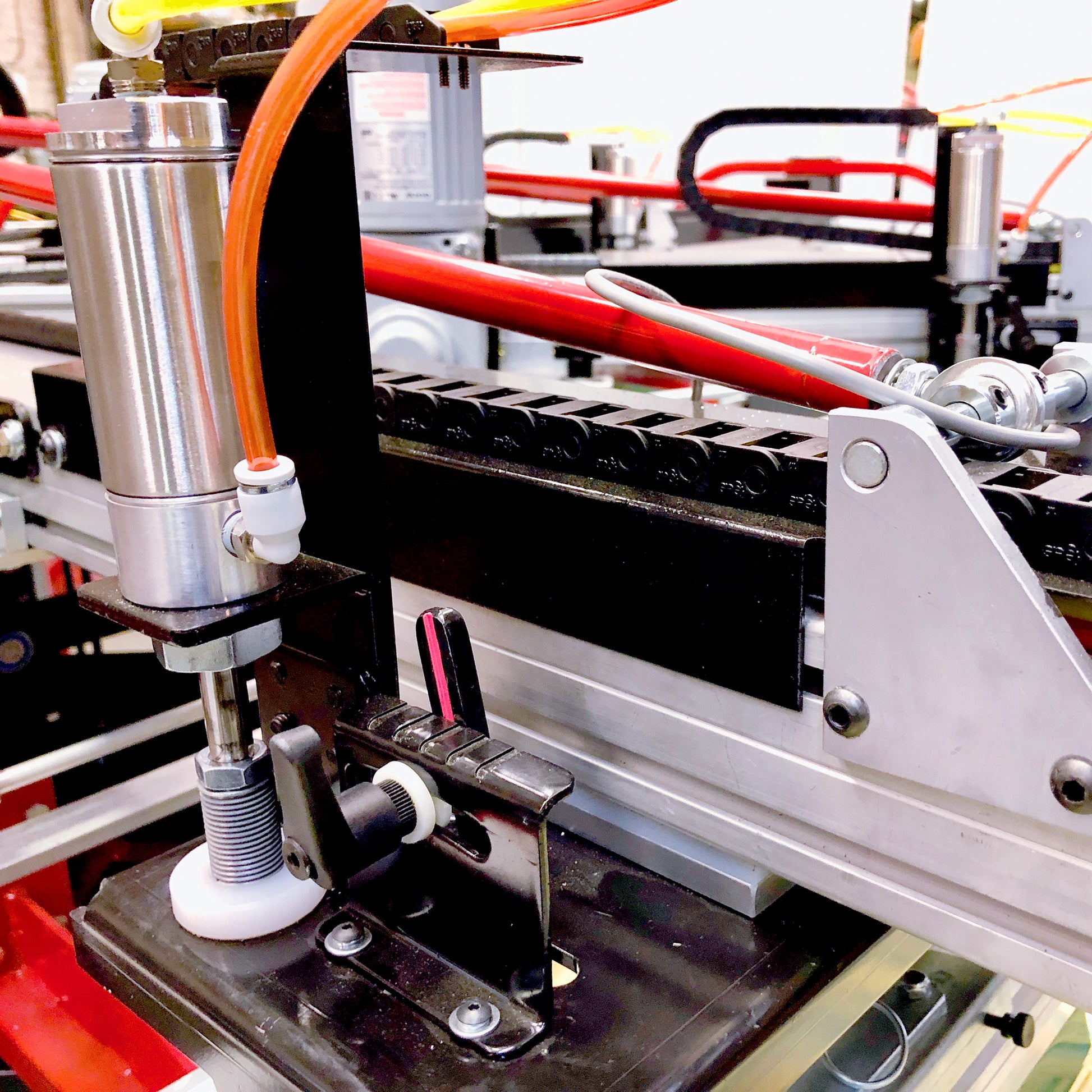

  • Close-up of the Lawson Express EX flood bar and squeegee pressure controls, featuring a silver pneumatic cylinder, orange air lines, and adjustable black knobs for setting print stroke depth.

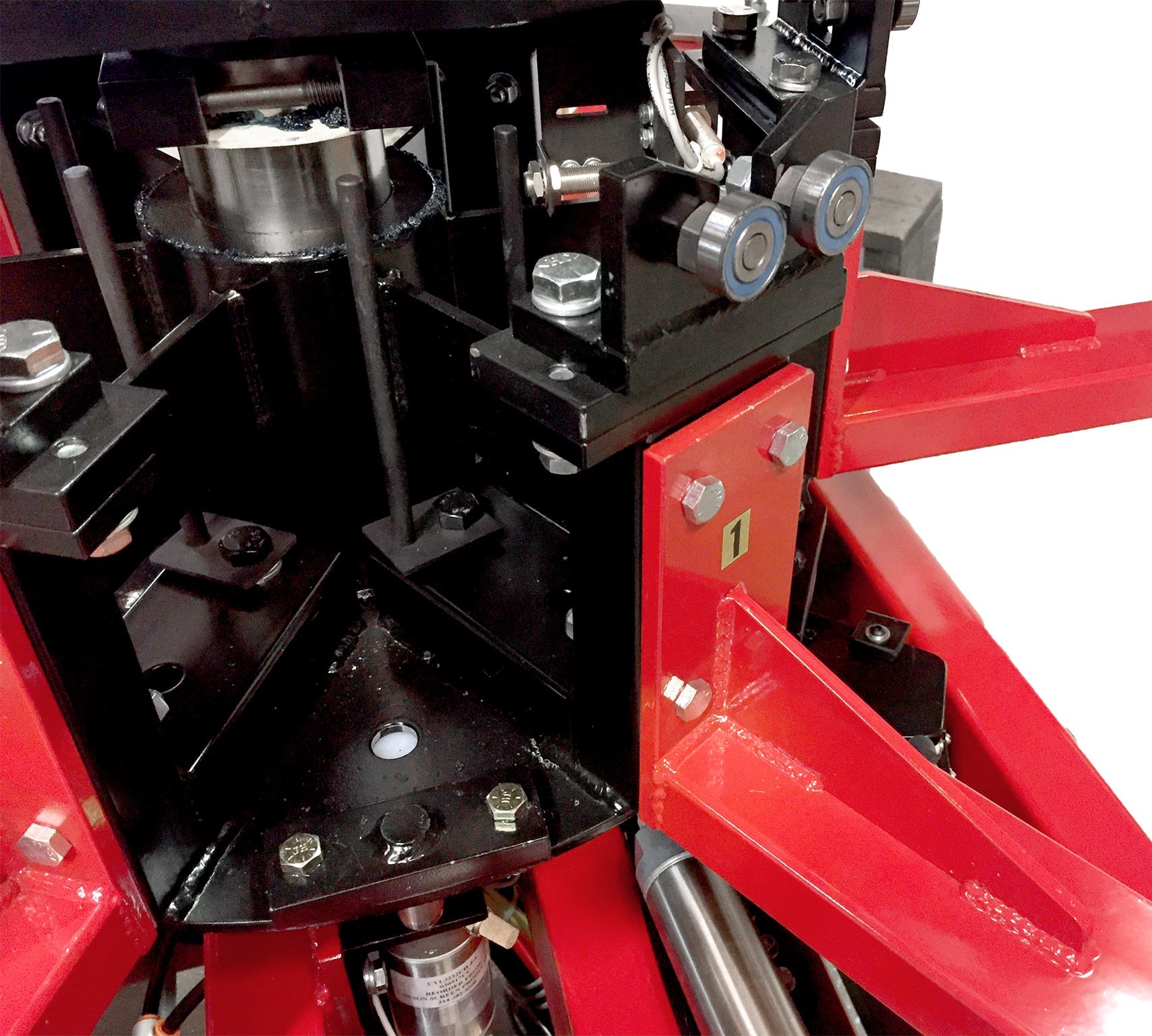

  • The core mechanical drive system of a Lawson Express EX automatic press, featuring a precision-engineered pneumatic carousel and reinforced steel station arms for vibration-free printing.
  • Professional 6-station Lawson Express EX automatic garment press setup, featuring high-clearance print heads and an integrated flash cure station for high-volume t-shirt printing.

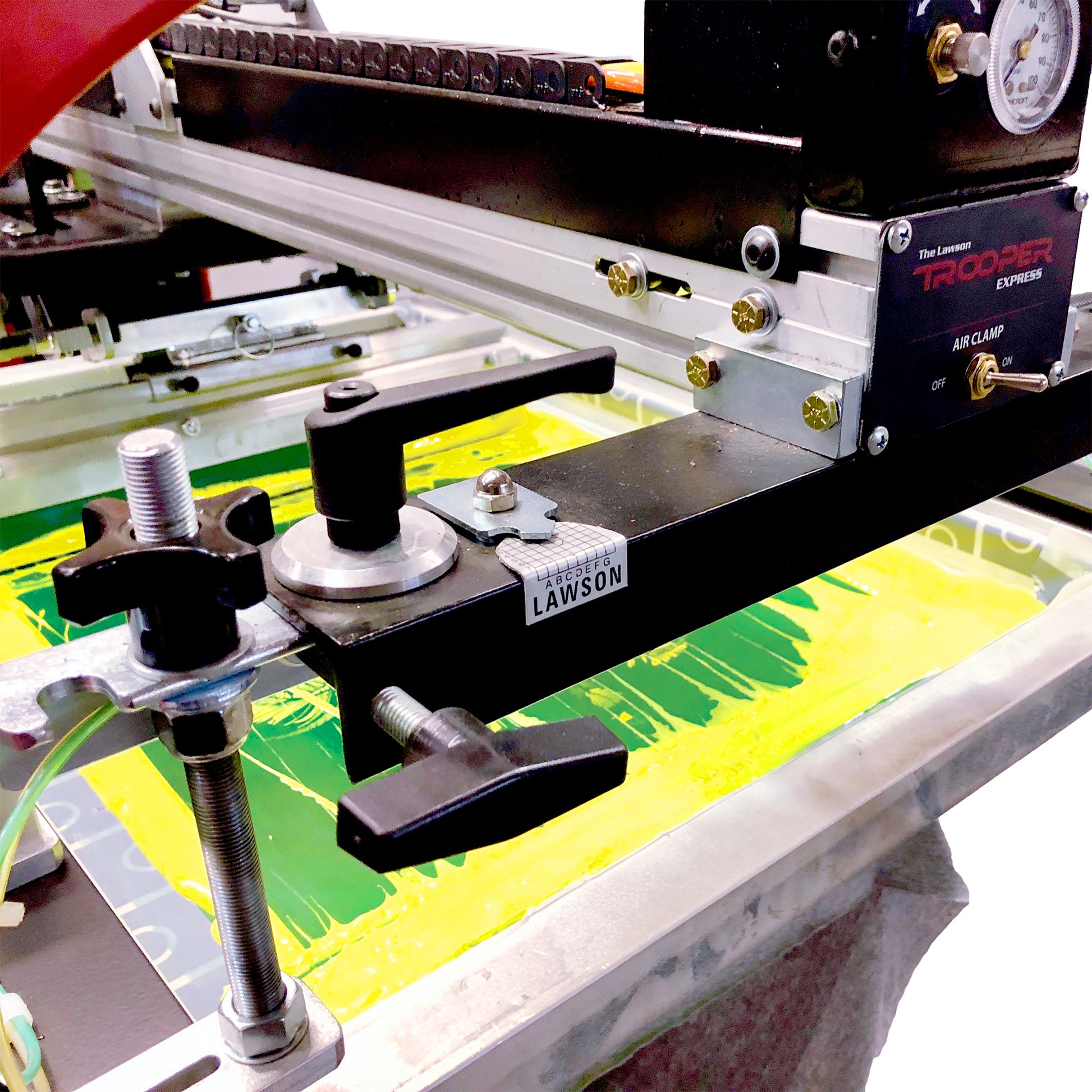

  • Precision micro-registration controls on the Lawson Express EX automatic press, featuring high-accuracy adjustment knobs and pneumatic air clamp toggle switches for fast screen setup.

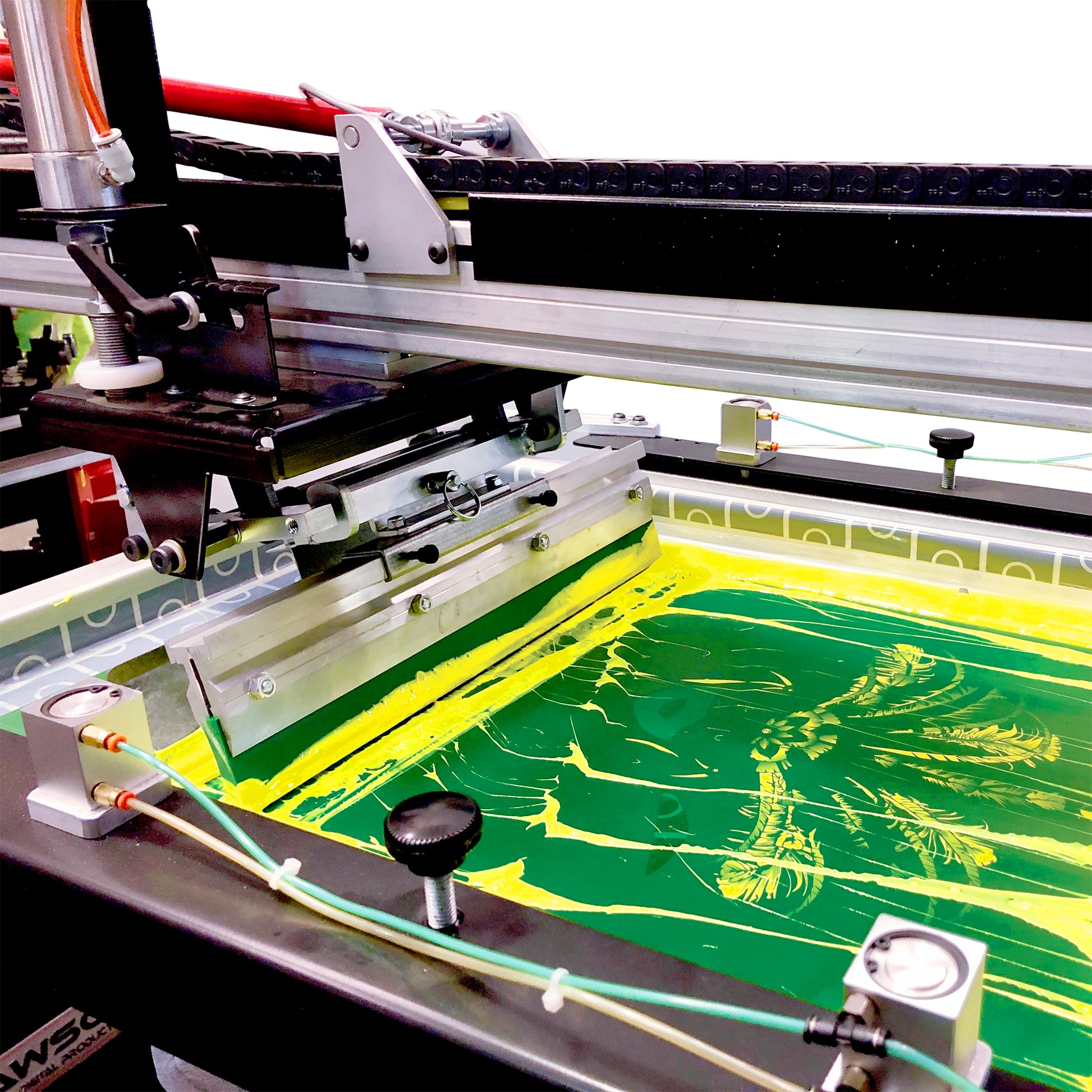

  • The Lawson Express EX automatic screen printing machine performing a multi-color print, highlighting the heavy-duty print head carriage and high-clearance station arms.
1 7

Express EX Automatic Screen Printing Press

Express EX Automatic Screen Printing Press

LWG - Lawson Workhorse Group

SKU:

Shipping Fees Not Included in Price

Shipping and Crating fees (if applicable) are not included in price shown and will not be reflected in your order total. Lawson will contact you after order completion with a shipping cost.

Get a Quote / Contact Sales
×

Got a question about Express EX Automatic Screen Printing Press?

Payment & Security

Payment Methods Accepted

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Download: Express EX Automatic Screen Printing Press

Download: Express EX Automatic Screen Printing Press

Download: Express EX Automatic Screen Printing Press

Financing Options

Need to finance the Express EX Automatic Screen Printing Press? No problem! Visit our Financing Page for more details.

Got a question about this product?

Questions & Answers

What makes the Lawson Express EX a "hybrid" automatic press?

The Express EX uses AC electric motors to drive the squeegee and floodbar print strokes, while using a smooth pneumatic drive system for the carousel indexer. This hybrid design gives you maximum control over ink deposit while maintaining quick, quiet index speeds.

Can I print and flash cure on the same station with the Express EX?

Yes, every configuration of the Express EX supports same-station print-and-flash capability. This allows you to integrate up to three flash cure units (on 6-station models and larger) without taking up dedicated print head stations.

Does the Lawson Express EX require professional installation?

The 4-color/6-station Express EX ships completely fully assembled from the factory, saving you time and third-party technician installation fees. Larger models (such as 6-color and 8-color configurations) require standard field setup.

Where can I pick up the Lawson Express EX or screen printing supplies locally?

You can order online through LWG and schedule freight delivery or select 1-hour local counter pickup at Lawson’s corporate headquarters in St. Louis, MO, or the distribution center in Marietta, GA (Atlanta area).

View full details
Jump to: Description The LWG Difference Features Specifications Table Comparison Table

Description

Scale your shop's garment decoration capabilities with the Express EX Automatic Screen Printing Press, a commercial-grade hybrid automatic press engineered for high-volume t-shirts, hoodies, totes, and specialized apparel. Combining AC motor-driven electric print heads with a high-speed pneumatic carousel, the Express EX delivers quiet, smooth, and precise print strokes with exact repeatability. Featuring an intuitive color touchscreen interface, roller-bearing registration at each station, and true print-and-flash capabilities across all configurations, this production-class automatic press allows screen printers to achieve maximum hourly output without sacrificing print quality or taking up excessive floor space.

Scale your shop's garment decoration capabilities with the Express EX Automatic Screen Printing Press, a commercial-grade hybrid automatic press engineered for high-volume t-shirts, hoodies, totes, and specialized apparel. Combining AC motor-driven electric print heads with a high-speed pneumatic carousel, the Express EX delivers quiet, smooth, and precise print strokes with exact repeatability. Featuring an intuitive color touchscreen interface, roller-bearing registration at each station, and true print-and-flash capabilities across all configurations, this production-class automatic press allows screen printers to achieve maximum hourly output without sacrificing print quality or taking up excessive floor space.

The LWG Difference

When you invest in the Lawson Express EX through LWG, you gain direct access to over 70 years of American manufacturing reliability and dedicated technical support. Designed and built in the USA, the 4-color Express EX press ships fully assembled to eliminate expensive field installation charges and complex assembly downtime. Supported by Lawson’s expert technical service, free lifetime phone support, and strategic distribution hubs in St. Louis, MO, and Marietta, GA (Atlanta area), your equipment is backed by fast regional freight, readily available replacement parts, and 1-hour local counter pickup.

When you invest in the Lawson Express EX through LWG, you gain direct access to over 70 years of American manufacturing reliability and dedicated technical support. Designed and built in the USA, the 4-color Express EX press ships fully assembled to eliminate expensive field installation charges and complex assembly downtime. Supported by Lawson’s expert technical service, free lifetime phone support, and strategic distribution hubs in St. Louis, MO, and Marietta, GA (Atlanta area), your equipment is backed by fast regional freight, readily available replacement parts, and 1-hour local counter pickup.

Features

  • Hybrid Electric & Pneumatic Drive: Utilizes AC electric motor-driven print heads for consistent squeegee control paired with a smooth, high-speed pneumatic indexing carousel.
  • Same-Station Print & Flash Capability: Designed to allow printing and flashing at the exact same station, allowing up to 3 flash cure units without sacrificing color positions.
  • Intuitive Color Touchscreen Interface: Features simple controls requiring minimal training for fast setup, stroke adjustments, and production speed monitoring.
  • Roller-Bearing Precision Registration: Ensures precise color-to-color alignment and micro-registration repeatability pass after pass.
  • Ships Fully Assembled (4-Color Model): Arrives completely factory-tested and ready to plug in, saving thousands in third-party installation fees.
  • USA-Made Heavy-Duty Steel Frame: Constructed with high-clearance station arms and machine-tooled steel built to endure high-volume, multi-shift production.
  • Hybrid Electric & Pneumatic Drive: Utilizes AC electric motor-driven print heads for consistent squeegee control paired with a smooth, high-speed pneumatic indexing carousel.
  • Same-Station Print & Flash Capability: Designed to allow printing and flashing at the exact same station, allowing up to 3 flash cure units without sacrificing color positions.
  • Intuitive Color Touchscreen Interface: Features simple controls requiring minimal training for fast setup, stroke adjustments, and production speed monitoring.
  • Roller-Bearing Precision Registration: Ensures precise color-to-color alignment and micro-registration repeatability pass after pass.
  • Ships Fully Assembled (4-Color Model): Arrives completely factory-tested and ready to plug in, saving thousands in third-party installation fees.
  • USA-Made Heavy-Duty Steel Frame: Constructed with high-clearance station arms and machine-tooled steel built to endure high-volume, multi-shift production.

Specifications Table

Model Mini Trooper PC #46 Express Ex #46 Trooper PC #68 Express Ex #68 Trooper PC #810 Express Ex #810
Maximum Image Area 14" x 16" 16" x 16" 18" x 16" 22" x 18" 18" x 16" 22" x 18"
Maximum Frame Size 20" x 28" 23" x 31" 23" x 31" 23" x 31" 23" x 31" 23" x 31"
Standard Platen Size 16" x 18" Aluminum Platen w/Rubber Top 16" x 18" Aluminum Platen w/Rubber Top 16" x 18" Aluminum Platen w/Rubber Top 16" x 22" Aluminum Platen w/Rubber Top 16" x 18" Aluminum Platen w/Rubber Top 16" x 22" Aluminum Platen w/Rubber Top
Estimated Diameter 8'4" 9'6" 10'8" 10'8" 12' 12'5"
Electrical Requirements 120 volts, 2-Amps 220 volts, 1-Phase; 8-Amps 120 volts, 2-Amps 220 volts, 1-Phase; 12-Amps 120 volts, 2-Amps 220 volts, 1-Phase; 16-Amps
Air Requirements @ 100 psi 6 cfm 6 cfm 14 cfm 10 cfm 16 cfm 10 cfm
Estimated Crated Weight - lbs 1,000 1,200 1,900 1,900 2,200 2,200
Estimated Crate Size (W x L x H) 84" x 96" x 60" 44" x 108" x 72" 49" x 120" x 70" 49" x 120" x 70" 49" x 120" x 70" 49" x 120" x 70"

Comparison Table

FEATURE / METRIC express ex automatic screen printing press mini trooper automatic screen printing press mini max automatic screen printing press
Primary Head Drive AC Electric Motor Drives Modular Pneumatic Drive Automated Pneumatic Strokes
Carousel Operation High-Speed Pneumatic Indexing Fully Automated Pneumatic Indexing Manual Indexing (Semi-Automatic)
Configurations Up to 8-Color / 10-Station Up to 5-Color / 6-Station Up to 3-Color / 6-Station
Target Production Level High-Volume Industrial Decorators Mid-to-High Commercial Print Shops Startup Automatics & Small Shops
Control Interface Full Color Touchscreen Interface Micro-Processor Control Panel Simplified Pneumatic Control Panel
Same-Station Print & Flash Yes (Up to 3 Flashes) Yes (Up to 3 Flashes) No
