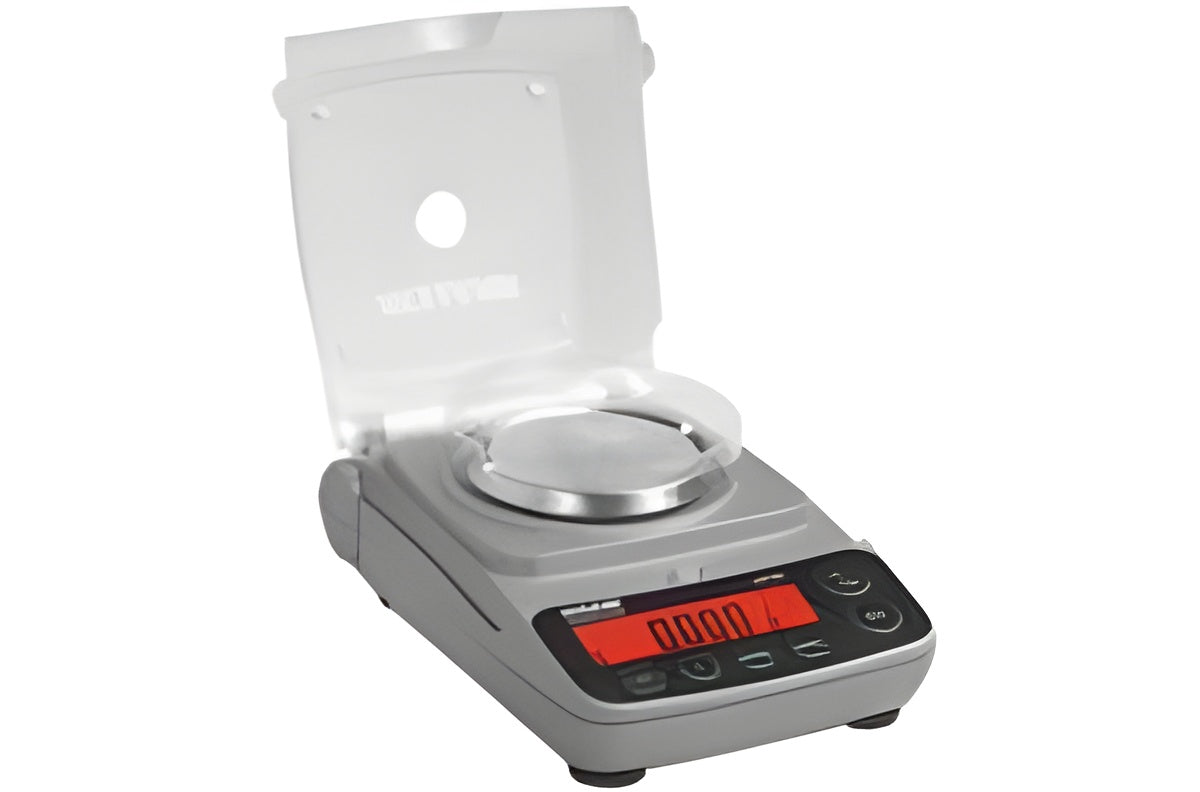

Gram Scale #VIC-1501

Gram Scale VIC-1501 | Ideal for Screen Printers

The VIC-1501 from the VICON Series of 0.1 g balances is ideal for industrial, laboratory, research, educational, postal, and specialty applications, including screen printing. Whether weighing multiple samples with totaled results, formulating colors, counting, percent weighing, specific gravity, or under-pan weighing, the VIC-1501 offers versatile functionality. It features a flip-down protective cover, integrated calibration weights, a stainless steel pan, and a backlit display.

Features

• Origin: Made in the USA.
• Models: Five models with 0.1 g readability.
• Protective Cover: Flip-down, removable plastic cover for shipping protection and stackable storage.
• Calibration Weights: Integrated external calibration weights on models with 710 g capacity and below.
• Design: Durable design for diverse applications.
• Applications: Includes counting, percent weighing, totaling, display hold, specific gravity, and mass unit conversion.
• Mass Unit Conversions: 14 units (g, oz, lb, lb:oz, dwt, ozt, gn, N, ct, tael [HK, Taiwan, Singapore, China], user-defined).
• Interface: Optional RS-232 or USB interface kit (field-installable).
• Parts Counting: Selectable reference sample (1–100).
• Power: 9V battery operation or included AC adapter.
• Calibration: External one-button calibration with three weight options (200 g, 500 g, 1,000 g).
• Security: Lockdown capability.
• Warranty: Two-year manufacturer warranty.
• Model Details: VIC-1501, SKU: 400-519-5-EA, Price: $325.00.

Specifications

• Model: VIC-1501
• Capacity: 1,500 g
• Readability: 0.1 g
• Linearity (±): 0.1 g
• Repeatability (±): 0.1 g
• Calibration Weights: 200 g, 500 g, 1,000 g
• Pan Size: 5.5" x 5" (14 cm x 12.7 cm)
• Power: 100, 120, 220, 240 V AC adapter or 9 V battery
• Dimensions (W x H x D, including cover): 6.8" x 3.15" x 9.8" (17.3 cm x 8 cm x 24.9 cm)
• Interface Options: RS-232 or USB
