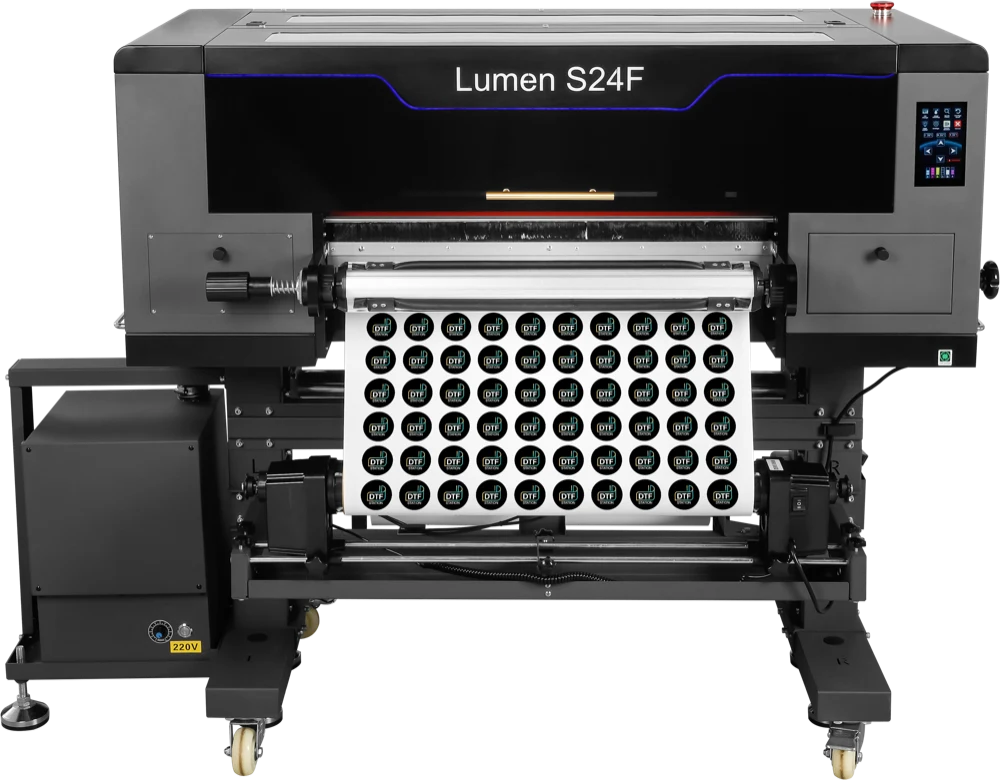

Lumen S24F – 24" UV DTF Printer

Lumen S24F – 24" UV DTF Printer

DTF Station

SKU:

Contact Sales
Sale Sold out

Payment & Security

Payment Methods Accepted

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Financing Options

Need to finance the Lumen S24F – 24" UV DTF Printer? No problem! Visit our Financing Page for more details.

Got a question about this product?

Questions & Answers

Can the Lumen S24F prints be applied directly to apparel?

Yes. The DTF Station Lumen S24F uses specialized flexible UV ink designed to move and stretch with textiles. This enables you to create flexible, raised 3D patches for jackets, hats, hoodies, and leather products without the print cracking when bent.

What is the difference between standard UV DTF and Emboss UV DTF?

Standard UV DTF produces mostly flat or slightly raised stickers intended for hard, rigid surfaces like tumblers or mugs. Emboss UV DTF uses multiple layers of varnish to build up noticeable 3D height and texture, while using flexible inks that allow the transfer to adhere to soft goods.

Does the Lumen S24F require a heat press?

No. The Lumen S24F produces cold-transfer, peel-and-stick 3D emblems and decals that adhere via strong pressure-sensitive adhesive built into the UV DTF transfer film.

View full details

Description

The DTF Station Lumen S24F is a specialized 24-inch (60 cm) emboss UV DTF printer designed to produce raised, textured transfers that remain flexible after curing. Unlike traditional UV printing—which uses rigid inks that crack when bent—the Lumen S24F utilizes specially formulated flexible UV inks paired with varnish building technology. This allows garment decorators and promotional product shops to create dimensional, 3D emblem patches and transfers that stretch and move with soft goods like apparel, leather, outerwear, and headwear, as well as adhere seamlessly to rigid surfaces.

The DTF Station Lumen S24F is a specialized 24-inch (60 cm) emboss UV DTF printer designed to produce raised, textured transfers that remain flexible after curing. Unlike traditional UV printing—which uses rigid inks that crack when bent—the Lumen S24F utilizes specially formulated flexible UV inks paired with varnish building technology. This allows garment decorators and promotional product shops to create dimensional, 3D emblem patches and transfers that stretch and move with soft goods like apparel, leather, outerwear, and headwear, as well as adhere seamlessly to rigid surfaces.

The LWG Difference

Standard UV DTF transfer systems are engineered strictly for hard, flat surfaces, while conventional textile transfers remain entirely flat. The Lumen S24F bridges this gap through three distinct operational capabilities:

  1. Flexible Ink Formulations for Soft Goods: Cured ink builds height and texture without losing elasticity, preventing cracking or peeling when applied to flexible fabrics, caps, and leather goods.
  2. In-House Dimensional Patch Production: Eliminates the need to outsource custom 3D patches, silicone-style badges, or embroidered emblems, bringing high-margin specialty branding directly into your production workflow.
  3. Multi-Layer Varnish Stacking: Precise multi-pass varnish deposition builds noticeable physical depth and gloss effects inline, offering tactile 3D finishes on a wide variety of substrates.

Standard UV DTF transfer systems are engineered strictly for hard, flat surfaces, while conventional textile transfers remain entirely flat. The Lumen S24F bridges this gap through three distinct operational capabilities:

  1. Flexible Ink Formulations for Soft Goods: Cured ink builds height and texture without losing elasticity, preventing cracking or peeling when applied to flexible fabrics, caps, and leather goods.
  2. In-House Dimensional Patch Production: Eliminates the need to outsource custom 3D patches, silicone-style badges, or embroidered emblems, bringing high-margin specialty branding directly into your production workflow.
  3. Multi-Layer Varnish Stacking: Precise multi-pass varnish deposition builds noticeable physical depth and gloss effects inline, offering tactile 3D finishes on a wide variety of substrates.

Features

  • Flexible UV Ink System: Specially engineered UV ink set (CMYK + White + Varnish) designed to flex and stretch without fracturing or delaminating from soft goods.
  • 24-Inch Production Width: 60 cm roll-to-roll printing capacity allows high-density ganging of 3D emblems, logos, and custom patch designs.
  • Industrial Dual Printhead Engine: Powered by a combination of Epson i1600-U1 and Epson i3200-U1HD printheads for high-resolution ink and varnish placement.
  • Integrated LED-UV Curing: Instant inline UV curing cures white, color, and high-gloss varnish layers instantly during the print process.
  • Automatic Roll-to-Roll Laminating: Laminates AB UV transfer film automatically inline, producing press-ready peel-and-stick dimensional transfers.

  • Flexible UV Ink System: Specially engineered UV ink set (CMYK + White + Varnish) designed to flex and stretch without fracturing or delaminating from soft goods.
  • 24-Inch Production Width: 60 cm roll-to-roll printing capacity allows high-density ganging of 3D emblems, logos, and custom patch designs.
  • Industrial Dual Printhead Engine: Powered by a combination of Epson i1600-U1 and Epson i3200-U1HD printheads for high-resolution ink and varnish placement.
  • Integrated LED-UV Curing: Instant inline UV curing cures white, color, and high-gloss varnish layers instantly during the print process.
  • Automatic Roll-to-Roll Laminating: Laminates AB UV transfer film automatically inline, producing press-ready peel-and-stick dimensional transfers.

Specifications Table

MACHINE TYPE 24" Emboss UV DTF Transfer Printer
Max Print Width 24 in (60 cm)
Printhead Configuration Dual Printhead Engine (Epson i1600-U1 + Epson i3200-U1HD)
Ink Configuration CMYK + White + Varnish
Ink Type High-Flexibility UV Curing Ink
Print Speed Up to 0.5 m²/h (Embossed 3D Texture Mode)
Max Print Resolution High-resolution multi-layer micro-piezo drop deposition
Curing Unit Dual LED-UV Inline Curing Array
Media Format Roll-to-roll A/B UV DTF Film
Control Panel Digital Touchscreen Control Interface
Target Substrates Soft goods (Apparel, Leather, Outerwear, Headwear) and Hard Goods (Tumblers, Acrylic, Metal, Wood)

Comparison Table

COMPARISON Lumen S24F ARIES 124 24 UV DTF PRINTER
Model & Core Focus 24" Standard Wide-Format UV DTF Printer 24" Emboss UV DTF Transfer Printer
Primary Target Substrates Rigid, flat, or curved hard goods (drinkware, acrylic, metal, wood, tumblers) Soft goods (apparel, leather, outerwear, headwear) and hard goods
Ink Flexibility Uses standard rigid UV ink formulated for hard surfaces; prone to cracking on textiles Uses flexible UV ink formulated to stretch and bend without cracking or delaminating
Graphic & Texture Output Smooth, high-gloss flat decal transfers and stickers Raised, 3D textured patches, silicone-style emblems, and dimensional varnish builds
Application Method Cold peel-and-stick transfer onto rigid ASI and promotional products Cold peel-and-stick 3D transfer/patch application onto garments and hard goods
Print Speed & Workflow High-efficiency 8-pass printing (up to 60 sq. ft./hr) with 2-in-1 inline film laminating High-precision multi-pass varnish layer deposition (up to 0.5 m²/h in embossed 3D mode)
Best Fit Best for promotional product shops focusing on hard-surface ASI goods, decals, and signage Best for apparel decorators and patch makers looking to bring custom raised 3D emblems in-house
