MetalFab Laser Welder
MetalFab Laser Welder
Xtool
SKU:
Couldn't load pickup availability
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping, Crating, and Packaging Fees
Shipping, Crating, and Packaging Fees
Additional Shipping & Crating Fees
Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.
Download Product's PDF Brochure
Download Product's PDF Brochure
Financing Options
Financing Options
Need to finance the MetalFab Laser Welder? No problem! Visit our Financing Page for more details.
Got a question about this product?
Got a question about this product?
Questions & Answers
Questions & Answers
Q: What materials can the xTool MetalFab Laser Welder weld and cut?
A: The system welds stainless steel, carbon steel, galvanized sheet, aluminum, brass, titanium, and nickel alloys up to 5 mm thick, and can CNC cut carbon steel up to 10 mm.
Q: How does laser welding compare to traditional TIG welding?
A: Laser welding operates up to 8x faster than TIG welding, creates a microscopic heat-affected zone (0.002") to prevent metal warping, and requires little to no post-weld grinding.
Q: What electrical supply is required to run the MetalFab 1200W?
A: The MetalFab 1200W requires a 200–240V AC power line with a maximum current draw of 21A (~4200W total input power).
Q: Can I pick up or see a demonstration of the MetalFab at LWG?
A: Yes, equipment consultations, training, and local store pickup options are offered directly through LWG locations in St. Louis, MO, and Marietta, GA.
Description

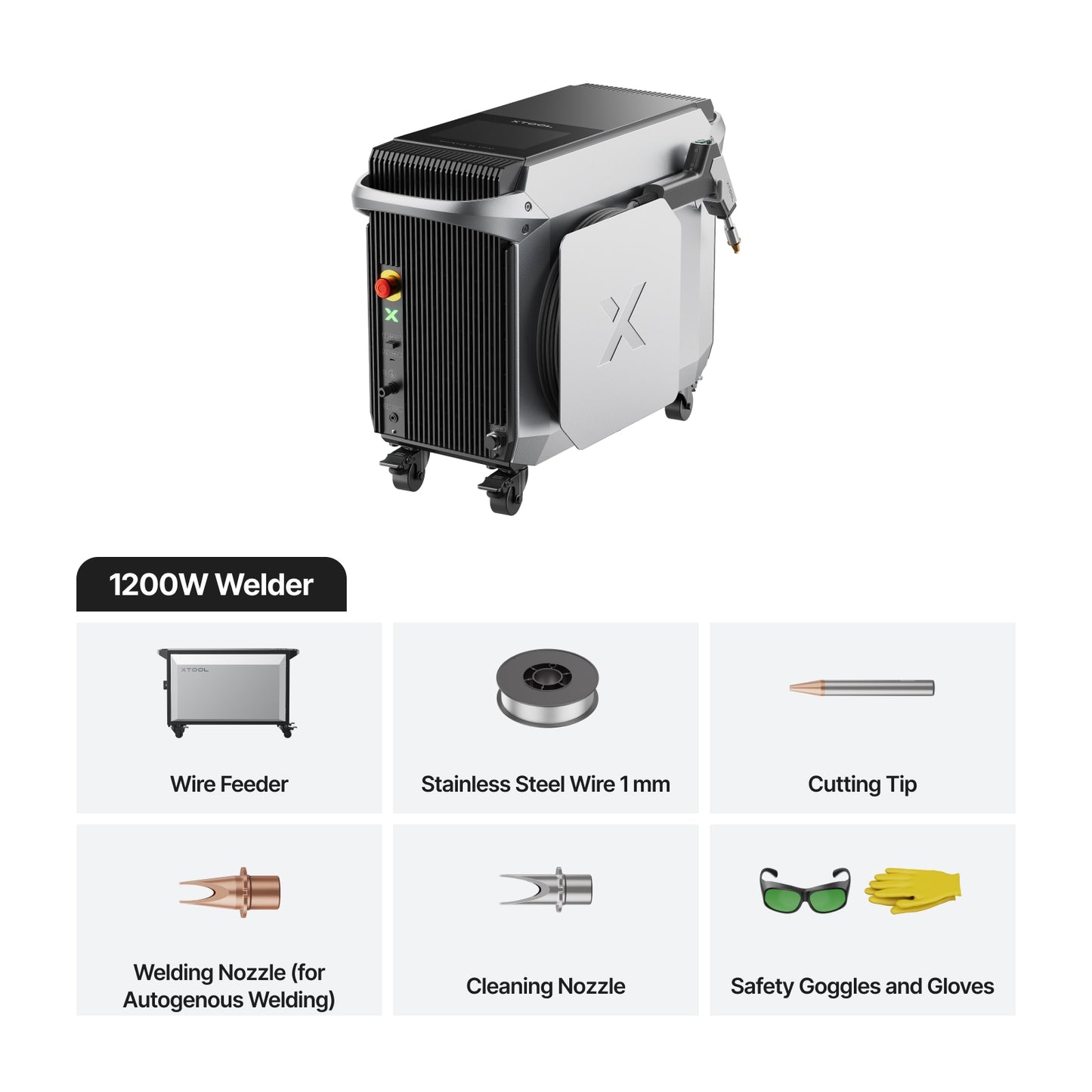

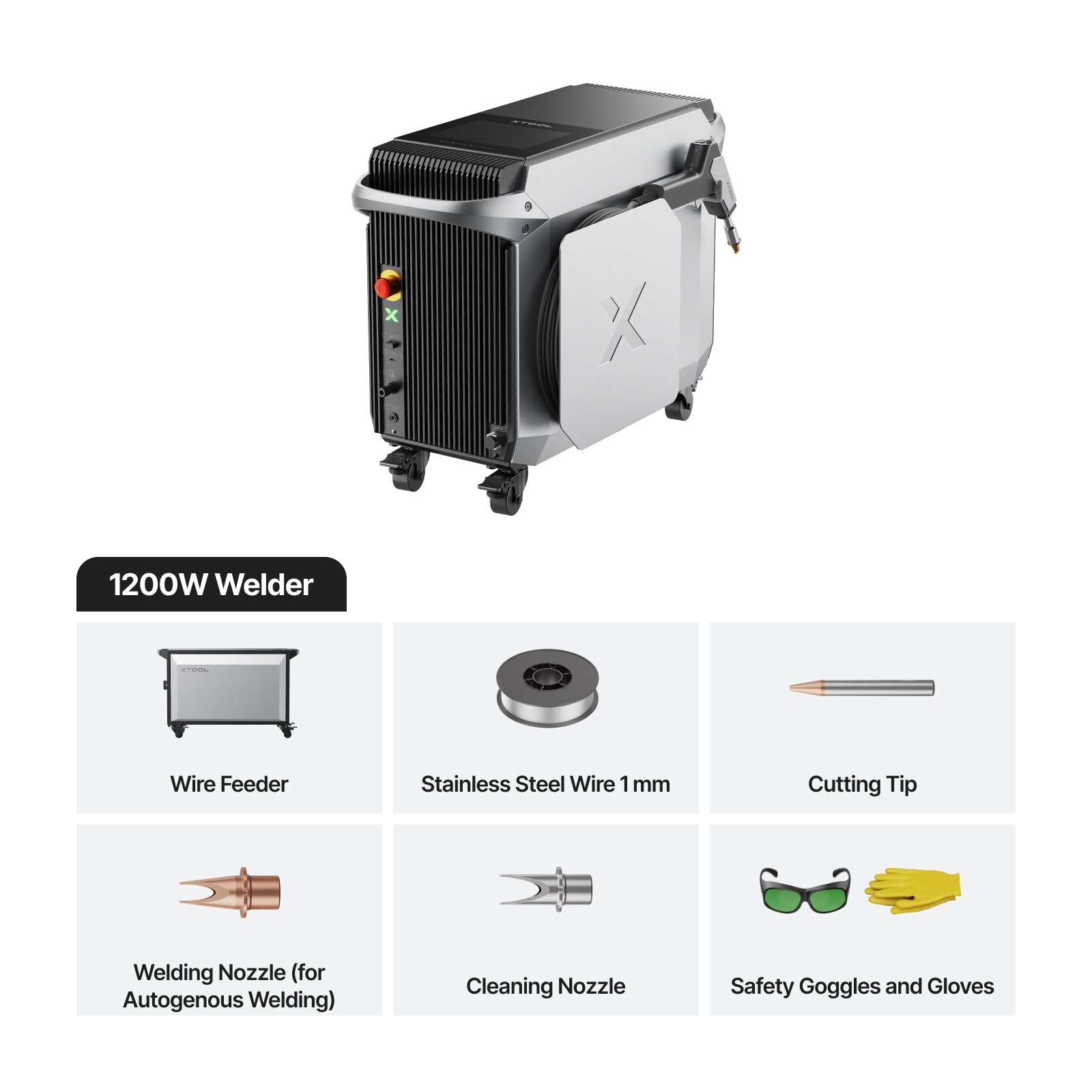

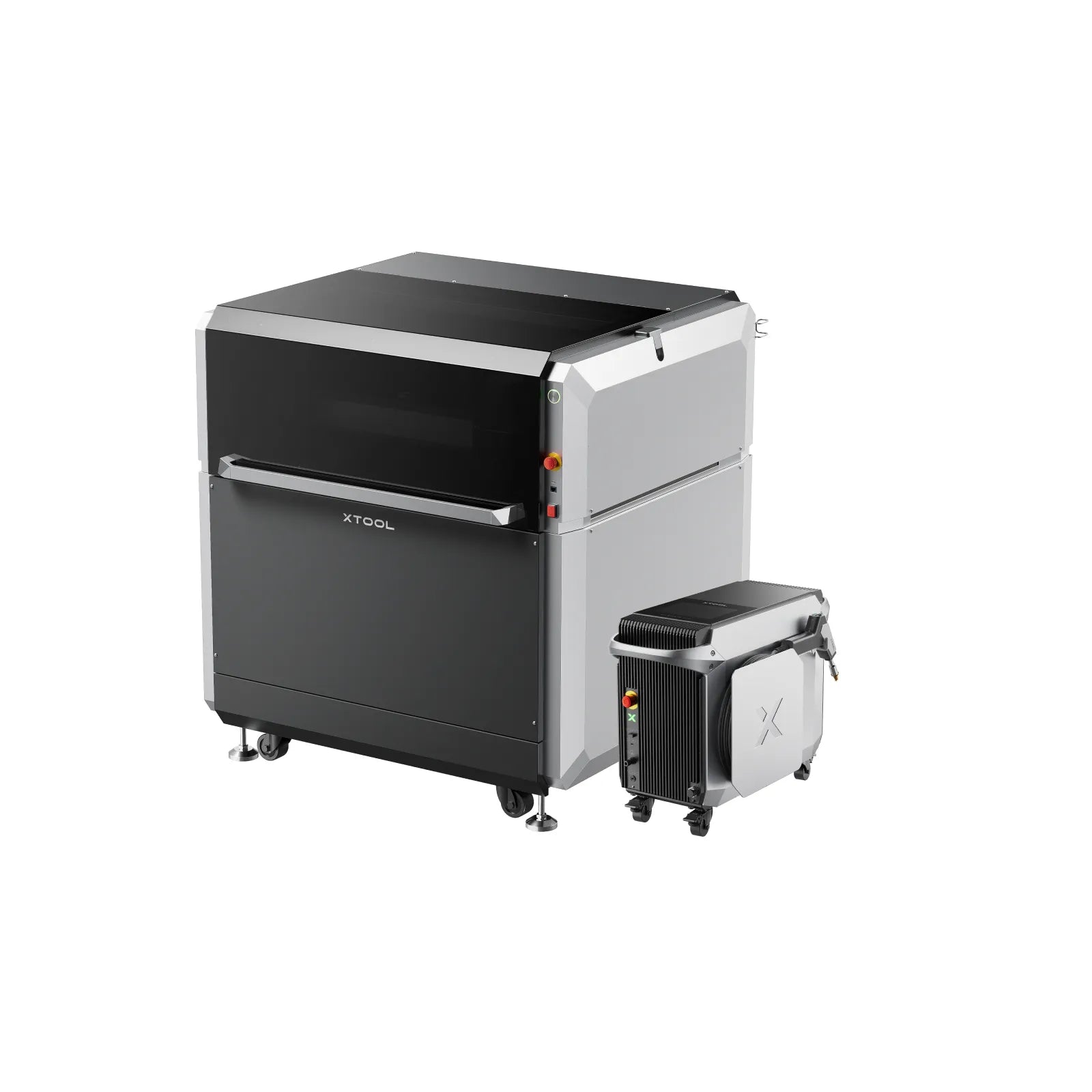

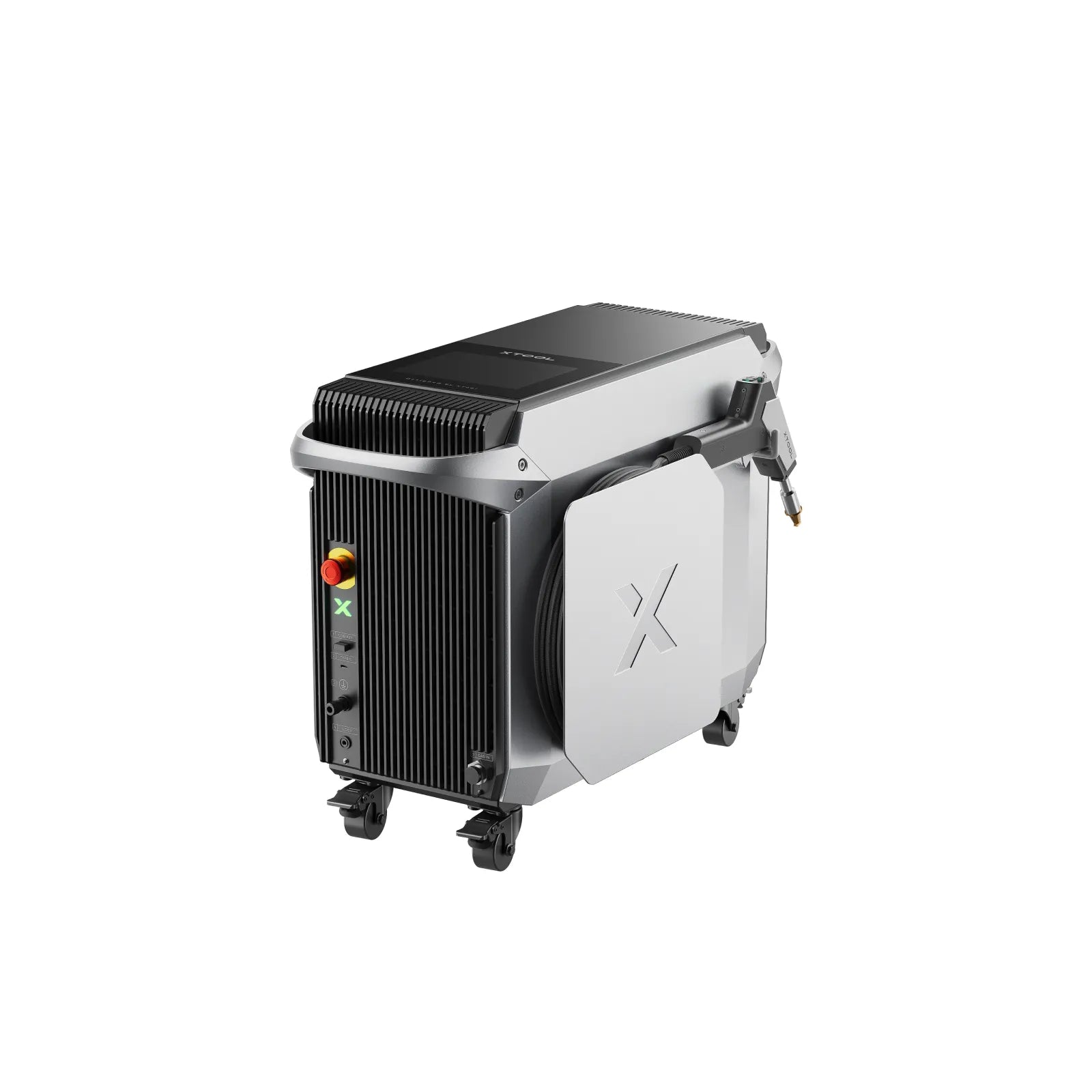

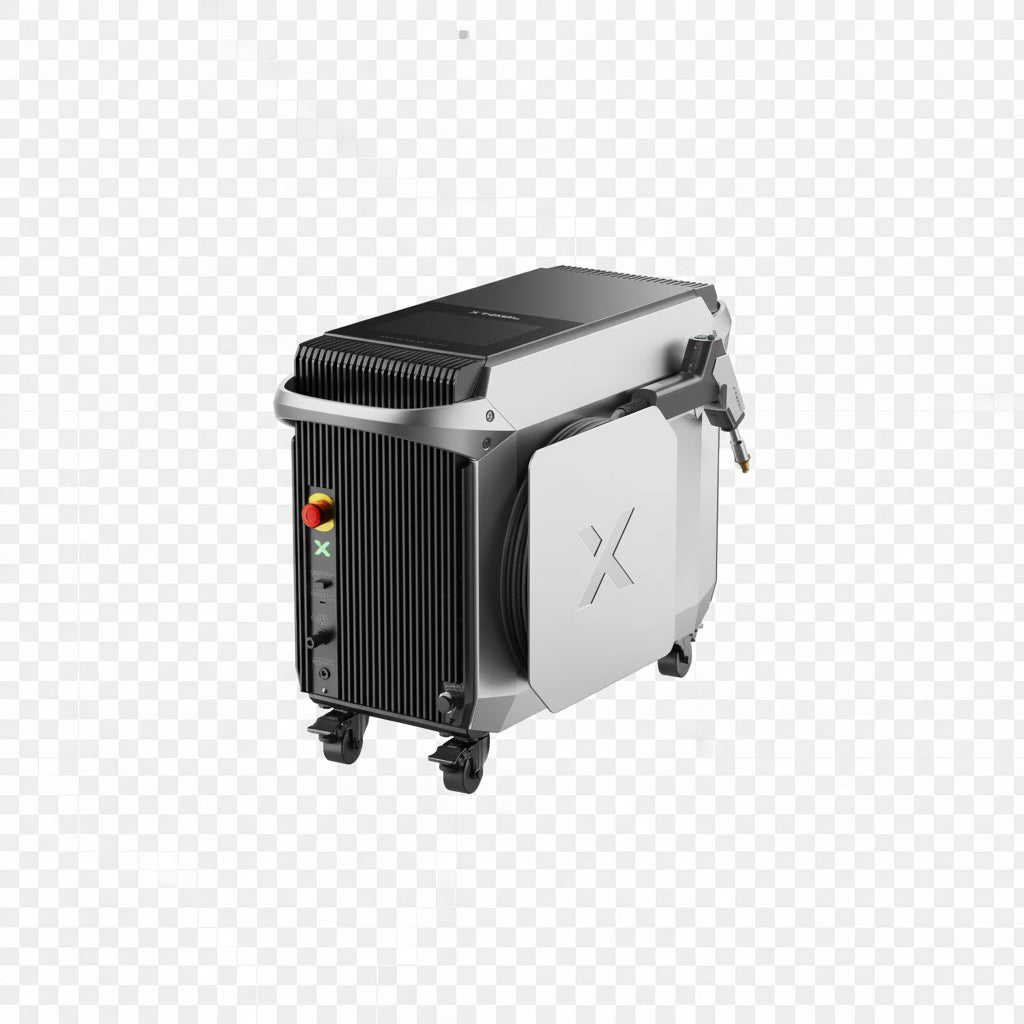

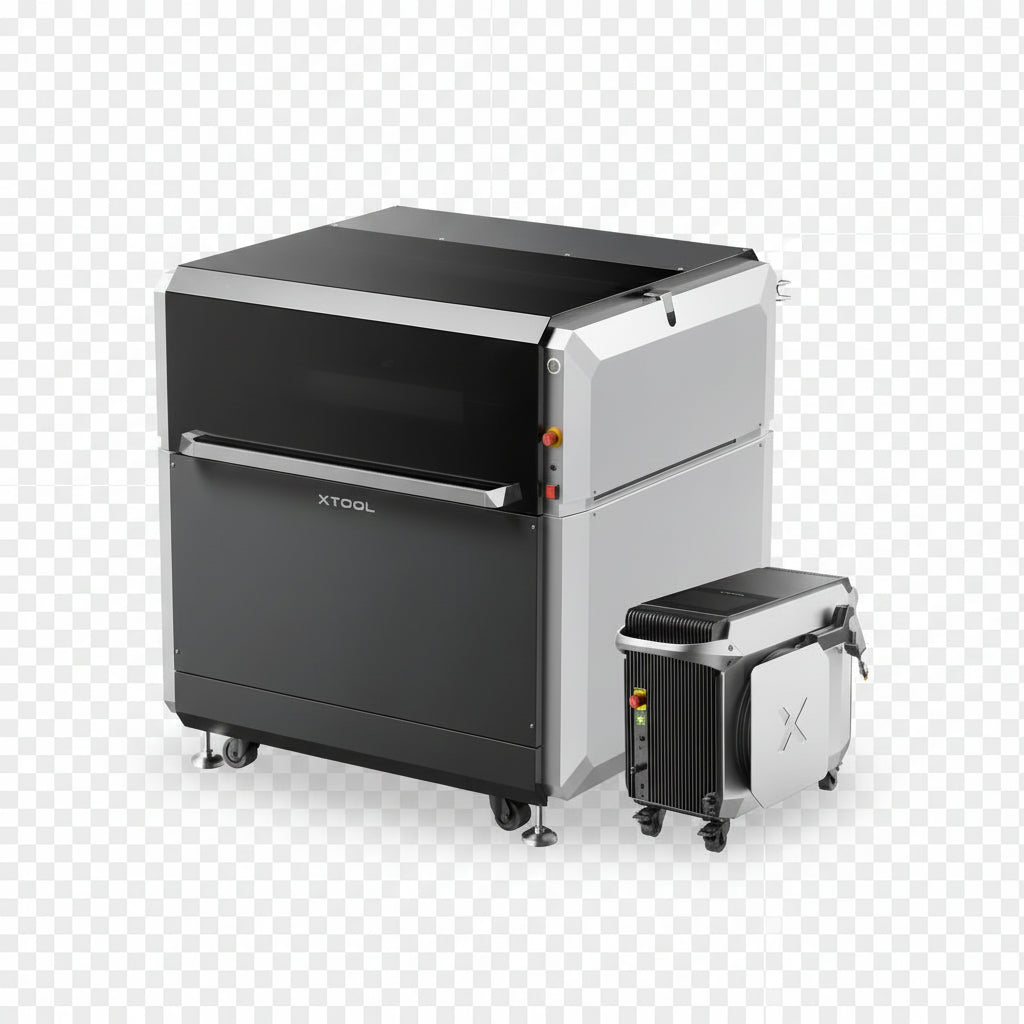

The xTool MetalFab Laser Welder is an industrial-grade, multi-process metal fabrication system that integrates 1200W fiber laser welding, handheld cutting, surface cleaning, and optional CNC metal cutting into a single platform. Operating with speeds up to 8x faster than traditional TIG welding, the MetalFab reduces thermal distortion with a heat-affected zone of just 0.002 inches. Equipped with an 8-inch smart touchscreen, dual 16MP camera vision system, and automatic wire feeding, it processes stainless steel, carbon steel, aluminum, brass, titanium, and galvanized sheet with industrial precision.
The xTool MetalFab Laser Welder is an industrial-grade, multi-process metal fabrication system that integrates 1200W fiber laser welding, handheld cutting, surface cleaning, and optional CNC metal cutting into a single platform. Operating with speeds up to 8x faster than traditional TIG welding, the MetalFab reduces thermal distortion with a heat-affected zone of just 0.002 inches. Equipped with an 8-inch smart touchscreen, dual 16MP camera vision system, and automatic wire feeding, it processes stainless steel, carbon steel, aluminum, brass, titanium, and galvanized sheet with industrial precision.
The LWG Difference
- Multi-Process Versatility: Seamlessly switches between handheld laser welding, high-speed cutting, surface rust/paint stripping, and CNC cutting using a single 1200W fiber laser source.
- Ultra-Low Thermal Distortion: Features a 0.002-inch heat-affected zone that prevents metal warping, ideal for thin sheet metal repair and precision structural joins.

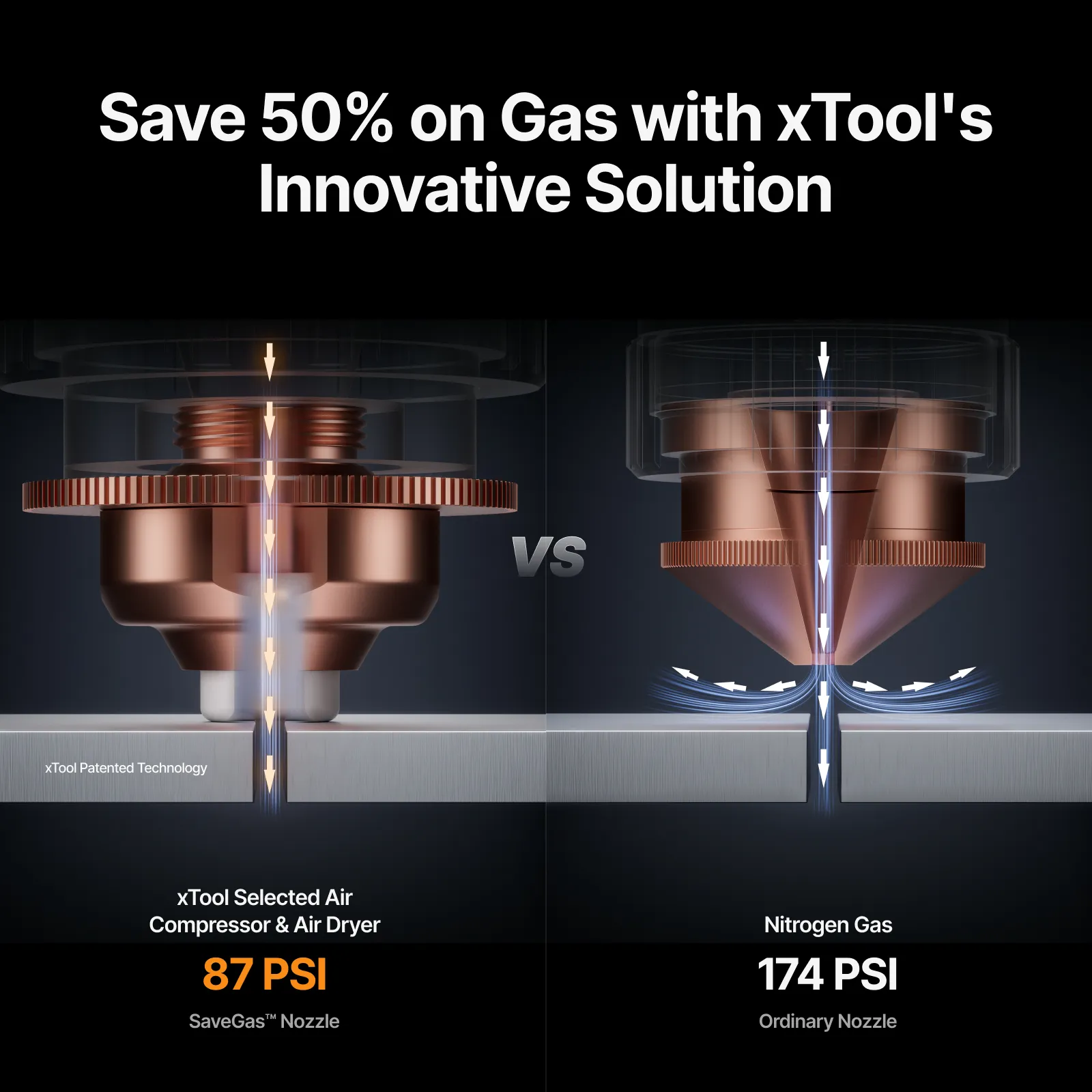

- SaveGas™ Cost Reduction: Engineered with SaveGas™ nozzle technology to lower consumable gas consumption by up to 50% compared to standard laser welding setups.
- Direct Factory Backup & Local Support: Supported by LWG (Lawson Workhorse Group) with expert technical guidance, hands-on training, financing programs, and local pickup in St. Louis and Atlanta.
- Multi-Process Versatility: Seamlessly switches between handheld laser welding, high-speed cutting, surface rust/paint stripping, and CNC cutting using a single 1200W fiber laser source.
- Ultra-Low Thermal Distortion: Features a 0.002-inch heat-affected zone that prevents metal warping, ideal for thin sheet metal repair and precision structural joins.
- SaveGas™ Cost Reduction: Engineered with SaveGas™ nozzle technology to lower consumable gas consumption by up to 50% compared to standard laser welding setups.
- Direct Factory Backup & Local Support: Supported by LWG (Lawson Workhorse Group) with expert technical guidance, hands-on training, financing programs, and local pickup in St. Louis and Atlanta.
Features
- 1200W Fiber Laser Power: High-output continuous and pulse fiber laser system operating at 1080 ± 10 nm wavelength.
- 4-in-1 Handheld Functionality: Enables seam welding, tack welding, pulse welding, handheld cutting, surface rust stripping, and weld cleaning.
- Dual 16MP Vision & Smart Nesting: Integrated 16MP camera system delivers smart layout algorithms, achieving up to 98.7% material utilization.
- Automatic Wire Feeder: Includes an automatic wire feeding unit supporting 0.8 mm to 1.6 mm filler wire for gap-bridging and heavy-duty seams.

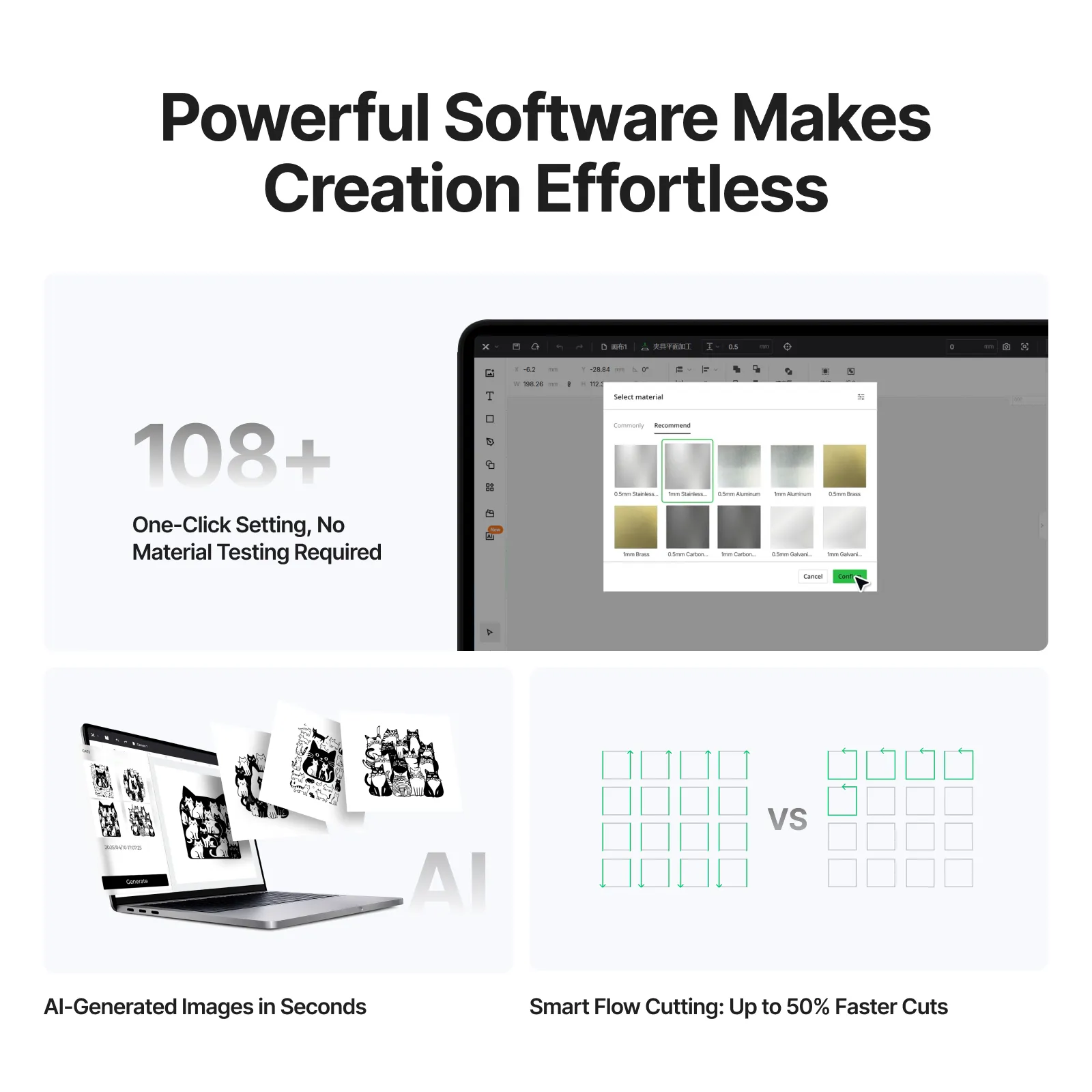

- 8-Inch Smart Touchscreen: Features a GUI control panel preloaded with 100+ material processing presets for fast setup.
- 1200W Fiber Laser Power: High-output continuous and pulse fiber laser system operating at 1080 ± 10 nm wavelength.
- 4-in-1 Handheld Functionality: Enables seam welding, tack welding, pulse welding, handheld cutting, surface rust stripping, and weld cleaning.
- Dual 16MP Vision & Smart Nesting: Integrated 16MP camera system delivers smart layout algorithms, achieving up to 98.7% material utilization.
- Automatic Wire Feeder: Includes an automatic wire feeding unit supporting 0.8 mm to 1.6 mm filler wire for gap-bridging and heavy-duty seams.
- 8-Inch Smart Touchscreen: Features a GUI control panel preloaded with 100+ material processing presets for fast setup.
Specifications Table
| Specifications | Description |
|---|---|
| Laser Type | Fiber Laser (1080 ± 10 nm) |
| Laser Power | 1200W |
| Processing Modes | Welding, Handheld Cutting, Rust Removal & Surface Cleaning, CNC Metal Cutting (Optional) |
| Welding Modes | Continuous Seam Welding, Tack Welding, Pulse Welding |
| Welding Thickness (Single-Pass) | Stainless Steel / Carbon Steel / Galvanized Sheet: 0.2 mm to 5 mm; Aluminum / Brass: up to 4 mm |
| Handheld Cutting Thickness | Up to 5 mm (Stainless Steel & Carbon Steel) |

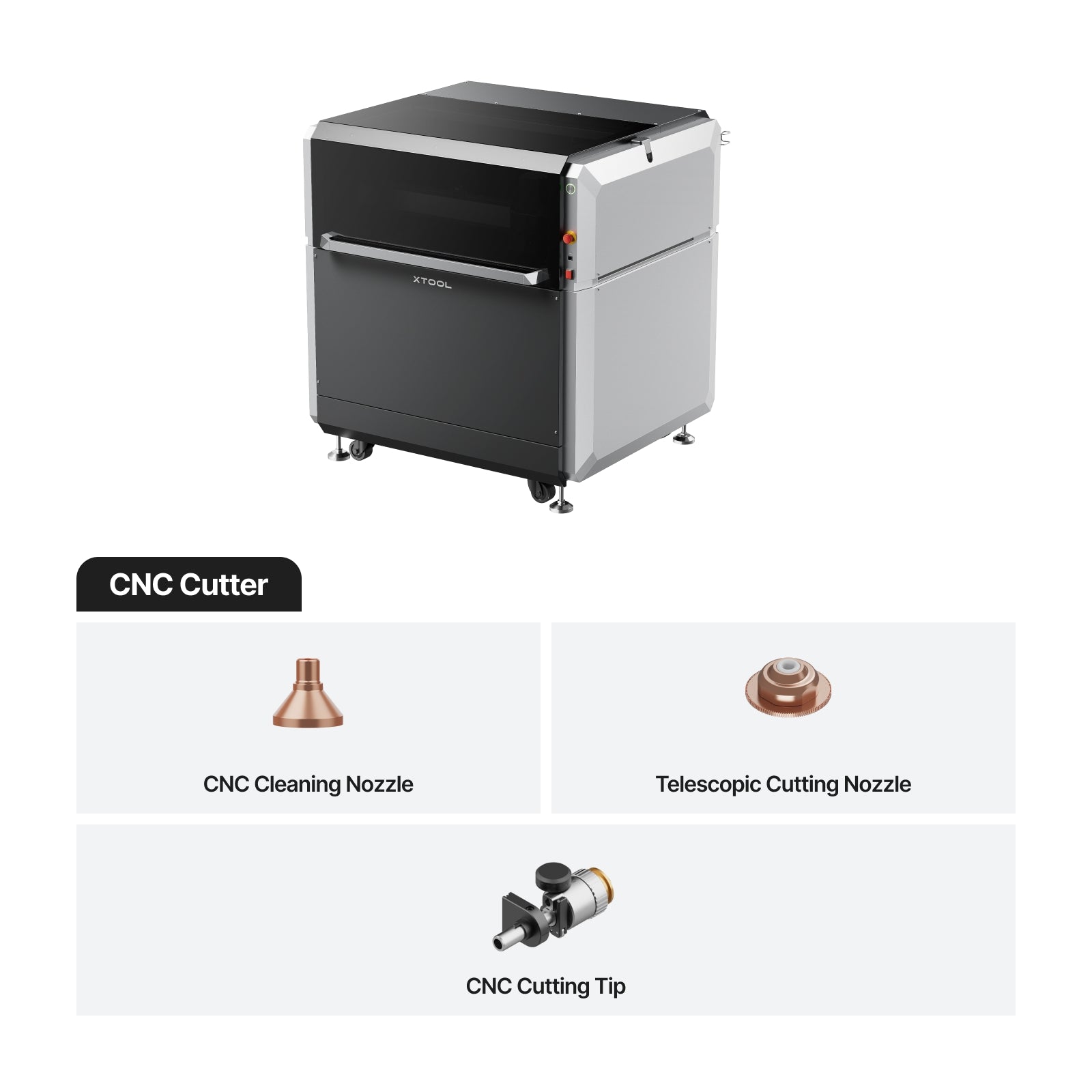

| CNC Cutting Thickness | Up to 10 mm (Carbon Steel & Galvanized Sheet) |
| Supported Materials | Stainless Steel (304/316/410/430), Carbon Steel, Aluminum, Brass, Titanium, Galvanized Sheet, Nickel Alloy |
| Positioning & Vision | Dual 16MP Camera Assisted Positioning with AI Smart Nesting |
| Cooling System | Forced Air-Cooling |
| Power Supply | 200–240V AC, 50/60Hz (Full-load current 21A, Max 4200W) |
| Dimensions & Weight | 28.66" × 12.87" × 20.16" (728 × 327 × 512 mm); 38.2 kg |

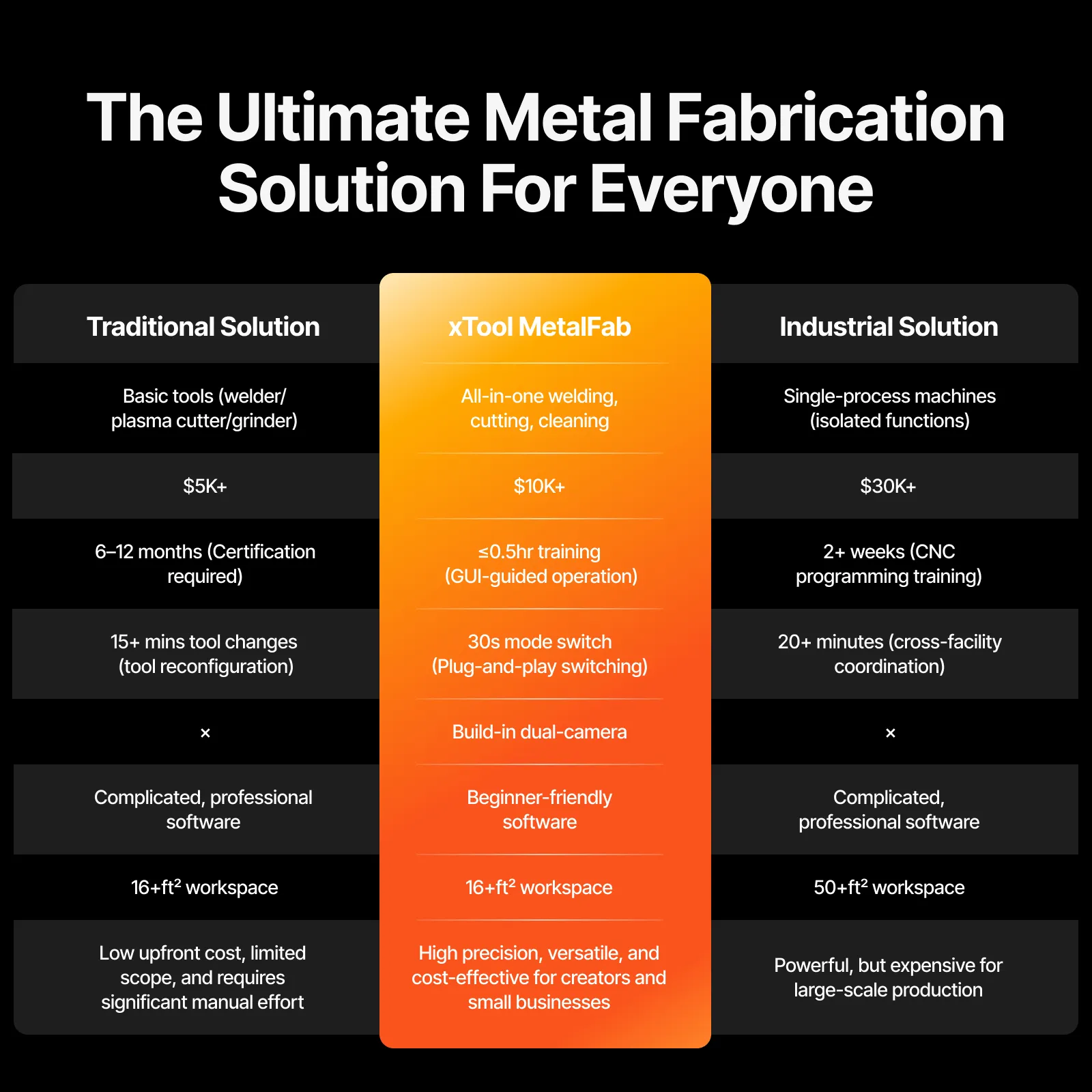

Comparison Table
| Feature / Metric | xTool MetalFab Laser Welder (1200W) | Traditional TIG / MIG Welder | Traditional CNC Fiber Laser Cutter |
|---|---|---|---|
| Primary Capabilities | 4-in-1: Welding, Cutting, Cleaning & CNC | Welding Only | Sheet Metal Cutting Only |
| Welding Speed & Efficiency | Up to 8x faster than TIG; minimal post-grinding | Slow manual pass; high heat distortion & heavy grinding | N/A (Cutting machine only) |
| Heat-Affected Zone | Ultra-minimal (0.002 in); zero distortion | Large heat footprint; frequent warping on thin sheet | N/A |
| Material Nesting & Vision | Dual 16MP AI camera system with 98.7% utilization | Manual positioning & layout | Available on high-end industrial units only |
| Footprint & Setup | Compact desktop footprint (38.2 kg welder unit) | Heavy power supply and tank setup | Large shop floor setup ($50,000+) |
