Prestige XL3 24" DTF Printer | Packages & Training | LWG

Prestige XL3 24" DTF Printer | Packages & Training | LWG

DTF Station

SKU:

$22,265.25 USD
$0.00 USD $22,265.25 USD
Sale Sold out
Choose the Right Prestige XL3 Package Compare supplies, finishing equipment and training to find the right setup for your shop.

How do I choose the right package?

Start with what your shop already has, then choose the package that adds what you need.

  • XL3 + Software + On-Site Training: Choose this if you already have compatible supplies, powder application and curing equipment.
  • XL3 + Supplies + Software + On-Site Training: Choose this if you need supplies but already have powder application and curing equipment.
  • XL3 + Miro 24 Package: Choose this if you need the printer with a Miro 24, supplies, software and On-Site Training.
  • XL3 + Seismo L24R Package: Choose this if you want the Seismo L24R setup with a fume extractor, supplies, software and On-Site Training.
  • XL3 + Arc 127 Package: Choose an Arc 127 option if your setup also requires that equipment. Select the version with a Miro 24 or the version with a Seismo L24R and fume extractor. Both include supplies, software, a neoStampa add-on and On-Site Training.

Every listed package includes software and On-Site Training. Supplies and additional equipment are included only when named in your selected package. Before ordering, confirm the package contents, available workspace, electrical requirements and training arrangements. You will also need a suitable heat press to apply finished transfers—do not assume one is included.

Need help choosing? Call LWG at 314-382-9300 to match a package to your existing equipment and production needs.

Payment & Security

Payment Methods Accepted

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Financing Options

Need to finance the Prestige XL3 24" DTF Printer | Packages & Training | LWG? No problem! Visit our Financing Page for more details.

Got a question about this product?

View full details

Description

The Prestige XL3 is a 24-inch-class Direct-to-Film printer for apparel decorators and transfer businesses that want expanded-color printing in a production-focused setup. It uses three Epson i3200 printheads and supports transfer artwork up to 60 cm (approximately 23.62 inches) wide.

Its ink configuration combines Cyan, Magenta, Yellow, Black, Light Magenta, Light Cyan, Green, and Orange with White. This provides eight color inks plus White, which the manufacturer describes as a 9-color system.

Published printing speeds are 6.6 m² per hour at 6-pass, 720 x 1800 dpi settings and 6.3 m² per hour at 8-pass, 720 x 2400 dpi settings. Actual output depends on artwork, print settings, maintenance, and the complete transfer-production workflow.

Choose from six configurations, starting with the XL3, software, and On-Site Training. Other packages add supplies, a Miro 24, a Seismo L24R with a fume extractor, or an Arc 127 with a neoStampa add-on.

Every currently listed package includes software and On-Site Training. Supplies and supporting equipment are included only when specified in your selected package.

Review the package inclusion list before ordering. Confirm which components you already own and what you need for powder application, curing, extraction, and applying finished transfers.

The LWG Difference

Choose Your Prestige XL3 Setup with Lawson Workhorse Group
LWG offers six Prestige XL3 configurations so you can choose a package that matches your existing equipment and production plans.

On-Site Training
Every currently listed package includes On-Site Training. Contact LWG to confirm scheduling, site preparation, and the scope of training included with your order.

Equipment Package Choices
Choose the printer, software, and training configuration if you already have supporting equipment. Select a supplies, Miro 24, or Seismo L24R package when you need additional components.

Arc 127 Package Options
Two configurations add an Arc 127 and a neoStampa add-on. Choose the version paired with a Miro 24 or the version paired with a Seismo L24R and fume extractor.

Expanded-Color Workflow Planning
Discuss compatible inks, RIP software, profiling, and color-management requirements with LWG. Expanded-color capability does not guarantee an exact match to every brand color.

Clear Package Inclusions
Supplies, the Miro 24, Seismo L24R, fume extractor, Arc 127, and neoStampa add-on are included only when named in your selected configuration. Equipment shown in product images is not automatically included with every package.

Installation and Maintenance Planning
Confirm utilities, equipment placement, access, and operating conditions before delivery. Follow the manufacturer's maintenance instructions and confirm the support arrangements applicable to your purchase.

Features

Three Epson i3200 Printheads
The XL3 uses three Epson i3200 printheads for its DTF printing configuration.

Expanded-Color Ink System
Cyan, Magenta, Yellow, and Black are supplemented with Light Magenta, Light Cyan, Green, and Orange, alongside White ink.

60 cm Maximum Printing Width
Print transfer artwork up to 60 cm (approximately 23.62 inches) wide within the listed printable area.

Multiple Print Modes
Published speeds are 6.6 m² per hour at 6-pass settings and 6.3 m² per hour at 8-pass settings. Actual output varies by artwork and workflow.

White Ink Circulation
White-ink circulation assists ink management during operation. Follow the required maintenance procedures.

Automatic Cleaning
Automatic cleaning supports printhead maintenance but does not replace routine operator care.

Automatic Wet Capping
The printer includes an automatic wet-capping station system.

Head Strike Sensor
A head strike sensor helps protect the printheads from damage.

Automatic Ink Alerts
The ink alarm system assists monitoring during operation.

Gigabit Network Connection
A Gigabit network port provides the printer's listed connection interface.

Emergency Stop
An emergency-stop control is listed among the printer's additional features.

Electric Pinch-Roll Lever
The printer includes an electric pinch-roll lever.

Media & Videos

Specifications Table

Specification | Details
Model Name | Prestige XL3
Printing Technology | Direct-to-Film (DTF)
Printer Format | 24-inch-class
Maximum Print Width | 60 cm (approximately 23.62")
Printhead Configuration | 3 x Epson i3200 printheads
Mainboard | DTF STATION PILOT
Ink Colors | Cyan, Magenta, Yellow, Black, Light Magenta, Light Cyan, Green, Orange, and White
Printing Speed — 6 Pass | 720 x 1800 dpi; 6.6 m²/hour (manufacturer-listed as 71.0 ft²/hour)
Printing Speed — 8 Pass | 720 x 2400 dpi; 6.3 m²/hour (manufacturer-listed as 67.5 ft²/hour)
Manufacturer-Listed Daily Output — 720 x 1800 dpi | 571 gangsheets per 8-hour working day, based on 28 x 34 cm (11" x 13") gangsheets
Manufacturer-Listed Daily Output — 720 x 2400 dpi | 536 gangsheets per 8-hour working day, based on 28 x 34 cm (11" x 13") gangsheets
Interface | Gigabit network port
RIP Software Listed | neoStampa RIP Software; confirm edition and license details for your selected package
Power Requirements Listed | 1000W; 110V, 7.2A / 220V, 4.6A
Machine Dimensions | 214.55 x 107.0 x 165.3 cm (84.5" W x 42.1" D x 65.1" H)
Printer Weight | 202 kg (445.0 lb)
Working Temperature | 20°C to 25°C (68°F to 77°F)
Working Humidity | 35%–40%
White Ink Management | White-ink circulation system
Cleaning | Automatic cleaning system
Capping | Automatic wet-capping station system
Printhead Protection | Head strike sensor
Ink Monitoring | Automatic ink alarm system
Additional Controls | Emergency stop and electric pinch-roll lever
Software Inclusion | Software is listed in every current package option; confirm edition and license details
Training | On-Site Training is listed in every current package option
Warranty Terms | 16 months from the date shown on the CE label, excluding the printhead and any ink system-related parts.

Understanding Printing Speed and Daily Output | Printing speeds are tied to the listed pass count and resolution. Manufacturer-listed daily output is based on 28 x 34 cm (11" x 13") gangsheets over eight working hours.

These figures describe printed gangsheets, not completed garments, and are not guaranteed production totals. Artwork layout, maintenance, powder application, curing, and transfer pressing affect the complete workflow.
Equipment Package | Choose your configuration using the selector above. Compare the six packages below.
Software | Included in every currently listed package; confirm edition and license details.
Training | On-Site Training is included in every currently listed package.
Supplies | Included only in packages that list supplies.
Miro 24 | Included only in packages that name the Miro 24.
Seismo L24R and Fume Extractor | Included only in packages that name these components.
Arc 127 and neoStampa Add-On | Included only in the two Arc 127 configurations.

Comparison Table

Package | Listed Configuration | Best Fit
XL3 + Software + On-Site Training | Prestige XL3, software, and On-Site Training | Buyers who already have compatible supplies and supporting production equipment
XL3 + Supplies + Software + On-Site Training | Prestige XL3, supplies, software, and On-Site Training | Buyers who need supplies but already have powder application and curing equipment

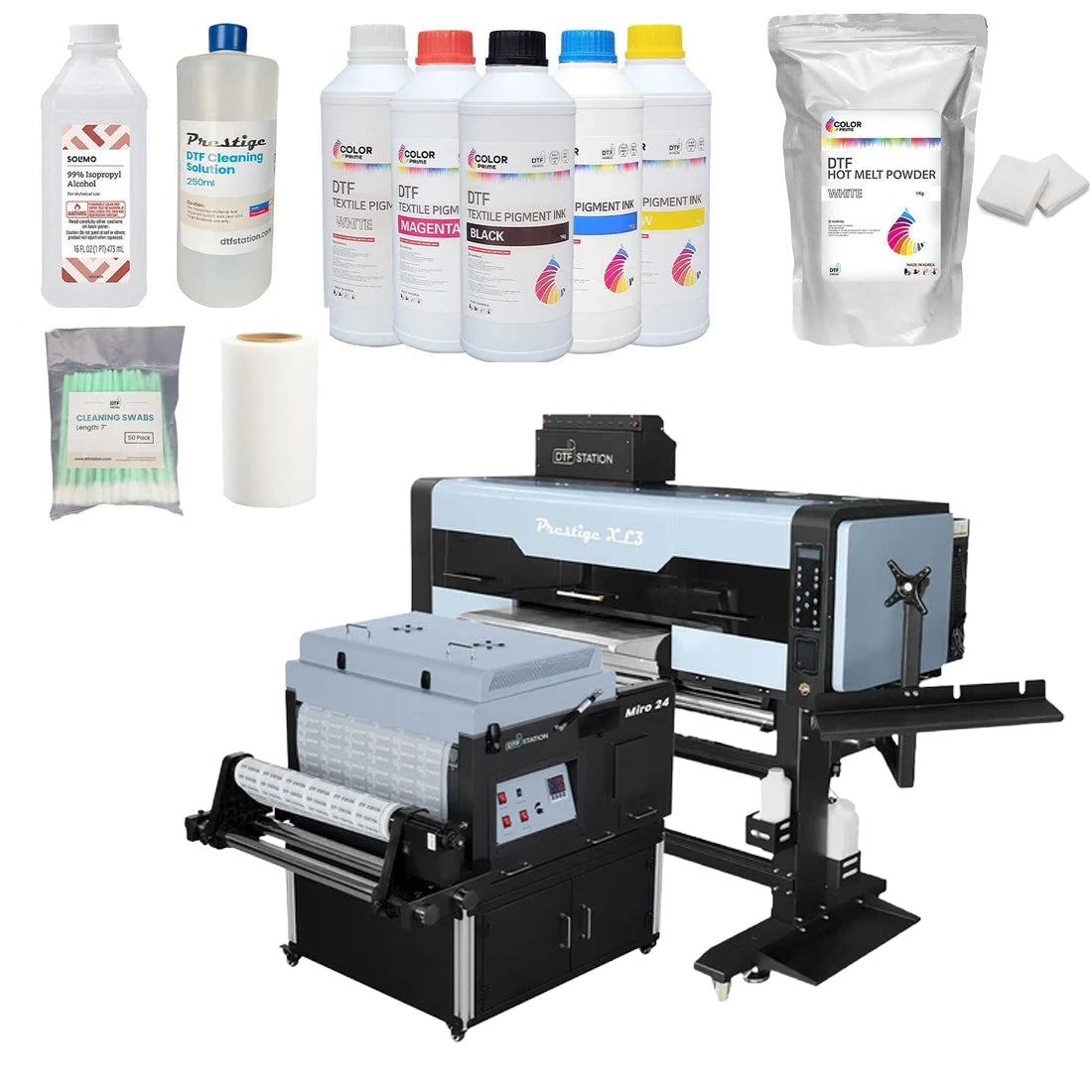

XL3 + Miro 24 + Supplies + Software + On-Site Training | Prestige XL3, Miro 24, supplies, software, and On-Site Training | Buyers who want the Miro 24 configuration

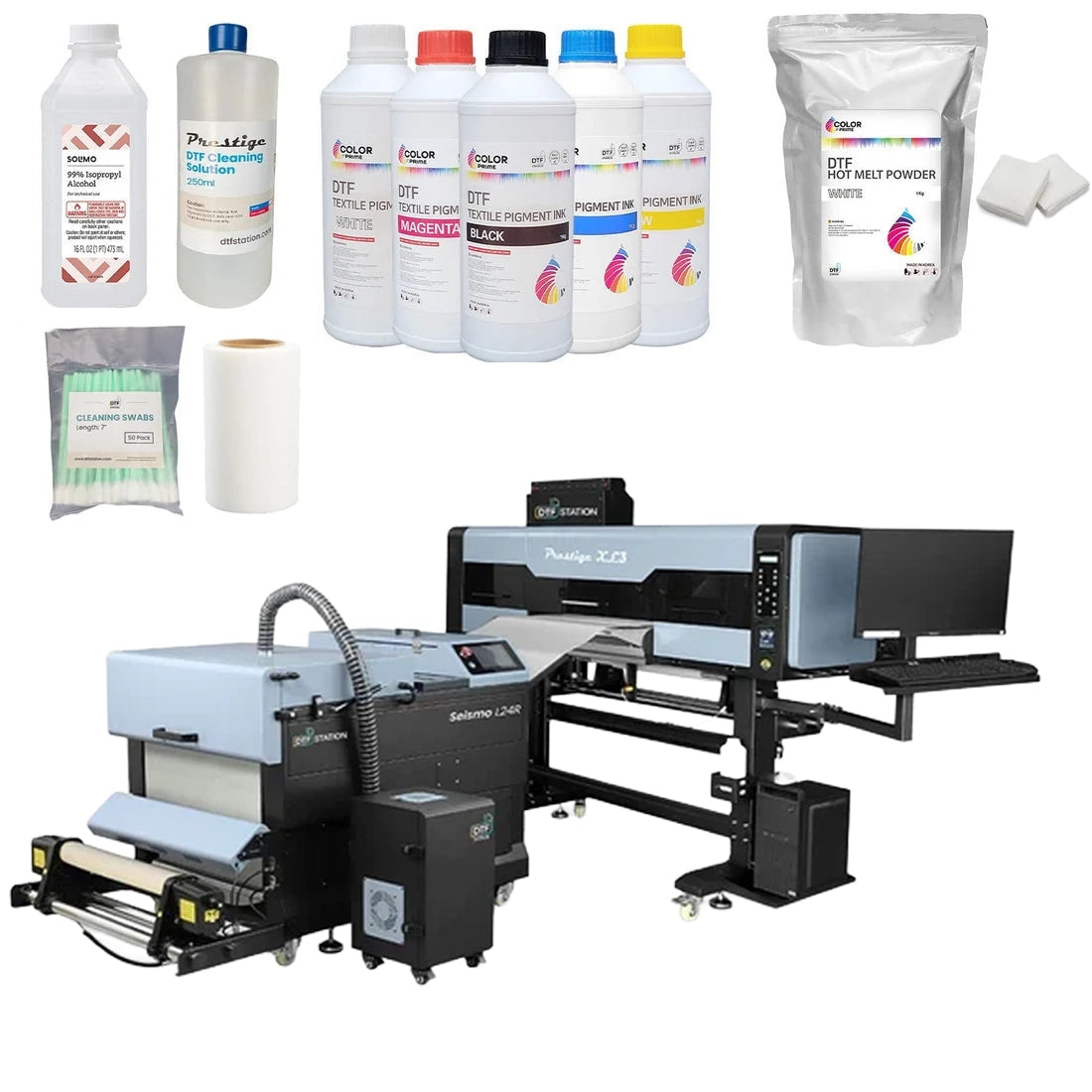

XL3 + Seismo L24R + Fume Extractor + Supplies + Software + On-Site Training | Prestige XL3, Seismo L24R, fume extractor, supplies, software, and On-Site Training | Buyers who want the Seismo L24R configuration with a listed fume extractor

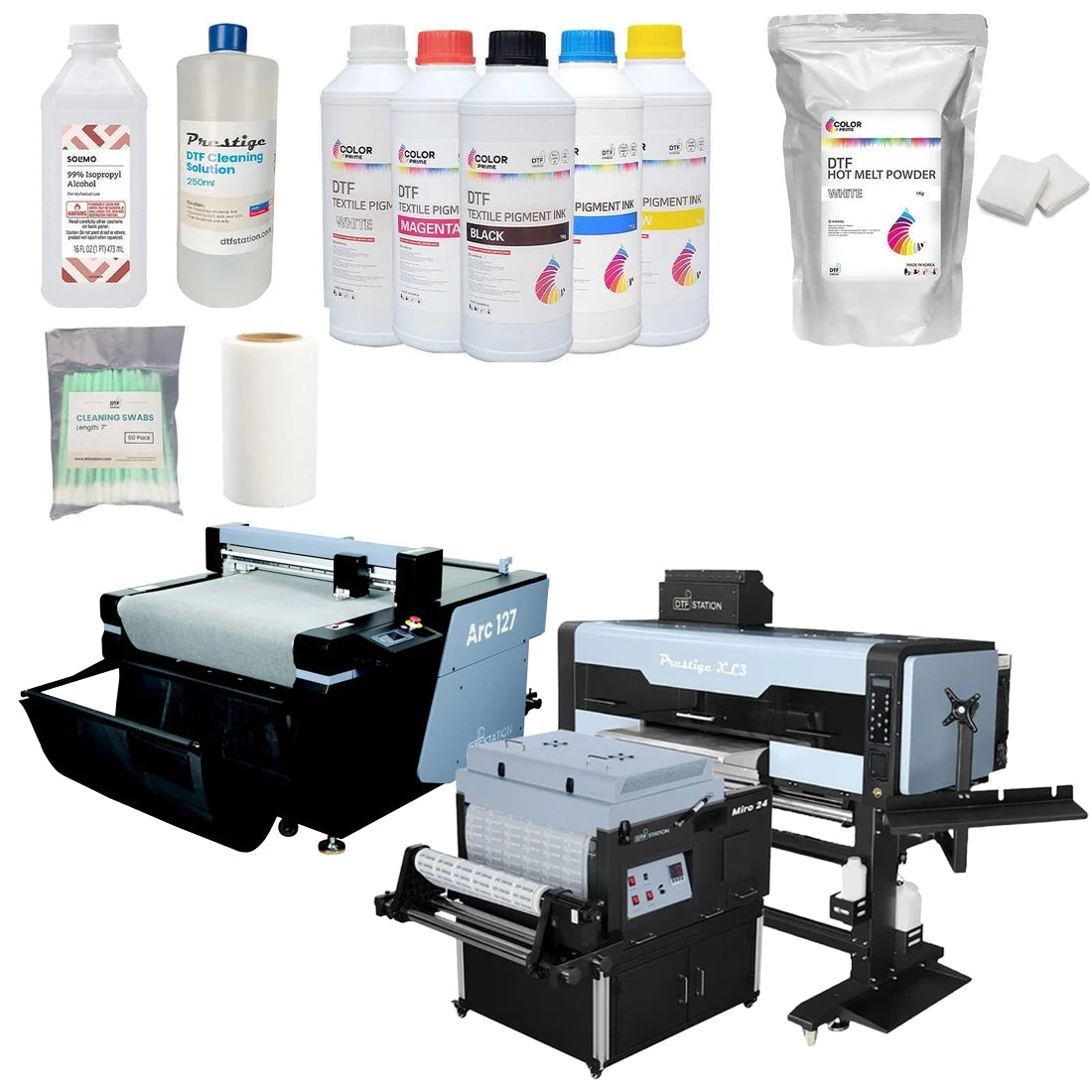

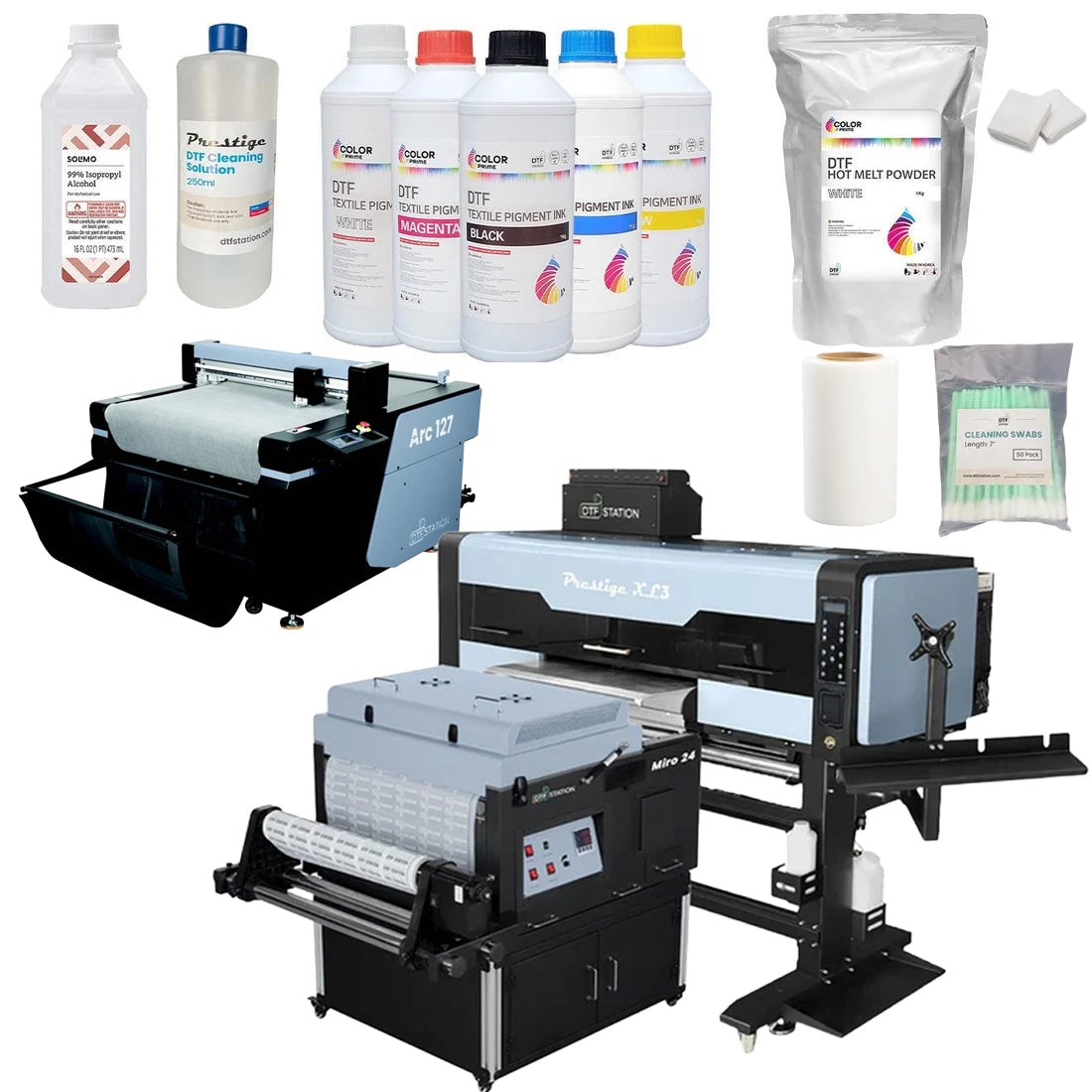

XL3 + Arc 127 + Miro 24 + Supplies + Software + neoStampa Add-On + On-Site Training | Prestige XL3, Arc 127, Miro 24, supplies, software, neoStampa add-on, and On-Site Training | Buyers who want the Arc 127 paired with the Miro 24 configuration
XL3 + Arc 127 + Seismo L24R + Fume Extractor + Supplies + Software + neoStampa Add-On + On-Site Training | Prestige XL3, Arc 127, Seismo L24R, fume extractor, supplies, software, neoStampa add-on, and On-Site Training | Buyers who want the Arc 127 paired with the Seismo L24R configuration

What Is Included with Your Order? | Your order includes the equipment, supplies, software, and training specified for your selected package. Confirm exact supply quantities, software licenses, accessories, and installation requirements before ordering. Do not assume that every item shown in product images is included.

Questions & Answers

What is the Prestige XL3 DTF printer?

The Prestige XL3 is a 24-inch-class Direct-to-Film printer with three Epson i3200 printheads and an expanded-color ink configuration.


Is the Prestige XL3 an 8-color or 9-color printer?

The ink configuration contains eight color inks: Cyan, Magenta, Yellow, Black, Light Magenta, Light Cyan, Green, and Orange. White is an additional ink, bringing the total to nine. The manufacturer describes this as a 9-color system.


How wide can the Prestige XL3 print?

The manufacturer's listed maximum printable width is 60 cm, approximately 23.62 inches. The printer is marketed in the 24-inch class.


How fast does the Prestige XL3 print?

The manufacturer lists 6.6 m² per hour at 6-pass, 720 x 1800 dpi settings and 6.3 m² per hour at 8-pass, 720 x 2400 dpi settings. Actual output varies with artwork, settings, maintenance, and workflow.


Does every XL3 package include software and training?

Yes. Every currently listed package includes software and On-Site Training. Confirm the software edition, license details, training scope, and scheduling before ordering.


Are supplies included with every package?

No. The base XL3, software, and On-Site Training configuration does not list supplies. Supplies are included in the other currently listed package options.


Is a Miro 24 or Seismo L24R included with every package?

No. These components are included only in the configurations that name them. Review your selected package for its exact equipment inclusions.


Is a fume extractor included?

A fume extractor is listed in the two Seismo L24R configurations. It is not listed in every XL3 package.


Which packages include the Arc 127 and neoStampa add-on?

The Arc 127 and neoStampa add-on are listed in two configurations: the Arc 127 with Miro 24 package and the Arc 127 with Seismo L24R and fume extractor package.


Does the Prestige XL3 require maintenance?

Yes. White-ink circulation, automatic cleaning, wet capping, and monitoring features assist operation but do not eliminate routine maintenance. Follow the manufacturer's instructions.


What warranty comes with the Prestige XL3?

16 months from the date shown on the CE label, excluding the printhead and any ink system-related parts.
