Name: CAMM-1 GS-24 Roland Desktop Vinyl Cutter
Brand: Roland
SKU: 497-126-1-EA
Price: 0.5 USD
Availability: InStock

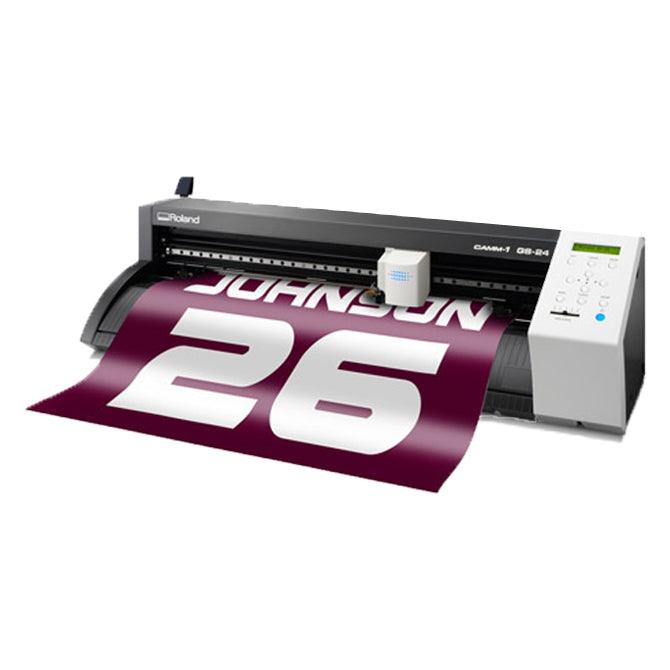

The Roland CAMM-1 GS-24 desktop cutter is precision and efficiency to the max. With a completely redesigned cutting carriage and blade holder, the GS-24 offers great stability, up to 10x overlap cutting and down force of up to 350 grams so that you can cut like never before — even on thick, dense substrates. The GS-24 is Roland's best desktop cutter ever.

Width: Accepts material from 2-inches to 27.5 inches wide
Speed: Cutting speeds up to 20 inches per second
Power: 350 grams of force making cutting and weeding thick substrates easier
Optical Registration: optical registration system. Recognizes crop marks.
Overlap cutting (up to 10x) plus half or perforated cutting
Materials: Vinyl, paint mask, reflective vinyl's, twill, heat transfer, and sandblast
Roland CutStudio™ Software included
Stand Now Included *New*

Cut like never before and build you buinsess right from your desktop with the GS-24. Produce apparel, vehicle graphics, signs, decals and more with ultimate versatility, percision and reliability.

*Shipping Charges Are Not Included In the Price Shown & Will NOT Be Reflected In Your Order's Total -- Quote on Request

Standard Features

Perfect for cutting vinyl, paint mask, reflective vinyl, twill, heat transfers, sandblast material and more
Stand included with purchase that holds roll media and offers smooth set up
Width: Accepts material from two to 27.5 inches wide
Mechanical Resolution: 0.0005
Speed: Cutting speeds up to 20 inches per second
Power: Max down force of 250 grams
Optical Registration: Recognizes crop marks produced by a variety of print-only devices and automatically aligns media so that printed graphics can be accurately contour cut.
Materials: Vinyl, paint mask, reflective vinyls, twill, heat transfer, and sandblast
Roland CutStudioTM Software included
Overlap cutting (up to 10x), for cutting thicker media like magnetic materials and card stock
Three-Year Trouble-Free Warranty*

Driving method	Digital control servo motor
Cutting method	Media-moving method
Acceptable media width	2 to 27.5 (50 to 700mm)
Maximum cutting area	Width:22.9 (584mm) Length: 984 (25m)
Acceptable tool	Special blade for CAMM-1 series
Cutting speed	19.69 in/s (500 mm/s) (all directions)
Blade force	30 to 250gf
Mechanical resolution	0.000492 (0.0125mm)
Software resolution	0.000984 (0.025mm)
Distance accuracy	Error of less than 0.2% of distance traveled, or 0.004 ( 0.1mm), whichever is greater
Repetition accuracy	0.004 ( 0.1mm) or less
Alignment accuracy for printing and cutting when loading printed material	0.04 (1mm)
Interface	USB interface (compliant with Universal Serial Bus Specification Revision 1.1)
Re-plot memory	2MB
Instruction system	CAMM-GL III
Power supply	Dedicated AC adapter Input: AC 100 to 240 V 10 50/60 Hz 1.7A Output:DC 24V, 2.8A
Power consumption	Approx. 30W (including AC adapter)
Acoustic noise level during operation during standby	70 dB(A) or less (according to ISO 7779) 40 dB(A) or less (according to ISO 7779)
Estimated Dimensions	33.5 (W) X 12.2 (D) X 9.25 (H)
Estimated Weight	29.77 lbs [13.5 kg] with stand 58 lb [26 kg]
Estimated Packed Dimensions	38 (W) x 17.7 (D) x 15.3 (H) in. [975 (W) x 450 (D) x 390 (H) mm]
Estimated Packed Weight	39.7 lb (18 kg)
Environment	Temperature: 5 to 40°C (41 to 104°F), humidity: 35 to 80 % (no condensation)
Included Items	AC adapter, power cord, blade, blade holder, separating knife, roller base, tweezers, test-use material, application tape, USB cable, CD-ROM, user manual

*Free Ground Shipping on Parts; No Charge Labor for Items Sent Back to St. Louis for Repair or Replacement

*Price, Design, and Technical Specifications Subject to Change Without Notice
