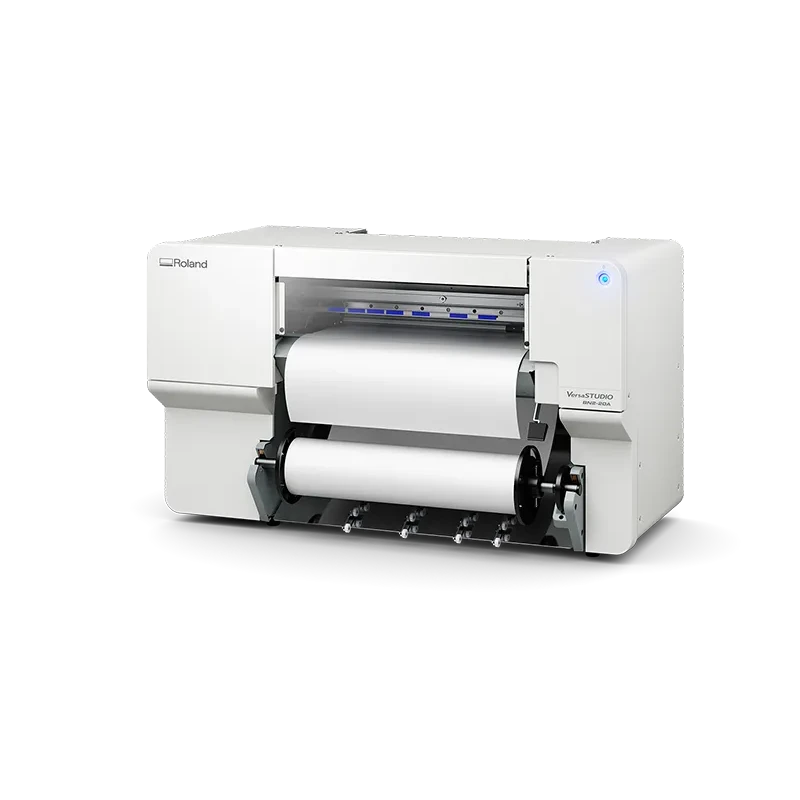

Name: VersaStudio BN2-20A Printer/Cutter
Brand: Roland
SKU: 497-125-111A-EA
Price: 6495.0 USD
Availability: InStock

Your Sign, Graphics, And Apparel Business Starts Here!

Roland DG has elevated an already outstanding product with the introduction of the next-generation BN2. These compact and powerful machines now deliver notably swifter print speeds, incorporate convenient new functionalities, offer user-friendly operation, and feature a space-efficient design that enables placement in homes, offices, or shops. The BN2 provides all the essentials for embarking on a professional journey in print and cut graphics production.

Easily the most versatile print devices in their class— print and cut on a huge range of vinyl, films, and media
In addition to traditional graphics, you can create heat transfer graphics for jerseys, hoodies, bags, and more
Legendary Roland DG machine reliability combines with exceptional image quality and color to give you the solution you need to succeed

The VersaStudio BN2-20A Printer/Cutter Offers The Flexibility You Need

The Roland VersaStudio BN2-20A Printer/Cutter provides all the essentials for embarking on a professional journey in print and cut graphics production. It features a 20" Max Media Width and CMYK Ink Configuration. Perfect for Apparel, Decals and Labels, Small Signs and Posters, and Art and Photography!

Create printed and cut graphics across a variety of media to suit diverse applications.
Achieve print speeds that surpass those of the BN-20 by over four times (in standard mode).
Choose between the BN2-20 (CMYK + White) or the BN2-20A (CMYK only) models to match your requirements.
Benefit from integrated print/cut functionality and a novel automatic sheet-cut feature.
Enjoy a redesigned, compact form factor with convenient built-in tool storage.
Access front-loading ink and media systems for added ease of use.
Utilize Eco-Sol MAX 2 inks to achieve vibrant color and exceptional detail.
Receive the FlexiDESIGNER VersaSTUDIO Edition design software, VersaWorks 6 RIP software, and the Roland DG Connect app as part of the package.

		BN2-20A	BN2-20
Printer Method		Piezo ink-jet method
Media	Width	5.91 to 20.2 in. (150 to 515 mm)
	Thickness	Maximum 1.0 mm (39.3 mil) with liner, for printing Maximum 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting
	Roll outer diameter	Maximum 5.9 in. (150 mm)
	Roll weight	Maximum 13.2 lb. (6 kg)
	Core diameter	3 in. (76.2 mm) or 2 in. (50.8 mm )
Printing/cutting width (*1)		Maximum 18.89 in. (480 mm)
Ink	Type	220-ml cartridge
Ink	Colors	Cyan, Magenta, Yellow, Black	Cyan, Magenta, Yellow, Black, White
Printing resolution (dots per inch)		Maximum 1,440 dpi
Cutting speed		0.39 to 5.9 in/s (10 to 150 mm/s)
Blade force (*2)		30 to 500 gf
Blade	Type	Roland CAMM-1 series blade
Blade	Offset	0.000 to 1.500 mm (0.0 to 59 mil)
Software resolution (when cutting)		0.025 mm/step (0.98 mil/step)
Media heating system (*3)	Print heater set temperature:	86 to 95 °F (30 to 35 °C)
Media heating system (*3)	Dryer set temperature:	86 to 100.4 °F (30 to 38 °C )
Connectivity		Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function		Automatic sleep feature
Rated input		100-240 Va.c. 50/60 Hz 2.1 A
Power consumption	During operation	Approx.185 W
Power consumption	Sleep mode	Approx.27W
Acoustic noise level	During operation	62 dB (A) or less
Acoustic noise level	During standby	60 dB (A) or less
Dimensions (Width x Depth x Height)		42.1 in. × 24.3 in. × 24.5 in. (1,069 mm × 617 mm × 622 mm)
Weight		137 lb. (62 kg)
Environment	During operation (*4)	Temperature: 68 to 89.6 °F (20 to 32 °C), Humidity: 35 to 80 % RH (no condensation)
Environment	Not operating	Temperature: 41 to 104 °F (5 to 40 °C) Humidity: 20 to 80 % RH (no condensation)
Included items		Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, User's Manual, Software (FlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect), etc.

The length of printing or cutting is subject to the limitations of the program.
500 gf is the maximum instantaneous blade force.
The blade force must be adjusted according to details such as the media thickness.
Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
Operating environment（Use in an operating environment within this range.)

bn2_spec_photo
