Pro-Dry Screen Dryer

Pro-Dry Screen Dryer

LWG - Lawson Workhorse Group

SKU:

Get a Quote / Contact Sales
×

Got a question about Pro-Dry Screen Dryer?

Payment & Security

Payment Methods Accepted

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Financing Options

Need to finance the Pro-Dry Screen Dryer? No problem! Visit our Financing Page for more details.

Got a question about this product?

Questions & Answers

Q: Does the Pro-Dry Screen Dryer require external ducting or exhaust?
A: The Pro-Dry includes a standard 10-inch round exhaust port to easily vent warm air and moisture directly out of your pre-press room to maintain proper shop humidity levels.

Q: What are the electrical power requirements for the Pro-Dry Screen Dryer?
A: The dryer runs on 230 Volts, 1-Phase power at 30 amps.

Q: How does the Pro-Dry prevent dust and light from ruining emulsion?
A: The unit features a fully enclosed, sealed cabinet construction that creates a light-tight and dust-free drying chamber for screens during the drying process.

Q: Where can I get service, replacement parts, and support for the Pro-Dry Screen Dryer?
A: Equipment service, technical support, and direct replacement parts are supported directly through LWG.

View full details
Jump to: Description The LWG Difference Features Specifications Table Comparison Table

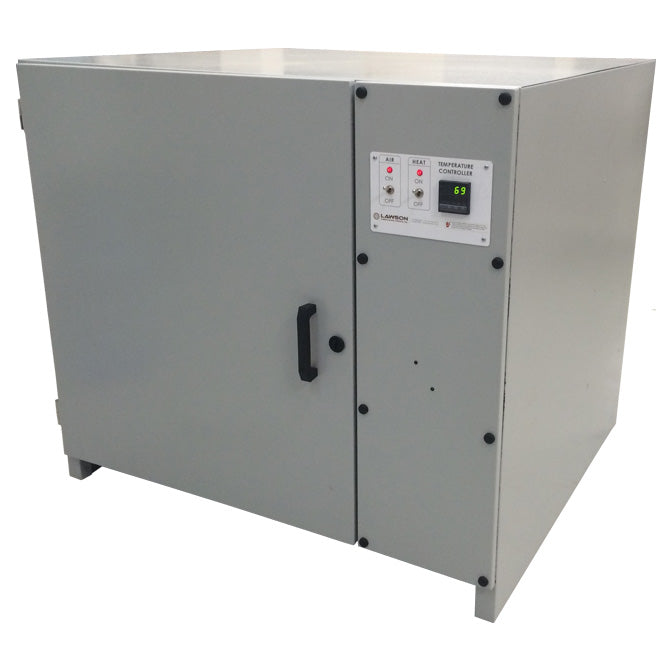

Description

The Pro-Dry Screen Dryer is a high-volume pre-press screen drying cabinet engineered to accelerate screen preparation and emulsion drying. Designed for commercial screen printing operations, this unit pairs high-volume forced air circulation with digital temperature control to create a dust-free, consistent drying environment. Featuring heavy-duty construction, large screen capacity, and integrated venting capabilities, the Pro-Dry Cabinet ensures emulsion dries evenly without pinholes or moisture pockets, keeping screen prep moving at peak production speeds.

The Pro-Dry Screen Dryer is a high-volume pre-press screen drying cabinet engineered to accelerate screen preparation and emulsion drying. Designed for commercial screen printing operations, this unit pairs high-volume forced air circulation with digital temperature control to create a dust-free, consistent drying environment. Featuring heavy-duty construction, large screen capacity, and integrated venting capabilities, the Pro-Dry Cabinet ensures emulsion dries evenly without pinholes or moisture pockets, keeping screen prep moving at peak production speeds.

The LWG Difference

  • Industrial Forced-Air Circulation: Delivers 1,510 CFM of heated airflow across all screen shelves to ensure rapid, uniform emulsion drying from top to bottom.
  • Heavy-Duty Sealed Cabinet Construction: Built with fully enclosed insulated walls to block ambient light and seal out shop dust and debris during the drying phase.
  • Integrated High-Volume Exhaust: Built-in 10-inch round exhaust port allows simple connection to external shop ductwork to manage humidity and air output.
  • Direct Factory Backup & Support: Backed directly by LWG with expert technical assistance, factory warranty support, and fast nationwide replacement parts delivery.

  • Industrial Forced-Air Circulation: Delivers 1,510 CFM of heated airflow across all screen shelves to ensure rapid, uniform emulsion drying from top to bottom.
  • Heavy-Duty Sealed Cabinet Construction: Built with fully enclosed insulated walls to block ambient light and seal out shop dust and debris during the drying phase.
  • Integrated High-Volume Exhaust: Built-in 10-inch round exhaust port allows simple connection to external shop ductwork to manage humidity and air output.
  • Direct Factory Backup & Support: Backed directly by LWG with expert technical assistance, factory warranty support, and fast nationwide replacement parts delivery.

Features

atures

  • High-CFM Forced-Air Heating: High-velocity air circulation accelerates drying times for freshly coated emulsion screens.
  • Precise Digital Temperature Control: Thermostatically controlled heat settings prevent screen mesh expansion or emulsion scorching.
  • Dust-Free Drying Environment: Enclosed cabinet design shields sensitive emulsion coatings from air contaminants and light leaks.

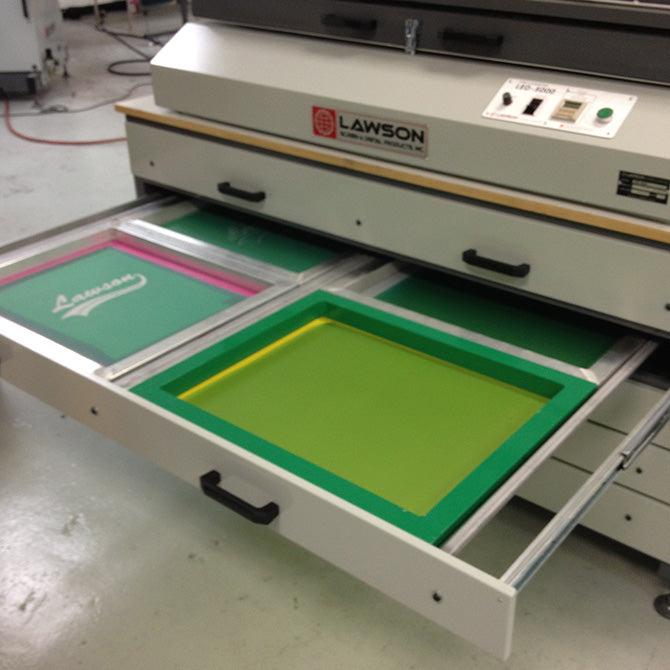

  • High-Capacity Screen Racks: Sturdy internal shelf sliding system supports large-format shop frames for batch drying operations.
  • Heavy-Duty Shop Footprint: Industrial cabinet build built to withstand continuous daily pre-press production schedules.

atures

  • High-CFM Forced-Air Heating: High-velocity air circulation accelerates drying times for freshly coated emulsion screens.
  • Precise Digital Temperature Control: Thermostatically controlled heat settings prevent screen mesh expansion or emulsion scorching.
  • Dust-Free Drying Environment: Enclosed cabinet design shields sensitive emulsion coatings from air contaminants and light leaks.
  • High-Capacity Screen Racks: Sturdy internal shelf sliding system supports large-format shop frames for batch drying operations.
  • Heavy-Duty Shop Footprint: Industrial cabinet build built to withstand continuous daily pre-press production schedules.

Specifications Table

Model Pro Dry Screen Dryer
Depth 46"
Width 67" + 27" Total of 98" wide
Height 32"
CFM 1,510
10" Round Exhaust for Venting Yes
Electrical Requirements 230 Volts; 1-Phase; 30 amps
Estimated Crated Weight 850 lbs

Comparison Table

Feature / Metric Pro Dry Screen Dryer Standard Screen Drying Racks DIY / Tabletop Drying Cabinets
Airflow Capacity High-Volume 1,510 CFM Forced Air Ambient Air / No Airflow Low CFM Internal Fan
Temperature Control Digital Thermostatic Heat Control Unheated Ambient Air Basic On/Off Heating Element
Contaminant Protection Fully Enclosed Sealed Cabinet Exposed Open Air Partial Enclosure
Exhaust System Integrated 10" Round Exhaust Port None Unvented / Open Slots
Build Quality & Weight Industrial Heavy-Duty (850 lbs) Lightweight Wire / Aluminum Light Sheet Metal or Wood
Target Shop Level High-Volume Commercial Screen Shops Entry-Level & Hobbyist Printers Small Custom Shops
