Emulsion Coating Equipment & Screen Drying Cabinets

Identify the Screen-Room Task You Need to Improve

Separate coating, drying, and registration when evaluating equipment.

A coating system helps apply emulsion to the mesh. A drying cabinet provides an environment for removing moisture from prepared screens. A registration system assists artwork positioning.

These products serve related but different functions. Start with the stage that limits your workflow, then check how the selected equipment connects with screen preparation, exposure, development, and press setup.

Compare Manual Coating Aids and Automated Coaters

Choose a coating method around your daily screen volume, staffing, frame sizes, and required process control.

A manual coating aid can support screen handling while the operator performs the coating stroke. Semi-automatic and automatic systems perform specified movements or control functions, depending on the model.

Do not assume every powered coater applies emulsion to both sides simultaneously or offers the same programmable features. Confirm the loading method, coating sequence, adjustments, and operator responsibilities for the selected machine.

Check Frame Capacity and Coating Width

Verify the minimum and maximum frame dimensions, frame thickness, and loading orientation.

Also confirm the usable coating width and any required clearance around the mesh opening. A machine that accepts a frame does not necessarily coat every part of its mesh.

Review the frames already used on your press, including smaller specialty screens. Confirm whether different sizes require additional troughs, adapters, or adjustments.

Review the Controls That Affect Coating

Compare how the equipment manages coating speed, trough contact, stroke count, and coating direction.

The finished stencil also depends on emulsion viscosity, mesh specifications, trough profile, screen preparation, and drying. Automated movement can improve repeatability, but it does not guarantee a particular stencil thickness without setup and verification.

Establish a coating procedure for each production requirement rather than using one recipe across every mesh and emulsion.

Match Drying Capacity to Your Coating Output

Choose a cabinet that accommodates both your frame dimensions and the number of screens moving through preparation.

Review screen capacity, spacing, loading access, and the arrangement of wet screens. Nominal storage capacity is not necessarily the same as practical drying capacity for every frame and coating.

Include time for loading, drying, inspection, and unloading when planning throughput. Avoid selecting a coater that consistently produces more wet screens than the drying stage can handle.

Compare Cabinet Features Individually

Check temperature controls, airflow, filtration, light protection, and maintenance access on the exact cabinet being supplied.

Do not assume every enclosed dryer includes humidity control, filtered air, or the same screen supports. An enclosure alone does not establish a dust-free environment.

For roll-in equipment, confirm the compatible rack dimensions, whether a rack is included, and the space needed to move it through the cabinet opening.

Follow the Emulsion Supplier’s Drying Instructions

Use the temperature, humidity, orientation, and handling recommendations for your chosen emulsion.

There is no single drying temperature or cycle time suitable for every coating. Drying conditions depend on the emulsion, coating thickness, mesh, cabinet loading, and incoming air.

Keep coated screens protected from unintended exposure and verify that they are ready for the next stage before imaging or exposing them.

Distinguish Drying From Exposure

A screen drying cabinet removes moisture; it does not replace the exposure process.

After coating and drying, the screen still needs the imaging or film-contact and exposure steps required by your stencil-making method. Development and any specified finishing steps follow.

Do not confuse a pre-press screen dryer with a conveyor dryer used to cure printed ink on garments.

Plan Registration Alongside Screen Preparation

Review how artwork is positioned before exposure and how that position transfers to the press.

The collection includes the Super Simple Registration System. Confirm its frame, artwork, and press compatibility, along with the components needed for your workflow.

Registration equipment does not eliminate every source of alignment variation. Frame condition, mesh stability, stencil preparation, and press setup still affect the result.

Confirm Utilities and Installation Space

Review electrical service, compressed-air requirements where applicable, machine dimensions, weight, and service clearances.

Allow room to load frames, open cabinet doors, remove coating troughs, and clean the equipment. For roll-in cabinets, include the full approach and turning space needed by the rack.

Check the installation requirements for each model rather than extending one product’s specifications across the collection.

Review Cleaning, Package Contents, and Support

Confirm how coating troughs, contact surfaces, filters, and screen supports are cleaned or serviced.

Check whether troughs, racks, adapters, stands, and other required components are included. Review freight, delivery access, warranty terms, installation, and operator training before purchasing.

LWG lists installation, training, and service capabilities. Confirm the services applicable to your selected equipment and purchase arrangement.

What equipment is included in this collection?

The collection includes emulsion coaters, manual coating aids, screen drying cabinets, a roll-in screen dryer, and the Super Simple Registration System. Check individual listings for current configurations and availability.

What is the difference between a manual coating aid and an automatic coater?

A manual coating aid supports handling while the operator performs the coating stroke. An automatic coater performs specified coating movements or sequences. Features and operator responsibilities vary by model.

Does every automatic coater coat both sides at once?

No. Coating arrangements vary. Confirm whether the selected machine coats one side or both sides, how strokes are controlled, and which adjustments are available.

Will an automatic coater guarantee uniform stencil thickness?

No. Automated controls can improve process repeatability, but stencil thickness also depends on the mesh, emulsion, trough, coating sequence, and drying conditions. Verify the finished stencil against your production requirements.

Can I use my existing screen frames?

Possibly. Confirm the equipment’s minimum and maximum frame dimensions, frame thickness, loading orientation, and usable coating area before assuming compatibility.

What is emulsion-over-mesh?

Emulsion-over-mesh, or EOM, describes the stencil thickness above the mesh on the substrate side. Set and verify it according to your ink, artwork, mesh, and printing requirements.

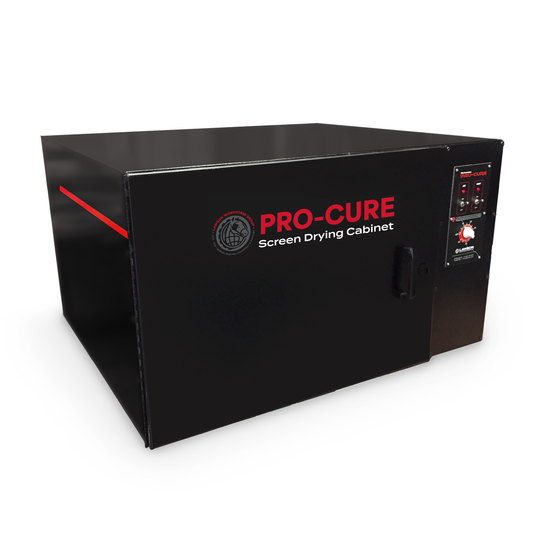

Why use a dedicated screen drying cabinet?

A suitable cabinet provides a defined drying space and can help organize prepared screens. Temperature control, airflow, filtration, and light protection vary by model, so confirm the features you need.

Do all screen drying cabinets control humidity?

No. Heating or circulating air does not establish that a cabinet includes active humidity control. Check the selected model’s specifications and monitor the drying environment as required.

What temperature should I use to dry coated screens?

Follow the emulsion supplier’s instructions and the cabinet’s operating guidance. Do not apply one temperature or cycle time to every emulsion and coating thickness.

How long does it take to dry an emulsion-coated screen?

Drying time varies with the emulsion, coating thickness, mesh, temperature, humidity, airflow, and cabinet loading. Establish a suitable cycle using your actual materials and equipment.

Should coated screens dry horizontally or vertically?

Follow the emulsion supplier’s recommended orientation and use screen supports appropriate to that method. Confirm that the selected cabinet accommodates your required arrangement.

Does a drying cabinet expose the stencil?

No. Drying removes moisture. Exposure is a separate step unless you are using equipment specifically designed to combine those functions.

Is a screen drying cabinet the same as a garment curing dryer?

No. A pre-press screen drying cabinet prepares screens for stencil-making operations. A garment curing dryer processes printed ink on the finished item.

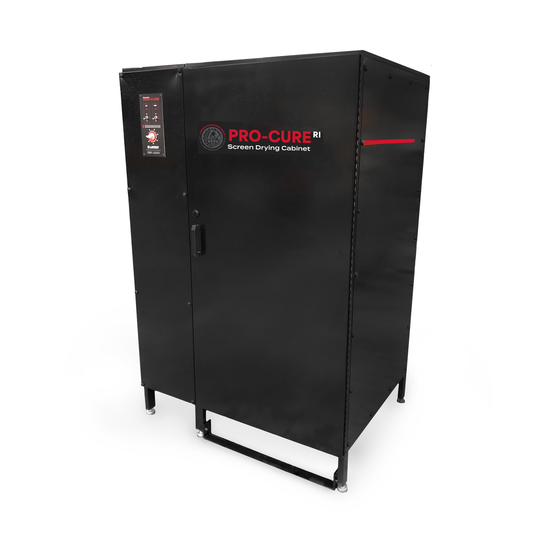

Does a roll-in dryer include a screen rack?

Do not assume it does. Confirm the package contents, compatible rack dimensions, screen capacity, and loading clearances before ordering.

What does the Super Simple Registration System do?

It assists artwork-to-screen alignment during pre-press preparation. Confirm compatibility with your frames and workflow. It does not eliminate all on-press registration adjustments.

Does LWG offer installation, training, and technical support?

LWG lists installation, training, and service capabilities. Confirm the specific services, warranty coverage, freight arrangements, and support included with your selected equipment.
