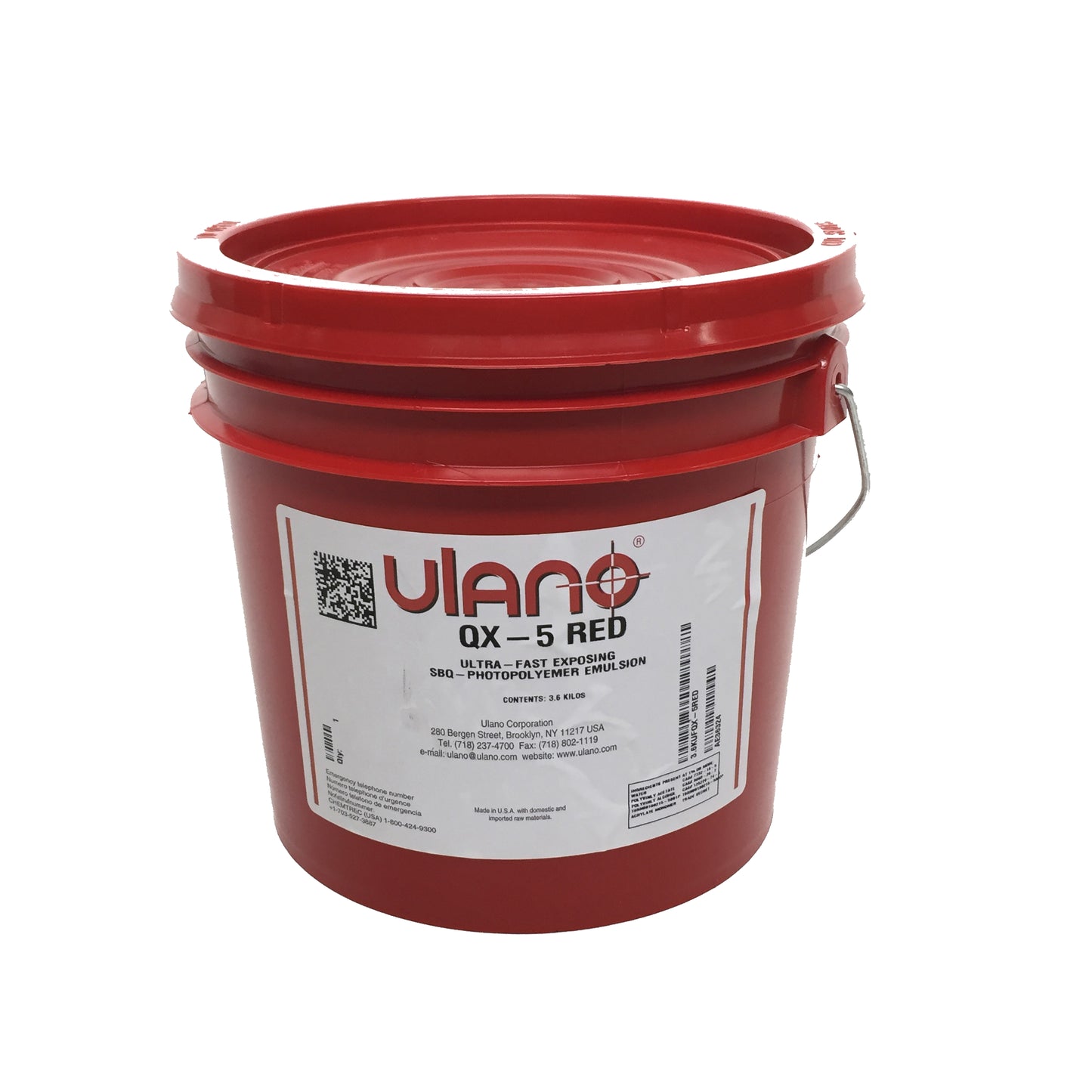

QX-5 Red Emulsion

QX-5 Red Emulsion

Ulano

SKU:

$85.17 USD
$85.17 USD
Sale Sold out

Payment & Security

Payment Methods Accepted

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Financing Options

Need to finance the QX-5 Red Emulsion? No problem! Visit our Financing Page for more details.

Got a question about this product?

View full details
  • DESCRIPTION
  • REVIEWS

QX-5 Red Emulsion | Fast Exposing

QX-5 Red is a universal, ready-to-use, fast-exposing SBQ-photopolymer direct emulsion. Its relatively high viscosity (5000 cps) and solids content (41%) result in better mesh bridging on coarse mesh, and fast drying.

Features-At-a-Glance:

  • Fast exposing
  • Fast stencil throughput for high volume shops
  • Dependable polymerization assures durability and ink resistance
  • High (41%) solids content
  • Dries quickly
  • Better mesh bridging on coarse mesh
  • Lower Rz value yields sharper printed edges
  • High viscosity (5000 CPS)
  • Easier to control during coating
  • Solvent Resistant - Resists a wide range of solvent-based inks
  • Moisture Resistant - Will not become tacky under high humidity conditions
  • Red color - Easy stencil inspection, even on colored mesh
  • Shelf life - unopened: 1 year at 70º F. (21º C.)
LIGHT SOURCE COATING METHOD
  1 2 3
Carbon Arc
15 amps 96 sec. 288 sec. 360 sec.
30 amps 48 sec. 144 sec. 198 sec.
40 amps 36 sec. 108 sec. 144 sec.
60 amps 24 sec. 72 sec. 96 sec.
110 amps 13 sec. 40 sec. 54 sec.

Metal Halide
1000 watts 22 sec. 60 sec. 82 sec.
2000 watts 11 sec. 30 sec. 41 sec.
3000 watts 7 sec. 20 sec. 26 sec.
4000 watts 5 sec. 15 sec. 20 sec.
5000 watts 4 sec. 12 sec. 16 sec.

Pulsed Xenon
2000 watts 55 sec. 165 sec. 220 sec.
5000 watts 22 sec. 66 sec. 88 sec.
8000 watts 14 sec. 41 sec. 55 sec.

Mercury Vapor
125 watts 228 sec. 600 sec. 840 sec.
1000 watts 29 sec. 82 sec. 105 sec.
2000 watts 14 sec. 41 sec. 53 sec.
4000 watts 7 sec. 20 sec. 26 sec.

Fluorescent Tubes*
40 watts 72 sec. 180 sec. 300 sec.

* Base exposure times are for unfiltered black light, or super diazo blue tubes at 4-6 in. (10-15cm.) exposure distance. For plant-light, filtered black light and "daylight" fluorescent tubes, use at least double the exposure time.

EXPOSURE VARIABLES:
Multiply the above base exptension times by all factors and variables that apply.

Fabric Types
Metal fabric 2.0-4.0
Dyed fabric 1.5-2.0
Finer than 330T/in. (130T/cm.) 0.7-0.9
Coarser than 250T/in. (100T/cm.) 1.1-2.0
High heat and humidity 1.3-1.8

Distance Factors
20 inches/50 cm. 0.25
24 inches/60 cm. 0.36
28 inches/70 cm. 0.49
32 inches/80 cm. 0.64
36 inches/90 cm. 0.81
40 inches/100 cm. 1.00
44 inches/110 cm. 1.21
48 inches/120 cm. 1.44
52 inches/130 cm. 1.69
56 inches/140 cm. 1.95
60 inches/150 cm. 2.25
72 inches/180 cm. 3.20


Additional Information
QX-Red Emulsion SDS

Lawson PenguinCAUTION: Some emulsions can FREEZE during shipment. If you do not understand about the "freezing issue", please call us at 800-325-8317 for information on this subject. Lawson can not be responsible for damages due to freezing.
