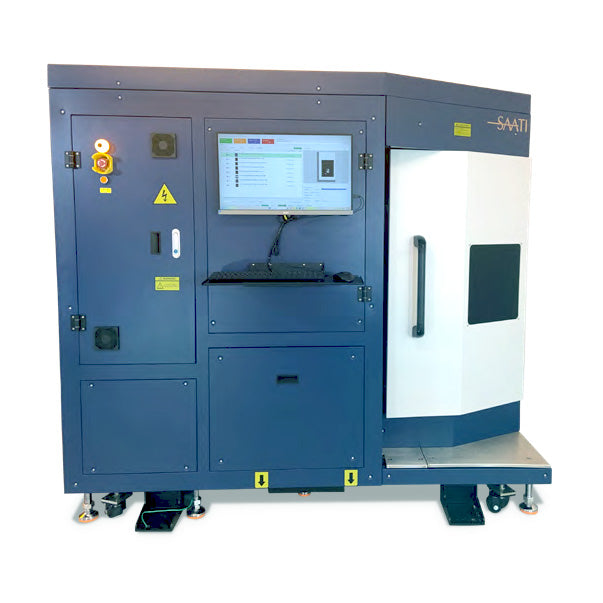

SAATI LTS E70B Direct Laser Imaging & Exposure Machine

SAATI LTS E70B Direct Laser Imaging & Exposure Machine

Saati

SKU:

Shipping Fees Not Included in Price

Shipping and Crating fees (if applicable) are not included in price shown and will not be reflected in your order total. Lawson will contact you after order completion with a shipping cost.

Get a Quote / Contact Sales
×

Got a question about SAATI LTS E70B Direct Laser Imaging & Exposure Machine?

Payment & Security

Payment Methods Accepted

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Financing Options

Need to finance the SAATI LTS E70B Direct Laser Imaging & Exposure Machine? No problem! Visit our Financing Page for more details.

Got a question about this product?

Questions & Answers

Q: Does the SAATI LTS E70B require film positives, wax, or inkjet consumables?
A: No. The SAATI LTS E70B is a direct-laser system. It uses a 64-laser UV array to expose the screen emulsion directly, completely eliminating film rolls, ink cartridges, wax ribbons, and vacuum glass.

Q: What maximum screen size can be imaged on the LTS E70B?
A: The machine accepts screen frames up to 25" x 36" outer dimension, with a maximum active image area of 23.6" x 31.4".

Q: What file formats and software are compatible with the LTS E70B?
A: The unit utilizes standard 1-bit TIFF file formats, making it compatible with almost all industry-standard screen printing RIP software and color separation tools.

Q: Where can I see a live demo or schedule regional pickup for the SAATI LTS E70B?
A: You can schedule a demonstration or arrange regional equipment pickup at Lawson Workhorse Group centers in St. Louis, MO or Marietta, GA.

View full details
Jump to: Description The LWG Difference Features Specifications Table Comparison Table

Description

The SAATI LTS E70B Direct Laser Screen Imaging & Exposure Machine is an industrial-grade, direct-laser computer-to-screen (CTS) imaging and exposure system engineered for high-volume commercial print shops, technical screen printers, and automated darkrooms. Designed for screen rooms in St. Louis, MO, Atlanta, GA, and across North America, the LTS E70B images and exposes screens up to 25" x 36" directly—eliminating film positives, vacuum frames, and consumable inks or waxes. Featuring a planar array of 64 high-precision UV lasers with selectable resolutions of 1270 and 2540 DPI, this self-contained vertical unit rapidly cures all stencil films and high-density emulsions with microscopic pixel placement. Driven by user-friendly RIP-compatible software and 1-bit TIFF workflows, the SAATI LTS E70B delivers ultra-high-definition halftone detail, perfect color-to-color registration, and drastically reduced screen preparation costs.

The SAATI LTS E70B Direct Laser Screen Imaging & Exposure Machine is an industrial-grade, direct-laser computer-to-screen (CTS) imaging and exposure system engineered for high-volume commercial print shops, technical screen printers, and automated darkrooms. Designed for screen rooms in St. Louis, MO, Atlanta, GA, and across North America, the LTS E70B images and exposes screens up to 25" x 36" directly—eliminating film positives, vacuum frames, and consumable inks or waxes. Featuring a planar array of 64 high-precision UV lasers with selectable resolutions of 1270 and 2540 DPI, this self-contained vertical unit rapidly cures all stencil films and high-density emulsions with microscopic pixel placement. Driven by user-friendly RIP-compatible software and 1-bit TIFF workflows, the SAATI LTS E70B delivers ultra-high-definition halftone detail, perfect color-to-color registration, and drastically reduced screen preparation costs.

The LWG Difference

  • Local Fast Pickup & Demo Hubs: Inspect machinery in person or schedule rapid equipment pickup at regional facilities in St. Louis, MO or Atlanta / Marietta, GA.
  • Pure Direct-Laser Precision: 64-laser planar array exposes emulsion directly without glass reflection, vacuum draw-down holds, or ink/wax consumables.
  • Consumable-Free Cost Reduction: Eliminates expensive film rolls, inkjet cartridges, wax ribbons, and glass cleaning routines to maximize pre-press profit margins.
  • Direct USA Factory Backing: Supported by factory-trained technical specialists, quick-ship domestic spare parts, full 1-year warranty coverage, and flexible commercial financing options.

  • Local Fast Pickup & Demo Hubs: Inspect machinery in person or schedule rapid equipment pickup at regional facilities in St. Louis, MO or Atlanta / Marietta, GA.
  • Pure Direct-Laser Precision: 64-laser planar array exposes emulsion directly without glass reflection, vacuum draw-down holds, or ink/wax consumables.
  • Consumable-Free Cost Reduction: Eliminates expensive film rolls, inkjet cartridges, wax ribbons, and glass cleaning routines to maximize pre-press profit margins.
  • Direct USA Factory Backing: Supported by factory-trained technical specialists, quick-ship domestic spare parts, full 1-year warranty coverage, and flexible commercial financing options.

Features

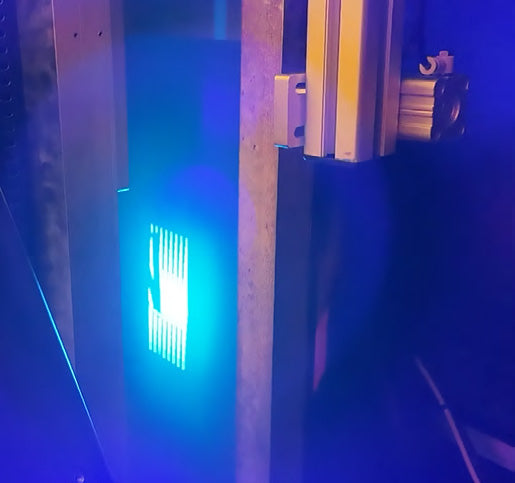

  • Planar 64-Laser Exposure Engine: Delivers ultra-fast, thorough exposure cycles for all emulsion types, including high-density photopolymers and capillary films.
  • Selectable Dual Resolution (1270 / 2540 DPI): Toggle between standard and high-resolution modes for crisp vector lines, microscopic point text, and fine halftones.
  • Pneumatic Frame Clamping System: Automated pneumatic clamps hold screen frames up to 25" x 36" tightly in place for accurate registration.
  • Vertical Space-Saving Cabinet: Built-in safe view window allows operators to visually monitor the laser imaging process safely.
  • Low Power Consumption & High Efficiency: Operates on standard 110V power with minimal energy draw and long-life laser diodes for low maintenance overhead.
  • Planar 64-Laser Exposure Engine: Delivers ultra-fast, thorough exposure cycles for all emulsion types, including high-density photopolymers and capillary films.
  • Selectable Dual Resolution (1270 / 2540 DPI): Toggle between standard and high-resolution modes for crisp vector lines, microscopic point text, and fine halftones.
  • Pneumatic Frame Clamping System: Automated pneumatic clamps hold screen frames up to 25" x 36" tightly in place for accurate registration.
  • Vertical Space-Saving Cabinet: Built-in safe view window allows operators to visually monitor the laser imaging process safely.
  • Low Power Consumption & High Efficiency: Operates on standard 110V power with minimal energy draw and long-life laser diodes for low maintenance overhead.

Specifications Table

Feature Specification
Equipment Type Self-Contained Direct Laser CTS Imaging & Exposure Unit
Laser Light Source Planar Array of 64 UV Lasers
Resolution Modes Dual Resolution Toggle: 1270 DPI and 2540 DPI
Maximum Image Size 23.6" x 31.4"
Maximum Frame Size 25" x 36"
File Format & Software 1-Bit TIFF Input; Compatible with Standard RIP Software
Pneumatic Requirements 90 PSI / 6.2 Bar (Compressed air required for clamps, < 1 CFM)
Electrical & Dimensions 110V Input; Machine Dimensions: 81.5" x 28" x 74" (Weight: 1,763.7 lbs)
Warranty 1-Year Factory Warranty
Origin Distributed via Lawson Workhorse Group (St. Louis, MO & Atlanta, GA facilities)

Comparison Table

Feature SAATI LTS E70B Direct Laser Unit CTS Inkjet / Wax Systems Traditional Vacuum Glass Exposure
Imaging Technology Pure UV laser array exposes emulsion directly with zero consumables Prints ink or wax onto emulsion; requires separate post-exposure step Requires expensive film positives, tape, and vacuum draw-down time
Resolution & Detail Up to 2540 DPI with 64-laser precision for flawless halftone registration Lower resolution limits; ink bleeding or wax flaking can blur fine halftone dots Light undercutting and glass dust create pinholes and soft stencil edges
Operating Costs Low power draw with zero film, ink, or wax costs per screen Continuous recurring costs for specialized UV-blocking ink or wax ribbons High costs for film rolls, chemical developers, and replacement lamps
Maintenance & Glass Glass-free, fully enclosed cabinet with zero glass cleanup or static dust Print heads clog frequently, requiring constant maintenance and cleaning cycles Exposure glass attracts shop lint and static, requiring frequent manual cleaning
