Pro-Cure Screen Printing Screen Dryer

Pro-Cure Screen Printing Screen Dryer

Lawson Workhorse Group (LWG)

SKU:

Regular price $1,795.00 USD
Regular price Sale price $1,795.00 USD
Sale Sold out

Shipping Fees Not Included in Price

Shipping and Crating fees (if applicable) are not included in price shown and will not be reflected in your order total. Lawson will contact you after order completion with a shipping cost.

Payment & Security

Payment Methods Accepted

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Financing Options

Need to finance the Pro-Cure Screen Printing Screen Dryer? No problem! Visit our Financing Page for more details.

Got a question about this product?

View full details

Description

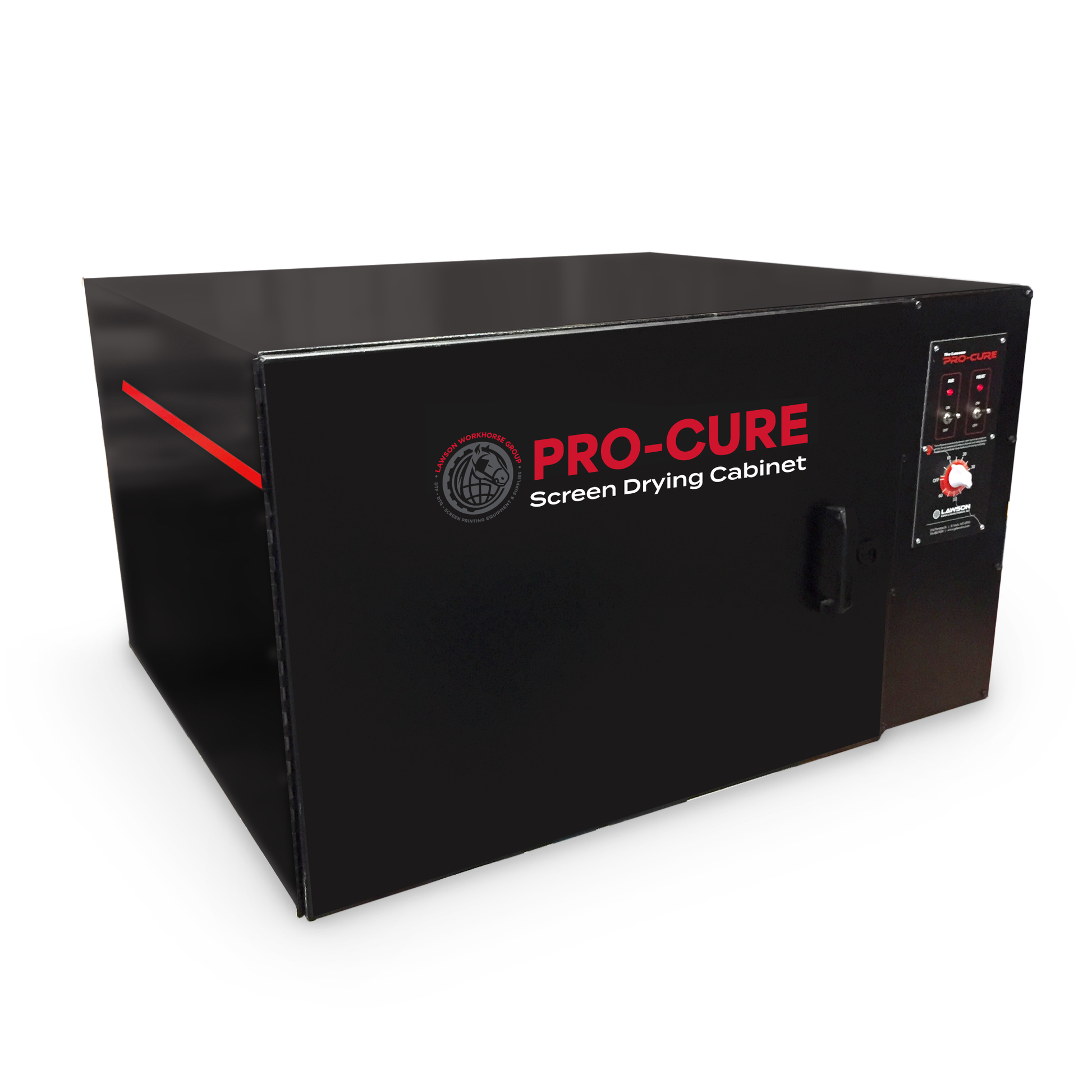

This thermo-air screen printing frame dryer accelerates screen drying by passing temperature-controlled hot air over and under your screens. The warm air is in constant motion to dry your processed or newly washed screens evenly and rapidly. Whether you need to dry wet frames after being washed or rapidly dry wet emulsion, the Pro-Cure has all the features you need for a quality screen-making operation.

In addition to temperature-controlled air movement, the Pro-Cure filters all fresh intake air before heating and distributing it throughout the drying cabinet. The automatic timer is easy to set and will turn off upon completion of the drying cycle. All interior shelves are adjustable to accommodate various-sized screens.

Why the Pro-Cure is better than a box fan or other DIY creation:

  1. A common issue with using a box fan to dry screens is the dust, lint, and dirt blown onto the screens. These tiny particles are the most common causes of pinholes. The Lawson Workhorse Group (LWG) Pro-Cure keeps dust, lint, and dirt off your screens by pre-filtering the air before directing it onto your screens.
  2. A box fan is slow because it only circulates room air. The Lawson Workhorse Group (LWG) Pro-Cure heats the air before circulating it inside the drying chamber to rapidly dry wet screens and emulsion.
  3. The Pro-Cure eliminates the need to manage light issues that could ruin unexposed emulsion. The fully enclosed drying chamber blocks all light, ensuring emulsion-coated screens remain unexposed to UV light until you are ready to use them.

Standard Size: Can hold up to a 28" x 31" OD frame.

Special order and custom sizes are available. An optional Roll-In Screen Cabinet (not pictured) is available for higher-volume production needs (holds up to 20 screens).

The LWG Difference

  • Pre-Filtered Air Intake: Pre-filters fresh intake air before heating and circulating it inside the chamber, keeping dust, lint, and shop debris off wet emulsion to prevent pinholes.
  • Temperature-Controlled Forced Air: Actively heats and circulates air over and under screens, dramatically outperforming standard box fans and room-temperature air drying.
  • UV-Sealed Cabinet Environment: Fully enclosed light-tight chamber protects unexposed emulsion-coated screens from UV exposure, preventing premature screen exposure prior to setup.
  • Dedicated Factory Backup & Support: Backed directly by LWG with expert technical assistance, factory installation options, and fast replacement parts delivery.

Features

  • Temperature-Controlled Heating: Maintains constant warm air circulation across screens to ensure fast, even emulsion drying.
  • Easy-Set Automatic Shut-Off Timer: Simple digital timer allows operators to set drying cycles with automatic shut-off upon completion.

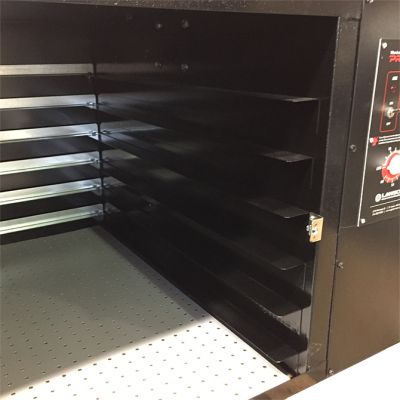

  • Adjustable Interior Shelving: Flexible shelf layout accommodates various frame sizes up to 28" x 31" OD.
  • Light-Tight Enclosure: Keeps screens dark during drying and storage to preserve light-sensitive emulsions.
  • Expandable Roll-In Options: Compatible with optional roll-in screen cabinets to support high-volume production setups.

Specifications Table

Specifications | Description
Estimated Overall Dimensions | 39" W x 23" H x 33" D
Max Screens & Size | 6 screens at 28" x 31" each (custom sizes available)
Estimated Cure Cycle | 10 minutes
Power Requirements | 120 volt, standard plug-in; 12 Amps
Air Zone | Continuous IR & Convention Air
Heat Control | Independent Heat Control
Timer | Commercial grade spring wound countdown timer
Estimated Weight | 135 lbs

Comparison Table


Feature / Metric | Pro-Cure Screen Printing Screen Dryer | Standard Box Fan Setup | DIY Open Drying Racks
Contaminant Protection | Pre-Filtered Air Intake (Prevents Pinholes) | Unfiltered Room Air (Causes Pinholes) | None (Exposed to Dust & Lint)
Heat & Speed | Temperature-Controlled Heated Air | Room Temperature Only (Slow) | Ambient Room Temperature (Slow)
Light Protection | Light-Tight UV Enclosed Chamber | Exposed to Room / UV Light | Exposed to Room / UV Light
Timer & Automation | Auto Shut-Off Timer Control | Manual On/Off Switch | None
Frame Flexibility | Adjustable Shelving (Up to 28" x 31" OD) | Stationary / Improvised | Standard Fixed Shelves
Best Used For | Professional, dust-free screen preparation | Emergency / Entry-level hobby setups | Non-critical ambient drying

Questions & Answers

Q: Why is the Pro-Cure better for drying screens than using a box fan?
A: Unlike box fans that blow room dust and lint onto wet screens—causing pinholes—the Pro-Cure pre-filters fresh intake air and heats it to dry screens quickly in a clean environment.

Q: What maximum screen frame size does the standard Pro-Cure drying cabinet hold?
A: The standard Pro-Cure drying cabinet holds screen printing frames up to 28" x 31" OD, with custom and special sizes available upon request.

Q: Does the Pro-Cure keep unexposed emulsion safe from light?
A: Yes, the fully enclosed cabinet design completely blocks light, ensuring emulsion-coated screens remain unexposed to UV light while drying.

Q: Where can I get support and replacement parts for the Pro-Cure Screen Dryer?
A: Direct technical assistance, customer support, and replacement parts are supported through LWG.
