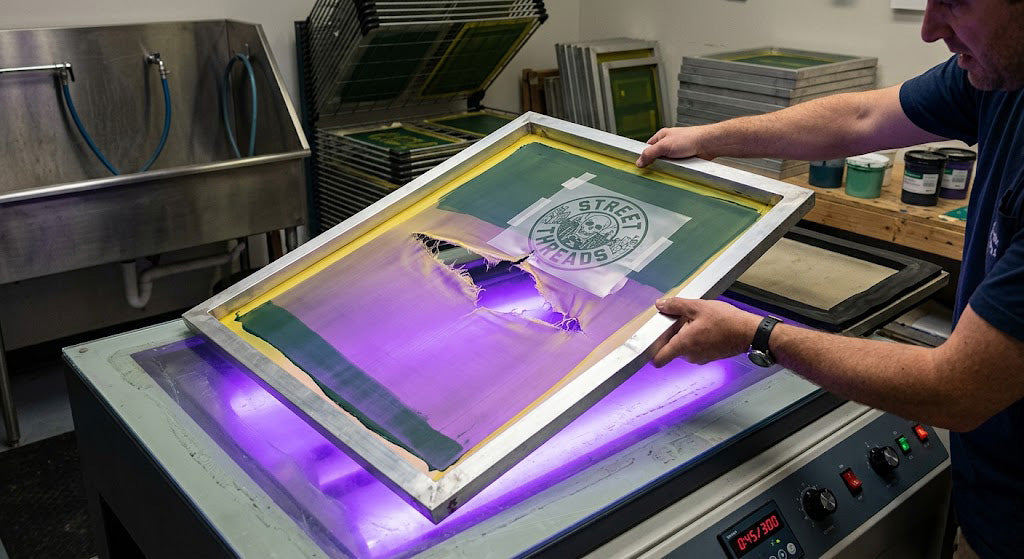

Stopping screen printing mesh from popping, ripping and tearing from the frame requires understanding why it does it so you can take steps to avoid it. Screen‑printing mesh failure is the result of cumulative mechanical, thermal, and chemical stresses acting on polyester fibers. Although failures may appear sudden, they are typically the endpoint of progressive degradation mechanisms. This article provides a technical breakdown the most common reasons why mesh tears and how to prevent it from happening.
1. Mechanical Loading and Fatigue Failure
Polyester mesh behaves as a viscoelastic material. Under repeated loading, it experiences cyclic strain, which leads to fatigue‑driven micro‑crack propagation in the filaments.
Primary Stressors
-
Squeegee pressure
Excessive downward force increases mesh deflection. Each stroke induces tensile and shear stresses that accumulate over thousands of print cycles. -
Off‑contact height
Having too high off‑contact requires more squeegee pressure, increasing the displacement required for snap‑off, raising peak strain on the mesh. -
Blade edge condition
A dull or nicked squeegee introduces localized stress concentrations, accelerating filament abrasion.
How it Fails
- Repeated flexing initiates micro‑cracks in the polyester filaments.
- Cracks propagate under cyclic loading.
- A critical crack length is reached, causing sudden rupture.
How to Prevent It
- Maintain squeegee pressure at the minimum required for proper printing.
- Keep off‑contact consistent and not overly high.
- Inspect blade edges for uniformity and sharpness.
2. Chemical Degradation of Polyester Fibers
Polyester is resistant to many chemicals, but certain high‑pH haze removers, oxidizers, and aggressive solvents can break down polymer chains through hydrolysis or oxidation.
Chemical Stressors
-
Over‑dwell of reclaim chemicals
Extended exposure weakens polymer bonds or placing chemicals directly onto the mesh glue. -
Inadequate rinsing
Residual chemistry continues to degrade fibers over time. -
Repeated exposure cycles
Each reclaim cycle contributes incremental damage.
How it Fails
Chemical attack reduces the molecular weight of the polymer, lowering tensile strength. When combined with mechanical loading, the weakened fibers fail at significantly lower stress thresholds.
How to Prevent It
- Follow manufacturer instructions during reclaim.
- Rinse thoroughly to remove reactive chemicals before proceeding to the next step.
- Use the lowest‑aggression chemistry capable of achieving required cleanliness.
3. Hydro‑Mechanical Damage During Reclaim
Pressure washers introduce high‑velocity water jets that can exceed the mesh’s localized tensile capacity, especially when fibers are already chemically or mechanically compromised.
Stressors
-
High PSI at close distance
Concentrated impact forces can rupture filaments. -
Angle of spray
Acute angles increase shear forces across the mesh plane.
How It Fails
Water jet impact creates a localized bending moment on the mesh. If the instantaneous load surpasses the reduced tensile strength of a degraded filament, rupture occurs.
How to Prevent It
- Maintain 6–12 inches of standoff distance.
- Use moderate pressure settings appropriate for mesh count.
- Avoid prolonged spraying at a single point.
4. Tension‑Induced Stress and Material Yielding
Mesh tension directly determines the baseline stress state of the fibers. Polyester has a defined yield point, beyond which permanent deformation and accelerated fatigue occur.
Stressors
-
Over‑tensioning
Exceeding manufacturer‑specified Newtons/cm reduces fatigue life. -
Uneven tension distribution
Creates localized high‑stress zones. -
Frame adhesive failure
Slippage or uneven bonding alters load distribution.
Why It Fails
When tension exceeds the elastic limit, fibers undergo plastic deformation. This reduces cross‑sectional integrity and accelerates fatigue crack growth.
How to Prevent It
- Use a calibrated tension meter.
- Stay within recommended tension ranges for each mesh count.
- Ensure uniform tensioning procedures and high‑quality adhesive systems.
5. Substrate Interference and Impact Loading
Raised garment features (zippers, seams, pockets) introduce impact loading when the squeegee forces the mesh into rigid obstacles.
Failure Mechanism
Impact loading produces instantaneous stress spikes that exceed the tensile capacity of the mesh, causing immediate rupture.
How to Prevent It
- Use platen systems that recess or isolate raised features.
- Verify garment alignment before printing.
- Avoid printing over hardware unless using specialized equipment.
6. Exposure‑Related Thermal and Moisture Effects
While less common, mesh can fail during exposure due to thermal expansion, moisture retention, or embrittlement of aged mesh.
Stressors
-
Under‑dried emulsion
Moisture weakens fiber interfaces. -
High‑heat exposure units
Thermal cycling stresses polymer chains. -
Aged mesh
Polyester loses elasticity over time due to UV and chemical exposure.
Why it Fails
Thermal expansion mismatch between emulsion and mesh creates shear stress. If the mesh is already embrittled, this can initiate tearing.
How to Prevent It
- Dry screens thoroughly at controlled temperature and airflow.
- Avoid excessive exposure heat.
- Replace mesh that shows loss of elasticity or brittleness.
Conclusion
Mesh failure is rarely caused by a single event. It is the cumulative result of:
- cyclic mechanical fatigue
- chemical degradation
- hydro‑mechanical impact
- excessive or uneven tension
- thermal and moisture‑related stresses
By treating mesh as a polymer engineering system rather than a consumable, print shops can significantly extend screen life and reduce unplanned downtime.
