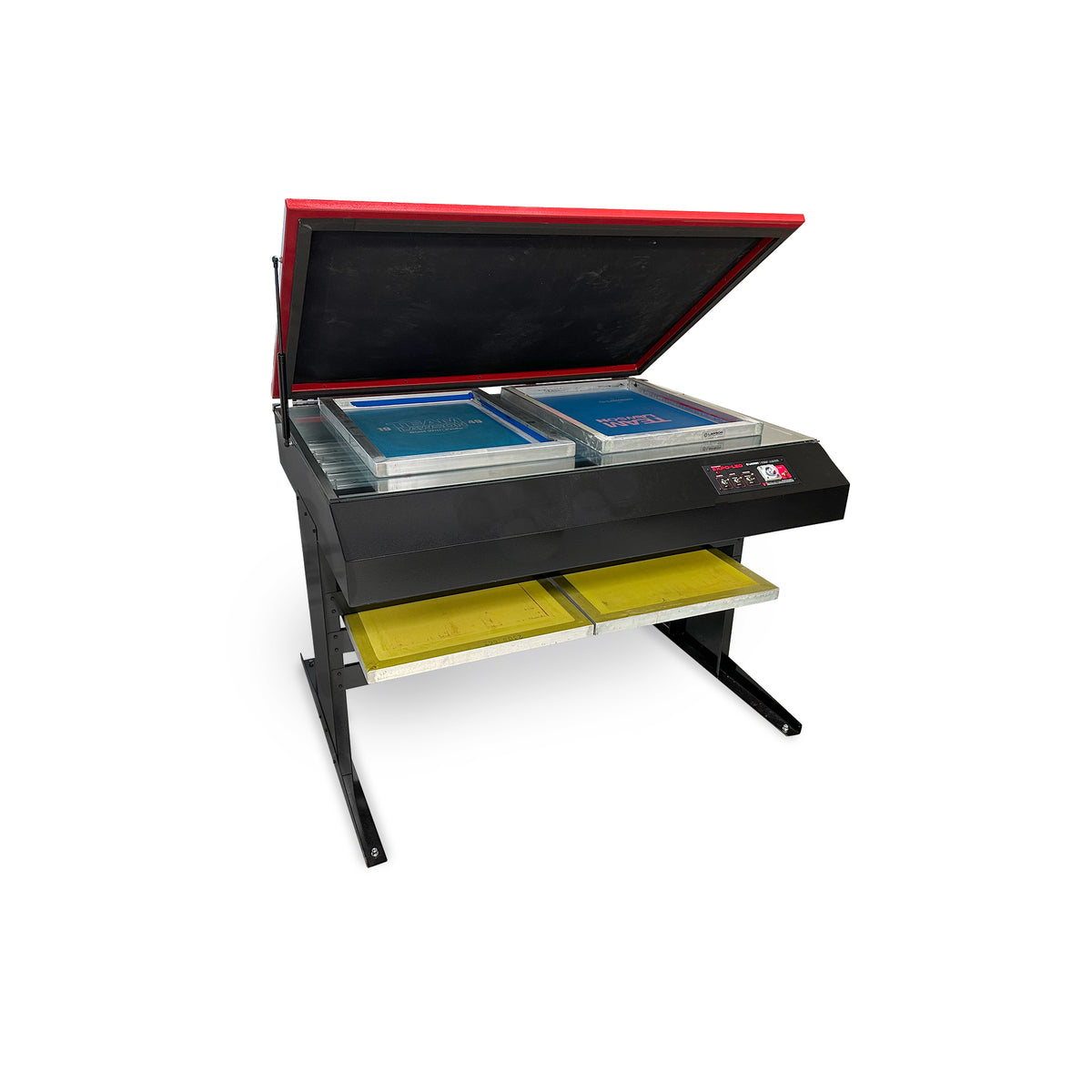

• Expo-LED Model 2431 with Floor Stand for exposing screen printing frames and images.
  • Expo-LED Screen Printing Exposure Unit
  • Expo-LED Screen Printing Exposure Unit
  • A close up of the LED lights used on the Expo-LED Model #2431.
  • A black metal printing frame with three trays loaded with blue ink sheets, shown on a plain white background.
  • Black metal L-shaped desk support stand with horizontal slats, shown on a plain white background.
1 7

Expo-LED Screen Printing Exposure Unit

Expo-LED Screen Printing Exposure Unit

Lawson Workhorse Group (LWG)

SKU:

$2,795.00 USD
$2,795.00 USD
Sale Sold out

Payment & Security

Payment Methods Accepted

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Download: Expo-LED Screen Printing Exposure Unit

Download: Expo-LED Screen Printing Exposure Unit

Download: Expo-LED Screen Printing Exposure Unit

Financing Options

Need to finance the Expo-LED Screen Printing Exposure Unit? No problem! Visit our Financing Page for more details.

Got a question about this product?

View full details

Description

The Expo-LED Screen Printing Exposure Unit by Lawson Workhorse Group (LWG) combines instant-start UV LED lighting with vacuum hold-down for screen printing stencil production. Designed and manufactured in the USA, this bench-model exposure unit provides even light distribution, while its 1.25-HP vacuum motor helps maintain close contact between the film positive and emulsion-coated screen. A heavy-duty, non-reflective rubber-flex vacuum blanket and nylon air-movement ropes support efficient vacuum draw-down and release.

An adjustable exposure timer, automatic exposure and vacuum shut-off, and a gas-assisted lid simplify everyday screen preparation. The Expo-LED also doubles as an illuminated inspection and alignment table and ships fully assembled with standard 120-volt plug-in wiring. Available in #2431 and #3248 models, it can be configured with an optional floor stand with screen shelving and optional casters. A one-year parts warranty is included; the vacuum blanket and glass are excluded.

The LWG Difference

  • 1.25-HP Industrial Vacuum Power: Equipped with a maintenance-free 1.25-horsepower motor for complete, instant air removal across all frame sizes.
  • Gas Power Lifter & Ergonomic Design: Features smooth gas-strut lid opening on a compact bench-model frame, with optional floor stands, screen shelving, and locking casters.
  • Dynamically Balanced LED Array: Instant-start UV LEDs project focused, evenly distributed light rays to expose fine detail without heat buildup.
  • Direct USA Factory Backing: Includes a 1-year parts warranty (excludes blanket & glass), regional demo/pickup centers in St. Louis, MO, and Atlanta, GA, plus free ground shipping on parts and no-charge labor for factory repairs.

Features

  • Easy-to-Use Control Panel: Intuitive controls for simple job setup and repeating exposure settings.
  • 1.25-HP Vacuum Motor: Virtually maintenance-free motor provides instant vacuum draw and immediate release.
  • Adjustable Exposure Timer: Precise timer controls with automatic exposure and vacuum shut-off features.
  • Dynamically Balanced LED Lights: Instant-start LEDs offer focused light rays and even light distribution over the glass.
  • Heavy-Duty Vacuum Blanket System: Built with a durable, non-reflective rubber-flex blanket and integrated nylon rope for efficient air evacuation between blanket and frame.
  • Gas Power Lifter: Gas-strut supported lid for easy raising and lowering during high-volume screen prep.
  • Dual-Function Light Table: Glass surface functions both as an exposure unit and an illuminated screen inspection/alignment table.
  • Bench Model Design: Compact layout equipped with standard 120-volt plug-in wiring and shipped fully assembled.
  • 1-Year Warranty: Covered by a 1-year parts warranty (excludes vacuum blanket and glass).

Optional Features

  • Floor Stand with Screen Shelving: Converts the bench model into a standalone unit with integrated screen storage.
  • Wheels / Floor Casters: Adds shop mobility for easy repositioning.
  • Export Electrics: Customized power options for international voltage requirements.

Specifications Table

Model | Expo-LED Screen Printing Exposure Unit
Exposure Area | 24" x 31" | 32" x 48"
Max Frame Size | 24" x 31" | 32" x 48" OR Two - 23" x 31" OR Two - 20" x 24"
Number of Lights | 6 LED light strips | 8 LED light strips
Electrical Specifications | 120 volts, 4 Amps, Standard Plug-In Wiring | 120 volts, 6 Amps, Standard Plug-In Wiring
Estimated Width x Depth x Height | 36" wide x 28" deep x 12" tall (41" tall with Optional Floor Stand) | 52" wide x 42" deep x 15" tall (41" tall with Optional Floor Stand)
Estimated Weight | 150 lbs | 235 lbs
Estimated Crated Weight | 180 lbs | 285 lbs
Shipping & Repair | Free ground shipping on parts; no charge labor for items sent back to St. Louis for repair or replacement
Notice | Price, design, and technical specifications subject to change without notice

Comparison Table

Feature | Lawson Expo-LED Exposure Unit | Standard Entry-Level Exposure Tables
Film Contact | Instant vacuum draw-down holds film tight to emulsion for sharp fine detail | Basic lid pressure or weight bags trap air, causing fuzzy edges and undercutting
Energy & Lifespan | 10,000+ hour UV LED array turns on instantly with lower utility power draw | Fluorescent or halide lamps degrade rapidly, run hot, and require long warm-up cycles
Versatility | Serves as both a precision UV exposure unit and an active screen inspection table | Single-purpose light box design requires extra floor space for a separate light table
Factory Support | Handcrafted in the USA with direct factory technical support and LED conversion kits | Overseas imports with non-standard replacement parts and zero domestic service

Questions & Answers

Frequently Asked Questions (FAQ)

What vacuum motor does the Expo-LED use?

The Expo-LED uses a virtually maintenance-free 1.25-HP vacuum motor. Its rubber-flex blanket and nylon air-movement ropes support vacuum draw-down and release.

How is exposure time controlled?

An adjustable exposure timer lets operators set exposure duration. The unit also includes automatic exposure and vacuum shut-off.

Can the Expo-LED be used as a freestanding unit?

Yes. An optional floor stand with built-in screen shelving converts the bench model into a freestanding unit. Optional casters are also available.

What electrical connection does it require?

Both models use standard 120-volt plug-in wiring. The published specifications list 4 amps for the #2431 and 6 amps for the #3248. Export electrical options are available.

What does the warranty cover?

The Expo-LED includes a one-year parts warranty, excluding the vacuum blanket and glass.
