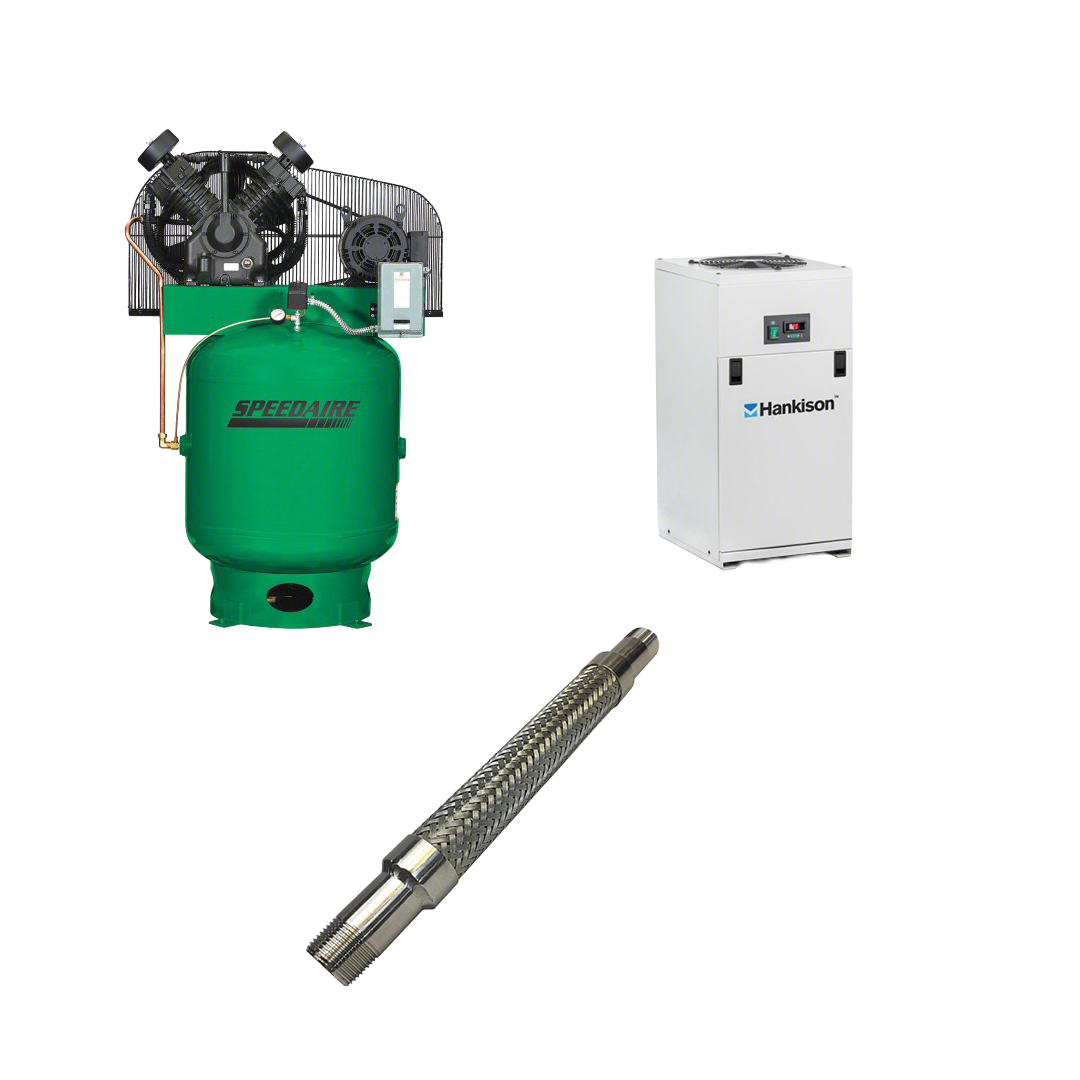

10 HP Air Vertical Compressor Package

10 HP Air Vertical Compressor Package

LWG - Lawson Workhorse Group

SKU:

Get a Quote / Contact Sales
×

Got a question about 10 HP Air Vertical Compressor Package?

Payment & Security

Payment Methods Accepted

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Financing Options

Need to finance the 10 HP Air Vertical Compressor Package? No problem! Visit our Financing Page for more details.

Got a question about this product?

Questions & Answers

Q: What power requirements are needed for the SPEEDAIRE 10 hp Air Compressor (35WC67)?
A: This unit features a tri-voltage three-phase motor operating on either 208-230V AC (27-24.2 Amps) or 460V AC (12.2 Amps) at 60 Hz.

Q: What is the air delivery output of the SPEEDAIRE 35WC67?
A: It provides a free air flow rate of 36 CFM at its maximum operating pressure of 175 PSI.

Q: Why is the low 700 RPM speed important for shop operations?
A: Running at 700 RPM minimizes mechanical wear, lowers pump operating temperatures, and reduces noise output to 89 dBA while extending the overall service life up to 15,000 hours.

Q: Where can I get setup advice, dryers, and replacement parts for this air compressor?
A: Equipment consultations, complementary refrigerated dry air systems, and technical service support are available directly through LWG.

View full details
Jump to: Description The LWG Difference Features Specifications Table Comparison Table

Description

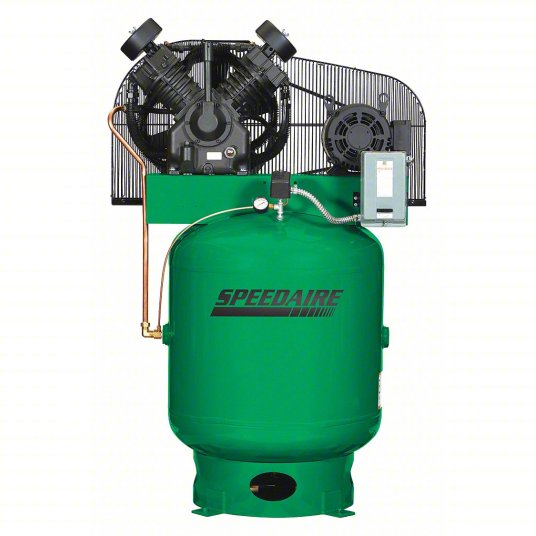

The SPEEDAIRE 10 hp, 2 Stage Electric Air Compressor (35WC67) delivers industrial-grade compressed air designed to power large multi-head automatic screen printing presses and high-volume commercial production environments. Built with a splash-lubricated 2-stage cast-iron pump and a 90-gallon vertical ASME-certified tank, this heavy-duty unit produces 36 CFM at a maximum operating pressure of 175 PSI. Engineered for continuous duty operation, it provides stable, high-output pneumatic power required for demanding commercial print shop operations.

The SPEEDAIRE 10 hp, 2 Stage Electric Air Compressor (35WC67) delivers industrial-grade compressed air designed to power large multi-head automatic screen printing presses and high-volume commercial production environments. Built with a splash-lubricated 2-stage cast-iron pump and a 90-gallon vertical ASME-certified tank, this heavy-duty unit produces 36 CFM at a maximum operating pressure of 175 PSI. Engineered for continuous duty operation, it provides stable, high-output pneumatic power required for demanding commercial print shop operations.

The LWG Difference

  • Industrial 10 HP High-Output Delivery: Produces 36 CFM at 175 PSI to meet the high airflow requirements of multi-head automatic presses and shop-wide air systems.
  • Extended 15,000-Hour Pump Design: Constructed with a splash-lubricated cast-iron pump running at a low 700 RPM to reduce operating heat, lower noise levels, and extend pump service life.
  • Tri-Voltage Three-Phase Flexibility: Features a tri-voltage motor compatible with 208-230V AC or 460V AC three-phase electrical grids to suit commercial facility setups.
  • Direct Factory Backup & Support: Backed by LWG with expert darkroom layout consulting, air demand sizing, compatible drying equipment, replacement parts, and technical customer service.

  • Industrial 10 HP High-Output Delivery: Produces 36 CFM at 175 PSI to meet the high airflow requirements of multi-head automatic presses and shop-wide air systems.
  • Extended 15,000-Hour Pump Design: Constructed with a splash-lubricated cast-iron pump running at a low 700 RPM to reduce operating heat, lower noise levels, and extend pump service life.
  • Tri-Voltage Three-Phase Flexibility: Features a tri-voltage motor compatible with 208-230V AC or 460V AC three-phase electrical grids to suit commercial facility setups.
  • Direct Factory Backup & Support: Backed by LWG with expert darkroom layout consulting, air demand sizing, compatible drying equipment, replacement parts, and technical customer service.

Features

  • 2-Stage Reciprocating Pump: Generates high-efficiency pressure output up to 175 PSI max operating pressure for industrial equipment.
  • Space-Saving 90-Gallon Tank: Vertical ASME-approved tank optimizes floor space while providing high-capacity air reserve storage.
  • Low-RPM Quiet Operation: Operates at 700 RPM for reduced thermal strain, lower mechanical wear, and an 89 dBA sound level rating.
  • Built-In Safety & Control Features: Equipped with a pressure switch (135 PSI on / 175 PSI off), pressure gauge, manual drain valve, motor starter, pressure safety valve, and oil sight glass.
  • Continuous Duty Rating: Rated for continuous operation to maintain consistent pressure across multi-shift production runs.

  • 2-Stage Reciprocating Pump: Generates high-efficiency pressure output up to 175 PSI max operating pressure for industrial equipment.
  • Space-Saving 90-Gallon Tank: Vertical ASME-approved tank optimizes floor space while providing high-capacity air reserve storage.
  • Low-RPM Quiet Operation: Operates at 700 RPM for reduced thermal strain, lower mechanical wear, and an 89 dBA sound level rating.
  • Built-In Safety & Control Features: Equipped with a pressure switch (135 PSI on / 175 PSI off), pressure gauge, manual drain valve, motor starter, pressure safety valve, and oil sight glass.
  • Continuous Duty Rating: Rated for continuous operation to maintain consistent pressure across multi-shift production runs.

Specifications Table

Specifications Description
Brand SPEEDAIRE
Manufacturer Part Number 35WC67
Item 35WC67
Mfr. Model 35WC67
Compressor Package Type Base Model
Lubrication Type Splash Lubricated
Tank Style Vertical
Number of Stages 2
Output Power 10 hp
Free Air Flow Rate @ Maximum Pressure 36 cfm
Maximum Operating Pressure 175 psi
Tank Size 90 gal
Input Voltage 208-230V AC; 460V AC
Phase Three
Frequency 60 Hz
Pump Style Simplex
Pump Type Reciprocating
Pump Location Top Mount
Pump Oil Capacity 4 qt
Current Rating 12.2 A; 27-24.2 A
Maximum Speed 700 RPM
Duty Cycle Continuous
Sound Level 89 dBA
Includes Manual Drain Valve; Motor Starter; Oil Sight Glass; Pressure Gauge; Pressure Safety Valve; Tri-voltage Motor
Cylinder Material Cast Iron
Enclosure Type Open Dripproof
Finish Powder Coated
ASME Tank Yes
Control Type Pressure Switch
On Pressure Switch Setting 135 psi
Off Pressure Switch Setting 175 psi
Inlet Size 3/4 in
Outlet Size 3/4 in
Outlet Type NPT
Outlet Gender Female
Overall Length 52 in
Overall Width 30 in
Overall Height 69 in
Life Expectancy 15,000 hr
Standards ASME Approved; CSA

Comparison Table

Feature / Metric SPEEDAIRE 10 hp 2 Stage Air Compressor (35WC67) 7 5hp air compressor package rolair portable air compressor
Motor Power 10.0 HP 7.5 HP 1.0 Running HP
Air Output (CFM) 36 CFM @ 175 PSI 24.5 CFM @ 175 PSI 2.35 CFM @ 90 PSI
Electrical Specs 208-230V / 460V, 3-Phase (27-24.2 A / 12.2 A) 208-230V AC, 1-Phase (31 A) 120V, 1-Phase (8 A)
Tank Capacity & Style 90-Gal Vertical ASME Tank 80-Gal Vertical ASME Tank 2.3-Gal Portable Single Tank
Pump RPM 700 RPM 1,020 RPM 1,725 RPM
Primary Target Use Large multi-head automatic screen presses & facility air Commercial mid-to-large automatic press shops Light utility & pretreat sprayers
