10 HP Air Compressor Package

The Lawson 10 HP air compressor package comes in an 80 or 100 gal capacity and can be used in a wide range of applications.

There are two primary measures of power that matter when shopping for an air compressor for your screen printing press: horsepower and cubic foot per minute (CFM). Larger Workhorse-Lawson autos require a 10 HP compressor. CFM will vary from machine to machine, so talk with a rep to ensure you are meeting your machine's CFM requirements as it is is absolutely crucial to ensure proper operation.

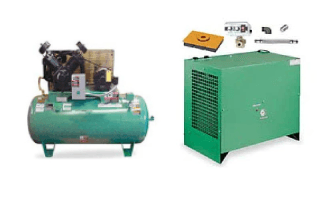

This Air Compressor Package comes with a air compressor and air dryer/chiller. Compression produces moisture, and without an air dryer/chiller, that humid air can cause rust and damage to your screen printing press. The dryer/chiller chiller helps protect your equipment, ensuring a longer lifespan and smoother operation.

Air Compressor, HP Rating 10.0 HP, 80 Gallons

• Free Air Flow @ 175 psi
• 34.8 CFM
• Phase Three
• Voltage Rating: 230/460 Volts
• Current Rating: 28/14 Amps
• Tank Capacity: 80 Gallons
• Tank Type: Vertical
• Oil Capacity: 4 Quarts
• Speed: 740 RPM
• Height: 66 3/4 Inches
• Length: 42 1/2 Inches
• Width: 30 Inches
• NPT Outlet (F) 3/4 In.
• Weight: 860 pounds.

Air Compressor, HP Rating 10.0 HP, 120 Gallons

• Free Air Flow @ 175 psi
• 34.8 CFM
• Phase Three
• Voltage Rating: 230/460 Volts
• Current Rating: 28/14 Amps
• Tank Capacity: 120 Gallons
• Tank Type: Horizontal
• Oil Capacity: 4 Quarts
• Speed: 740 RPM
• Height: 54 Inches
• Length: 72 1/2 Inches
• Width: 24 Inches
• NPT Outlet: (F) 3/4 In.
• Weight: 875 pounds

Dry Air System

• Air Flow @ 35 Degrees Fahrenheit Dew Point Pressure @ 125 PSIG 34.0 CFM
• Air Flow @ 35 Degrees Fahrenheit Dew Point Pressure @ 175 PSIG 40.0 CFM
• Power Rating: 1/2 HP
• Female NPT Inlet/Outlet: 1 Inch
• Maximum Air Compressor Power: 10 HP
• Voltage @ 60 hz 115 Volts
• Height: 27 Inches
• Depth: 20 Inches
• Width: 30 In.
• Weight: 160 pounds
