5 HP Air Compressor Package

5 HP Air Compressor Package

LWG - Lawson Workhorse Group

SKU:

Get a Quote / Contact Sales
×

Got a question about 5 HP Air Compressor Package?

Payment & Security

Payment Methods Accepted

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Financing Options

Need to finance the 5 HP Air Compressor Package? No problem! Visit our Financing Page for more details.

Got a question about this product?

Questions & Answers

Q: Why is the dry air system included in the 5 HP Air Compressor Package?
A: Air compression naturally creates condensation in compressed air lines. The included 0.25 HP refrigerated dryer removes moisture down to a 35°F dew point, protecting internal press valves and cylinders from rust and premature wear.

Q: What electrical requirements are needed for the 5 HP Air Compressor Package?
A: The main compressor requires a 208–230V, single-phase power supply drawing 23.0–21.0 amps, while the dry air system plugs into a standard 115V, 60 Hz electrical outlet.

Q: What size screen printing equipment can this 5 HP package support?
A: It is ideal for powering mid-size automatic screen printing presses and auxiliary pneumatic darkroom equipment requiring up to 16.5 CFM at 175 PSI.

Q: Where can I get replacement parts, routine maintenance, or support for this package?
A: Technical guidance, system components, replacement oil, and ongoing service are available directly through LWG.

View full details
Jump to: Description The LWG Difference Features Specifications Table Comparison Table

Description

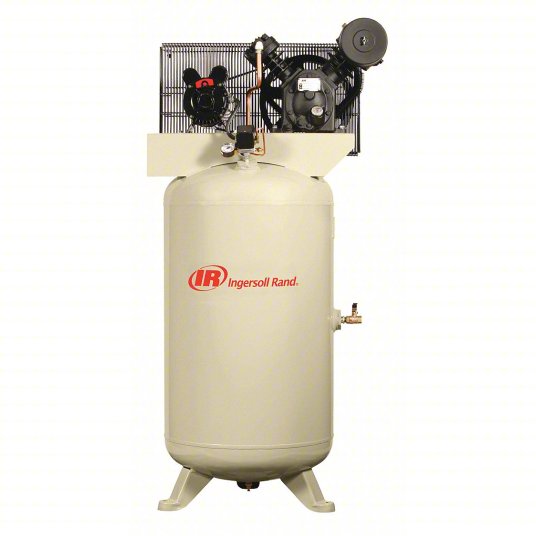

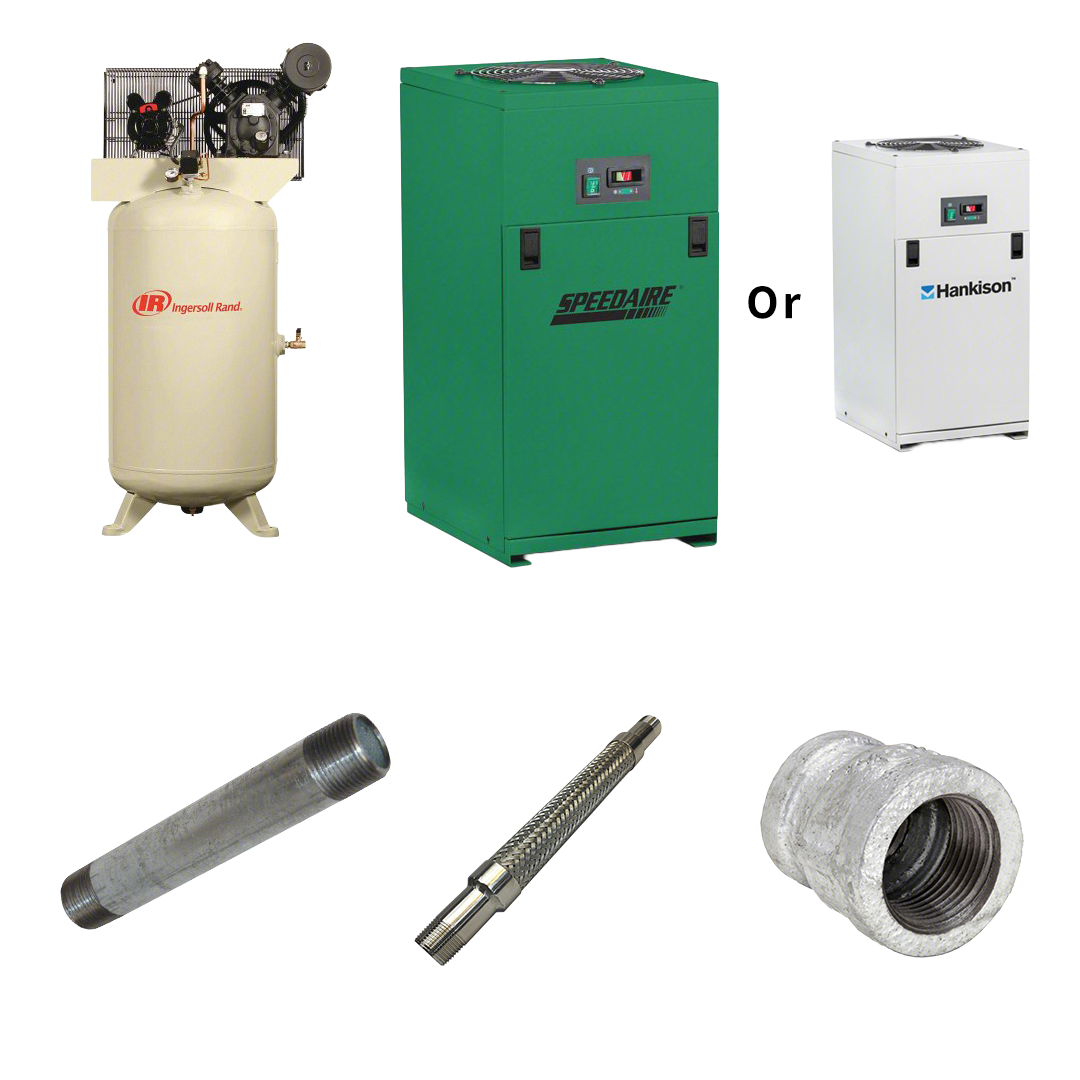

The 5 HP Air Compressor Package provides clean, consistent pneumatic power tailored for mid-size automatic screen printing press setups and commercial print shop darkrooms. Featuring a 2-stage cast-iron stationary air compressor paired with a refrigerated dry air system, this package prevents moisture build-up that can cause rust, seal damage, and press downtime. Delivering 16.5 CFM at a maximum operating pressure of 175 PSI, the system ensures stable pressure output across continuous daily production cycles.

The 5 HP Air Compressor Package provides clean, consistent pneumatic power tailored for mid-size automatic screen printing press setups and commercial print shop darkrooms. Featuring a 2-stage cast-iron stationary air compressor paired with a refrigerated dry air system, this package prevents moisture build-up that can cause rust, seal damage, and press downtime. Delivering 16.5 CFM at a maximum operating pressure of 175 PSI, the system ensures stable pressure output across continuous daily production cycles.

The LWG Difference

  • Bundled Refrigerated Dry Air Protection: Includes a dedicated 0.25 HP dry air system to cool and extract moisture down to a 35°F dew point, extending pneumatic component life on automatic presses.
  • Heavy-Duty Splash-Lubricated Pump: Built with a 2-stage cast-iron pump operating at a low 760 RPM for cooler operation and reliable long-term durability.
  • Space-Saving 80-Gallon Vertical Design: Features a vertical ASME-certified 80-gallon tank that minimizes darkroom floor footprint while providing substantial compressed air storage.
  • Direct Factory Backup & Support: Backed directly by LWG with expert technical sizing advice, routine maintenance support, direct replacement parts, and nationwide service.

  • Bundled Refrigerated Dry Air Protection: Includes a dedicated 0.25 HP dry air system to cool and extract moisture down to a 35°F dew point, extending pneumatic component life on automatic presses.
  • Heavy-Duty Splash-Lubricated Pump: Built with a 2-stage cast-iron pump operating at a low 760 RPM for cooler operation and reliable long-term durability.
  • Space-Saving 80-Gallon Vertical Design: Features a vertical ASME-certified 80-gallon tank that minimizes darkroom floor footprint while providing substantial compressed air storage.
  • Direct Factory Backup & Support: Backed directly by LWG with expert technical sizing advice, routine maintenance support, direct replacement parts, and nationwide service.

Features

  • 2-Stage Air Compression: Delivers high-efficiency output up to 175 PSI max operating pressure for pneumatic press heads and auxiliary equipment.
  • Integrated Dry Air System: Removes inline humidity and condensation to deliver dry, clean air directly to shop air lines.
  • ASME-Certified Tank: Heavy-duty 80-gallon vertical storage tank equipped with a manual drain and discharge isolation valve.
  • Low-RPM Operation: 5 HP motor runs at 760 RPM to reduce pump wear, noise levels, and operating temperatures.
  • Pre-Filled Lubrication: Ships complete with an initial fill of compressor oil and an internal motor starter for streamlined installation.

  • 2-Stage Air Compression: Delivers high-efficiency output up to 175 PSI max operating pressure for pneumatic press heads and auxiliary equipment.
  • Integrated Dry Air System: Removes inline humidity and condensation to deliver dry, clean air directly to shop air lines.
  • ASME-Certified Tank: Heavy-duty 80-gallon vertical storage tank equipped with a manual drain and discharge isolation valve.
  • Low-RPM Operation: 5 HP motor runs at 760 RPM to reduce pump wear, noise levels, and operating temperatures.
  • Pre-Filled Lubrication: Ships complete with an initial fill of compressor oil and an internal motor starter for streamlined installation.

Specifications Table

Specifications Description
Stationary Air Compressor - Stage Two
Stationary Air Compressor - Motor Running HP 5
Stationary Air Compressor - Free Air CFM @ Max Pressure 16.5
Stationary Air Compressor - Max PSI 175
Stationary Air Compressor - Voltage @ 60 Hz 208–230V, single-phase
Stationary Air Compressor - Amps 23.0–21.0
Stationary Air Compressor - Tank Capacity 80 gallons, vertical
Stationary Air Compressor - FNPT Outlet 1/2 inch
Stationary Air Compressor - Pump Type Cast iron, splash lubrication
Stationary Air Compressor - Pump Oil Capacity 64 oz
Stationary Air Compressor - Duty Cycle 80/20
Stationary Air Compressor - RPM 760
Stationary Air Compressor - Features Includes ASME tank with manual drain and discharge isolation valve, motor starter, and initial fill of compressor oil
Stationary Air Compressor - Dimensions 33" L x 26.625" W x 76" H
Stationary Air Compressor - Weight 600 pounds
Dry Air System - Air Flow @ 35°F Dew Point, 125 PSIG 21.2 CFM
Dry Air System - Air Flow @ 35°F Dew Point, 175 PSIG 24.0 CFM
Dry Air System - Power Rating 0.25 HP
Dry Air System - Female NPT Inlet/Outlet 1 inch
Dry Air System - Maximum Air Compressor Power 5 HP
Dry Air System - Voltage @ 60 Hz 115V
Dry Air System - Dimensions 16" H x 14" D x 22.25" W
Dry Air System - Weight 125 pounds

Comparison Table

Feature / Metric 5 HP Air Compressor Package 10hp air compressor package rolair portable air compressor
Motor Power 5.0 Running HP 10.0 HP 1.0 Running HP
Air Output (CFM) 16.5 CFM @ 175 PSI 34.8 CFM @ 175 PSI 2.35 CFM @ 90 PSI
Electrical Specs 208–230V, Single-Phase (23.0–21.0A) 230/460V, Three-Phase (28/14A) 120V, Single-Phase (8A)
Tank Size & Type 80-Gal Vertical ASME Tank 80-Gal Vertical or 120-Gal Horizontal 2.3-Gal Portable Single Tank
Dry Air System Included (0.25 HP, 115V Refrigerated Dryer) Included (0.5 HP, 115V Refrigerated Dryer) N/A
Primary Target Use Mid-size automatic screen printing presses Large industrial multi-head automatic presses Light utility, darkroom tools & pretreat sprayers
