5 HP 3PH COOLER PLUS DRYER

5 HP 3PH COOLER PLUS DRYER

LWG - Lawson Workhorse Group

SKU:

Get a Quote / Contact Sales
×

Got a question about 5 HP 3PH COOLER PLUS DRYER?

Payment & Security

Payment Methods Accepted

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Financing Options

Need to finance the 5 HP 3PH COOLER PLUS DRYER? No problem! Visit our Financing Page for more details.

Got a question about this product?

Questions & Answers

Q: Why is a refrigerated dry air system included with this compressor package?
A: Compressing air naturally creates moisture in supply lines. The included 0.25 HP refrigerated dryer extracts humidity down to a 35°F dew point, protecting pneumatic press valves and air cylinders from rust and premature wear.

Q: What electrical requirements are necessary for the 5 H.P 3PH COOLER PLUS DRYER package?
A: The main compressor operates on a 208–230V three-phase electrical power line, while the separate dry air system connects to a standard 115V single-phase outlet.

Q: What type of screen printing equipment can this compressor run?
A: This package is engineered to power mid-size automatic screen printing presses and pneumatic darkroom equipment requiring up to 16.5 CFM at 175 PSI.

Q: Where can I get installation assistance, routine maintenance, or parts for this unit?
A: System setup guidance, technical service, replacement oil, and parts are supported directly through LWG.

View full details
Jump to: Description The LWG Difference Features Specifications Table Comparison Table

Description

Description

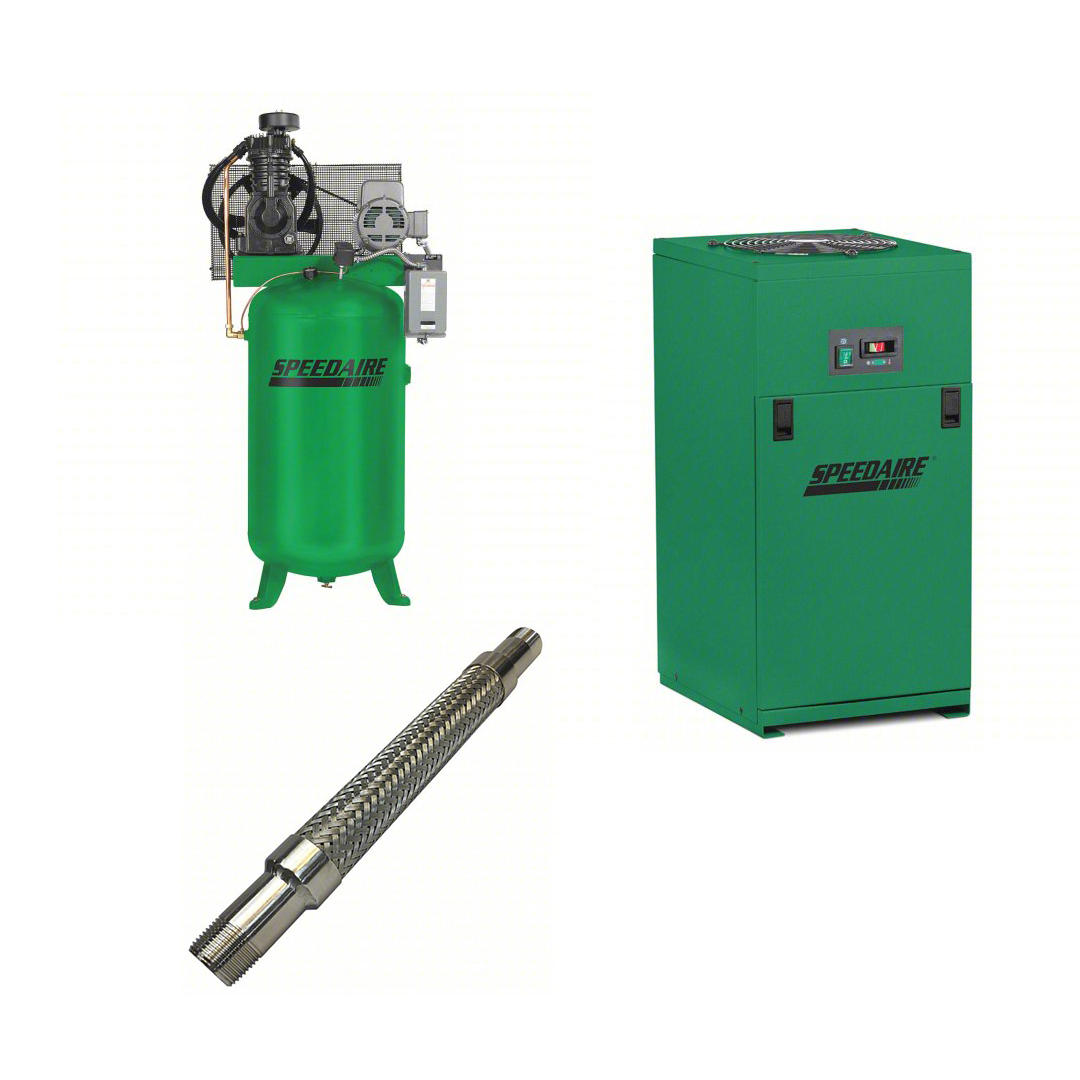

The 5 H.P 3PH COOLER PLUS DRYER Air Compressor Package delivers high-efficiency pneumatic power engineered for three-phase commercial screen printing facilities and production darkrooms. Combining a heavy-duty 2-stage cast-iron stationary compressor with an integrated refrigerated dry air system, this package prevents inline moisture buildup, protecting internal pneumatic press cylinders, valves, and seals from corrosion and wear. Delivering 16.5 CFM at up to 175 PSI max pressure, it ensures continuous, stable air volume across demanding multi-shift production schedules.

Description
The 5 H.P 3PH COOLER PLUS DRYER Air Compressor Package delivers high-efficiency pneumatic power engineered for three-phase commercial screen printing facilities and production darkrooms. Combining a heavy-duty 2-stage cast-iron stationary compressor with an integrated refrigerated dry air system, this package prevents inline moisture buildup, protecting internal pneumatic press cylinders, valves, and seals from corrosion and wear. Delivering 16.5 CFM at up to 175 PSI max pressure, it ensures continuous, stable air volume across demanding multi-shift production schedules.

The LWG Difference

  • Integrated 3-Phase Power System: Configured for industrial three-phase power setups (208–230V) to optimize electrical efficiency and long-term equipment reliability in commercial shops.
  • Dedicated Refrigerated Air Dryer: Includes a 0.25 HP dry air system that cools compressed air and extracts humidity down to a 35°F dew point, extending the lifespan of automatic screen presses.
  • Low-RPM Cast-Iron Pump: Engineered with a splash-lubricated 2-stage cast-iron pump running at a low 760 RPM for cooler operational temperatures and quiet performance.
  • Direct Factory Backup & Support: Fully supported by LWG with expert technical sizing, darkroom integration guidance, replacement parts, and nationwide customer service.

  • Integrated 3-Phase Power System: Configured for industrial three-phase power setups (208–230V) to optimize electrical efficiency and long-term equipment reliability in commercial shops.
  • Dedicated Refrigerated Air Dryer: Includes a 0.25 HP dry air system that cools compressed air and extracts humidity down to a 35°F dew point, extending the lifespan of automatic screen presses.
  • Low-RPM Cast-Iron Pump: Engineered with a splash-lubricated 2-stage cast-iron pump running at a low 760 RPM for cooler operational temperatures and quiet performance.
  • Direct Factory Backup & Support: Fully supported by LWG with expert technical sizing, darkroom integration guidance, replacement parts, and nationwide customer service.

Features

  • 2-Stage High-Pressure Output: Delivers up to 175 PSI maximum operating pressure with 16.5 CFM free air flow to power automatic presses and shop pneumatics.
  • Integrated Dry Air Protection: Eliminates line condensation and moisture to ensure clean, dry air delivery throughout your facility.
  • Space-Saving Vertical Tank: Features an 80-gallon vertical ASME tank designed with a manual drain and discharge isolation valve to maximize available darkroom floor space.
  • Heavy-Duty Motor Starter: Equipped with a factory motor starter and pre-filled with pump oil for seamless initial setup.
  • Industrial Three-Phase Efficiency: Built for commercial electrical grids requiring 208–230V three-phase power.

  • 2-Stage High-Pressure Output: Delivers up to 175 PSI maximum operating pressure with 16.5 CFM free air flow to power automatic presses and shop pneumatics.
  • Integrated Dry Air Protection: Eliminates line condensation and moisture to ensure clean, dry air delivery throughout your facility.
  • Space-Saving Vertical Tank: Features an 80-gallon vertical ASME tank designed with a manual drain and discharge isolation valve to maximize available darkroom floor space.
  • Heavy-Duty Motor Starter: Equipped with a factory motor starter and pre-filled with pump oil for seamless initial setup.
  • Industrial Three-Phase Efficiency: Built for commercial electrical grids requiring 208–230V three-phase power.

Specifications Table

Specifications Description

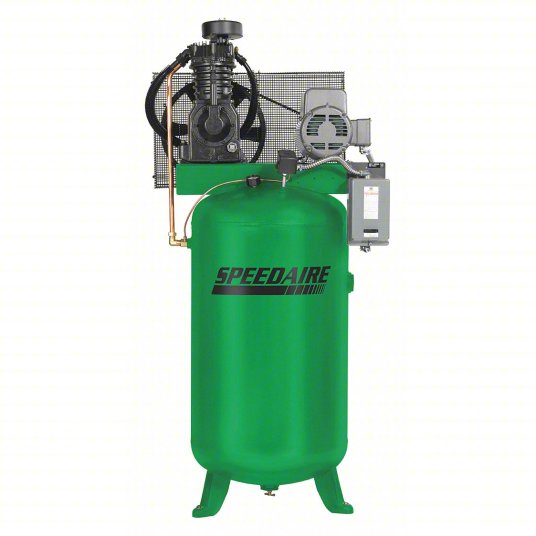

Stationary Air Compressor - Stage Two
Stationary Air Compressor - Motor Running HP 5
Stationary Air Compressor - Free Air CFM @ Max Pressure 16.5
Stationary Air Compressor - Max PSI 175
Stationary Air Compressor - Voltage @ 60 Hz 208–230V, single-phase
Stationary Air Compressor - Amps 23.0–21.0
Stationary Air Compressor - Tank Capacity 80 gallons, vertical
Stationary Air Compressor - FNPT Outlet 1/2 inch
Stationary Air Compressor - Pump Type Cast iron, splash lubrication
Stationary Air Compressor - Pump Oil Capacity 64 oz
Stationary Air Compressor - Duty Cycle 80/20
Stationary Air Compressor - RPM 760
Stationary Air Compressor - Features Includes ASME tank with manual drain and discharge isolation valve, motor starter, and initial fill of compressor oil
Stationary Air Compressor - Dimensions 33" L x 26.625" W x 76" H
Stationary Air Compressor - Weight 600 pounds

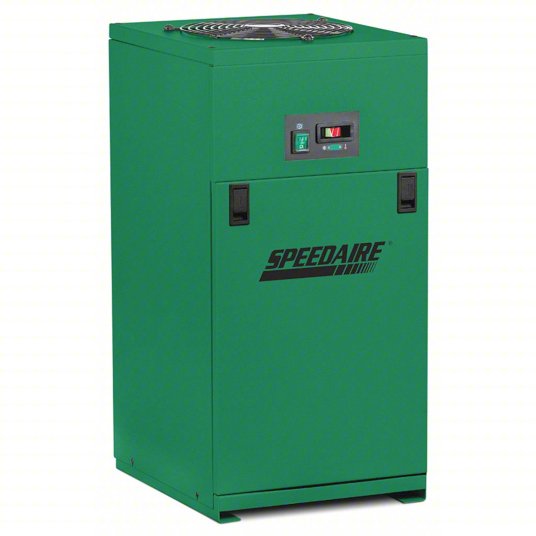

Dry Air System - Air Flow @ 35°F Dew Point, 125 PSIG 21.2 CFM
Dry Air System - Air Flow @ 35°F Dew Point, 175 PSIG 24.0 CFM
Dry Air System - Power Rating 0.25 HP
Dry Air System - Female NPT Inlet/Outlet 1 inch
Dry Air System - Maximum Air Compressor Power 5 HP
Dry Air System - Voltage @ 60 Hz 115V
Dry Air System - Dimensions 16" H x 14" D x 22.25" W
Dry Air System - Weight 125 pounds

Comparison Table

Feature / Metric 5 H.P 3PH COOLER PLUS DRYER 10hp air compressor package rolair portable air compressor
Motor Power 5.0 Running HP 10.0 HP 1.0 Running HP
Air Output (CFM) 16.5 CFM @ 175 PSI 34.8 CFM @ 175 PSI 2.35 CFM @ 90 PSI
Electrical Phase & Voltage 208–230V, 3-Phase 230/460V, 3-Phase 120V, Single-Phase
Tank Size & Style 80-Gal Vertical ASME Tank 80-Gal Vertical or 120-Gal Horizontal 2.3-Gal Portable Single Tank
Dry Air System Included (0.25 HP Refrigerated Dryer) Included (0.5 HP Refrigerated Dryer) N/A
Target Shop Use Commercial 3-Phase screen printing facilities Large industrial multi-head production plants Light utility & pretreat sprayers
