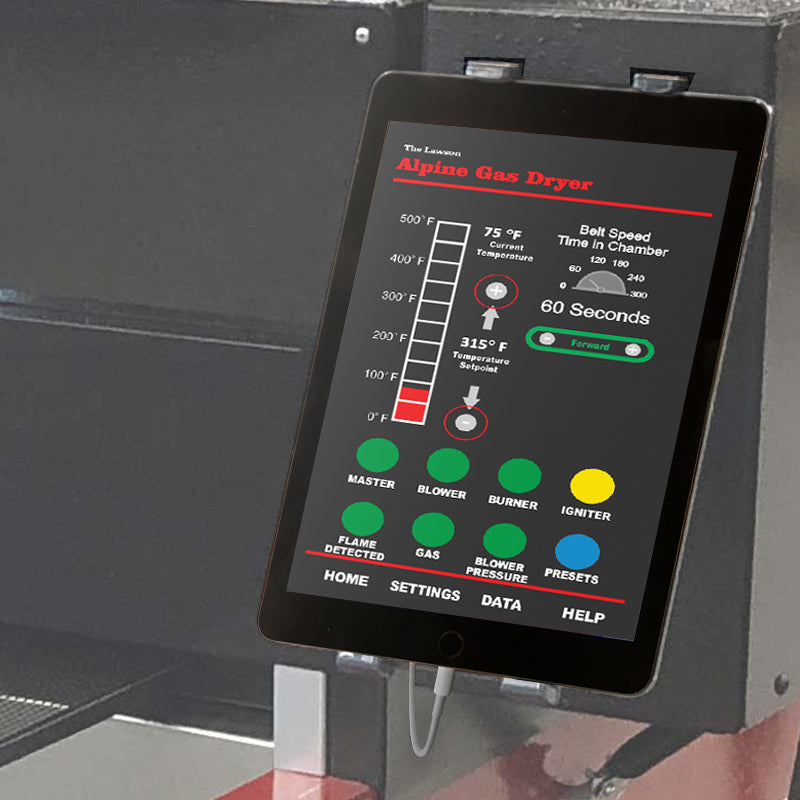

  • Alpine Gas Textile Conveyor Dryer ipad control interface
1 5

Alpine Gas Textile Conveyor Dryer

Alpine Gas Textile Conveyor Dryer

LWG - Lawson Workhorse Group

SKU:

Get a Quote / Contact Sales
×

Got a question about Alpine Gas Textile Conveyor Dryer?

Payment & Security

Payment Methods Accepted

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Download: Alpine Gas Textile Conveyor Dryer

Download: Alpine Gas Textile Conveyor Dryer

Download: Alpine Gas Textile Conveyor Dryer

Financing Options

Need to finance the Alpine Gas Textile Conveyor Dryer? No problem! Visit our Financing Page for more details.

Got a question about this product?

Questions & Answers

Q: Why is a gas jet-air dryer better for water-based and DTG inks than electric IR dryers?
A: Water-based and DTG inks require active air movement to evaporate steam out of the garment fibers. The Alpine Gas Dryer's Uni-Flo/Jet-Knife system continuously blasts high-velocity heated air through the fabric, curing water-based inks much faster and more cost-effectively than static electric panels.

Q: What configurations are available if I have limited floor space?
A: Standard Alpine setups feature an 8' convection chamber with 4' in-feed and out-feed sections (16' total length). For tighter footprints or restricted power, Lawson also manufactures compact gas options like the Omega Gas Express at 12 feet overall length.

Q: Can the Alpine handle both natural gas and liquid propane?
A: Yes. The Alpine can be factory-configured or converted to run on either natural gas or propane, depending on your facility's utility setup.

Q: Where can I see the Alpine Gas Dryer in person or discuss custom sizing?
A: You can schedule a demo or speak with our engineering team at our regional hubs in St. Louis, MO or Marietta, GA.

View full details
Jump to: Description The LWG Difference Features Specifications Table Comparison Table

Description

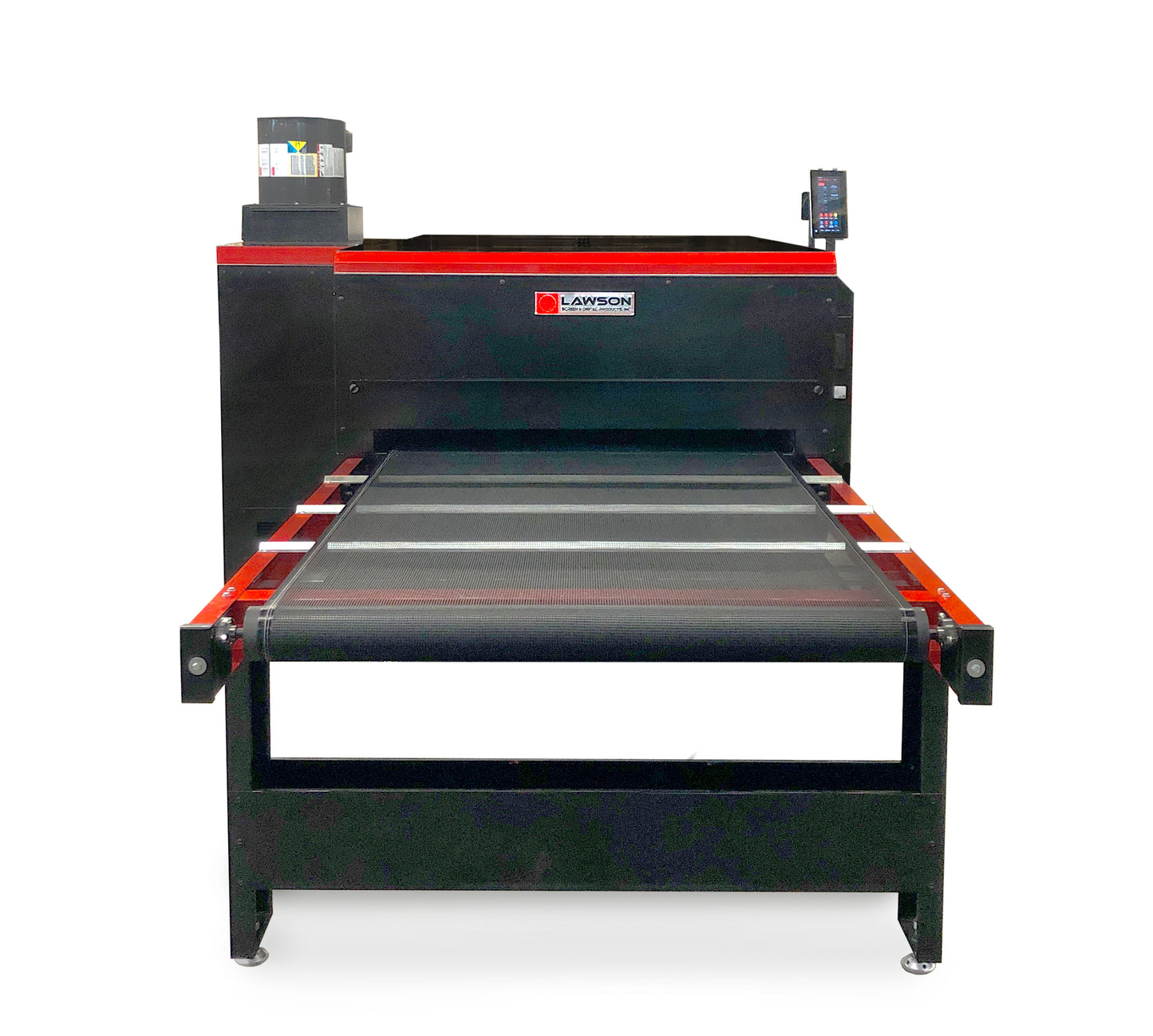

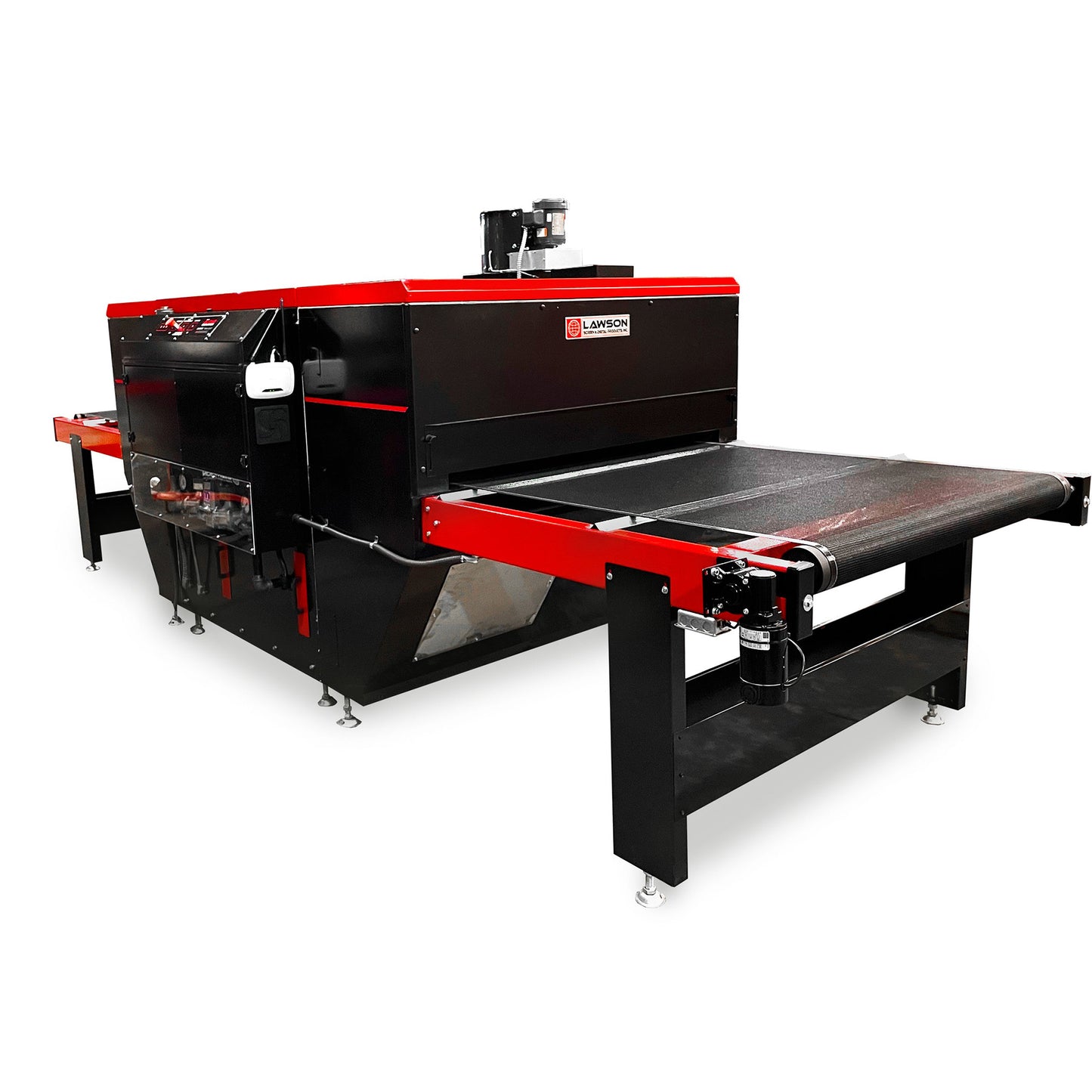

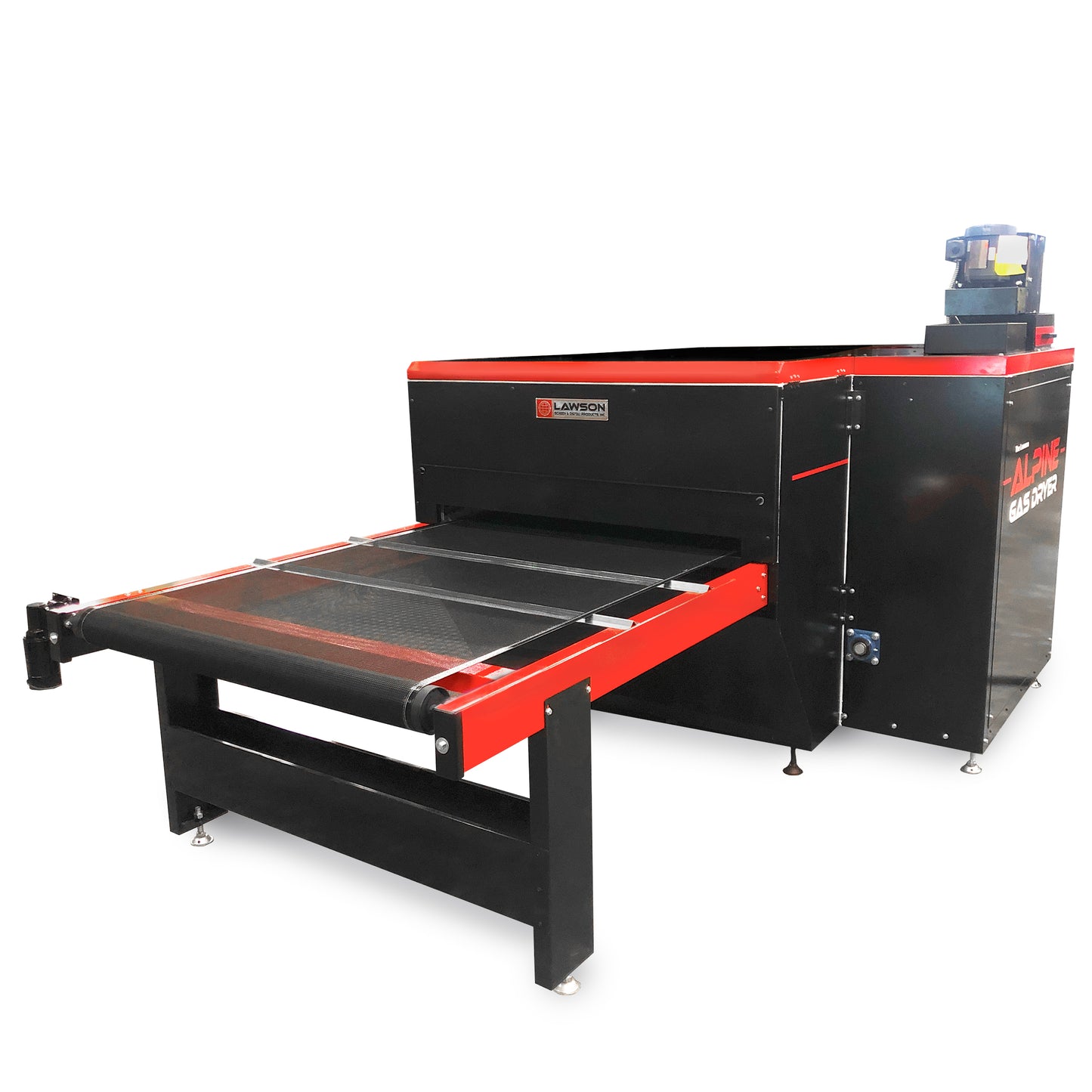

The Lawson Alpine Gas Textile Conveyor Dryer is a heavy-duty, high-velocity live-air gas dryer engineered for high-volume screen printing and digital textile decorating. Built for print shops in St. Louis, Atlanta, and across North America, the Alpine handles water-based, DTG, plastisol, discharge, solvent, and hybrid ink systems requiring curing heat up to 350°F. Featuring Lawson’s exclusive Uni-Flo/Live-Air Jet-Knife heat chamber, it creates continuous, high-velocity jet-air action that penetrates the water and ink barrier to accelerate drying speeds. With modular convection-air chambers and heavy-duty thermal construction, the Alpine delivers maximum energy efficiency and relentless reliability for growing production environments.

The Lawson Alpine Gas Textile Conveyor Dryer is a heavy-duty, high-velocity live-air gas dryer engineered for high-volume screen printing and digital textile decorating. Built for print shops in St. Louis, Atlanta, and across North America, the Alpine handles water-based, DTG, plastisol, discharge, solvent, and hybrid ink systems requiring curing heat up to 350°F. Featuring Lawson’s exclusive Uni-Flo/Live-Air Jet-Knife heat chamber, it creates continuous, high-velocity jet-air action that penetrates the water and ink barrier to accelerate drying speeds. With modular convection-air chambers and heavy-duty thermal construction, the Alpine delivers maximum energy efficiency and relentless reliability for growing production environments.

The LWG Difference

  • Local Fast Pickup & Demo Centers: Inspect equipment or arrange rapid pickup at corporate hubs in St. Louis, MO or Atlanta / Marietta, GA.
  • Exclusive Uni-Flo/Jet-Knife Airflow: High-velocity air-knife technology breaks through boundary moisture layers to dry water-based and DTG inks significantly faster than standard static gas dryers.
  • USA Heavy-Duty Modular Build: Rugged American construction designed for continuous production with modular expansion options to grow alongside your shop’s output.
  • Direct Factory Service & Financing: Supported by factory-trained technicians, domestic replacement parts, and customizable commercial financing plans.
  • Local Fast Pickup & Demo Centers: Inspect equipment or arrange rapid pickup at corporate hubs in St. Louis, MO or Atlanta / Marietta, GA.
  • Exclusive Uni-Flo/Jet-Knife Airflow: High-velocity air-knife technology breaks through boundary moisture layers to dry water-based and DTG inks significantly faster than standard static gas dryers.
  • USA Heavy-Duty Modular Build: Rugged American construction designed for continuous production with modular expansion options to grow alongside your shop’s output.
  • Direct Factory Service & Financing: Supported by factory-trained technicians, domestic replacement parts, and customizable commercial financing plans.

Features

  • High-Velocity Live-Air Gas Heat: Rapidly cures DTG, water-based, discharge, and plastisol inks up to 350°F.
  • Uni-Flo/Live-Air Jet-Knife Chamber: Directs targeted, high-speed jet air over garments to evaporate moisture and solvents evenly.
  • Configurable Belt & Chamber Options: Available in 48", 60", and 72" belt widths with expandable 8' convection heat chambers.
  • Heavy-Duty Thermal Insulation: Traps heat inside the tunnel to reduce natural gas/propane consumption and keep ambient shop temperatures cool.
  • Variable Speed Digital Controls: Precise belt speed and temperature tracking ensure consistent dwell times across various garment weights.
  • High-Velocity Live-Air Gas Heat: Rapidly cures DTG, water-based, discharge, and plastisol inks up to 350°F.
  • Uni-Flo/Live-Air Jet-Knife Chamber: Directs targeted, high-speed jet air over garments to evaporate moisture and solvents evenly.
  • Configurable Belt & Chamber Options: Available in 48", 60", and 72" belt widths with expandable 8' convection heat chambers.
  • Heavy-Duty Thermal Insulation: Traps heat inside the tunnel to reduce natural gas/propane consumption and keep ambient shop temperatures cool.
  • Variable Speed Digital Controls: Precise belt speed and temperature tracking ensure consistent dwell times across various garment weights.

Specifications Table

Model 2416 3616 4816 6019 7228
Color Touch Screen Tablet Controls Yes Yes Yes Yes Yes
Overall Length 16' 16' 16' 16' 28'
Overall Width 64" 76" 88" 100" 112"
Oven Length 8' 8' 8' 8' 12'
In-Feed Length 4' 4' 4' 4' 8'
Out-Feed Length 4' 4' 4' 4' 8'
Belt Height 34" 34" 34" 34" 34"
Belt Width 24" 36" 48" 60" 72"
Belt Type PTFE Coated Fiberglass with Guide Tracking PTFE Coated Fiberglass with Guide Tracking PTFE Coated Fiberglass with Guide Tracking PTFE Coated Fiberglass with Guide Tracking PTFE Coated Fiberglass with Guide Tracking
Belt Speed Control Solid-State/Digital Solid-State/Digital Solid-State/Digital Solid-State/Digital Solid-State/Digital
Temperature Control Digital, upto 375-F Digital, upto 375-F Digital, upto 375-F Digital, upto 375-F Digital, upto 375-F
Oven Temperature Accuracy +/- 2 degrees +/- 2 degrees +/- 2 degrees +/- 2 degrees +/- 2 degrees
BTU Input Minimum 50,000 50,000 50,000 50,000 50,000
BTU Input Maximum 300,000 300,000 500,000 500,000 750,000
Exhaust Airflow 1500 cfm / 12" Powered Exhaust 1500 cfm / 12" Powered Exhaust 1800 cfm / 12" Powered Exhaust 1800 cfm / 12" Powered Exhaust 1800 cfm / 12" Powered Exhaust
Heat Chamber Blower Motor 3 H.P. 3 H.P. 5 H.P. 5 H.P. 7 H.P.
Air Filters Yes Yes Yes Yes Yes
Safety Interlock Controls Yes Yes Yes Yes Yes
Safety Standards CE Compliant CE Compliant CE Compliant CE Compliant CE Compliant
Gas Pressure Requirments 7" Water Column 7" Water Column 7" Water Column 7" Water Column 7" Water Column
Gas Service Inlet 3/4" NPT 3/4" NPT 1" NPT 1" NPT 1" NPT
Electrical Requirments 20 Amps, 230 Volts; 3-Phase 20 Amps, 230 Volts; 3-Phase 30 Amps, 230 Volts; 3-Phase 30 Amps, 230 Volts; 3-Phase 40 Amps, 230 Volts; 3-Phase

Comparison Table

Feature Lawson Alpine Gas Conveyor Dryer Standard Gas Conveyor Dryers
Airflow Technology Uni-Flo/Jet-Knife forced air breaks moisture layers for fast DTG/water-based cures Standard ambient convection airflow struggles to evaporate heavy DTG moisture quickly
Chamber Insulation Heavy-duty zero-gap insulation reduces gas usage and shop heat buildup Basic chamber lining leads to higher monthly utility bills and hot work environments
Modular Scalability Expandable heat chambers allow shop production growth without replacing the dryer Fixed-frame construction requires buying a completely new machine to scale output
Domestic Support Direct USA engineering, rapid spare parts shipping, and factory technician service Often imported with long wait times for specialized replacement burner components
