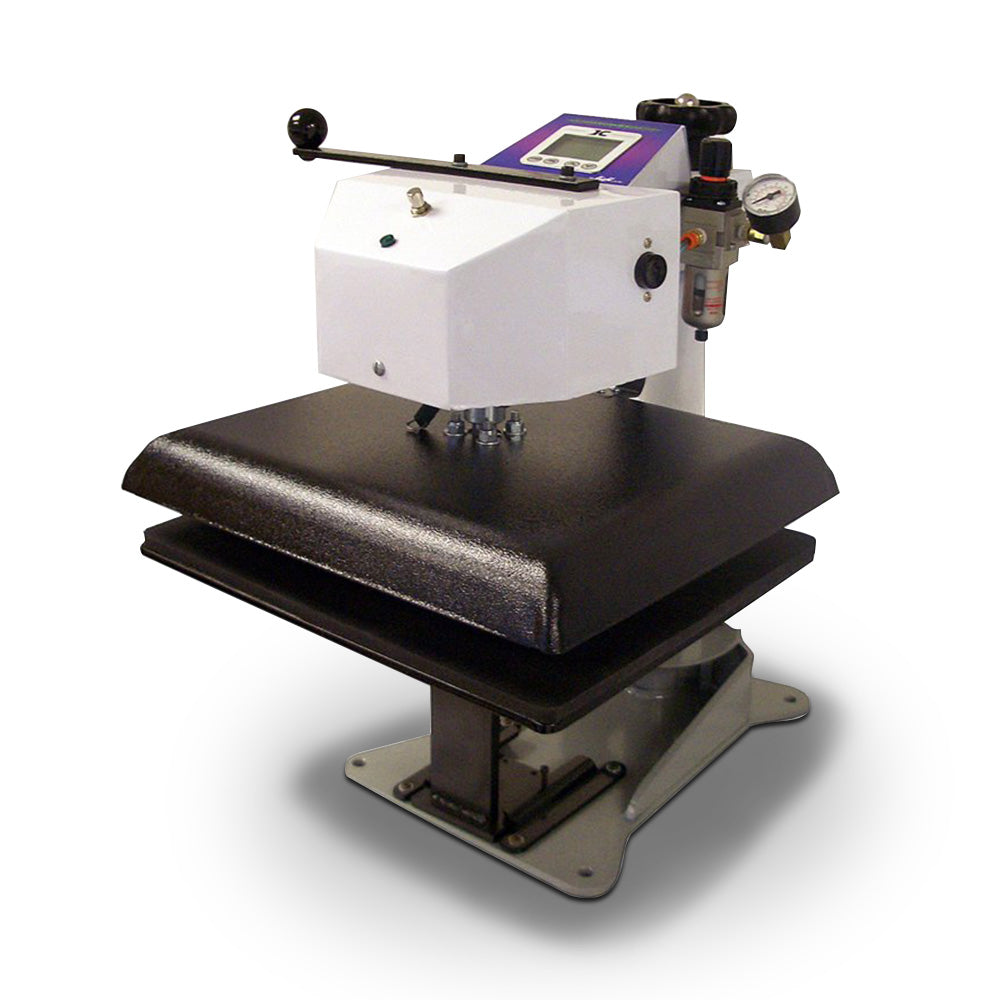

The Automatic Digital Combo 14 x 16 Swing-Away Press is a High-Quality Heat Press
The Digital Combo DC16AP is an air-operated, automatic 14" x 16" swing-away heat press with interchangeable heat platens and tables. Its smooth automatic pressing and pushbutton activation provide efficient, fatigue-free operation.
With all the features and possibilities of the Manual DC16, plus fully automatic air-operated action, the DC16AP is the ideal solution.
Features
- Automatic air-operated pressing.
- Fully digital temperature control with a 32°–600°F range.
- Automatic digital timer and dual pre-press timer.
- Air regulator and gauge with a 20–100 psi range (compressor required).
- Total applied force up to 800 lbs.
- Interchangeable heat platens and tables.
- Solid steel welded framework.
- SuperCoil-Microwinding™ heater technology.
- Accommodates materials up to 2" thick.
- Temperature readout accuracy of ±2°F, displaying Celsius or Fahrenheit.
- 70 programmable presets.
- Records the number of pressing cycles completed.
- Teflon®-coated 3/4" thick heat platen.
Warranty
- Free lifetime technical support.
- Lifetime warranty on heat platen.
- 5-year warranty on frame.
- 3-year warranty on controller.
- 1-year warranty on parts.
Specifications
- Air Compressor Required (Minimum): 5 gallons, 0.5 cfm, 100 psi, 1/4-inch line.
- Weight: 135 lbs.
- Electrical: 1500 W, 12 A, 120 V (add $35 for 220 V international).
- Shipping Dimensions: 42" L x 32" W x 36" H.
Shipping charges are not included in the price shown and will not be reflected in your order’s total; quote on request.
Technical FAQ: Choosing the Right Screen Printing Mesh Count
What mesh count is best for printing glitter and shimmer inks?
Use a low mesh count between 24 and 86 for glitter and shimmer inks. Larger glitter flakes require very open meshes such as 24/25, 38/40, or 60/61 to allow particles to pass through without clogging. For finer shimmer inks or foil adhesives, an 85/86 mesh provides better control while still allowing adequate ink flow.
Why is 110 mesh commonly used in garment screen printing?
A 110 mesh count is widely used because it delivers a heavy ink deposit, making it ideal for bold graphics, block text, and high-viscosity plastisol inks. It is especially effective for white underbases, allowing printers to achieve strong opacity in a single pass and improve production efficiency.
What mesh count should I use for thick white plastisol ink?
A 125 mesh count is a strong choice for thick white plastisol inks. It balances ink flow and detail, offering slightly finer resolution than 110 mesh while still maintaining enough openness to prevent clogging or poor ink release.
What is the best all-purpose mesh count for t-shirt printing?
A 156/160 mesh count is considered the best general-purpose option for screen printing on garments. It works well with both plastisol and water-based inks, providing good detail retention while maintaining consistent ink coverage across most designs.
How can I achieve a soft-hand feel when printing with plastisol ink?
To create a softer print with plastisol ink, use a higher mesh count such as 196/200. This reduces the amount of ink deposited on the garment, resulting in a lighter, smoother feel. Keep in mind that higher mesh counts may reduce opacity, making this approach best for lighter fabrics or fashion prints.
What mesh count is ideal for halftones and fine detail printing?
A 230 mesh count is ideal for halftones, fine lines, and detailed artwork. It allows for precise stencil definition and clean ink transfer. For very fine detail or thinner inks, a 280 mesh count can further improve sharpness and control.
When should I use a 305 mesh screen for screen printing?
A 305 mesh count is best for ultra-fine detail, including small halftone dots, CMYK process printing, and simulated process designs. The higher thread count ensures accurate dot reproduction and prevents distortion, resulting in sharper, more professional prints.
