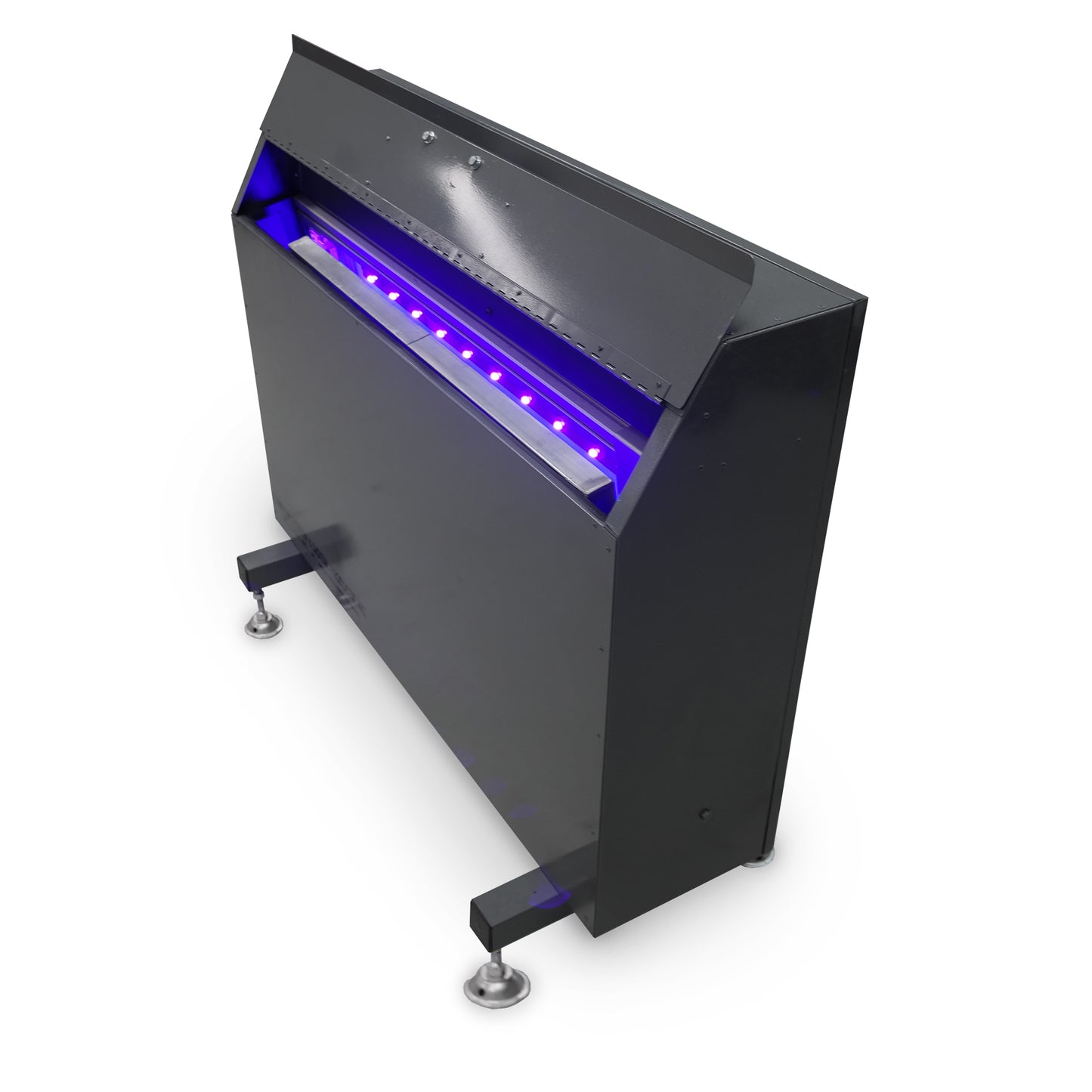

CTS Vertical Exposure Unit

CTS Vertical Exposure Unit

LWG - Lawson Workhorse Group

SKU:

Get a Quote / Contact Sales
×

Got a question about CTS Vertical Exposure Unit?

Payment & Security

Payment Methods Accepted

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Financing Options

Need to finance the CTS Vertical Exposure Unit? No problem! Visit our Financing Page for more details.

Got a question about this product?

Questions & Answers

Q: Do I need film positives or a vacuum frame with the CTS Vertical Exposure Unit?
A: No. The CTS Vertical Exposure Unit is designed for screens imaged directly by a computer-to-screen (CTS) or wax printer, eliminating the need for film positives, vacuum frames, or glass.

Q: What maximum screen size fits into this vertical exposure unit?
A: The unit holds standard manual and automatic press frames up to 23" x 31" outer dimension (O.D.).

Q: Will this unit work with dual-cure or diazo emulsions?
A: Yes. The high-powered UV LED array provides sufficient UV intensity to expose photopolymers, dual-cure, and economic diazo emulsions efficiently.

Q: Where can I see a live demo or schedule regional pickup for the CTS Vertical Exposure Unit?
A: You can schedule a demonstration or arrange regional equipment pickup at Lawson Workhorse Group centers in St. Louis, MO or Marietta, GA.

View full details
Jump to: Description The LWG Difference Features Specifications Table Comparison Table

Description


The Lawson CTS Vertical Exposure Unit is a compact, vertical UV screen exposure system engineered specifically for computer-to-screen (CTS) and wax imaging applications. Designed for commercial screen printing rooms, custom t-shirt printers, and high-volume textile operations in St. Louis, MO, Atlanta, GA, and across North America, the CTS Vertical Exposure Unit delivers the rapid curing speed of traditional metal halide systems using energy-efficient UV LED lights. Operating with a glassless top-loading frame, this unit eliminates vacuum draw-down delays, prevents static dust pinholes, and saves valuable shop floor space. Compatible with screen printing frames up to 23" x 31" outer dimension (O.D.), it provides precise stencil resolution across all emulsion types and mesh counts.


The Lawson CTS Vertical Exposure Unit is a compact, vertical UV screen exposure system engineered specifically for computer-to-screen (CTS) and wax imaging applications. Designed for commercial screen printing rooms, custom t-shirt printers, and high-volume textile operations in St. Louis, MO, Atlanta, GA, and across North America, the CTS Vertical Exposure Unit delivers the rapid curing speed of traditional metal halide systems using energy-efficient UV LED lights. Operating with a glassless top-loading frame, this unit eliminates vacuum draw-down delays, prevents static dust pinholes, and saves valuable shop floor space. Compatible with screen printing frames up to 23" x 31" outer dimension (O.D.), it provides precise stencil resolution across all emulsion types and mesh counts.

The LWG Difference

  • Local Fast Pickup & Demo Hubs: Inspect machinery in person or schedule rapid equipment pickup at regional distribution facilities in St. Louis, MO or Atlanta / Marietta, GA.
  • Glassless Top-Loading Efficiency: Eliminates glass cleanup, static dust buildup, and pinholes while speeding up pre-press exposure workflows.
  • Compact Floor Space Saver: Top-loading vertical design allows the unit to sit tightly alongside CTS imaging systems, maximizing shop square footage.
  • Direct USA Factory Support: Handcrafted in the USA with factory-trained technical service, quick-ship domestic spare parts, and customizable commercial financing options.

  • Local Fast Pickup & Demo Hubs: Inspect machinery in person or schedule rapid equipment pickup at regional distribution facilities in St. Louis, MO or Atlanta / Marietta, GA.
  • Glassless Top-Loading Efficiency: Eliminates glass cleanup, static dust buildup, and pinholes while speeding up pre-press exposure workflows.
  • Compact Floor Space Saver: Top-loading vertical design allows the unit to sit tightly alongside CTS imaging systems, maximizing shop square footage.
  • Direct USA Factory Support: Handcrafted in the USA with factory-trained technical service, quick-ship domestic spare parts, and customizable commercial financing options.

Features

  • High-Powered UV LED Light Array: Delivers fast, consistent exposure times matching the thermal output of metal halide systems with zero warm-up.
  • Optimized for CTS & Wax Imaging: Specialized exposure chamber captures fine-line detail, sharp vector edges, and delicate halftones printed directly on screen emulsion.
  • Broad Frame Compatibility: Accommodates both manual and automatic screen printing frames up to 23" x 31" O.D.
  • Universal Emulsion Support: Rapidly exposes SBQ photopolymers, dual-cure emulsions, and economical diazo coatings across various mesh counts.
  • Streamlined Pre-Press Workflow: Eliminates vacuum draw-down wait times so screens move immediately from digital imaging to washout.

  • High-Powered UV LED Light Array: Delivers fast, consistent exposure times matching the thermal output of metal halide systems with zero warm-up.
  • Optimized for CTS & Wax Imaging: Specialized exposure chamber captures fine-line detail, sharp vector edges, and delicate halftones printed directly on screen emulsion.
  • Broad Frame Compatibility: Accommodates both manual and automatic screen printing frames up to 23" x 31" O.D.
  • Universal Emulsion Support: Rapidly exposes SBQ photopolymers, dual-cure emulsions, and economical diazo coatings across various mesh counts.
  • Streamlined Pre-Press Workflow: Eliminates vacuum draw-down wait times so screens move immediately from digital imaging to washout.

Specifications Table

Feature Specification
Equipment Type Vertical Glassless Computer-to-Screen (CTS) UV LED Exposure Unit
Light Source High-Powered UV LED Array (Metal Halide Equivalent Output)
Frame Capacity Manual and Automatic Frames Up to 23" x 31" Outer Dimension (O.D.)
Design & Orientation Compact Vertical Top-Loading Glassless Cabinet
Emulsion Compatibility Photopolymer, Dual-Cure, and Diazo Emulsion Formulations
SKU 710-210-1-EA
Origin Made in USA (St. Louis, MO & Atlanta, GA distribution)

Comparison Table

Feature Lawson CTS Vertical Exposure Unit Standard Flatbed Vacuum Exposure Units
Shop Footprint Ultra-compact top-loading frame conserves floor space in tight screen rooms Flatbed vacuum tables take up large footprints in pre-press darkrooms
Glass & Pinholes Completely glassless design eliminates glass cleaning, static, and pinholes Exposure glass generates static, attracts shop dust, and requires frequent wiping
Exposure Speed Instant-on UV LEDs expose CTS screens immediately without vacuum draw delays Metal halide bulbs degrade over time and require long vacuum draw-down holds
Factory Backing USA engineered with direct factory technician support and stocked spare parts Overseas import exposure boxes with non-standard parts and zero domestic service
