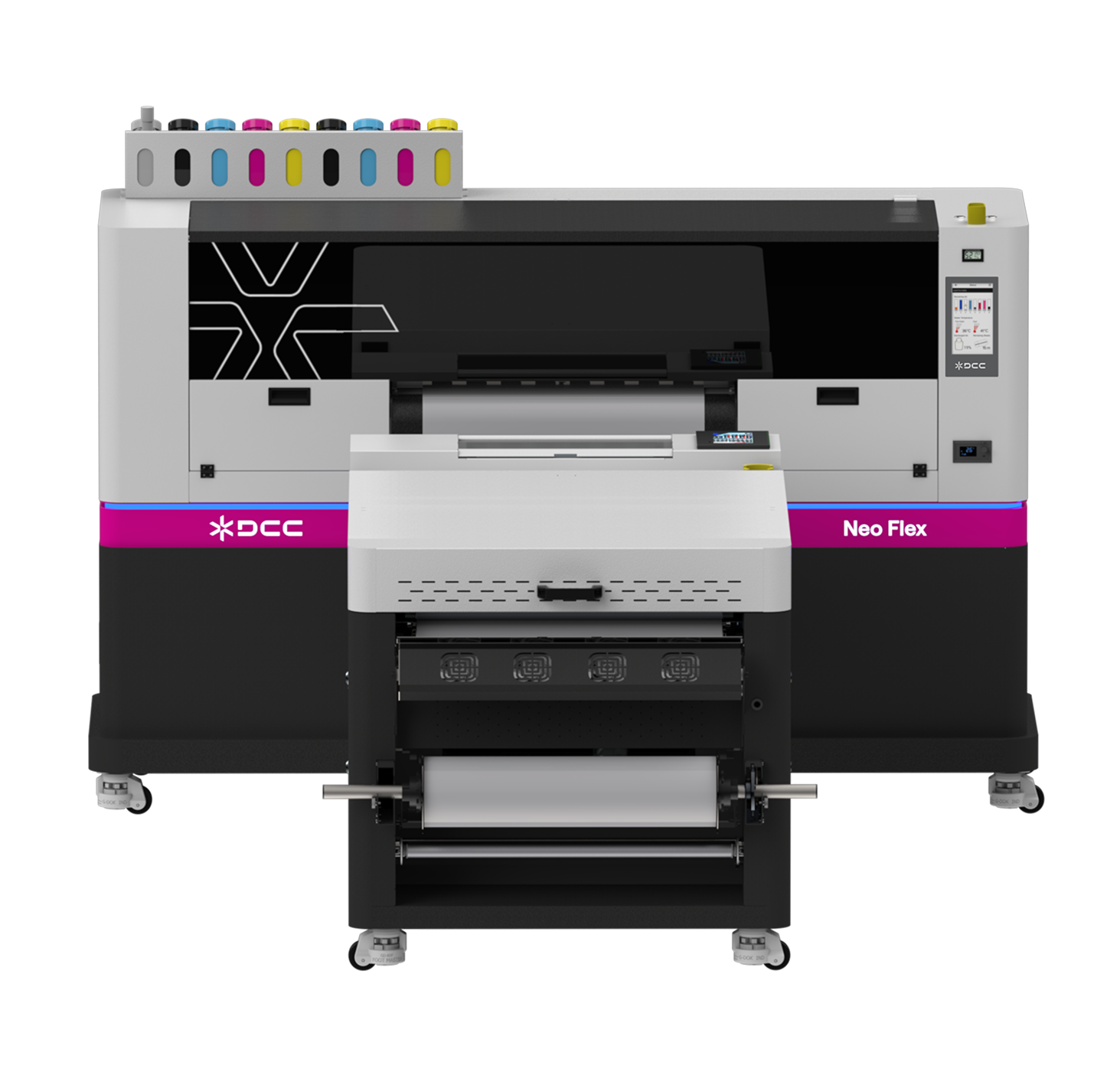

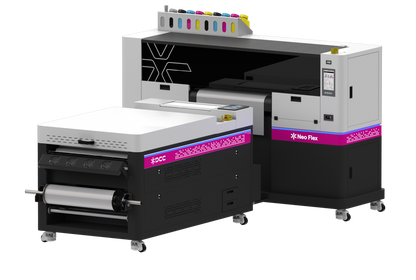

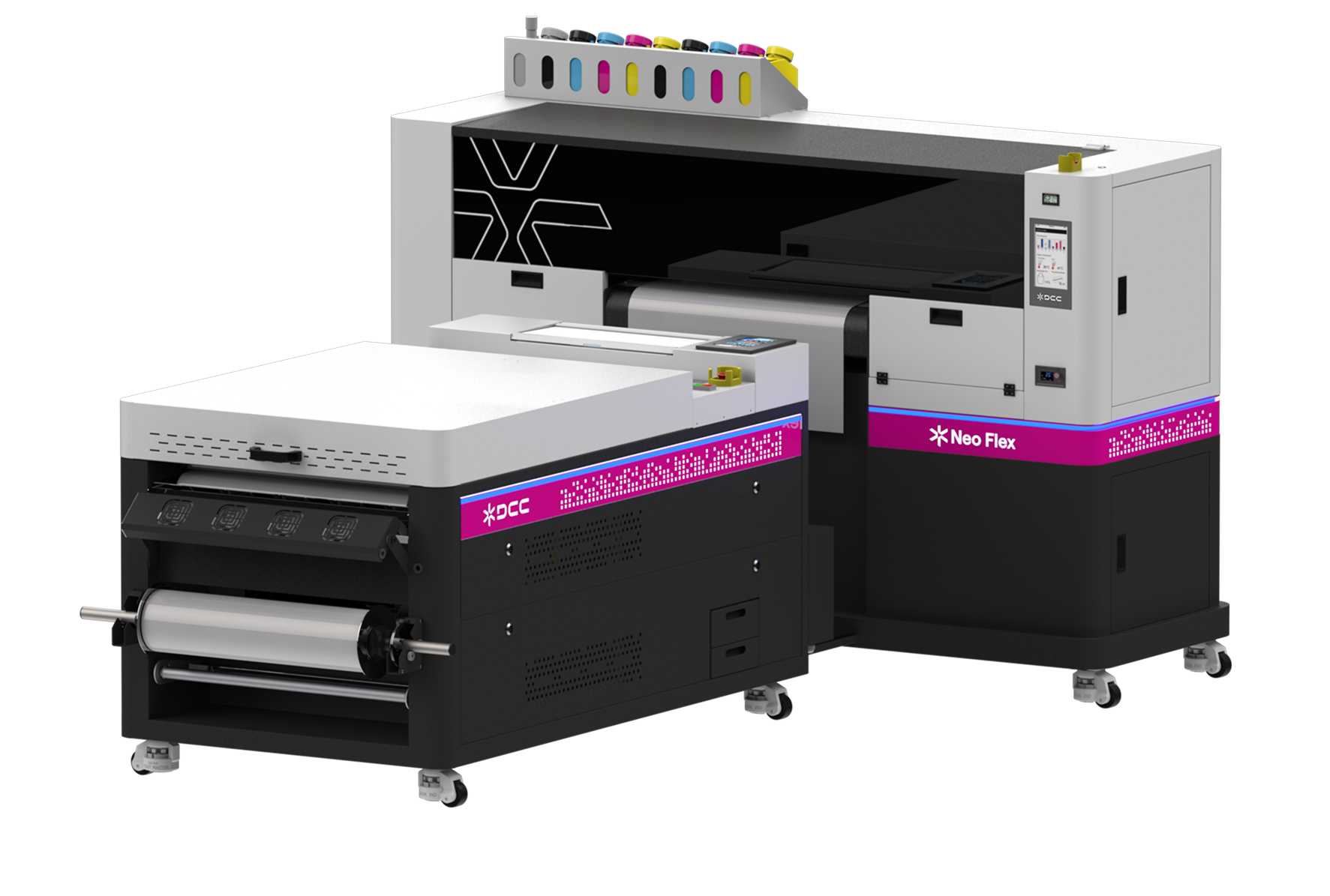

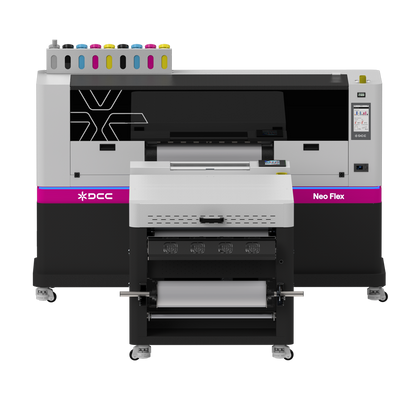

Name: DCC NeoFlex DTF Printer & Dryer
Brand: DCC
Price: 36500.0 USD
Availability: InStock

Speed. Precision. Performance.

The NeoFlex is a fully integrated, high-speed DTF ecosystem that brings together Printer, Dryer, Inks, Films, Powder, and SmartRIP Software into one seamless system. Designed and engineered entirely by DCC, it eliminates patchwork setups and delivers total control, unmatched consistency, and flawless results.

Lower Downtime. Longer Uptime - From auto head cleaning, smart powder curing, and reliable service, every feature is designed to keep your machine running and your jobs flowing

Engineered for Speed & Scale - With 6 Epson I3200 heads, intelligent white ink recirculation, and rapid film feed tracking, NeoFlex delivers fast, consistent output hour after hour, ideal for both short runs and scaling up.

Smart Software. Sharper Prints - Our SmartRIP software is built for production with features like smart nesting, color profiling, and print queue management to minimize waste and maximize quality.

Complete Ecosystem. Total Control - NeoFlex is a fully integrated solution: Printer, Dryer, RIP Software, Inks, Films, Powder, all optimized and tested to work together.

A Machine with Everything Built-In

Film Feed That Flows - Vacuum rollers, adjustable belts, and sensors ensure smooth film transport with minimal jams or creases.
Command with a Touch - The 7" color HMI touch display offers intuitive control over heaters, shakers, and winding for easy operation.
Twin Powder Catcher Trays - Dual powder catcher trays reduce mess, cut waste, and recover reusable powder for efficient, clean operation.
Performance That Adapts - Easily switch between 6-pass for speed and 8-pass for premium detail—NeoFlex delivers both performance and precision without compromise.
Smart RIP, Smarter Workflow - DCC’s Smart RIP Software streamlines job nesting, manages multiple queues, and ensures precise color—saving film, time, and effort.

DTF Printer

Built-in Preventive Maintenance - Automatic capping and wiping systems keep your printheads clean, reduce downtime, and improve long-term consistency so you don’t have to babysit your machine.
Smart Ink Management System - With 1.7L tanks, auto white ink recirculation, and battery-powered low-ink alerts, NeoFlex ensures uninterrupted printing and longer printhead life no clogs, no hassle.
Precision Film Handling - A push-button pincher, vacuum adjustment, and pivot roller ensure smooth film handling without wrinkles or slippage delivering clean alignment, less waste, and superior output.
Parallel Precision Printheads - Equipped with 6 Epson I3200-A1 heads—3 for CMYK and 3 for White NeoFlex delivers stable white underbase, vivid CMYK output, and consistent color density for faster, perfectly aligned prints.

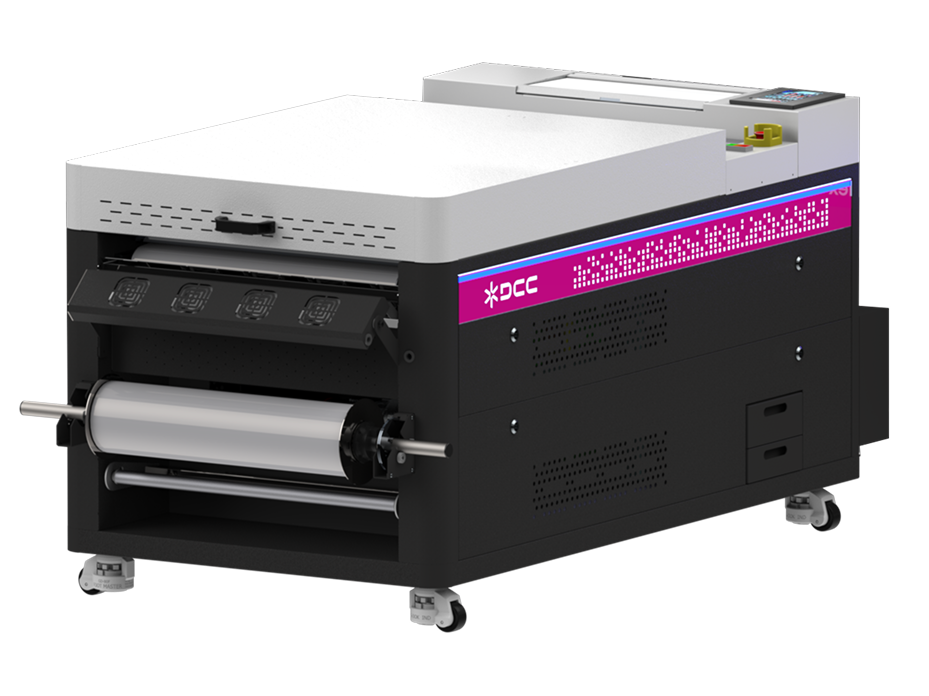

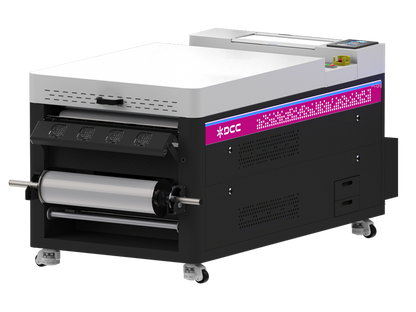

DTF Dryer

Automated Powdering Precision - Automated dispenser and shaker ensure even adhesive coverage, minimizing material waste.
SYNC with Confidence - Film sensor coordinates output; independent winding controls allow precise tension handling.
Heat Shield Drying Technology - IR heaters, Heat-Shield, and smart programs ensure safe, efficient, consistent drying.
Air Quality Assured - Dual-layer filtration ensures a safe, smoke-free workspace, compliant with health norms.

Specifications	NeoFlex Flex F-5130+ Pro	NeoFlex F-51450 Pro	NeoFlex F-51460 Pro
Print Head	(4) Epson I3200 A1 Print Heads — (2) CMYK, (2) White	(6) Epson I3200 A1 Print Heads — (2) CMYK, (4) White	(6) Epson I3200 A1 Print Heads — (2) CMYK, (2) ORVG, (2) White
Print Resolution and Speed	720 x 1800 DPI, 6-Pass, 16.5 m²/hr (27 Linear m/hr / 88.6 Linear ft./hr) 720 x 2400 DPI, 8-Pass, 12.5 m²/hr (20.5 Linear m/hr / 67.25 Linear ft./hr)	720 x 1800 DPI, 6-Pass, 9.5 m²/hr(15.9 Linear m/hr / 52.2 Linear ft./hr) 720 x 2400 DPI, 8-Pass, 8 m²/hr(13.3 Linear m/hr / 43.8 Linear ft./hr)	720 x 1800 DPI, 6-Pass, 9.5 m²/hr(15.9 Linear m/hr / 52.2 Linear ft./hr) 720 x 2400 DPI, 8-Pass, 8 m²/hr(13.3 Linear m/hr / 43.8 Linear ft./hr
Color Mode	CMYK & White	CMYKORVG & White
Ink System	White Ink Auto Circulation Supply System
Ink Type	Eco-Friendly Water Based Ink
Printing Media	24" PET Transfer Film
Media Transmission	Automatic Roll Out & Film Take Up System
Interface	Gigabit Ethernet	USB 3.0
Included RIP Software	DCC RIP
Work Room Temperature	61 - 81°F (16 - 27°C)
Work Room Humidity	40%-60% (No Condensation)
Electrical Requirements Printer*	208/230 V, 1 ph, 4.5 A 50/60 Hz, 0.75 kW
Electrical Requirements Dryer**	208/230 V, 1 ph, 39 A 50/60 Hz, 8.2 kW
Printer Dimensions (L x W x H)	29" x 83.2" x 61" (73.8 x 211.3 x 154 cm)
Dryer Dimensions (L x W x H)	76" x 37.6" x 37" (193 x 95.5 x 94 cm)
Minimum WorkingSpace (L x W)	11' x 12' (335.3 x 365.7 cm)
Printer Machine Weight	670 lbs. (304 kgs)
Dryer Machine Weight	761 lbs. (345kgs)
‍General usage may vary, but will be significantly less than stated values. *Use Servo Stabilizers to safeguard the machine from Voltage Fluctuation out of the main supply.
