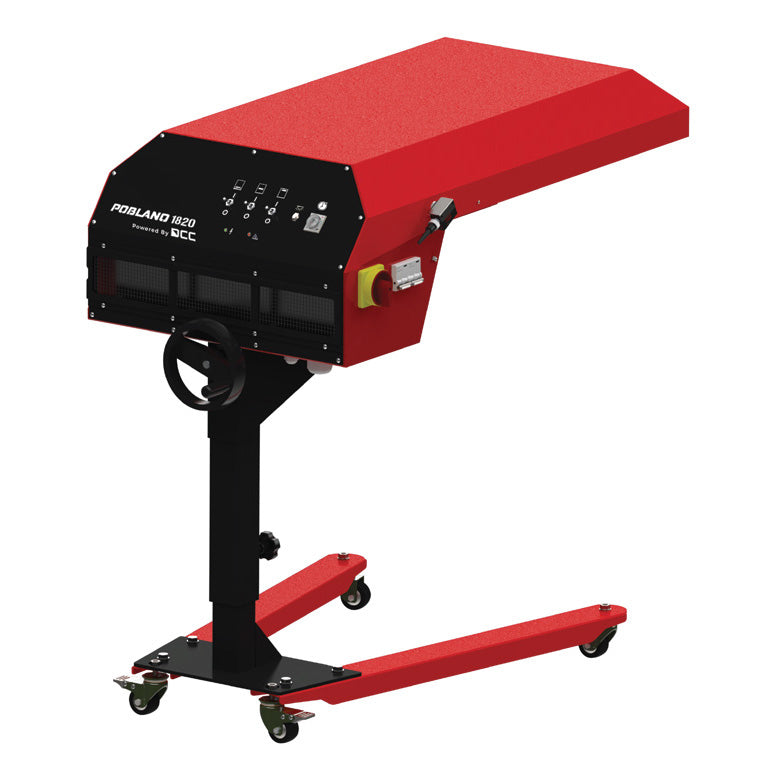

DCC Poblano Flash Cure Unit

DCC Poblano Flash Cure Unit

DCC

SKU:

$3,995.00 USD
$3,995.00 USD
Sale Sold out

Payment & Security

Payment Methods Accepted

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Financing Options

Need to finance the DCC Poblano Flash Cure Unit? No problem! Visit our Financing Page for more details.

Got a question about this product?

Questions & Answers

How does the auto-sensor on the DCC Poblano Flash Cure Unit work?

The Poblano features a positionable proximity sensor switch that automatically triggers the quartz elements as the platen approaches, eliminating the need for manual foot switches or continuous lamp power.

Can I turn off part of the heating element for smaller prints?

Yes, the DCC Poblano includes three independently controlled flashing zones with individual toggle switches, allowing you to energize only the zones needed for your print size to save power.

Is the DCC Poblano compatible with press brands other than Lawson?

Yes, the Poblano is built as a freestanding, height-adjustable flash cure unit on locking casters, making it compatible with almost all manual and automatic screen printing presses.

What electrical requirements are needed for the Poblano 1820 model?

The Poblano 1820 model operates on 208–230V, available in single-phase (73 Amps, 13.5 kW) or three-phase configurations.

View full details
Jump to: Description The LWG Difference Features Specifications Table Comparison Table

Description

The DCC Poblano Flash Cure Unit is a universal quartz flash curing system engineered for fast, consistent gelation of inks on both manual and automatic screen printing presses. Powered by medium-wave sealed tungsten filament quartz lamps, the Poblano delivers rapid heat transfer to speed up multi-color production runs. Equipped with three independently controlled flashing zones, auto-sensor pallet activation, and an automatic safety thermal cut-off mechanism, this freestanding flash cure unit gives commercial screen printers precise thermal control and efficiency across various garment sizes

The DCC Poblano Flash Cure Unit is a universal quartz flash curing system engineered for fast, consistent gelation of inks on both manual and automatic screen printing presses. Powered by medium-wave sealed tungsten filament quartz lamps, the Poblano delivers rapid heat transfer to speed up multi-color production runs. Equipped with three independently controlled flashing zones, auto-sensor pallet activation, and an automatic safety thermal cut-off mechanism, this freestanding flash cure unit gives commercial screen printers precise thermal control and efficiency across various garment sizes

The LWG Difference

  • Universal Press Compatibility: Freestanding design with smooth-rolling, locking casters fits virtually any manual or automatic screen printing press line.
  • Smart Optical Sensor Activation: Positionable proximity sensor detects incoming platens to automatically trigger flash cycles without operator intervention.
  • Zone-Controlled Quartz Heating: Three independent flashing zones allow operators to heat only the required image area, saving energy on smaller prints.
  • Integrated Overheat Protection: Built-in thermal cut-off automatically shuts off lamps if temperatures exceed safe limits to safeguard heating elements
  • Universal Press Compatibility: Freestanding design with smooth-rolling, locking casters fits virtually any manual or automatic screen printing press line.
  • Smart Optical Sensor Activation: Positionable proximity sensor detects incoming platens to automatically trigger flash cycles without operator intervention.
  • Zone-Controlled Quartz Heating: Three independent flashing zones allow operators to heat only the required image area, saving energy on smaller prints.
  • Integrated Overheat Protection: Built-in thermal cut-off automatically shuts off lamps if temperatures exceed safe limits to safeguard heating elements

Features

  • Medium-Wave Quartz Elements: High-output tungsten lamps reach curing temperatures in seconds for fast, even gelation.
  • Forced-Air Heat Exchange: Reflector array combined with forced air ensures uniform heat distribution and efficient lamp cooling.
  • Analog Precision Timer: Accurately control flash duration to prevent scorching or over-curing delicate fabrics.
  • Height-Adjustable Stand: Vertical adjustment range (40" to 47.5") accommodates different platen heights across multiple press models.
  • Manual Test Button: Allows quick manual test flashes and warm-ups during job setup.
  • Medium-Wave Quartz Elements: High-output tungsten lamps reach curing temperatures in seconds for fast, even gelation.
  • Forced-Air Heat Exchange: Reflector array combined with forced air ensures uniform heat distribution and efficient lamp cooling.
  • Analog Precision Timer: Accurately control flash duration to prevent scorching or over-curing delicate fabrics.
  • Height-Adjustable Stand: Vertical adjustment range (40" to 47.5") accommodates different platen heights across multiple press models.
  • Manual Test Button: Allows quick manual test flashes and warm-ups during job setup.

Specifications Table

Specifications dcc poblano flash cure unit dcc poblano flash cure unit
Curing Area 18" x 20" (46 x 51 cm) 20" x 30" (51 x 76 cm)
Electrical Requirements 208–230 V, 1 ph, 73 A, 50 Hz, 13.5 kW (UL/CE)
380–415 V, 3 ph, 24 A, 50 Hz, 13.5 kW (CE) 380-415 V, 3 ph, 40 A, 50/60 Hz, 21.7 kW (CE)
Machine Dimension (L x W) 42.2" x 25.3" (107 x 64 cm) 52.2" x 25.3" (133 x 64 cm)
Machine Height 40" - 47.5" (101 cm – 121 cm) (Adjustable) 40" - 47.5" (101 cm – 121 cm) (Adjustable)
Weight 143.3 lbs (65 kg) 159 lbs (72 kg)
Crate Dimensions (LxWxH) 45" x 27" x 25" (114 x 69 x 63 cm) 53" x 27" x 25" (135 x 69 x 63 cm)
Gross Weight 231 lb (105 kg) 246 lb (112 kg)

Comparison Table

Feature / Metric dcc poblano flash cure unit dcc red pepper flash unit
Heating Element Type Instant-On Medium-Wave Quartz Lamps Ceramic or Radiant IR Panels
Warm-Up Time Instant / Seconds 10–15 Minutes Pre-Heat Required
Zone Control 3 Independent Zones Single Full-Panel Heat Zone
Energy Efficiency High (Only active when platens trigger sensor) Moderate (Constant power draw)
Activation Auto Sensor / Proximity Switch Continuous On or Microswitch
Best Used For Fast-paced automatic and manual multi-color print runs Entry-level to mid-sized manual shop setups
