Mug Heat Transfer Press | Premium Heat Press Machine for Sublimating Mugs

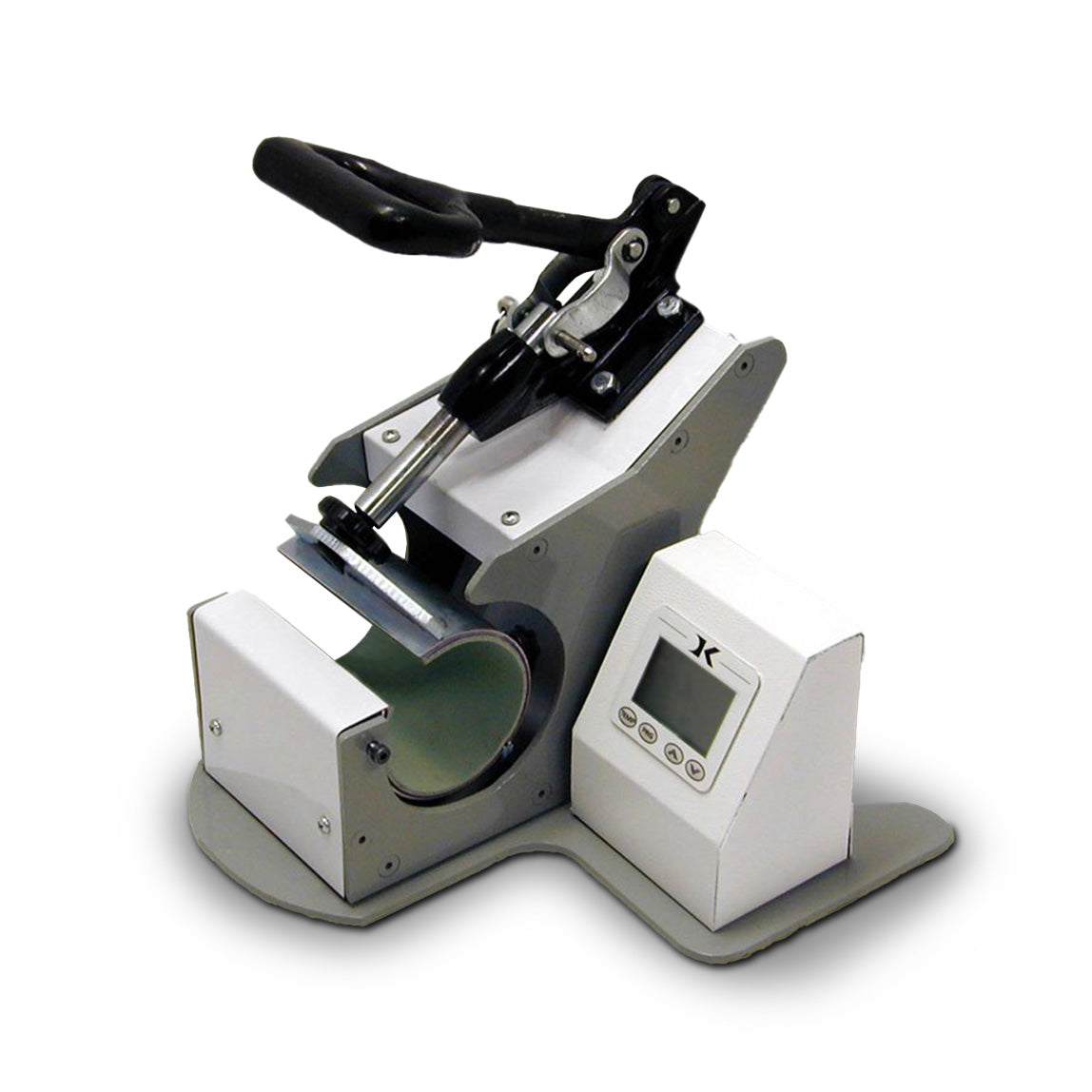

The DK3 Digital Mug Press is a specialty press in the Digital Knight line of presses; exclusively for pressing mugs. This press is a full wrap-around, handle to handle, top-to-bottom printing mug press. It can press images up to 5" high, and as close as 1/2" from the handle, depending on the mug size.
The DK3 is fully adjustable, accommodating all mugs available on the market. This includes 11 oz, 15 oz, 16 oz mugs, steins and stainless steel travel mugs. The ability of the press to open extra wide allows for easy and fast loading and unloading of mugs from the press. The thick solid steel framework and die-cast clamp assembly provides a heavy duty framework for non-stop use. The clamp assembly can be adjusted for very heavy pressure, allowing for full bleed transfers on even the most demanding mugs. Finally - a mug press that compensates for less than perfectly straight mugs! As with all Digital Knight presses, the DK3 utilizes a state-of-the-art digital control system with an unprecedented 3-year warranty on the heat-control electronics. With digital temperature, time and programmable presets, cycle counter and many other features, the consistency and productivity of mug printing is maximized. At the heart of the DK3 is the SuperCoil-Microwinding™ heater technology, a system of embedded heater windings that wind tightly and closely together throughout the entire platen for extremely even heat, fast recovery & fast heat up times. The DK3 will start up in only a few minutes, and unlike other presses runs constantly at the set temperature, instead of a much lower idle temperature. Unlike other mug presses that use silicone blankets with short lifespans and even shorter warranties, the DK3 boasts an amazing 3-Year / 3,000 mug warranty. The patented stainless steel mug band heater technology Geo Knight is famous for has proven to be far more reliable in the field than traditional methods.
For the absolute best, at an amazing price, there is no better solution for pressing mugs than the DK3 Digital Knight Mug Press.
Weight: 26 Lbs
Box Dimensions: 15"W x 13"H x 15"L
110 Volts / 450 Watts / 4 Amps
220 Volts / 450 Watts / 2 Amps
- Fully digital temperature control.
- Automatic digital timer.
- Programmable presets.
- Solid steel welded framework.
- SuperCoil-Microwinding™ heater technology.
- Soft heater liner for accommodating inconsistent mugs.
- Temperature readout accuracy +-2°F.
- User selectable end-of-cycle alarms.
- Records number of pressing cycles done.
- 3-year/3,000 mug warranty on heat platen.
- 3-year warranty on control.
- 1 year warranty on entire press.
Technical FAQ: Choosing the Right Screen Printing Mesh Count
What mesh count is best for printing glitter and shimmer inks?
Use a low mesh count between 24 and 86 for glitter and shimmer inks. Larger glitter flakes require very open meshes such as 24/25, 38/40, or 60/61 to allow particles to pass through without clogging. For finer shimmer inks or foil adhesives, an 85/86 mesh provides better control while still allowing adequate ink flow.
Why is 110 mesh commonly used in garment screen printing?
A 110 mesh count is widely used because it delivers a heavy ink deposit, making it ideal for bold graphics, block text, and high-viscosity plastisol inks. It is especially effective for white underbases, allowing printers to achieve strong opacity in a single pass and improve production efficiency.
What mesh count should I use for thick white plastisol ink?
A 125 mesh count is a strong choice for thick white plastisol inks. It balances ink flow and detail, offering slightly finer resolution than 110 mesh while still maintaining enough openness to prevent clogging or poor ink release.
What is the best all-purpose mesh count for t-shirt printing?
A 156/160 mesh count is considered the best general-purpose option for screen printing on garments. It works well with both plastisol and water-based inks, providing good detail retention while maintaining consistent ink coverage across most designs.
How can I achieve a soft-hand feel when printing with plastisol ink?
To create a softer print with plastisol ink, use a higher mesh count such as 196/200. This reduces the amount of ink deposited on the garment, resulting in a lighter, smoother feel. Keep in mind that higher mesh counts may reduce opacity, making this approach best for lighter fabrics or fashion prints.
What mesh count is ideal for halftones and fine detail printing?
A 230 mesh count is ideal for halftones, fine lines, and detailed artwork. It allows for precise stencil definition and clean ink transfer. For very fine detail or thinner inks, a 280 mesh count can further improve sharpness and control.
When should I use a 305 mesh screen for screen printing?
A 305 mesh count is best for ultra-fine detail, including small halftone dots, CMYK process printing, and simulated process designs. The higher thread count ensures accurate dot reproduction and prevents distortion, resulting in sharper, more professional prints.
