You Won't Get Tired Of The DK25SP Geo. Knight Heat Transfer Automatic Jumbo Digital Swinger Press 20" x 25"

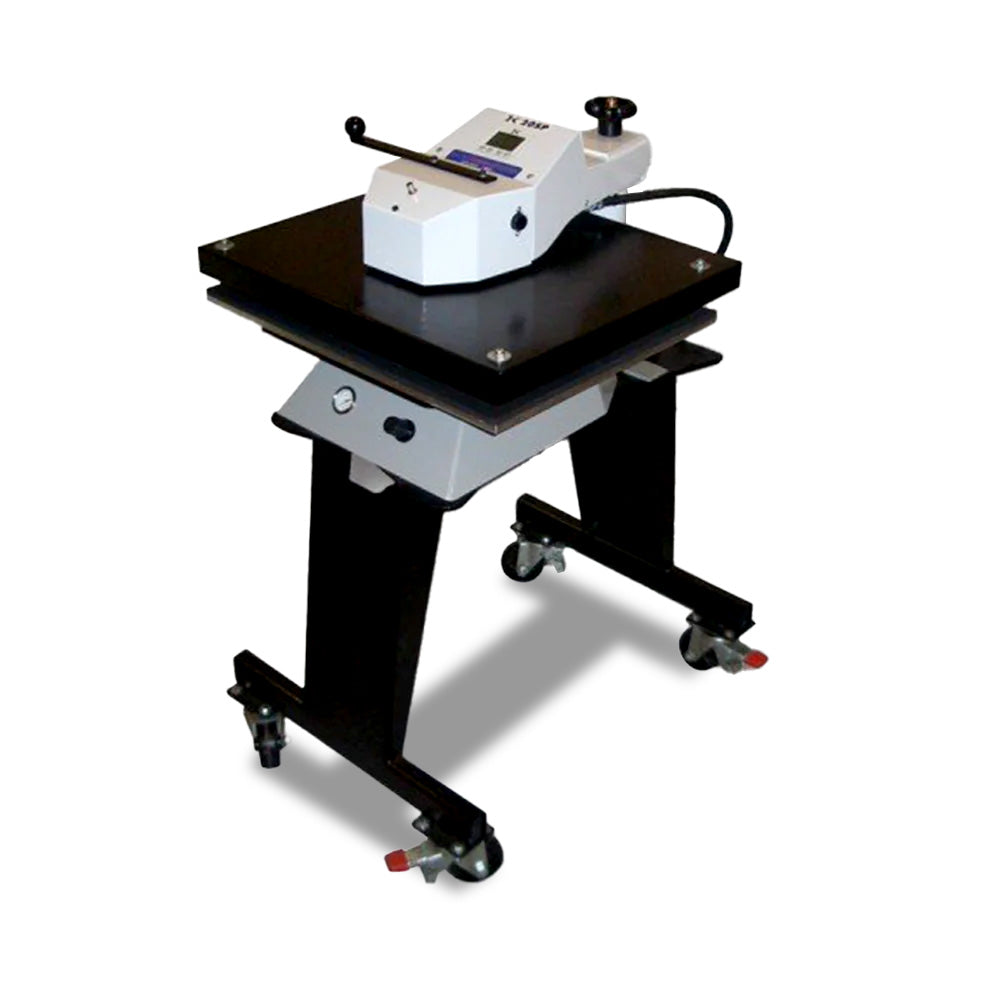

The Digital Knight DK25SP is an air-operated, automatic 20 x 25 over-sized swing-away heat press with a state-of-the-art control system and heavy-duty solid steel welded framework. The smooth automatic pressing and push-button activation provides a productive, fatigue-free operation.
The extended 20 x 25 size of the heat platen is perfect for sublimation and large format materials pressing. The heat platen uses SuperCoil-Microwinding™ heater technology, a system of embedded heater windings that wind tightly and closely together throughout the entire platen for extremely even heat, fast recovery & fast heat up times. The controller utilizes an easy to read over-sized-digit LCD display to show time and temperature simultaneously, and the temperature readout is accurate within +-2°. The operator can use the 70 programmable presets for saving common application settings, and the press features a high accuracy pressure regulator and pressure gauge for specific psi settings. The press is adjustable to accommodate materials from fabric thickness all the way up to 1” thick substrates!
The DK25SP Geo. Knight Heat Transfer Automatic Jumbo Digital Swinger Press 20" x 25" Is Full Of Features
This 20 x 25 sized air-operated press includes a stand and lockable heavy-duty casters as well. For the ease of high-pressure air operated operation and 20 x 25 platen sized pressing area, the DK25SP is the ideal solution. This Geo Knight clamshell are now able to fully thread garments from the *Front OR Back*. The drop-on pull-pin attached tables are rotatable.
Features
- Same features as the DK20SP (Air Op Automatic) but with an OverSized 20" x 25" heat platen
- Automatic air operated pressing
- PSI pressure control gauge
- Fully digital temperature control
- 70 Programmable presets
- Solid steel welded framework
- SuperCoil-Microwinding™ heater technology
- Accommodates materials up to 1” thick
- Temperature readout accuracy +-2°F
- User selectable end-of-cycle alarms
- Records number of pressing cycles done
- ¾” thick cast-in heat platen
- Heavy duty stand with lockable casters
- Custom large sizes available (call factory)
Specifications
Weight: 480 Lbs
Electrical: 4500 Watts / 20 Amps / 220 Volts (Only)
Box Dimensions: 36" D x 36" W x 48" H
*Shipping Charges Are Not Included In the Price Shown & Will NOT Be Reflected In Your Order's Total -- Quote on Request
Technical FAQ: Choosing the Right Screen Printing Mesh Count
What mesh count is best for printing glitter and shimmer inks?
Use a low mesh count between 24 and 86 for glitter and shimmer inks. Larger glitter flakes require very open meshes such as 24/25, 38/40, or 60/61 to allow particles to pass through without clogging. For finer shimmer inks or foil adhesives, an 85/86 mesh provides better control while still allowing adequate ink flow.
Why is 110 mesh commonly used in garment screen printing?
A 110 mesh count is widely used because it delivers a heavy ink deposit, making it ideal for bold graphics, block text, and high-viscosity plastisol inks. It is especially effective for white underbases, allowing printers to achieve strong opacity in a single pass and improve production efficiency.
What mesh count should I use for thick white plastisol ink?
A 125 mesh count is a strong choice for thick white plastisol inks. It balances ink flow and detail, offering slightly finer resolution than 110 mesh while still maintaining enough openness to prevent clogging or poor ink release.
What is the best all-purpose mesh count for t-shirt printing?
A 156/160 mesh count is considered the best general-purpose option for screen printing on garments. It works well with both plastisol and water-based inks, providing good detail retention while maintaining consistent ink coverage across most designs.
How can I achieve a soft-hand feel when printing with plastisol ink?
To create a softer print with plastisol ink, use a higher mesh count such as 196/200. This reduces the amount of ink deposited on the garment, resulting in a lighter, smoother feel. Keep in mind that higher mesh counts may reduce opacity, making this approach best for lighter fabrics or fashion prints.
What mesh count is ideal for halftones and fine detail printing?
A 230 mesh count is ideal for halftones, fine lines, and detailed artwork. It allows for precise stencil definition and clean ink transfer. For very fine detail or thinner inks, a 280 mesh count can further improve sharpness and control.
When should I use a 305 mesh screen for screen printing?
A 305 mesh count is best for ultra-fine detail, including small halftone dots, CMYK process printing, and simulated process designs. The higher thread count ensures accurate dot reproduction and prevents distortion, resulting in sharper, more professional prints.
