Durometer Testers | Accuracy Matters
A durometer reading tells you the strength of the material that the squeegee is made of. You really need this if you don't use our colored blades.
The Model 1500 is still considered to be the best all around instrument of its kind. With its light weight and small size, the user can carry it at all times. Should it be dropped, even if not in its leather carrying case, it will not be damaged or become inoperative 99 times out of 100. Because the gauge is so durable, the Model 1500 comes with a lifetime guarantee. The key to the gauge's durability is its sliding vernier scale- there are no cams, gears, or levers to wear out. This vernier scale holds the maximum reading, and is especially useful for testing in hard to reach areas. The vernier scale is marked in increments of 5 points, and with a little practice, one can obtain readings to within 1 point.
Size: .5" x 4.5"H
Weight: 1.5 oz.
Features:
- Ultra lightweight
- Excellent for hard to reach places
- Virtually unbreakable
- Superior accuracy
- Precision construction
- Easy to read
- Holds reading until reset
- Furnished with a leather pouch
- NIST Traceable

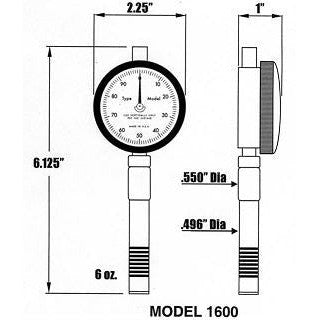

The Model 1600 Durometer is a standard model for good reason. The gauge features a full-sized dial face for readability to within 1/2 point. The 1600 offers the maximum accuracy available in a dial model gauge at a minimum cost.
Size: 2.25" x 6.125"H
Weight: 6 oz.
Features:
- Large dial
- Full 360 degree sweep
- Custom made carrying case
- One year warranty
- Conforms to ASTM D-2240 and NIST Traceable (except where noted)
Technical FAQ: Choosing the Right Screen Printing Mesh Count
What mesh count is best for printing glitter and shimmer inks?
Use a low mesh count between 24 and 86 for glitter and shimmer inks. Larger glitter flakes require very open meshes such as 24/25, 38/40, or 60/61 to allow particles to pass through without clogging. For finer shimmer inks or foil adhesives, an 85/86 mesh provides better control while still allowing adequate ink flow.
Why is 110 mesh commonly used in garment screen printing?
A 110 mesh count is widely used because it delivers a heavy ink deposit, making it ideal for bold graphics, block text, and high-viscosity plastisol inks. It is especially effective for white underbases, allowing printers to achieve strong opacity in a single pass and improve production efficiency.
What mesh count should I use for thick white plastisol ink?
A 125 mesh count is a strong choice for thick white plastisol inks. It balances ink flow and detail, offering slightly finer resolution than 110 mesh while still maintaining enough openness to prevent clogging or poor ink release.
What is the best all-purpose mesh count for t-shirt printing?
A 156/160 mesh count is considered the best general-purpose option for screen printing on garments. It works well with both plastisol and water-based inks, providing good detail retention while maintaining consistent ink coverage across most designs.
How can I achieve a soft-hand feel when printing with plastisol ink?
To create a softer print with plastisol ink, use a higher mesh count such as 196/200. This reduces the amount of ink deposited on the garment, resulting in a lighter, smoother feel. Keep in mind that higher mesh counts may reduce opacity, making this approach best for lighter fabrics or fashion prints.
What mesh count is ideal for halftones and fine detail printing?
A 230 mesh count is ideal for halftones, fine lines, and detailed artwork. It allows for precise stencil definition and clean ink transfer. For very fine detail or thinner inks, a 280 mesh count can further improve sharpness and control.
When should I use a 305 mesh screen for screen printing?
A 305 mesh count is best for ultra-fine detail, including small halftone dots, CMYK process printing, and simulated process designs. The higher thread count ensures accurate dot reproduction and prevents distortion, resulting in sharper, more professional prints.
