MiniTemp Portable Infrared Thermometer Gun

The MiniTemp™ IR thermometer Gun—a new way to solve common problems.

Infrared (IR) thermometers have become the preferred tool for diagnostics and inspection where temperature is an indicator. IR thermometers are valued by professionals in a variety of industries—from industrial maintenance to food service, because they quickly, accurately and safely measure surface temperature! Anywhere that temperature is a factor in process, product quality or diagnostics, a IR thermometer should be close at hand.

IR thermometers are easy to use, and since they do not contact the object being measured, they are the safest way to measure hot, hard-to-reach, or moving parts, while eliminating potential damage and contamination.

The MiniTemp thermometers incorporate many of the same features found in professional IR thermometers. The MiniTemp thermometer is perfect for auto enthusiasts performing self diagnostics and for those tackling home improvement projects. Use it for spotting costly energy losses around windows and doors, monitoring critical temperatures in kitchen or workshop, or ensuring the environment is comfortable and safe.

Just pull the trigger!

The MiniTemp thermometer shows the temperature in an instant on its large, backlit display. The simple to use MiniTemp thermometer becomes even easier to operate when aiming with the laser point.
The MiniTemp thermometer: Smart, Simple, Safe—Convenient!

• Simple to use
• Instant readings
• Laser Point (MT4)
• Large, easy to read display
• Temperature Range (MT4) -18º to 400ºC (0º to 750ºF)
• ºC or ºF selectable

Accuracy: -1°C (30°F) to 275°C (525°F) ±2% or ±2°C (±3.5°F) whichever is greater -18°C (0°F) to -1°C (30°F) ±3°C (±5°F)

Repeatability: ±2% of reading, or ±2°C (±3°F), whichever is greater

Response time: 500 mSec, 95% response

Spectral response: 7–18 μm

Emissivity: pre-set 0.95
Ambient operating range: 0 to 50°C (32 to 120°F)

Relative humidity: 10–95% RH noncondensing, @ up to 30°C (86°F)

Weight / Dimensions: 227 g (0.5 lb); 152 x 101 x 38 mm (6 x 4 x 1.5 in)

Power: 9V Alkaline or NiCd battery (included) - 12hrs Battery Life

Laser: Class II

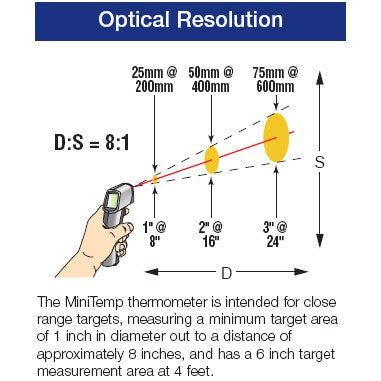

Distance to Spot Size:8:1

Typical Distance to Target (Spot): Up to 1.5m or 4 ft

Temperature Display: ºC or ºF selectable

Note:Using this infrared temperature gun can provide inconsistant result, depending on use. It is best to use this gun in conjunction with Lawson Thermo-Tel Temperature Tapes when checking for plastisol cure.
