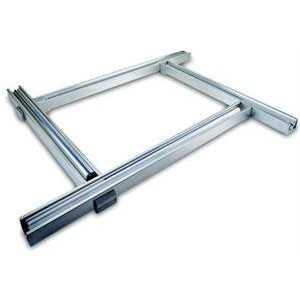

The Diamond Chase Tension-Quik™ is an easy-to-use adjustable screen stretching system, offering the most cost-effective way to achieve high tension levels. Four independent channels link together, allowing size adjustments in both directions. Each channel encloses a tension roller that ratchets clockwise to tension the mesh. The rollers feature a fabric-locking system to securely capture the mesh. Adjustable arms fit around your stretch-and-glue frame. To use, insert the mesh into the four rollers in the adjustable channels, tighten with the supplied tool, and glue it to your frame.

The frame channels are extruded in a standard-strength profile, with special-order heavy-duty and jumbo profiles available. The standard profile is recommended for most tensioning applications. The heavy-duty profile is recommended only for welded stretchers and welded frames over 60 inches. The jumbo profile is recommended for systems over 96 inches and is manufactured only as an adjustable stretcher.

The Keystone Nylon system (special order) uses a single tapered nylon rod that slides into the roller through the end of the frame channel. This system is ideal for large stretchers due to its pretensioning capability and easy corner-softening ability for all frame sizes. One locking rod handles most mesh counts, including wire meshes. An undersized black Keystone rod is available for very coarse meshes.

How to Order the Right Size

The outer dimension of your frame will match the inner dimension of the Tension Quik stretcher in inches. Top loading is assumed unless specified otherwise. Specify the Keystone system if desired.

How it Operates

The Tension-Quik is primarily manufactured as an adjustable screen stretcher for glue-on frames. Four independent channels link together allowing the unit to slide in and out, adjusting the size of the stretcher in both directions. The channels enclose a tensioning roller that ratchets in a clockwise rotation to tension the mesh. Each roller captures the fabric easily using either a Top Loading or Keystone fabric locking system.

The welded stretcher operates in the same manner as the adjustable unit, only the frame channels are welded to one specific size. This models is recommended only when one frame or similar frames sizes are being tensioned by the unit.

The Tension-Quik can also be manufactured as a printing frame. As a frame, the corners of the frame channels are mitered and fully welded. Guaranteed watertight.

The frame channels are extruded in a standard strength profile as well as a heavy duty and jumbo profile. The standard profile is recommended for most tensioning applications. The heavy duty is only recommended for weleded stretchers and welded frames over 60 inches. The jumbo profile is recommended for all systems over
96 inches and is only manufactured as an adjustable stretcher.

Locking Systems

The two locking systems available with the Tension-Quik are the Keystone Single Nylon and the Top Loading Double Nylon.

The Keystone Nylon system utilizes a single tapered nylon rod which slides into the roller through the end of the frame channel. This system is recommended for large stretchers because of its pre-tensioning ability. The advantage of this locking system is the easy corner softening ability for all frame sizes. One locking rod handles most all mesh counts, including wire meshes. Undersized black Keystone rod available for very coarse meshes.

The Top Loading system uses two round rods which are snapped into the roller with the assistance of a wheel type insertion tool. This systems allows for the fabric to be secured simply and evenly. The round nylon rods come in three color coded diameters to accommodate the various mesh thicknesses. The standard blue rods typically work with all meshes between 110 and 305 threads per inch.
