UV CURE Plus - UV Radiometer


/ Vendor: Lawson Screen & Digital Products

Regular price $1,696.20 USD
Regular price $0.00 USD Sale price $1,696.20 USD
Sale Sold out
Payment methods
  • American Express
  • Discover
  • Mastercard
  • Shop Pay
  • Visa

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Financing Options

Need to finance the UV CURE Plus - UV Radiometer? No problem! Visit our Financing Page for more details.

Got a question about this product?


UV Radiometer for testing UV light output for screen print/drying applications

  • Truly compact: 4.60" (117 mm) diameter
    - same as a CD!
  • Self-contained, battery powered
  • Total UV energy density, Joules/cm2
  • Peak UV irradiance, Watts/cm2
  • UV ranges - choice of UVA, UVB, UVC, UVV
  • Low battery indicator
  • User replaceable lithium batteries
  • Measure UV curing system performance
  • Determine UV lamp efficiency
  • Establish UV level for proper curing
  • Meet ISO 9000 requirements

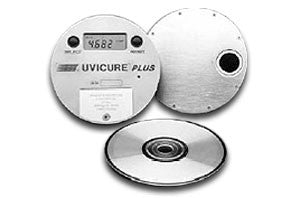

Screen Printing UV Cure Plus RadiometerThe UVICURE Plus is a self-contained, electro-optic instrument designed to measure and display peak UV irradiance and total UV energy density applied to a workpiece in a UV curing system. The UVICURE Plus has a unique compact design, only 4.60 inches in diameter and 1/2 inch high, which allows it to be placed directly in most curing environments. The instrument operates successfully in the extremes of UV and thermal radiation often encountered in UV curing systems.

A carefully designed optical sensing system measures total UV dosage in a particular bandwidth. The output is converted to a digital form and then displayed on the LCD. Total UV energy density, measured in Joules/cm2, is the result of the integrated irradiance during exposure time. It is how much actual UV energy was impinged on the unit from the time it encountered UV until the time the UV source was removed. The UVICURE Plus also has the distinct advantage of being able to monitor the peak irradiance in Watts/cm2. This allows the operator to determine not only the total energy density, but also how that energy density is delivered; i.e., at what irradiance.
