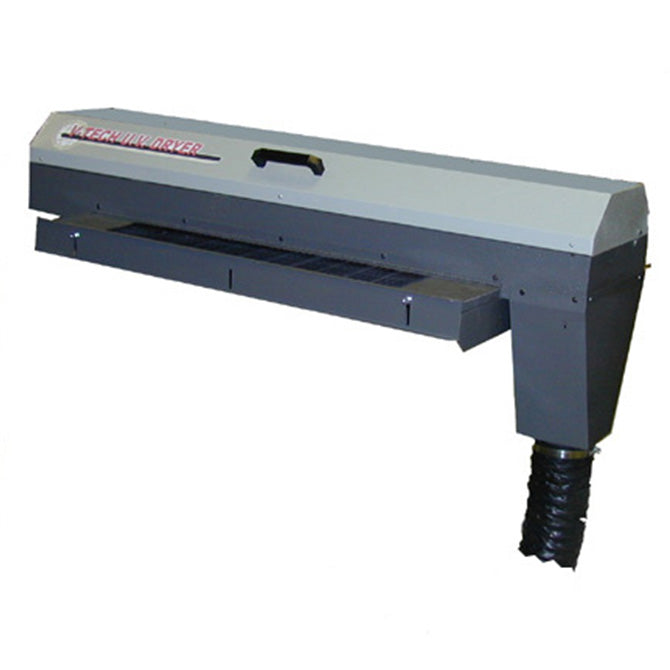

V-Tech Retro-Fit Ultra-Violet Curing Kit

V-Tech Retro-Fit Ultra-Violet Curing Kit

LWG - Lawson Workhorse Group

SKU:

Get a Quote / Contact Sales
×

Got a question about V-Tech Retro-Fit Ultra-Violet Curing Kit?

Payment & Security

Payment Methods Accepted

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Financing Options

Need to finance the V-Tech Retro-Fit Ultra-Violet Curing Kit? No problem! Visit our Financing Page for more details.

Got a question about this product?

Questions & Answers

Can the V-Tech Retro-Fit Kit be installed on non-Lawson dryers?
Yes. The V-Tech Retro-Fit Kit is custom manufactured to meet exact dimensions and electrical specifications, allowing it to be mounted onto almost any brand or model of conveyor dryer on the market.

What components are included in the retro-fit kit?
Each system includes three primary components: the ultra-violet power supply, a vacuum recovery and exhaust pan assembly, and the ultra-violet curing lamp and head unit.

Why add UV curing capability to an existing conveyor dryer?
Retrofitting your existing dryer allows you to expand into printing UV-curable inks, specialty clear coats, solder masks, and adhesives without committing capital or floor space to a separate standalone conveyor system.

How do I get a custom quote for my specific dryer model?
Because every retrofit system is custom built to fit your current dryer frame width, belt clearance, and electrical setup, you can contact our technical sales team directly to discuss your machine's dimensions and specs.

View full details
Jump to: Description The LWG Difference Features Specifications Table Comparison Table

Description

Transform your existing screen printing conveyor dryer into an advanced ultraviolet curing system with the V-Tech Retro-Fit Ultra-Violet Curing Kit. Custom engineered for commercial print shops, industrial decorators, and specialty manufacturers in St. Louis, Atlanta, and across North America, this modular upgrade kit allows you to add high-performance UV curing to almost any brand or model of conveyor dryer. Complete with an ultra-violet power supply, vacuum recovery and exhaust pan, and UV lamp head assembly, the V-Tech Retro-Fit Kit expands your shop's capabilities to handle UV inks, clear coats, and specialty adhesives without purchasing a standalone unit.

Transform your existing screen printing conveyor dryer into an advanced ultraviolet curing system with the V-Tech Retro-Fit Ultra-Violet Curing Kit. Custom engineered for commercial print shops, industrial decorators, and specialty manufacturers in St. Louis, Atlanta, and across North America, this modular upgrade kit allows you to add high-performance UV curing to almost any brand or model of conveyor dryer. Complete with an ultra-violet power supply, vacuum recovery and exhaust pan, and UV lamp head assembly, the V-Tech Retro-Fit Kit expands your shop's capabilities to handle UV inks, clear coats, and specialty adhesives without purchasing a standalone unit.

The LWG Difference

  • Local Fast Pickup & Demo Centers: Collect equipment in as little as 1 hour from corporate distribution hubs in St. Louis, MO (5110 Penrose St) or Atlanta / Marietta, GA (1147 Cobb Industrial Dr).
  • Turnkey On-Site Technician Installation: Professional domestic technician support available for assembly, custom retrofit fitting, calibration, and hands-on team instruction.
  • Comprehensive In-House Support: Direct access to factory-trained technicians and ongoing technical support across the Midwest and Southeast.
  • Flexible Financing Solutions: Accessible capital preservation through customizable commercial financing and low monthly payment plans tailored for growing print businesses.
  • Local Fast Pickup & Demo Centers: Collect equipment in as little as 1 hour from corporate distribution hubs in St. Louis, MO (5110 Penrose St) or Atlanta / Marietta, GA (1147 Cobb Industrial Dr).
  • Turnkey On-Site Technician Installation: Professional domestic technician support available for assembly, custom retrofit fitting, calibration, and hands-on team instruction.
  • Comprehensive In-House Support: Direct access to factory-trained technicians and ongoing technical support across the Midwest and Southeast.
  • Flexible Financing Solutions: Accessible capital preservation through customizable commercial financing and low monthly payment plans tailored for growing print businesses.

Features

  • Universal Dryer Compatibility: Custom manufactured to adapt to virtually any brand, width, or style of existing text or graphic conveyor dryer.
  • Complete Retrofit Package: Includes a dedicated UV power supply module, vacuum recovery/exhaust pan, and heavy-duty UV lamp head assembly for seamless integration.
  • Instant UV Ink Curing: Enables rapid, high-speed curing of UV-curable screen inks, clear overprint varnishes, solder masks, and specialty industrial adhesives.
  • Vacuum Hold-Down Integration: Integrated vacuum recovery pan prevents lightweight substrates, heat-sensitive films, and paper stock from shifting during conveyor transit.
  • Cost-Effective Upgrade: Expands production capabilities and material versatility at a fraction of the cost of buying a new industrial UV conveyor dryer.


*Shipping & Repair: Free ground shipping on parts; no charge labor for items sent back to St. Louis for repair or replacement
*Notice: Price, design, and technical specifications subject to change without notice

  • Universal Dryer Compatibility: Custom manufactured to adapt to virtually any brand, width, or style of existing text or graphic conveyor dryer.
  • Complete Retrofit Package: Includes a dedicated UV power supply module, vacuum recovery/exhaust pan, and heavy-duty UV lamp head assembly for seamless integration.
  • Instant UV Ink Curing: Enables rapid, high-speed curing of UV-curable screen inks, clear overprint varnishes, solder masks, and specialty industrial adhesives.
  • Vacuum Hold-Down Integration: Integrated vacuum recovery pan prevents lightweight substrates, heat-sensitive films, and paper stock from shifting during conveyor transit.
  • Cost-Effective Upgrade: Expands production capabilities and material versatility at a fraction of the cost of buying a new industrial UV conveyor dryer.


*Shipping & Repair: Free ground shipping on parts; no charge labor for items sent back to St. Louis for repair or replacement
*Notice: Price, design, and technical specifications subject to change without notice

Specifications Table

Model 2410 3610 4810 6010
Overall Length 10' 10' 10' 10'
Overall Width 45" 57" 69" 81"
Belt Width 24" 36" 48" 60"
In-Feed 4' 4' 4' 4'
Out-Feed 3' 3' 3' 3'
Belt Height 33" 33" 33" 33"
Max. Bulb Wattage 8,520 12,500 15,840 19,800
AMPS: 220 volt, Single Phase, 3 wires + grnd 50 68 83 103

Comparison Table

Capability / Spec V Tech Retro Fit UV Curing Kit v tech lab unit v tech uv graphic conveyor dryer
Primary Application Retrofitting existing conveyor dryers with UV curing capability Ink R&D, color matching, lab testing & novelty items High-volume full-format graphic screen printing
Equipment Format Add-on module kit (Power supply, exhaust pan, UV lamp head) Ultra-compact benchtop/portable unit Complete floor-standing industrial conveyor unit
Footprint Requirements Utilizes existing dryer footprint Benchtop / Tabletop footprint Dedicated industrial floor space
Substrate Handling Uses existing conveyor belt & system 6" or 12" Teflon mesh belt included Full-width industrial conveyor belt included
Customization Built to exact custom dryer specifications Fixed standard configurations (6"x30" or 12"x60") Standard production belt widths (24", 36", 48", 60")
