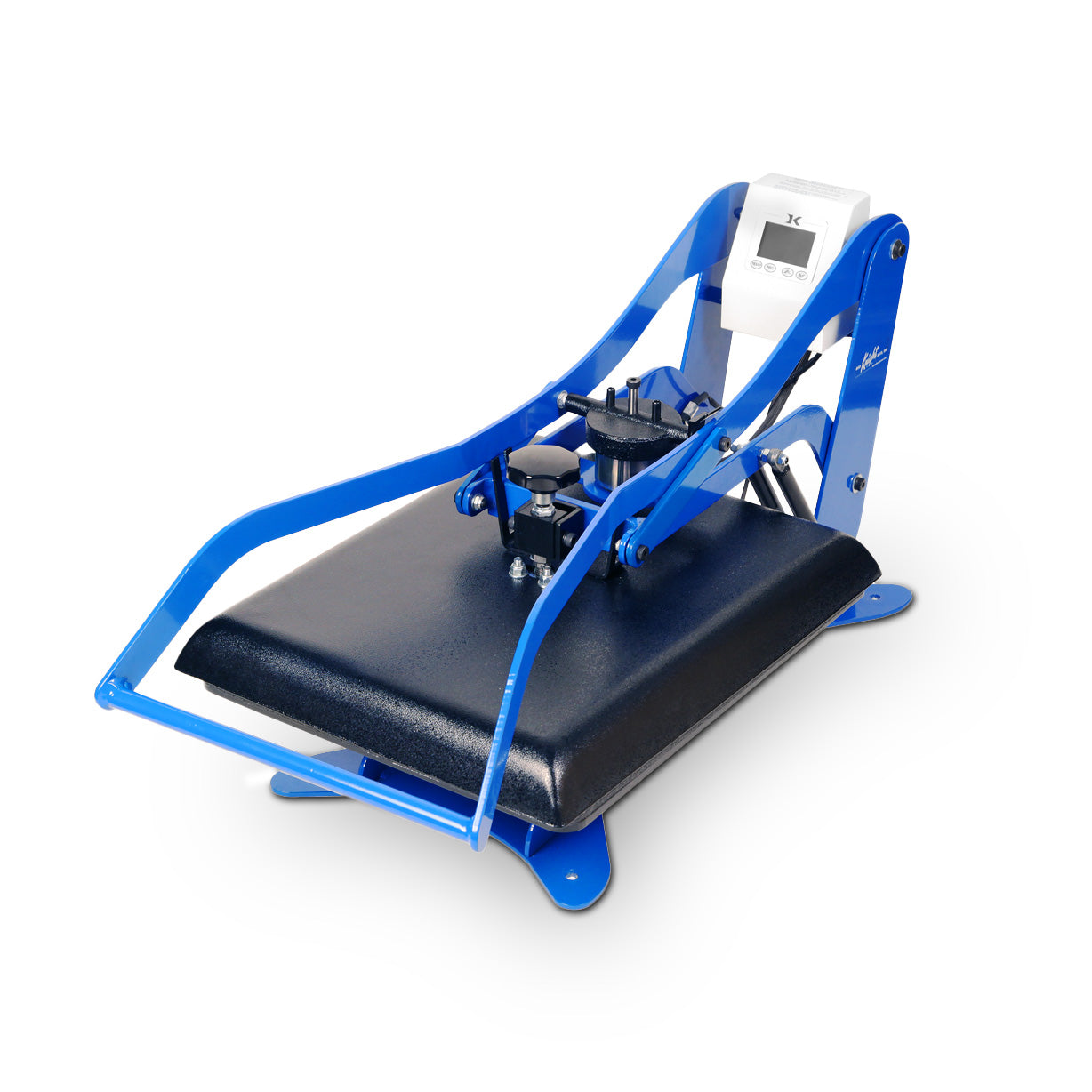

• DK20 Geo. Knight Heat Transfer Digital Clamshell Press 16" x 20"
1 1

DK16 Geo. Knight Heat Transfer Digital Clamshell Press 14" x 16"

DK16 Geo. Knight Heat Transfer Digital Clamshell Press 14" x 16"

Geo. Knight

SKU:

$1,275.00 USD
$0.00 USD $1,275.00 USD
Sale Sold out

Shipping Fees Not Included in Price

Shipping and Crating fees (if applicable) are not included in price shown and will not be reflected in your order total. Lawson will contact you after order completion with a shipping cost.

Payment & Security

Payment Methods Accepted

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Financing Options

Need to finance the DK16 Geo. Knight Heat Transfer Digital Clamshell Press 14" x 16"? No problem! Visit our Financing Page for more details.

Got a question about this product?

View full details

Description

Looking for an industrial-strength, mid-sized heat press that combines high-pressure clamping with space-saving portability? The DK16 Geo. Knight Heat Transfer Digital Clamshell Press 14" x 16" (Model DK16) is an American-made commercial workhorse engineered by Geo. Knight & Co. Designed for reliable custom apparel production, this press features a mid-sized 14" x 16" Teflon-coated platen that opens wide for rapid manual operation and easy garment loading.

The core production advantage of the Digital Knight DK16 lies in its ultra-heavy framework and superior thermal management. Built with a solid steel framework that resists flexing under high clamping pressure, it utilizes patented SuperCoil-Microwinding™ heater technology inside a 3/4" thick heat platen assembly. This guarantees complete edge-to-edge temperature uniformity with zero cold spots up to 500°F. Highly optimized for applying Direct-to-Film (DTF) transfers, heat transfer vinyl (HTV), screen-printed transfers, sublimation blanks, and patches, its open-access framework permits operators to easily "dress" garments over the lower platen to isolate print areas from seams and collars.

Equipped with an advanced digital controller storing 70 programmable presets, a digital pressure bar graph, and dual pre-press timers, this 83 lb portable powerhouse brings retail-ready precision and long-term durability to compact print shops and mobile event setups.

The LWG Difference

When you source commercial heat presses and decorating equipment from Lawson Workhorse Group (LWG), you get far more than hardware—you gain an industry-leading technical partner backed by decades of screen printing and digital decorating expertise. Your investment is supported by our primary headquarters in St. Louis, MO, and our regional hub in Atlanta / Marietta, GA, alongside satellite technical support centers in Phoenix, Orlando, and Des Moines. From setup guidance to long-term replacement parts, LWG ensures your shop maintains maximum uptime and operational efficiency.

Features

  • Mid-Sized 14" x 16" Work Surface: Perfectly proportioned for standard t-shirt graphics, youth apparel, hoodies, tote bags, and sports apparel.
  • SuperCoil-Microwinding™ Heating System: 3/4" thick Teflon-coated upper platen features densely wrapped heating coils to ensure total thermal accuracy.
  • Wide-Opening Clamshell Design: High-peak opening angle gives operators generous clearance for loading garments without touching the upper heat platen.
  • Gas Shock Assistance: High-grade gas struts assist lifting and clamping, making manual operation smooth and fatigue-free.
  • Threadable Pedestal Framework: Elevated table design permits garments to slide cleanly around the lower platen to eliminate seam interference.
  • 70 Programmable Memory Presets: Advanced Digital Knight controller stores up to 70 custom time, temp, and pre-press settings for instant recall.

Specifications Table

MODEL / SPECIFICATION | DETAILS
Model Name | Geo. Knight DK16 Digital Clamshell Press
Manufacturer | Geo. Knight & Co.
SKU / Barcode | 716-103-1-EA / DK16
Platen Dimensions | 14" x 16" Teflon-Coated Work Surface
Operating Style | Manual Clamshell Movement
Substrate Clearance | Handles Items Up to 0.75" Thick
Temperature Range | Up to 500°F (260°C)
Control System | Digital Microprocessor with 70 Presets
Electrical Requirements | 120V / 1500W / 13A (Standard Outlet)
Product Weight | 83.0 lbs
Primary HQ Hub | St. Louis, MO (Penrose St)
Regional Service Hubs | Atlanta/Marietta (GA), Phoenix (AZ), Orlando (FL), Des Moines (IA)

Comparison Table

FEATURE / SPEC | GEO. KNIGHT DK16 MANUAL CLAMSHELL | automatic-digital-combo-14-x-16-swing-away-press
Operating Movement | Standard Manual Clamshell Lift & Clamp | Electromagnetic Auto Pop-Up Release
Release Mechanism | Fully Manual Lever Release | Automatic Disengage at Countdown Zero
Special Pressing Modes | Standard Clamping | Integrated HOVER Setting Included
Platen Dimensions | 14" x 16" Mid-Size Work Platen | 14" x 16" Mid-Size Work Platen
Electrical Draw | 120V / 1500W / 13A | 120V / 1500W / 13A
Machine Weight | 83 lbs Countertop Frame | 83 lbs Auto-Release Frame
Regional Support Network | LWG Support Hubs (St. Louis, GA, etc.) | LWG Support Hubs (St. Louis, GA, etc.)

Questions & Answers

Where can I buy or pick up the Geo. Knight DK16 Clamshell Press locally?
You can place your order online and choose convenient local pickup at either the Lawson Screen & Digital Products headquarters in St. Louis, MO, or our Atlanta branch in Marietta, GA. Pickup coordination can also be arranged through satellite technical support centers in Phoenix, Orlando, and Des Moines.

2. Does the Geo. Knight DK16 require an air compressor?
No. The DK16 is a manual clamshell heat press that utilizes mechanical leverage and gas struts to clamp and open, operating strictly on standard 120V electrical power without an air compressor.

Can I upgrade the DK16 to an automatic pop-up press later?
Yes! Geo. Knight offers an optional Auto Release Pop-Up Upgrade Kit that converts your manual DK16 into an automatic pop-up press with an electromagnetic release and HOVER capability.

How does the SuperCoil-Microwinding™ heat platen improve transfer results?
Unlike standard heat presses that experience cold spots around the edges, the SuperCoil-Microwinding™ heater wraps densely across the entire upper platen. This ensures complete edge-to-edge thermal accuracy to prevent under-cured transfers and peeling.

What transfers can I apply with the Digital Knight DK16?
The DK16 handles all standard commercial decorating applications, including Direct-to-Film (DTF) transfers, heat transfer vinyl (HTV), screen-printed transfers, laser toner transfers, dye sublimation, and embroidered patches.
