• DK20 Geo. Knight Heat Transfer Digital Clamshell Press 16" x 20"
  • DK20 Geo. Knight Heat Transfer Digital Clamshell Press 16" x 20"
1 2

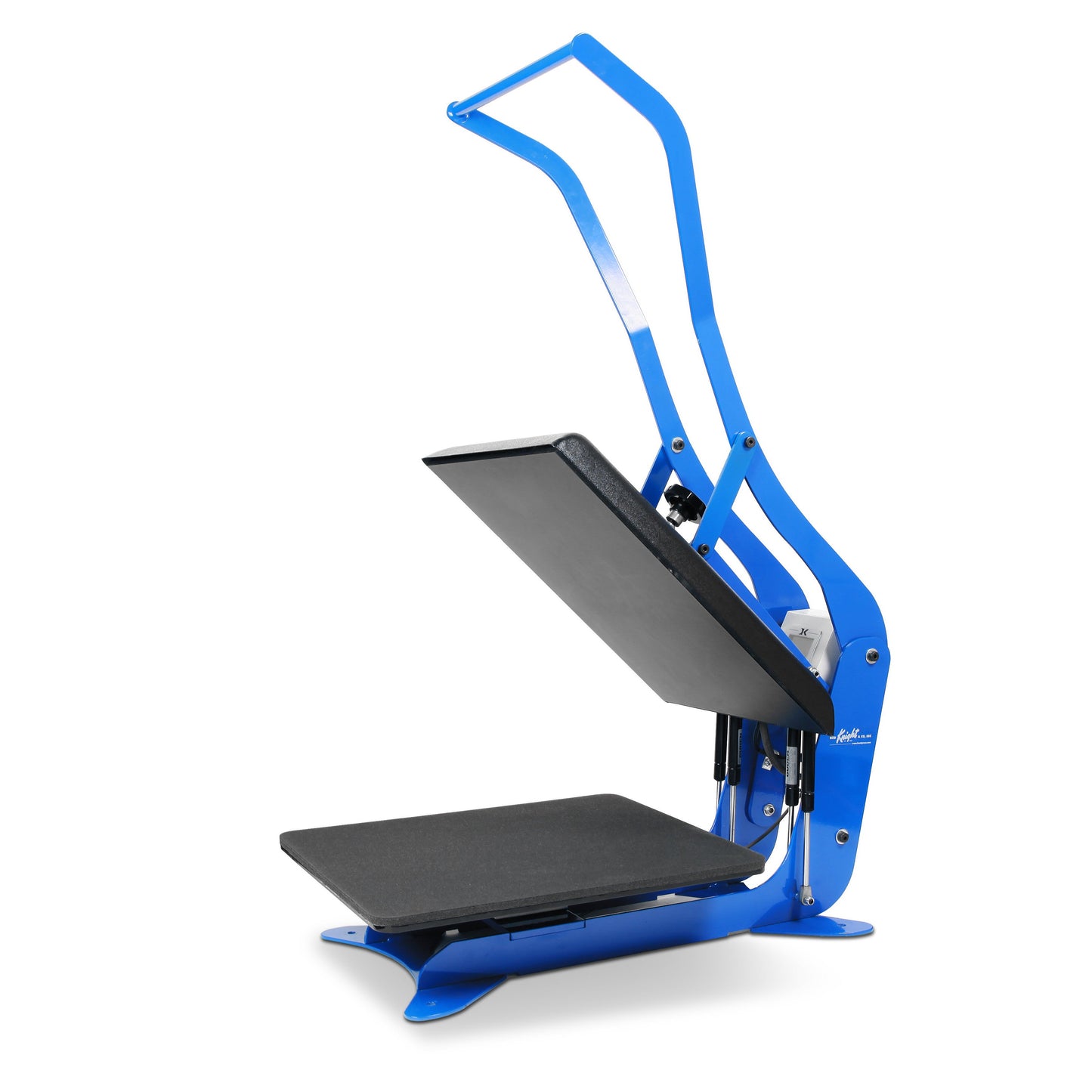

DK20 Geo. Knight Heat Transfer Digital Clamshell Press 16" x 20"

DK20 Geo. Knight Heat Transfer Digital Clamshell Press 16" x 20"

Geo. Knight

SKU:

$1,450.00 USD
$0.00 USD $1,450.00 USD
Sale Sold out

Shipping Fees Not Included in Price

Shipping and Crating fees (if applicable) are not included in price shown and will not be reflected in your order total. Lawson will contact you after order completion with a shipping cost.

Payment & Security

Payment Methods Accepted

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Financing Options

Need to finance the DK20 Geo. Knight Heat Transfer Digital Clamshell Press 16" x 20"? No problem! Visit our Financing Page for more details.

Got a question about this product?

Questions & Answers

Where can I buy or pick up the Geo. Knight DK20 Clamshell Press locally?

You can securely place your order online and choose convenient local pickup at either the Lawson Screen & Digital Products corporate headquarters in St. Louis, MO (Penrose Street) or our Atlanta area branch in Marietta, GA (Cobb Industrial Drive). Local pickup can also be coordinated through our satellite offices in Phoenix, Orlando, and Des Moines.

What makes the DK20 clamshell design better than cheap alternative presses?

Most standard clamshell units pinch at a sharp angle, leaving your hands perilously close to the upper heater. The DK20 features a high-opening frame where the back of the platen lifts vertically away from the table. This provides maximum hand clearance, better visibility, and applies much more direct downward vertical pressure than budget models.

Can the lower platens be swapped or rotated on this machine?

Yes! The DK20 features an adaptive frame that accommodates the Geo Knight DC Drop-On Tables. Using a quick-change pull-pin assembly, you can effortlessly swap out the standard 16" x 20" lower table for smaller, specialized forms (like youth, sleeve, or pocket platens) without tools. Furthermore, the base table is fully rotatable, allowing you to thread garments from the front or the back seamlessly.

Can I upgrade the manual DK20 to an auto-open press later on?

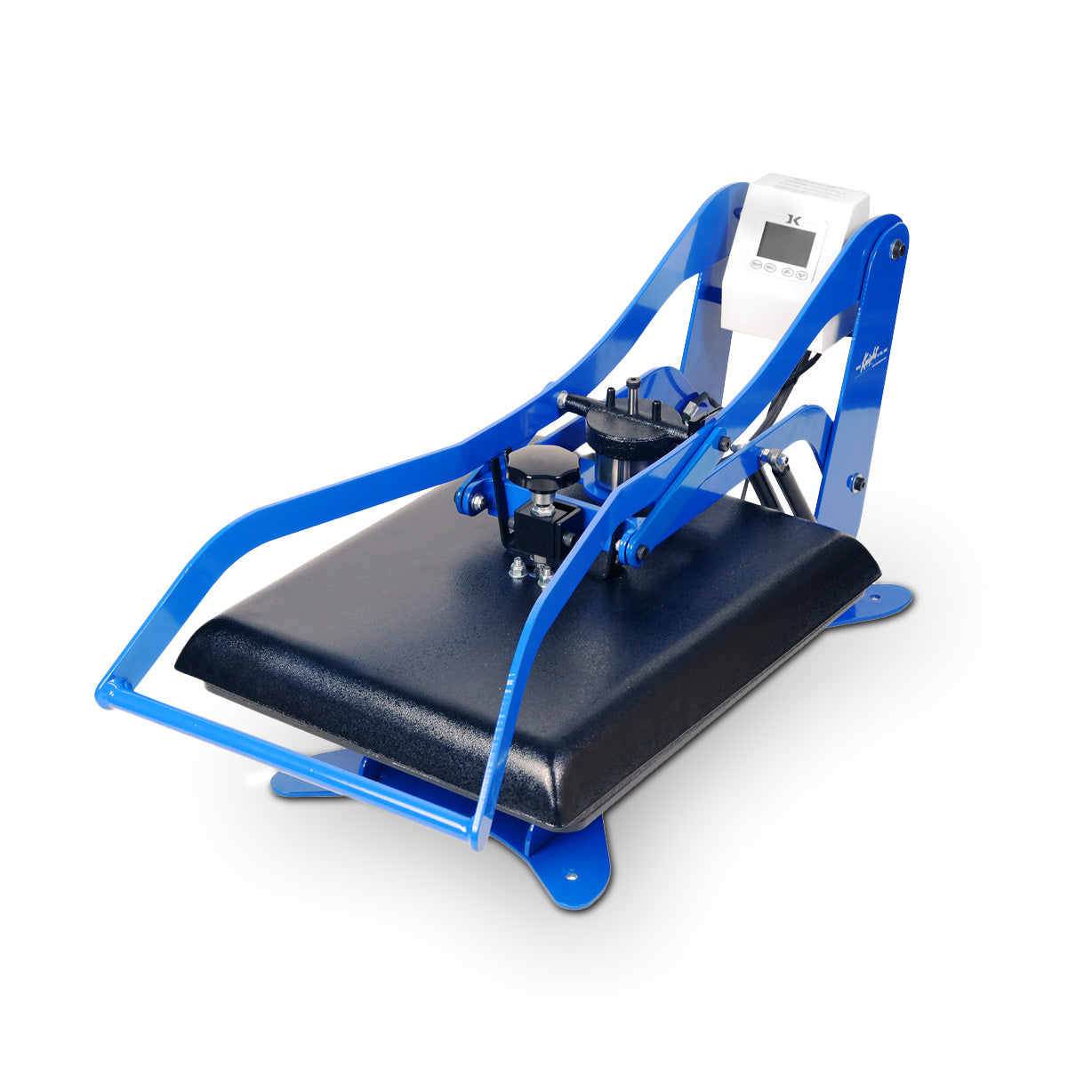

Yes! One of the most unique aspects of the DK20 is its modular upgradability. If your production demands grow, you can purchase the separate Auto Release Pop-Up Upgrade. This factory or user-installed electromagnetic kit transforms your manual press into a semi-automatic machine that automatically pops open via dual gas shocks at the end of the digital timer.

What are the technical utility and sizing specs for the DK20?

The manual DK20 operates on a heavy-duty 110V / 15A / 1800W electrical current, meaning it pulls safely from standard dedicated shop lines. It features a portable machine weight of 103 lbs, ships in a box measuring 39"L x 20"W x 20"H, and tracks temperatures up to 600°F with a digital accuracy of ±2°F.

What kind of manufacturer warranty protection is included?

Built to withstand decades of high-volume print shop usage, this machine comes backed by Geo. Knight’s premier warranty tier:

  • Lifetime Warranty on the Teflon-coated heat platen.
  • 5-Year Warranty on the welded solid steel frame.
  • 3-Year Warranty on the digital control circuitry.
  • 1-Year Warranty on parts, alongside FREE Lifetime Technical Support through Lawson and the manufacturer.

Can I finance the Geo. Knight DK20 Heat Press through Lawson?

Yes! If you are launching a new direct-to-film setup, bundling your press with a custom vinyl cutter, or stocking up on custom transfer sheets, commercial equipment financing options are available to protect your working capital. You can apply quickly and securely via our dedicated Lawson financing page.

View full details
  • DESCRIPTION

Looking for a commercial-grade, heavy-duty t-shirt press that delivers large-format production power without overwhelming your cramped workshop or mobile setup? The Geo. Knight DK20 Heat Transfer Digital Clamshell Press 16" x 20" is an industrial-strength flagship clamshell machine manufactured by Geo. Knight & Co. Engineering the ultimate combination of high-pressure capability and space-saving utility, this USA-made machine features a massive 16" x 20" heat platen that stands as the absolute largest flat clamshell option in the legendary Digital Knight lineup.

The core production advantage of the Digital Knight DK20 lies in its intelligently engineered frame geometry. Unlike standard entry-level clamshell presses that pinch tightly at a narrow angle, the back of the DK20's upper platen pulls significantly higher up and further away from the lower bed. This specialized configuration provides wide-open manual access to lay down layouts safely. Built with an elevated pedestal frame structure, the press gives operators full Threadability™, allowing you to smoothly slide garments over the table from either the front or back with complete drape space underneath. Highly optimized for applying large batches of DTF transfers, screen printed transfers, heat transfer vinyl (HTV), and sublimation blanks, it features a 3/4" thick Teflon-coated platen utilizing SuperCoil-Microwinding™ heater technology for flawless, edge-to-edge heat uniformity.

Weighing in at a highly portable 103 lbs, this solid steel framework utilizes a self-lifting gas-spring shock for effortless manual operation, allowing small storefronts, home studios, and live-printing pop-up operations to pump out retail-ready custom apparel cleanly.

📍 Local Pickup Available: Skip the shipping fees! In-store local pickup is available at our St. Louis, MO (HQ) and Atlanta / Marietta, GA hubs. If the item is in stock, your order can be ready in as little as 1 hour—simply check local availability or contact us to confirm before heading over.
