ScreenPRO 600 CTS Imaging System

ScreenPRO 600 CTS Imaging System

Advanced Inkjet Technology

SKU:

Get a Quote / Contact Sales
×

Got a question about ScreenPRO 600 CTS Imaging System?

Payment & Security

Payment Methods Accepted

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shipping, Crating, and Packaging Fees

Additional Shipping & Crating Fees

Lawson made equipment comes with a Shipping and Crating Charge that is not included in the price shown and will not be reflected in your order's total. We will contact you after order completion with a final cost.

Download Product's PDF Brochure

Financing Options

Need to finance the ScreenPRO 600 CTS Imaging System? No problem! Visit our Financing Page for more details.

Got a question about this product?

Questions & Answers

Q: Does the ScreenPRO 600 require a separate exposure unit?
A: No, the ScreenPRO 600 includes an integrated exposure system (light bar) that allows you to image and expose screens simultaneously in a single step.

Q: What print resolution does the ScreenPRO 600 CTS achieve?
A: The system achieves resolutions up to 1440 x 1200 dpi, delivering sharp halftone dot reproduction and crisp detail for complex screen printing graphics.

Q: What software is included with the ScreenPRO 600?

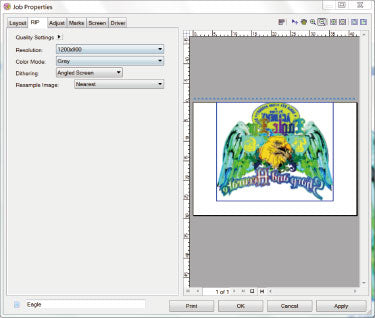

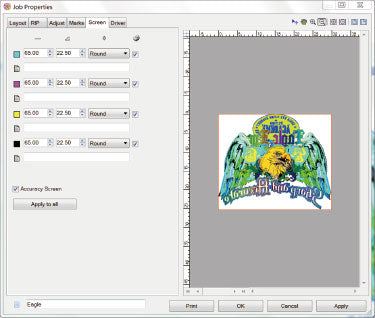

A: The package includes ColorPrint Server RIP, Print Production Screen Software (PPS), and Printer Control Software (PCS) for job setup and workflow management.

Q: Where can I get service, parts, and technical support for the ScreenPRO 600?
A: Full technical support, factory training, equipment assembly, and direct replacement parts are provided through LWG.

View full details
Jump to: Description The LWG Difference Features Media & Videos Specifications Table Comparison Table

Description

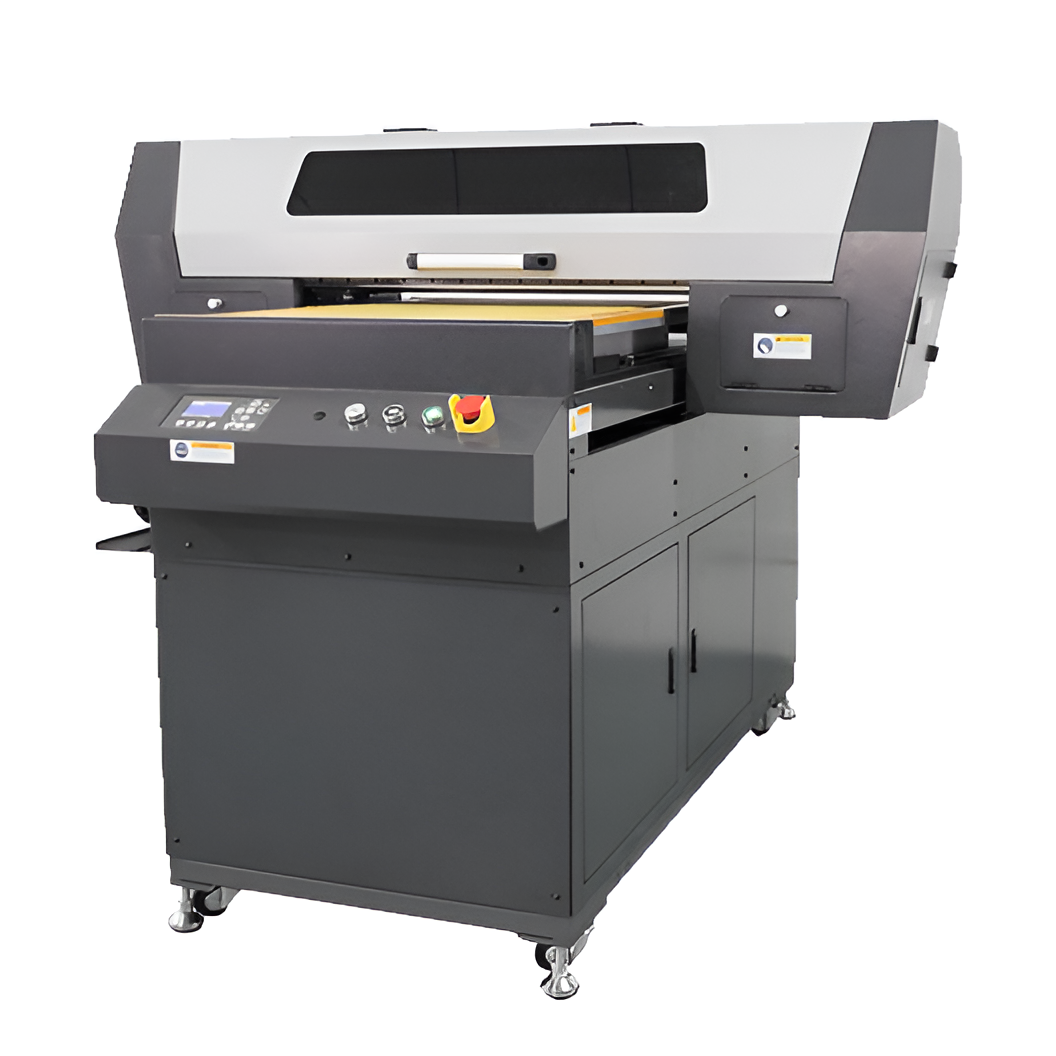

The ScreenPRO 600 CTS Imaging System is an advanced Computer-to-Screen (CTS) imaging system with an integrated light bar exposure unit that allows screen printers to image and expose emulsion-coated screens simultaneously. Utilizing high-resolution DOD piezoelectric inkjet printhead technology, this unit prints UV-blocking ink directly onto the mesh at up to 1440 x 1200 dpi resolution. Built to eliminate traditional film positives, the ScreenPRO 600 streamlines prepress touchpoints, dramatically lowers material costs, and delivers fast on-press registration for multi-color jobs.

The ScreenPRO 600 CTS Imaging System is an advanced Computer-to-Screen (CTS) imaging system with an integrated light bar exposure unit that allows screen printers to image and expose emulsion-coated screens simultaneously. Utilizing high-resolution DOD piezoelectric inkjet printhead technology, this unit prints UV-blocking ink directly onto the mesh at up to 1440 x 1200 dpi resolution. Built to eliminate traditional film positives, the ScreenPRO 600 streamlines prepress touchpoints, dramatically lowers material costs, and delivers fast on-press registration for multi-color jobs.

The LWG Difference

  • Integrated Simultaneous Exposure: Built-in light bar exposes the screen while imaging, reducing screen handling steps and boosting pre-press workflow speed.
  • High-Resolution Inkjet Output: Operates at up to 1440 x 1200 dpi to reproduce fine detail, crisp text, and smooth halftone dots without vacuum glass distortion.
  • US-Based Assembly & Support: Assembled, supported, and serviced directly in the USA with complete access to factory-trained technicians and support resources.
  • Direct Factory Backup: Backed directly by LWG with installation assistance, operator training, RIP software support, and direct replacement parts.

  • Integrated Simultaneous Exposure: Built-in light bar exposes the screen while imaging, reducing screen handling steps and boosting pre-press workflow speed.
  • High-Resolution Inkjet Output: Operates at up to 1440 x 1200 dpi to reproduce fine detail, crisp text, and smooth halftone dots without vacuum glass distortion.
  • US-Based Assembly & Support: Assembled, supported, and serviced directly in the USA with complete access to factory-trained technicians and support resources.
  • Direct Factory Backup: Backed directly by LWG with installation assistance, operator training, RIP software support, and direct replacement parts.

Features

  • All-Inclusive Pre-Press Package: Includes the ScreenPRO 600 CTS printer, ColorPrint Server RIP, Print Production Screen Software (PPS), and Printer Control Software (PCS).
  • 1-Liter Bulk Ink System: UV-blocking bulk ink system ensures continuous, long-run production with lower ink costs.
  • Variable Droplet Control: Piezoelectric printhead features automated voltage and temperature control for stable ink droplet placement.
  • Wide File Format Compatibility: Seamlessly processes PDF, EPS, PS, TIFF, and PSD graphic files from standard artwork applications.
  • Robust Industrial Frame: Heavy-duty chassis built to handle continuous daily use in high-volume screen production environments.

  • All-Inclusive Pre-Press Package: Includes the ScreenPRO 600 CTS printer, ColorPrint Server RIP, Print Production Screen Software (PPS), and Printer Control Software (PCS).
  • 1-Liter Bulk Ink System: UV-blocking bulk ink system ensures continuous, long-run production with lower ink costs.
  • Variable Droplet Control: Piezoelectric printhead features automated voltage and temperature control for stable ink droplet placement.
  • Wide File Format Compatibility: Seamlessly processes PDF, EPS, PS, TIFF, and PSD graphic files from standard artwork applications.
  • Robust Industrial Frame: Heavy-duty chassis built to handle continuous daily use in high-volume screen production environments.

Media & Videos

Specifications Table

Specifications Description
Print Technology DOD piezoelectric inkjet print technology
Print Head 600 DPI piezo print head
Print Resolution (Recommended) 1440 x 1200 dpi
Max Image Size 20" W x 26" D
Max Screen Size 25" x 36" OD
Print Head Control Variable droplet size with automatic voltage and temperature control
Ink UV blocking; 1L bulk ink system
Software ColorPrint Server RIP; Print Production Screen Software (PPS); Printer Control Software (PCS)
File Format Options PDF, EPS, PS, TIFF, PSD
Power Requirements 1-Phase, 220 volt, Approx. 10 Amps
Est. Printer Dimensions 60" W x 67" D x 53" H

Comparison Table

Feature / Metric ScreenPRO 600 CTS Imaging System screenpro 300 computer to screen cts imaging system Traditional Film Positive Process
Exposure System Integrated Light Bar (Simultaneous Exposure) Secondary UV Exposure Table Required Separate UV Vacuum Exposure Unit
Max Image Size 20" W x 26" D 21" W x 27" D Varies by Film & Exposure Frame Size
Printhead System 600 DPI Piezo Print Head Single Ricoh GEN4 Industrial Head Wide-Format Film Inkjet Printer
Film Consumables Zero Film Positives Required Zero Film Positives Required Requires Constant Film & Taping
Pre-Press Touchpoints Single-Step Image & Expose Two-Step Image then Expose Multi-Step Print, Dry, Tape & Expose
Target Shop Level Production Shops Seeking High Automation Commercial Pre-Press Screen Rooms Traditional Manual or Entry-Level Facilities
