Lawson Expert 1000 Spot Cleaning Gun

Lawson Expert 1000 Spot Cleaning Gun | Removes Unwanted Plastisol

This Expert 1000 Screen Printing Spot Cleaning Gun removes unwanted plastisol ink from t-shirts and other garments. The Spot Cleaning Gun is preset at the factory and adjustments are generally not required. It is a high quality spot cleaning gun that is perfect for light to moderate duty applications.

Features:

• All metal housing
• Powerful pinpoint stream
• Brass pump cylinder
• Large capacity canister

CAUTION: This plastisol ink gun builds up considerable pressure. Never point the gun at yourself or other persons, as this may cause injury.

OPERATING INSTRUCTIONS
Use with a vacuum exhaust system to remove solvent vapors. Place stain fabric on cleaning buck (arm or spot cleaning station). Turn the adjustable nozzle to a position that is strong enough to shoot out the stain yet not so concentrated as to damage the fabric. Hold gun 6-10 inches from the fabric, starting from the outside of the stain working inwards shoot out the stain. Immediately afterwards "feather" the stain by turning the nozzle to a fine mist setting and spray around the area of the removed stain. This will reduce the "rings" that can sometimes form on some fabrics. Allow fabric to air dry or speed dry with vacuum system and/or compressed air.

To Begin Use: Remove the container, fill with fluid (about 2/3 full) and replace. Plug into 110V 60 Hz outlet. Depress switch for 15-20 seconds to prime pump. Spray fluid onto scrap fabric to remove oil film from internal pump parts. Spray gun is now ready for use.

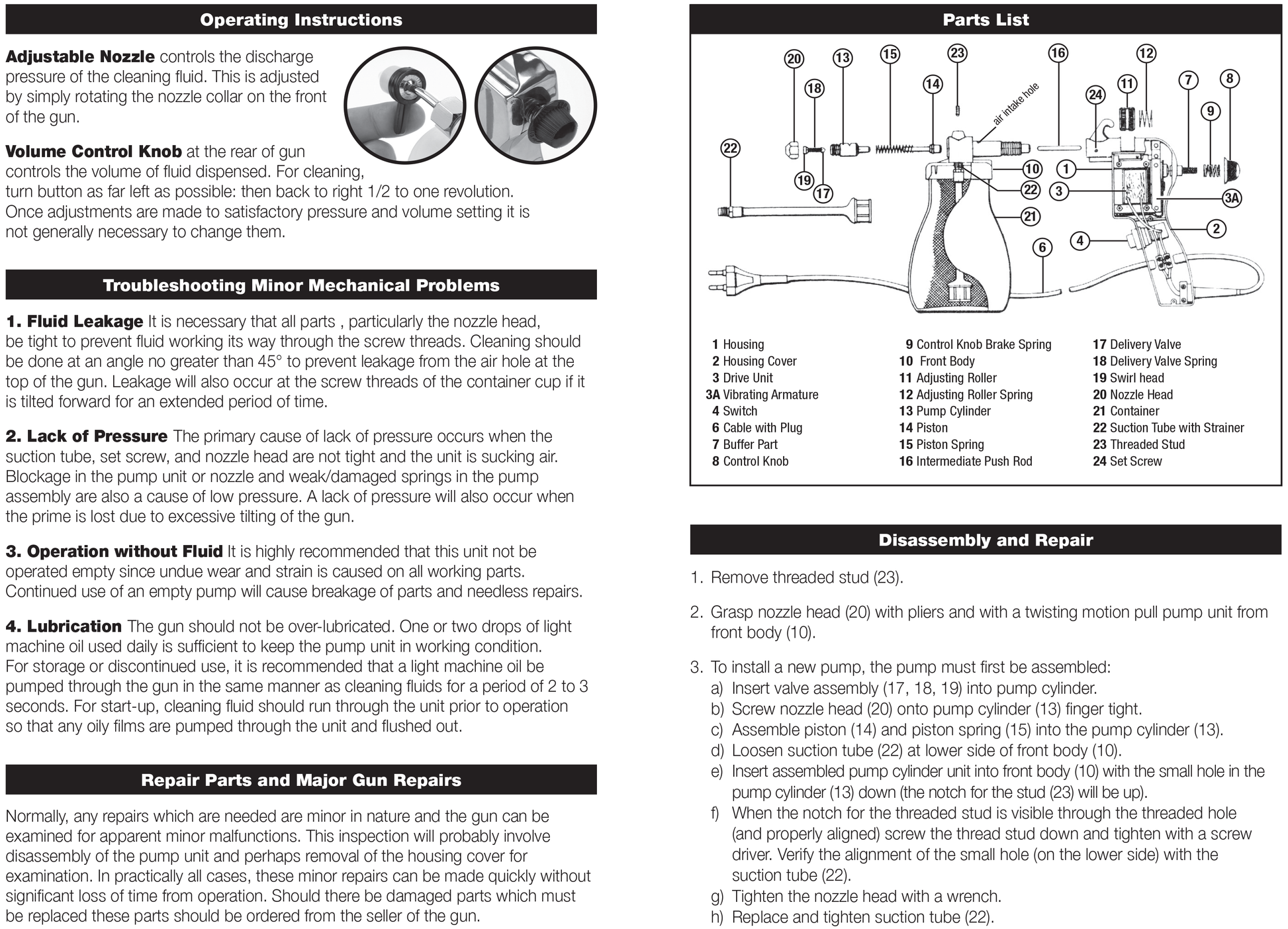

Adjustable Nozzle controls the discharge pressure of the cleaning fluid. This is adjusted by simply rotating the nozzle collar on the front of the gun.

Volume Control Knob at the rear of gun controls the volume of fluid dispensed. For cleaning, turn button as far left as possible: then back to right 1/2 to one revolution. Once adjustments are made to satisfactory pressure and volume setting it is not generally necessary to change them.

TROUBLESHOOTING MINOR MECHANICAL PROBLEMS

1. Fluid Leakage It is necessary that all parts , particularly the nozzle head, be tight to prevent fluid working its way through the screw threads. Cleaning should be done at an angle no greater than 45° to prevent leakage from the air hole at the top of the gun. Leakage will also occur at the screw threads of the container cup if it is tilted forward for an extended period of time.
2. Lack of Pressure The primary cause of lack of pressure occurs when the suction tube, set screw, and nozzle head are not tight and the unit is sucking air. Blockage in the pump unit or nozzle and weak/damaged springs in the pump assembly are also a cause of low pressure. A lack of pressure will also occur when the prime is lost due to excessive tilting of the gun.
3. Operation without Fluid It is highly recommended that this unit not be operated empty since undue wear and strain is caused on all working parts. Continued use of an empty pump will cause breakage of parts and needless repairs.
4. Lubrication The gun should not be over-lubricated. One or two drops of light machine oil used daily is sufficient to keep the pump unit in working condition. For storage or discontinued use, it is recommended that a light machine oil be pumped through the gun in the same manner as cleaning fluids for a period of 2 to 3 seconds. For start-up, cleaning fluid should run through the unit prior to operation so that any oily films are pumped through the unit and flushed out.

30 day only warranty. For a better gun, with a better warranty, get the Expert 3000.

Additional Information

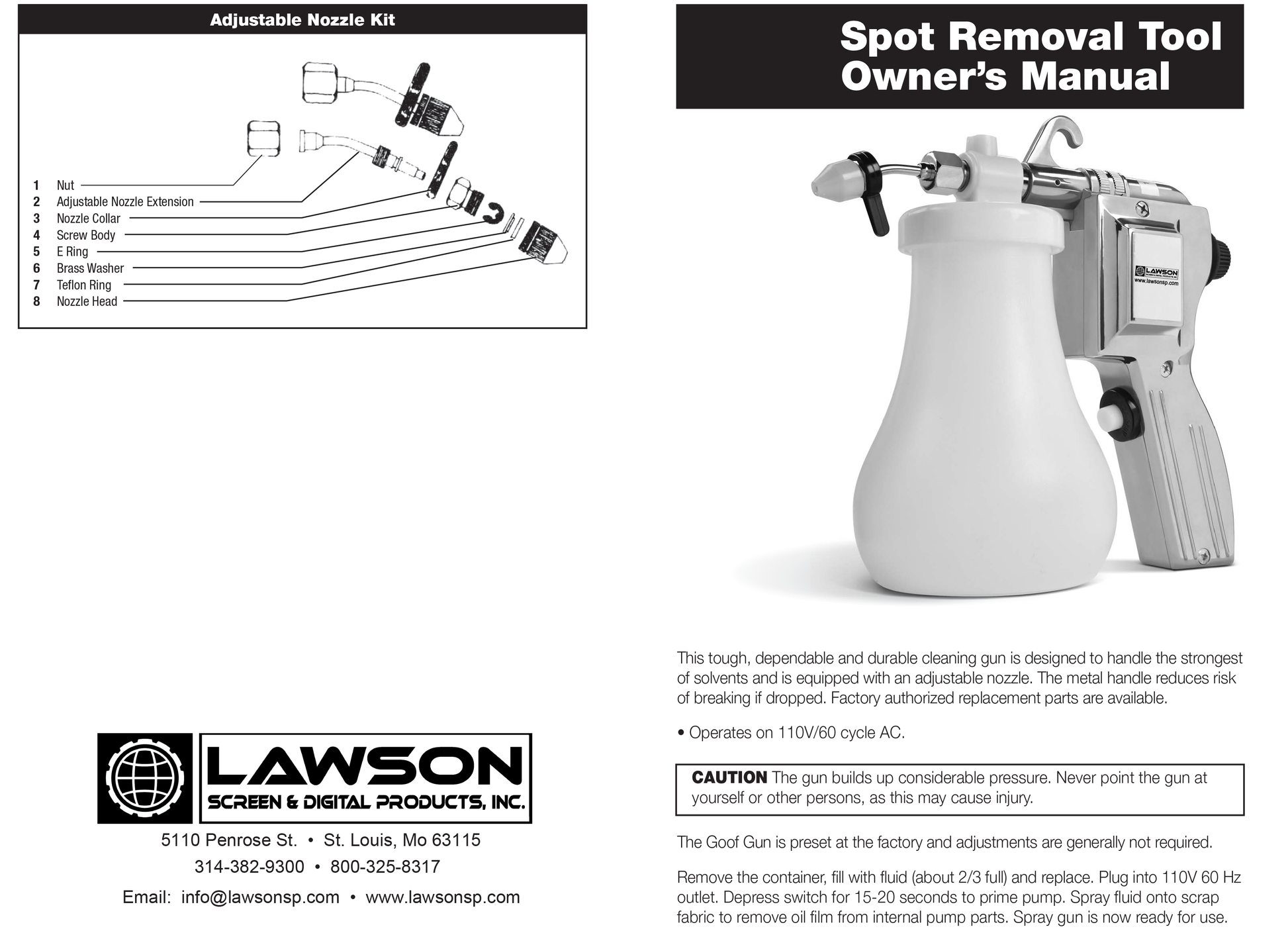

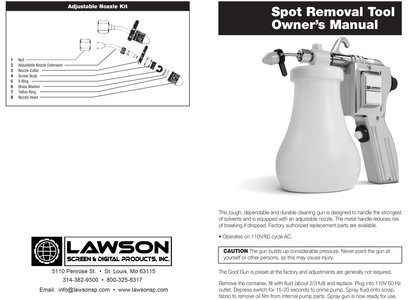

Click Here for Printable Instructions Manual
